art.-8034-little-lord-ar

LITTLE-LORD/AR

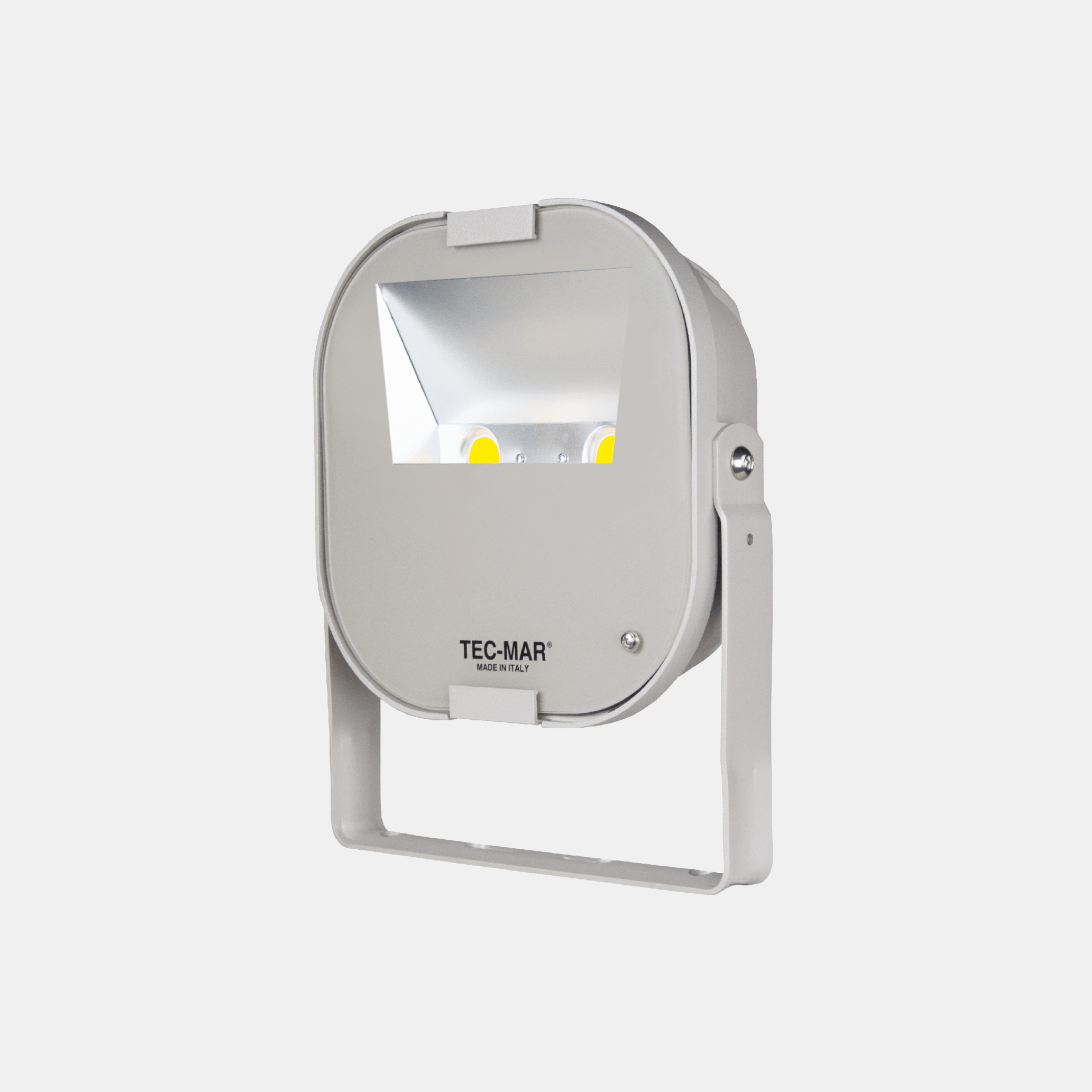

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LITTLE-LORD - 8034, Floodlights, art. 8034 Little-Lord
Models: 60
Color: Silver
Catalogue abstract
Installation instructions

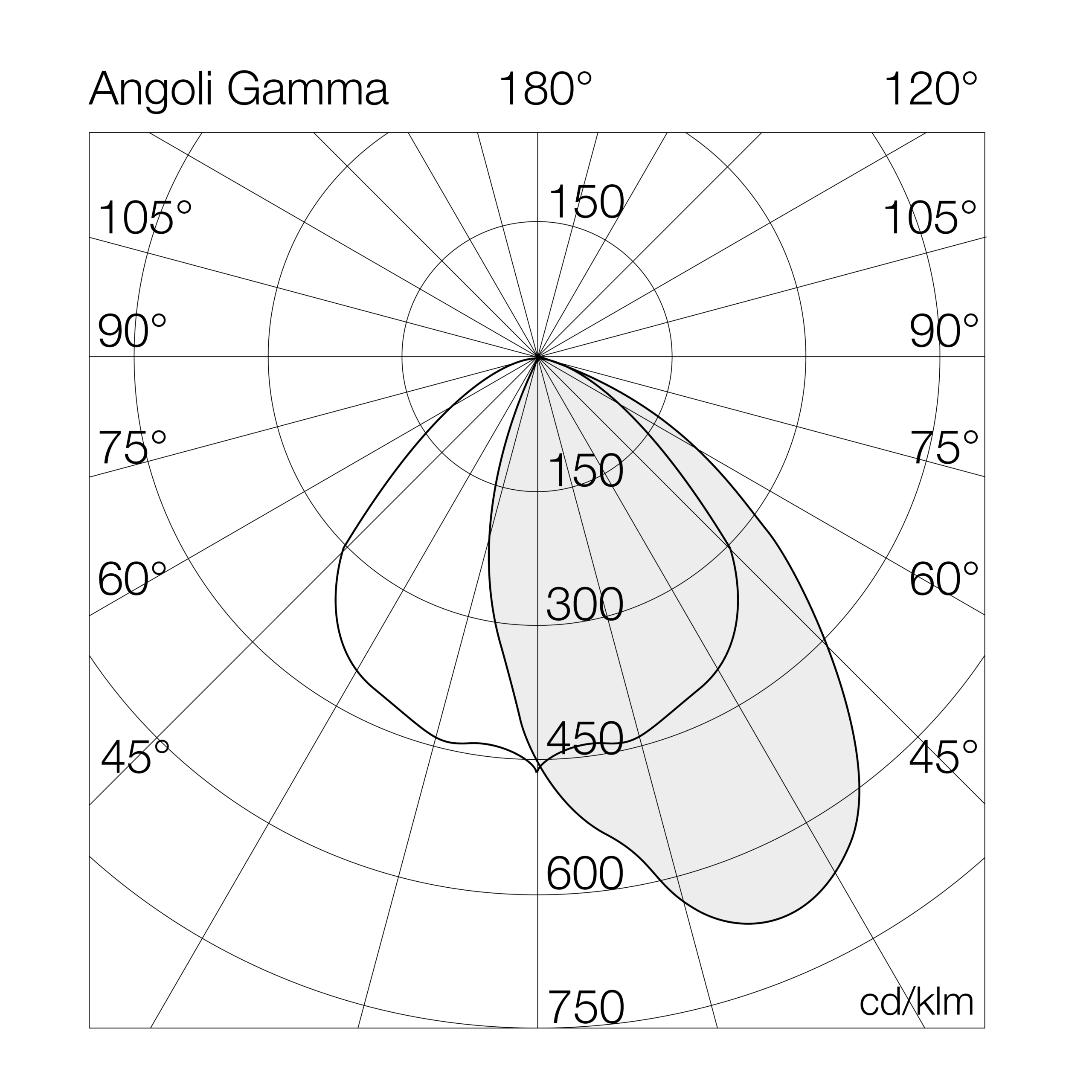

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8034AR3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)100GD= dali
5= 5000°K (CRI >80)120GA= acid-etched glass
6= 6500°K (CRI >80)130
150

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8034AR4080GL80-4000°K - CRI>80on/off10427130295100355-4.9
8034AR4100GL100-4000°K - CRI>80on/off13047130295100355-4.9
8034AR4120GL120-4000°K - CRI>80on/off14298119295100355-4.9
8034AR4130GL130-4000°K - CRI>80on/off15906122295100355-4.9
8034AR4150GL150-4000°K - CRI>80on/off17447116295145355-5.7
8034AR4080GD80-4000°K - CRI>80dali10427130295100355-4.9
8034AR4100GD100-4000°K - CRI>80dali13047130295100355-4.9
8034AR4120GD120-4000°K - CRI>80dali14298119295100355-4.9
8034AR4130GD130-4000°K - CRI>80dali15906122295100355-4.9
8034AR4150GD150-4000°K - CRI>80dali17447116295145355-5.7
8034AR4080GA80-4000°K - CRI>80acid-etched glass10427130295100355-4.9
8034AR4100GA100-4000°K - CRI>80acid-etched glass13047130295100355-4.9
8034AR4120GA120-4000°K - CRI>80acid-etched glass14298119295100355-4.9
8034AR4130GA130-4000°K - CRI>80acid-etched glass15906122295100355-4.9
8034AR4150GA150-4000°K - CRI>80acid-etched glass17447116295145355-5.7
8034AR3080GL80-3000°K - CRI>80on/off9876123295100355-4.9
8034AR3100GL100-3000°K - CRI>80on/off12358124295100355-4.9
8034AR3120GL120-3000°K - CRI>80on/off13543113295100355-4.9
8034AR3130GL130-3000°K - CRI>80on/off15066116295100355-4.9
8034AR3150GL150-3000°K - CRI>80on/off16526110295145355-5.7

Accessories
