art.-8034-little-lord-cr

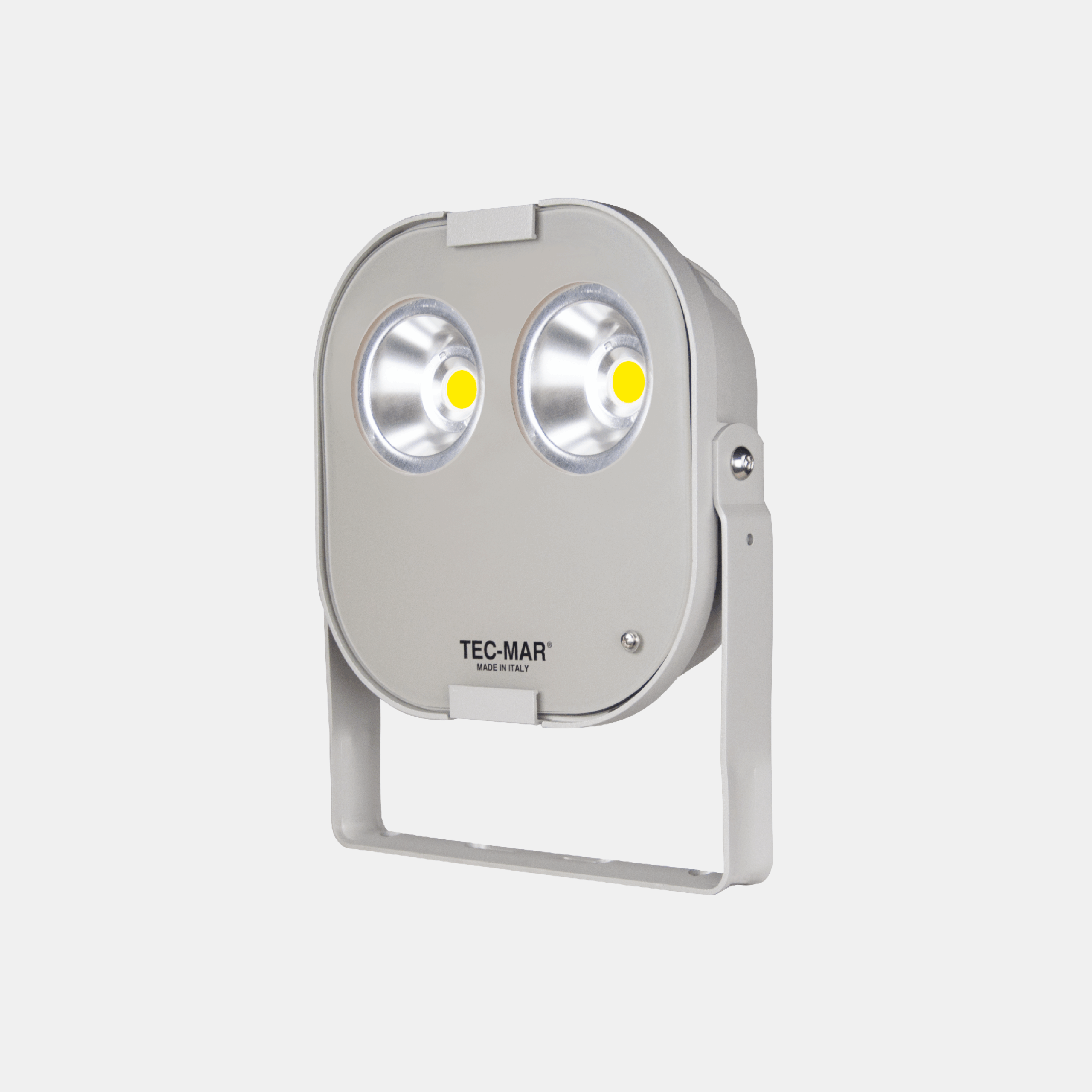

LITTLE-LORD/CR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LITTLE-LORD - 8034, Floodlights, art. 8034 Little-Lord
Models: 60
Color: Silver
Catalogue abstract
Installation instructions

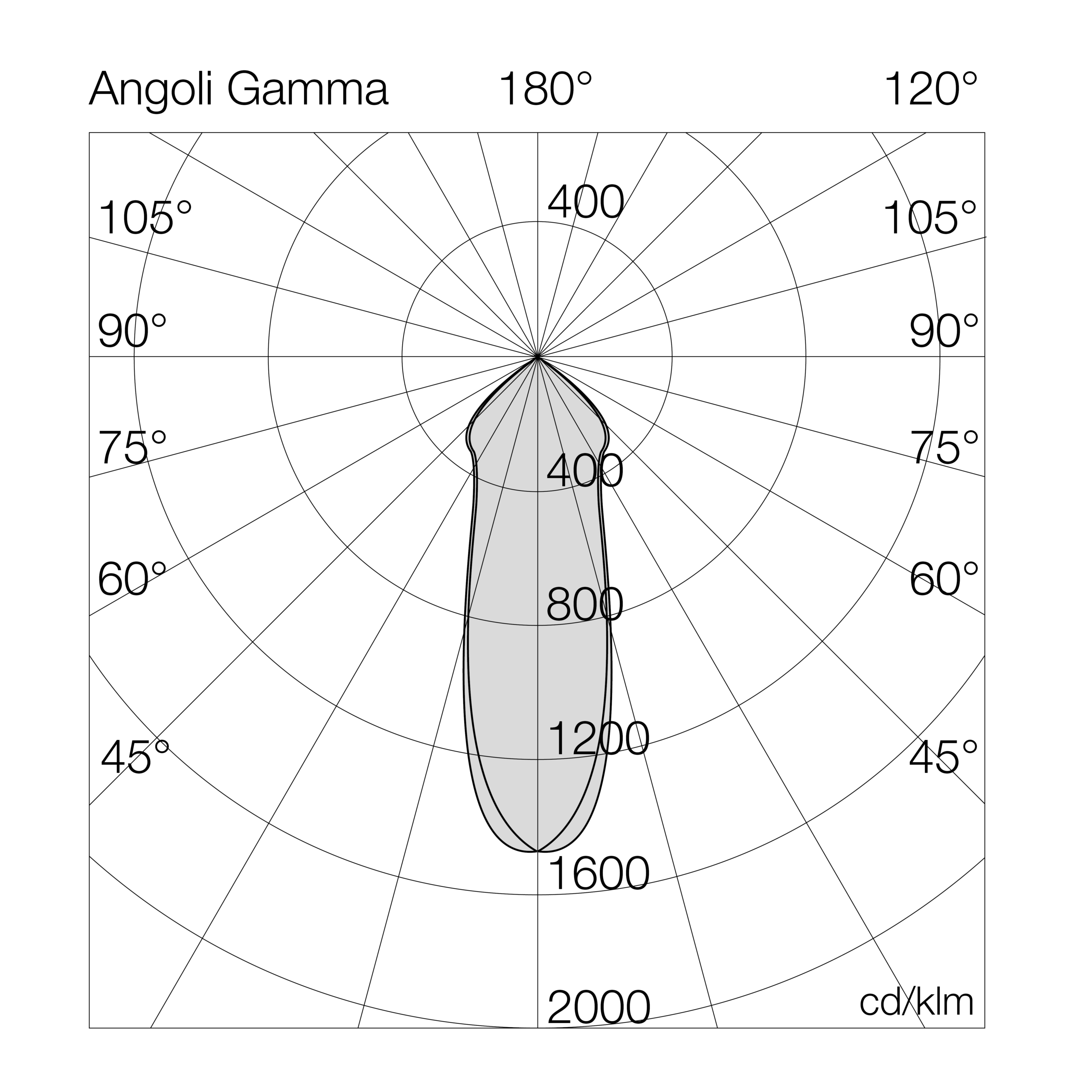

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8034CR3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)100GD= dali
5= 5000°K (CRI >80)120GA= acid-etched glass
6= 6500°K (CRI >80)130
150

Models

W tot.
°K - CRI
Options

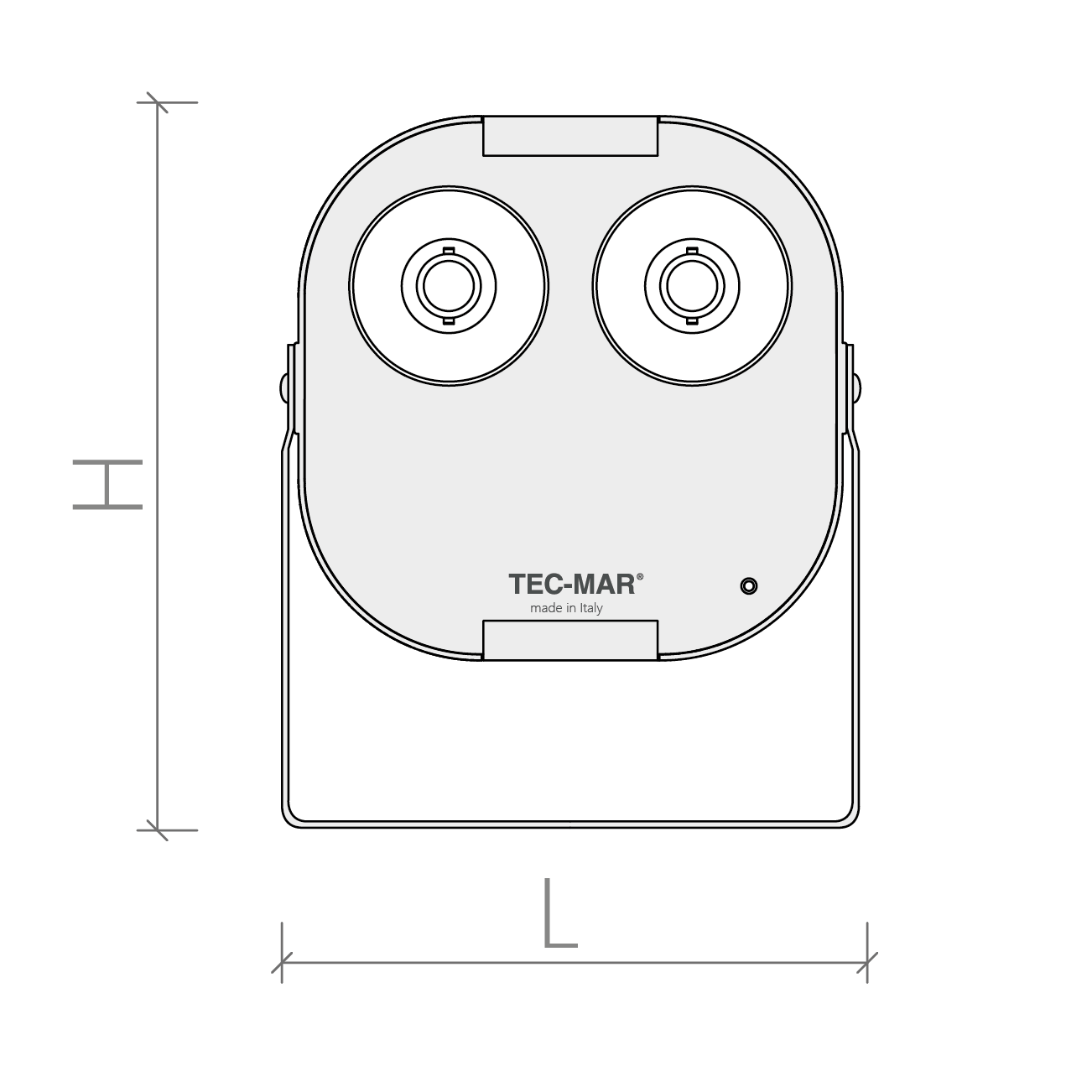

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8034CR4080GL80-4000°K - CRI>80on/off10623133295100355-4.9
8034CR4100GL100-4000°K - CRI>80on/off13292133295100355-4.9
8034CR4120GL120-4000°K - CRI>80on/off14566121295100355-4.9
8034CR4130GL130-4000°K - CRI>80on/off16205125295100355-4.9
8034CR4150GL150-4000°K - CRI>80on/off17774118295145355-5.7
8034CR4080GD80-4000°K - CRI>80dali10623133295100355-4.9
8034CR4100GD100-4000°K - CRI>80dali13292133295100355-4.9
8034CR4120GD120-4000°K - CRI>80dali14566121295100355-4.9
8034CR4130GD130-4000°K - CRI>80dali16205125295100355-4.9
8034CR4150GD150-4000°K - CRI>80dali17774118295145355-5.7
8034CR4080GA80-4000°K - CRI>80acid-etched glass10623133295100355-4.9
8034CR4100GA100-4000°K - CRI>80acid-etched glass13292133295100355-4.9
8034CR4120GA120-4000°K - CRI>80acid-etched glass14566121295100355-4.9
8034CR4130GA130-4000°K - CRI>80acid-etched glass16205125295100355-4.9
8034CR4150GA150-4000°K - CRI>80acid-etched glass17774118295145355-5.7
8034CR3080GL80-3000°K - CRI>80on/off10062126295100355-4.9
8034CR3100GL100-3000°K - CRI>80on/off12590126295100355-4.9
8034CR3120GL120-3000°K - CRI>80on/off13797115295100355-4.9
8034CR3130GL130-3000°K - CRI>80on/off15349118295100355-4.9
8034CR3150GL150-3000°K - CRI>80on/off16836112295145355-5.7
