art.-8034-little-lord-pr

LITTLE-LORD/PR

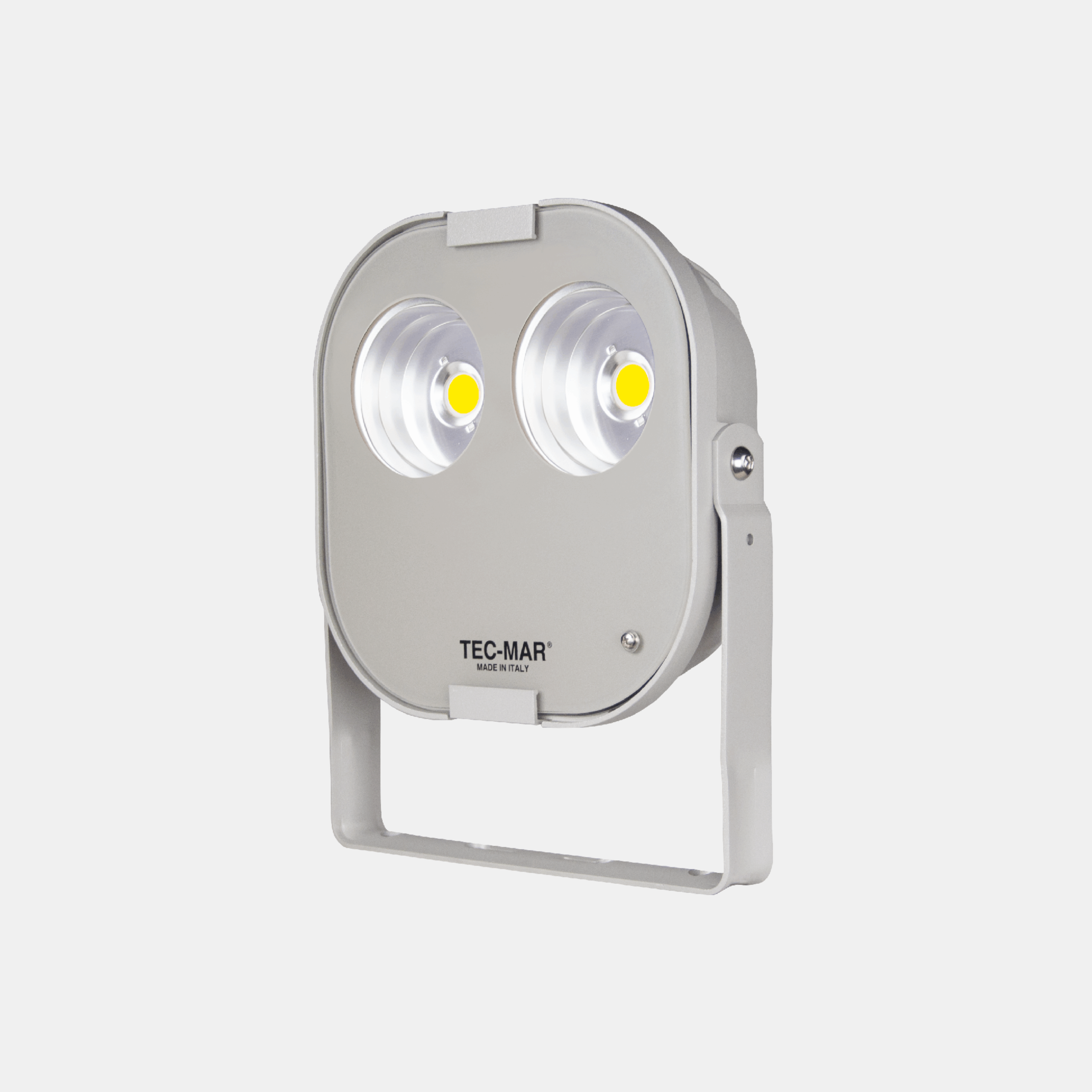

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LITTLE-LORD - 8034, Floodlights, art. 8034 Little-Lord
Models: 60
Color: Silver
Catalogue abstract
Installation instructions

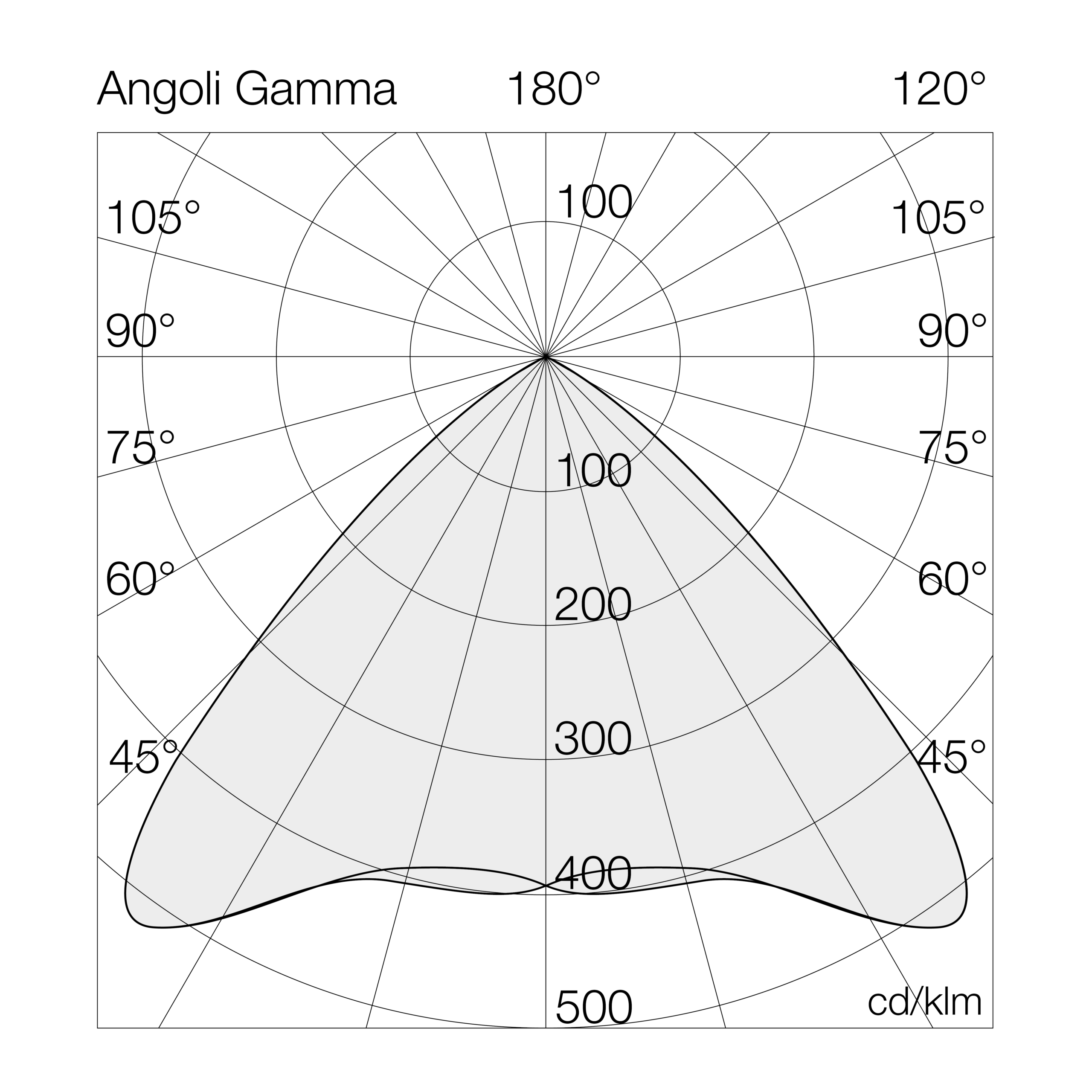

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8034PR3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)100GD= dali
5= 5000°K (CRI >80)120GA= acid-etched glass
6= 6500°K (CRI >80)130
150

Models

W tot.
°K - CRI
Options

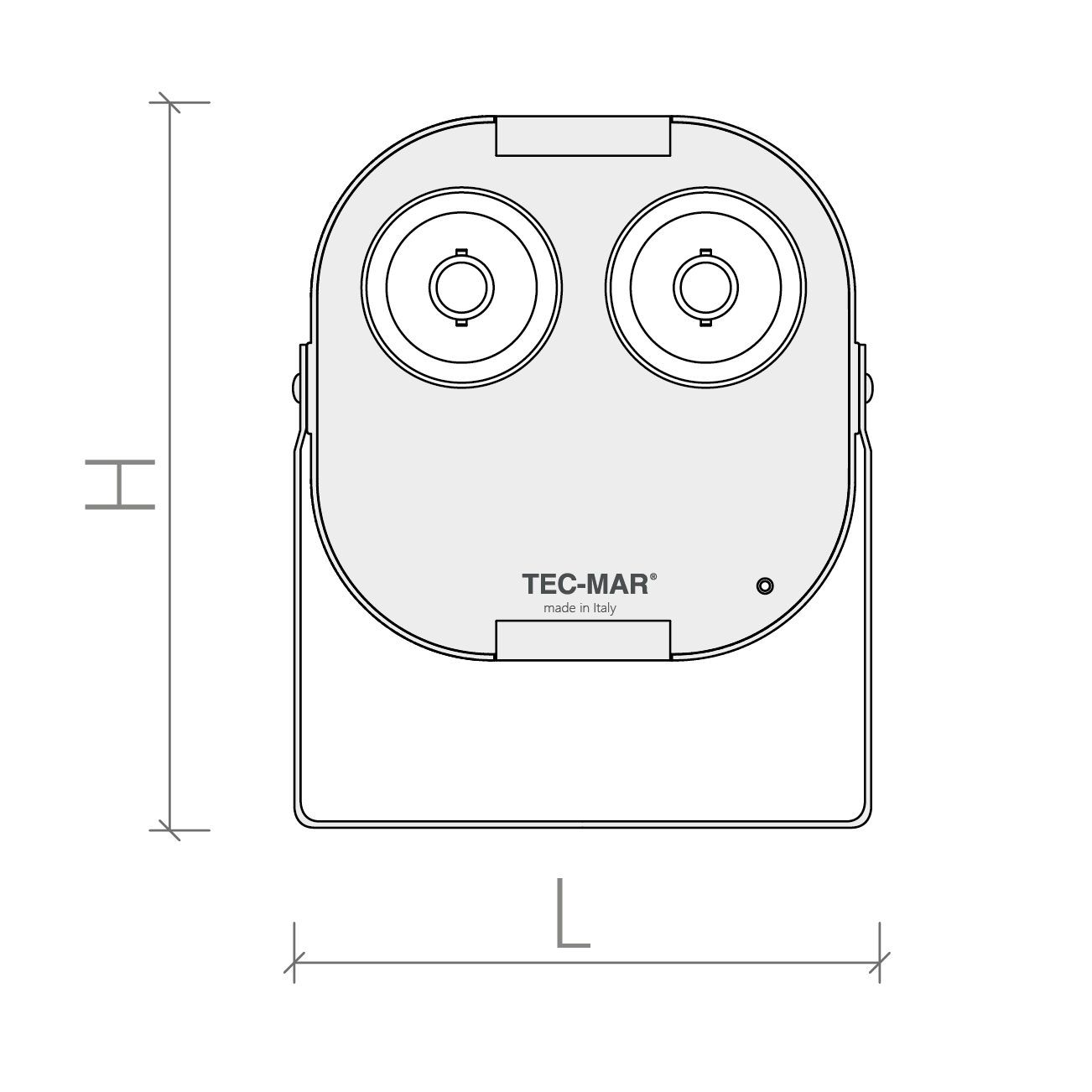

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8034PR4080GL80-4000°K - CRI>80on/off10688134295100355-4.9
8034PR4100GL100-4000°K - CRI>80on/off13373134295100355-4.9
8034PR4120GL120-4000°K - CRI>80on/off14656122295100355-4.9
8034PR4130GL130-4000°K - CRI>80on/off16304125295100355-4.9
8034PR4150GL150-4000°K - CRI>80on/off17883119295145355-5.7
8034PR4080GD80-4000°K - CRI>80dali10688134295100355-4.9
8034PR4100GD100-4000°K - CRI>80dali13373134295100355-4.9
8034PR4120GD120-4000°K - CRI>80dali14656122295100355-4.9
8034PR4130GD130-4000°K - CRI>80dali16304125295100355-4.9
8034PR4150GD150-4000°K - CRI>80dali17883119295145355-5.7
8034PR4080GA80-4000°K - CRI>80acid-etched glass10688134295100355-4.9
8034PR4100GA100-4000°K - CRI>80acid-etched glass13373134295100355-4.9
8034PR4120GA120-4000°K - CRI>80acid-etched glass14656122295100355-4.9
8034PR4130GA130-4000°K - CRI>80acid-etched glass16304125295100355-4.9
8034PR4150GA150-4000°K - CRI>80acid-etched glass17883119295145355-5.7
8034PR3080GL80-3000°K - CRI>80on/off10124127295100355-4.9
8034PR3100GL100-3000°K - CRI>80on/off12667127295100355-4.9
8034PR3120GL120-3000°K - CRI>80on/off13882116295100355-4.9
8034PR3130GL130-3000°K - CRI>80on/off15443119295100355-4.9
8034PR3150GL150-3000°K - CRI>80on/off16939113295145355-5.7

Accessories
