LORD 2/CR

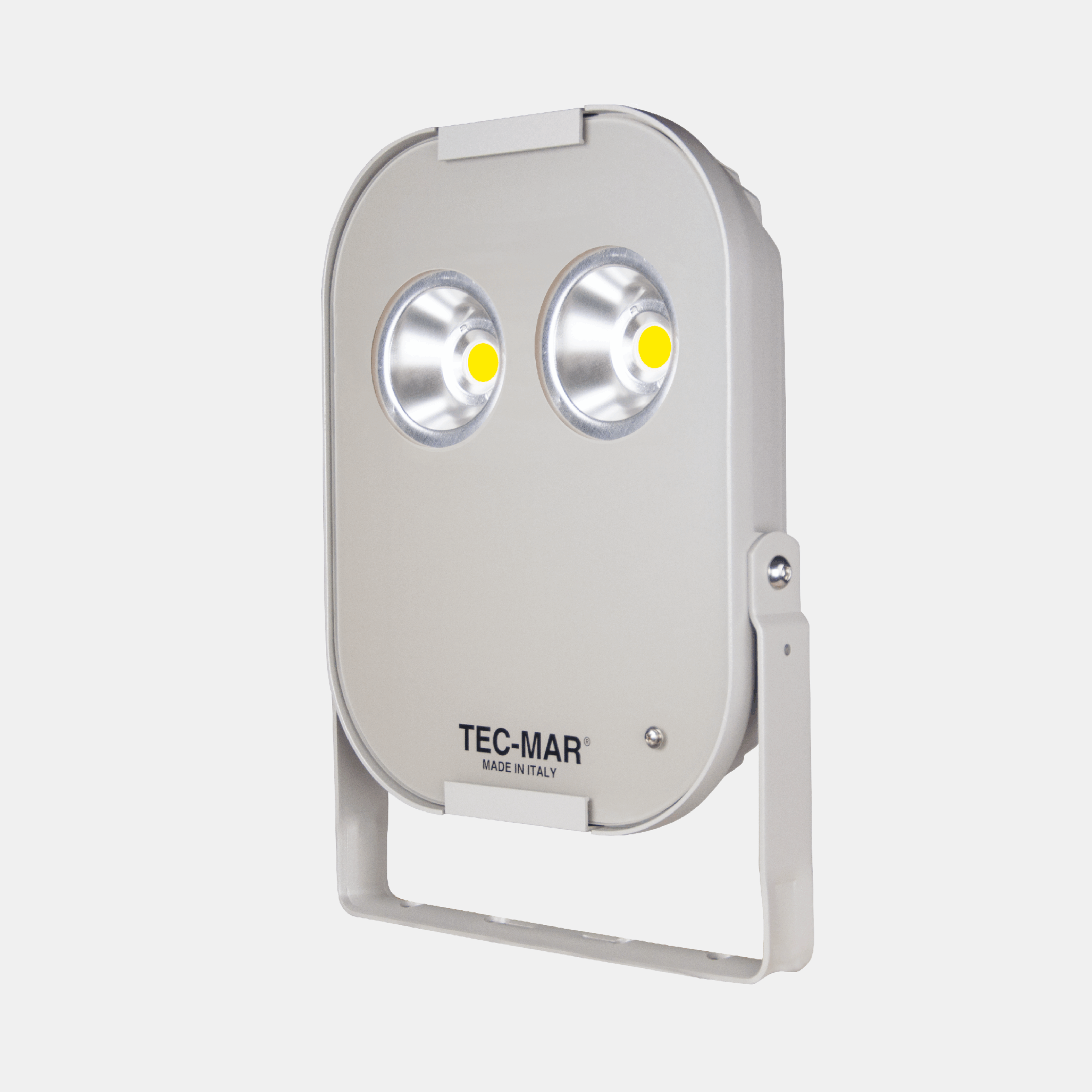

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORD 2 - 8036, Floodlights, art. 8036 Lord 2
Models: 120
Color: Silver
Catalogue abstract
Installation instructions

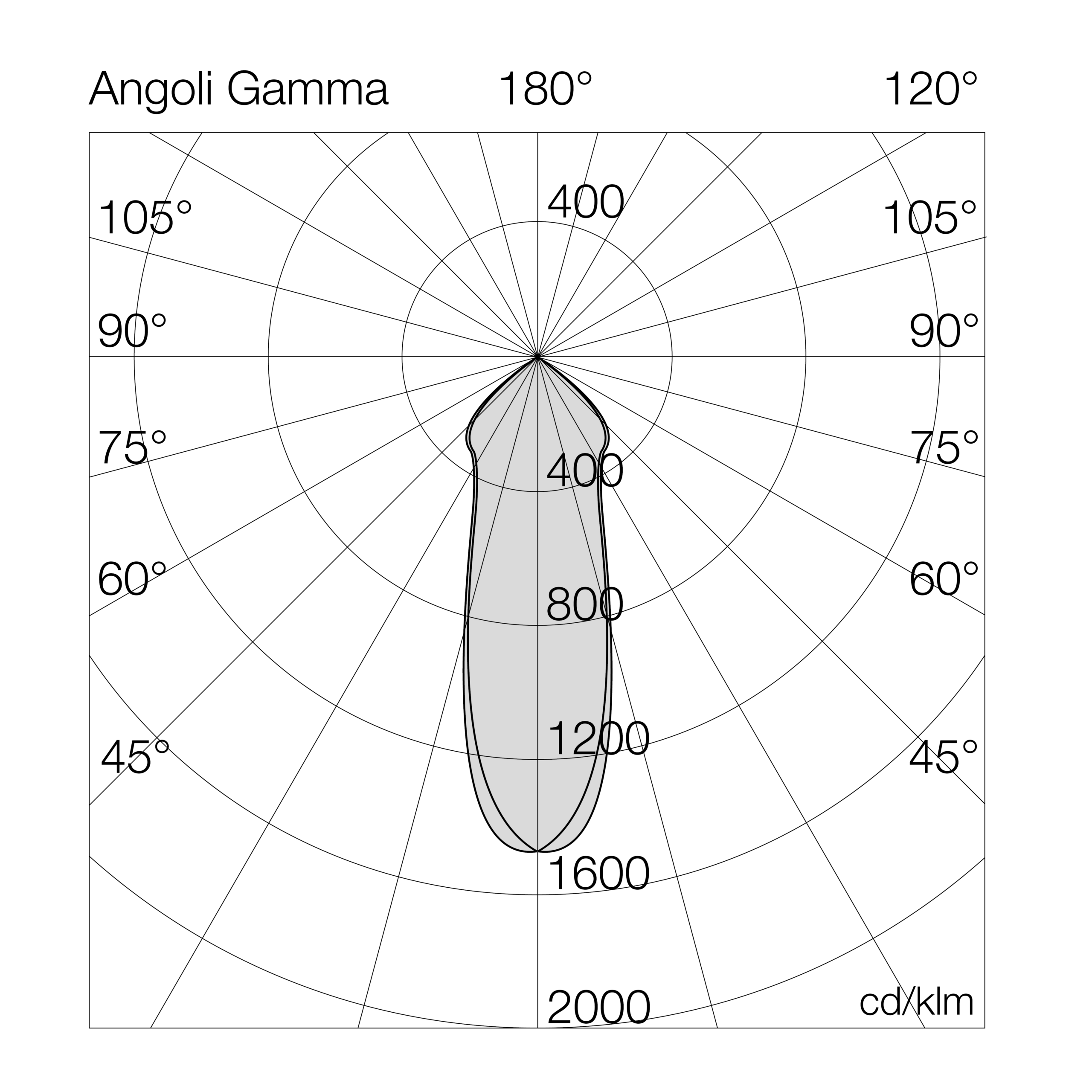

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8036CR3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)118GD= dali
5= 5000°K (CRI >80)130G1= em. 1h
6= 6500°K (CRI >80)150GA= acid-etched glass
7= 5700°K (CRI >90)170
185

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8036CR4080GL80-4000°K - CRI>80on/off1135714231585445-6.5
8036CR4118GL118-4000°K - CRI>80on/off1547513131585445-6.5
8036CR4130GL130-4000°K - CRI>80on/off1712013231585445-6.5
8036CR4150GL150-4000°K - CRI>80on/off2028413531585445-6.5
8036CR4170GL170-4000°K - CRI>80on/off2089612331585445-6.5
8036CR4185GL185-4000°K - CRI>80on/off2269512331585445-6.5
8036CR4080GD80-4000°K - CRI>80dali1135714231585445-6.5
8036CR4118GD118-4000°K - CRI>80dali1547513131585445-6.5
8036CR4130GD130-4000°K - CRI>80dali1712013231585445-6.5
8036CR4150GD150-4000°K - CRI>80dali2028413531585445-6.5
8036CR4170GD170-4000°K - CRI>80dali2089612331585445-6.5
8036CR4185GD185-4000°K - CRI>80dali2269512331585445-6.5
8036CR4080G180-4000°K - CRI>80em. 1h1135714231585445-6.5
8036CR4118G1118-4000°K - CRI>80em. 1h1547513131585445-6.5
8036CR4130G1130-4000°K - CRI>80em. 1h1712013231585445-6.5
8036CR4150G1150-4000°K - CRI>80em. 1h2028413531585445-6.5
8036CR4170G1170-4000°K - CRI>80em. 1h2089612331585445-6.5
8036CR4185G1185-4000°K - CRI>80em. 1h2269512331585445-6.5
8036CR4080GA80-4000°K - CRI>80acid-etched glass1135714231585445-6.5
8036CR4118GA118-4000°K - CRI>80acid-etched glass1547513131585445-6.5
