LORD HP/CR

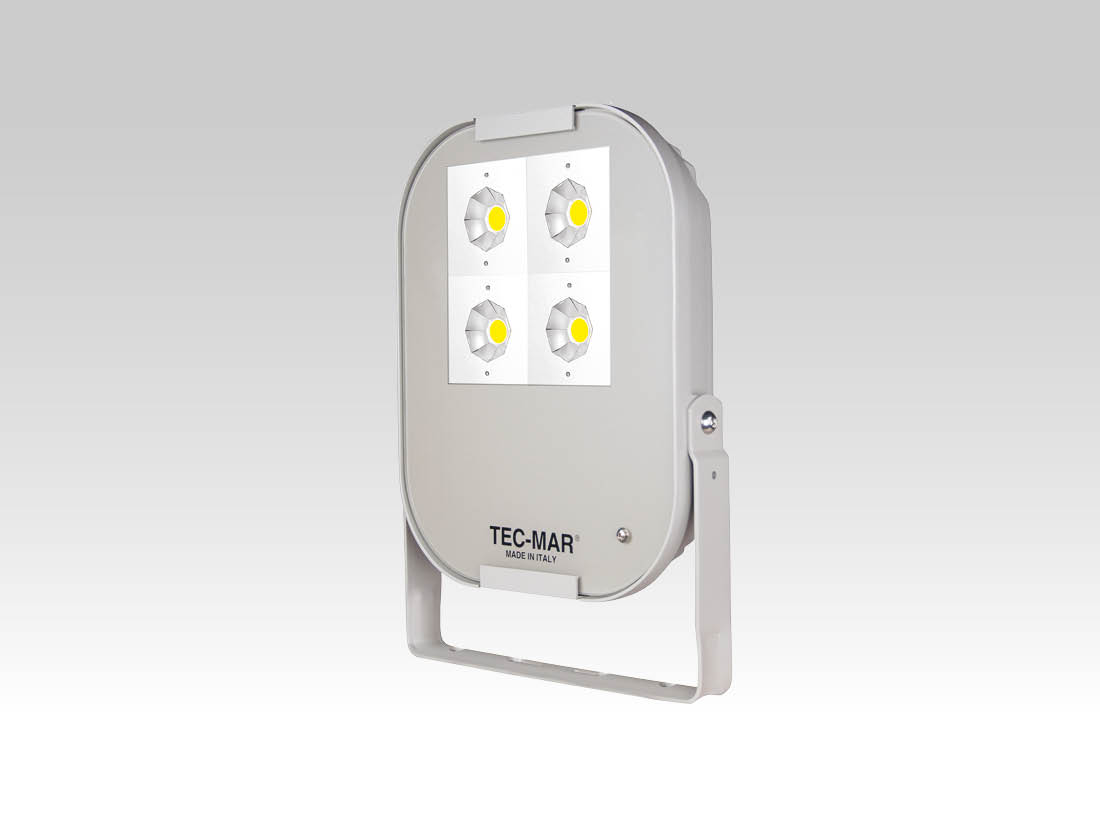

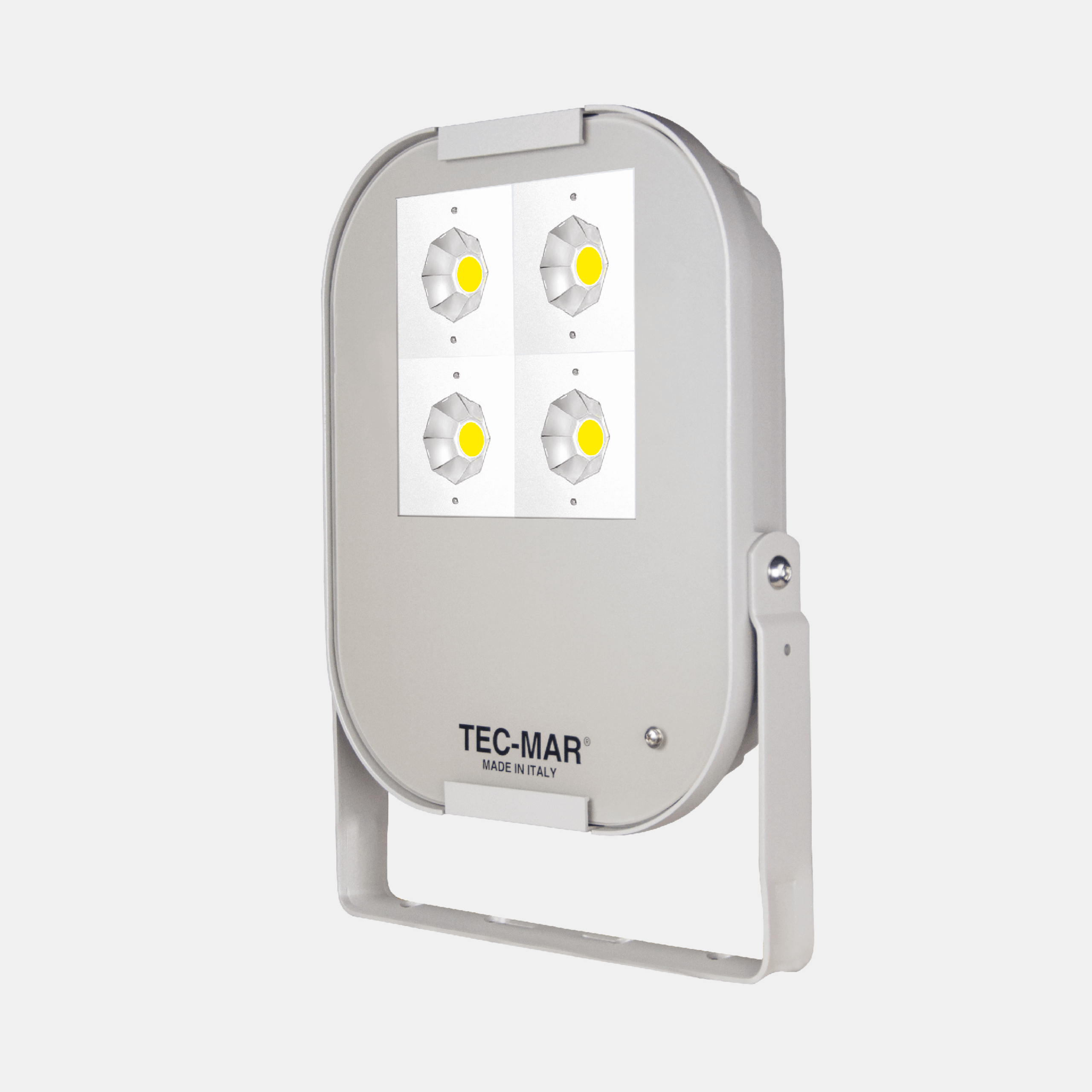

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORD HP - 8037, Floodlights, art. 8037 Lord HP
Models: 150
Color: Silver
Catalogue abstract
Installation instructions

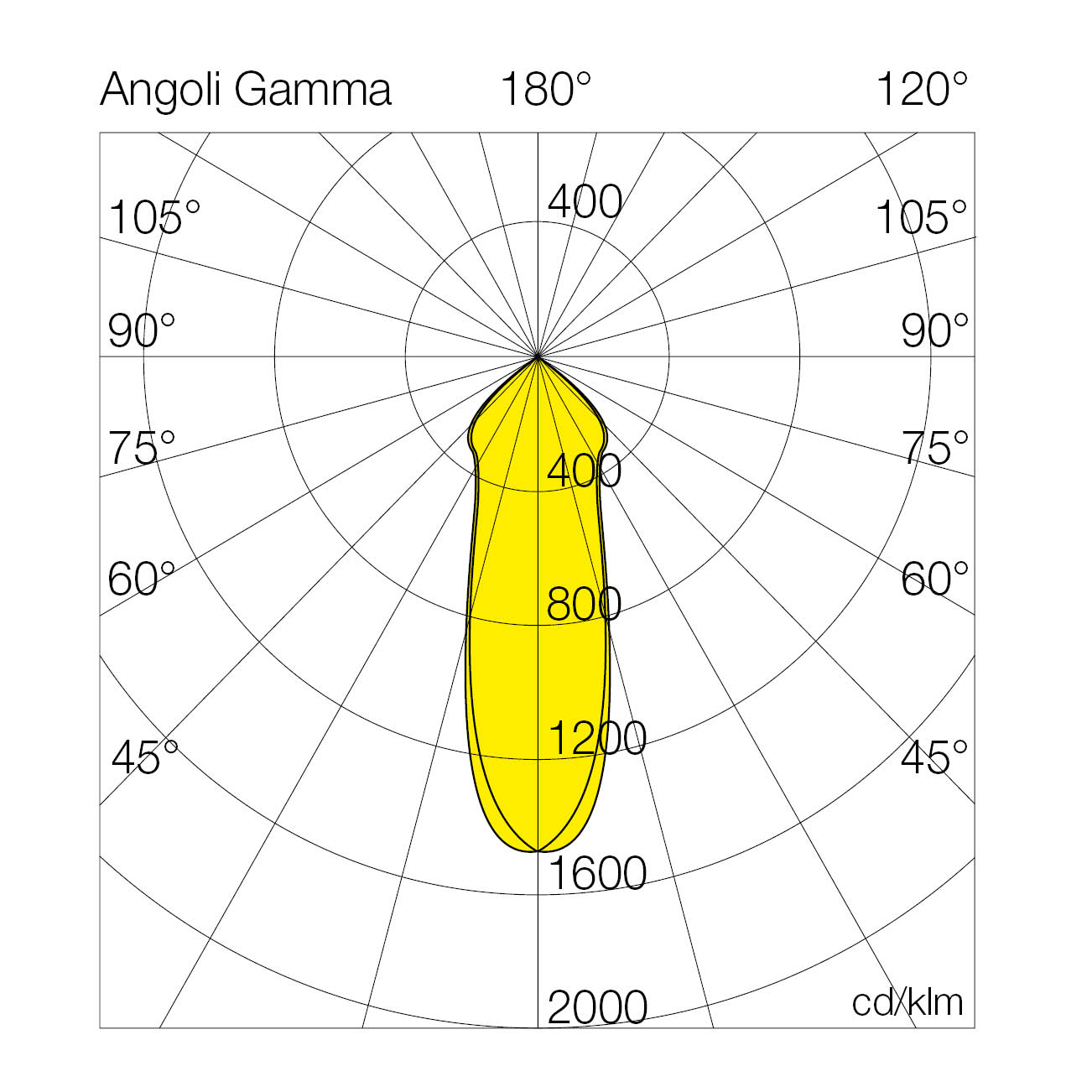

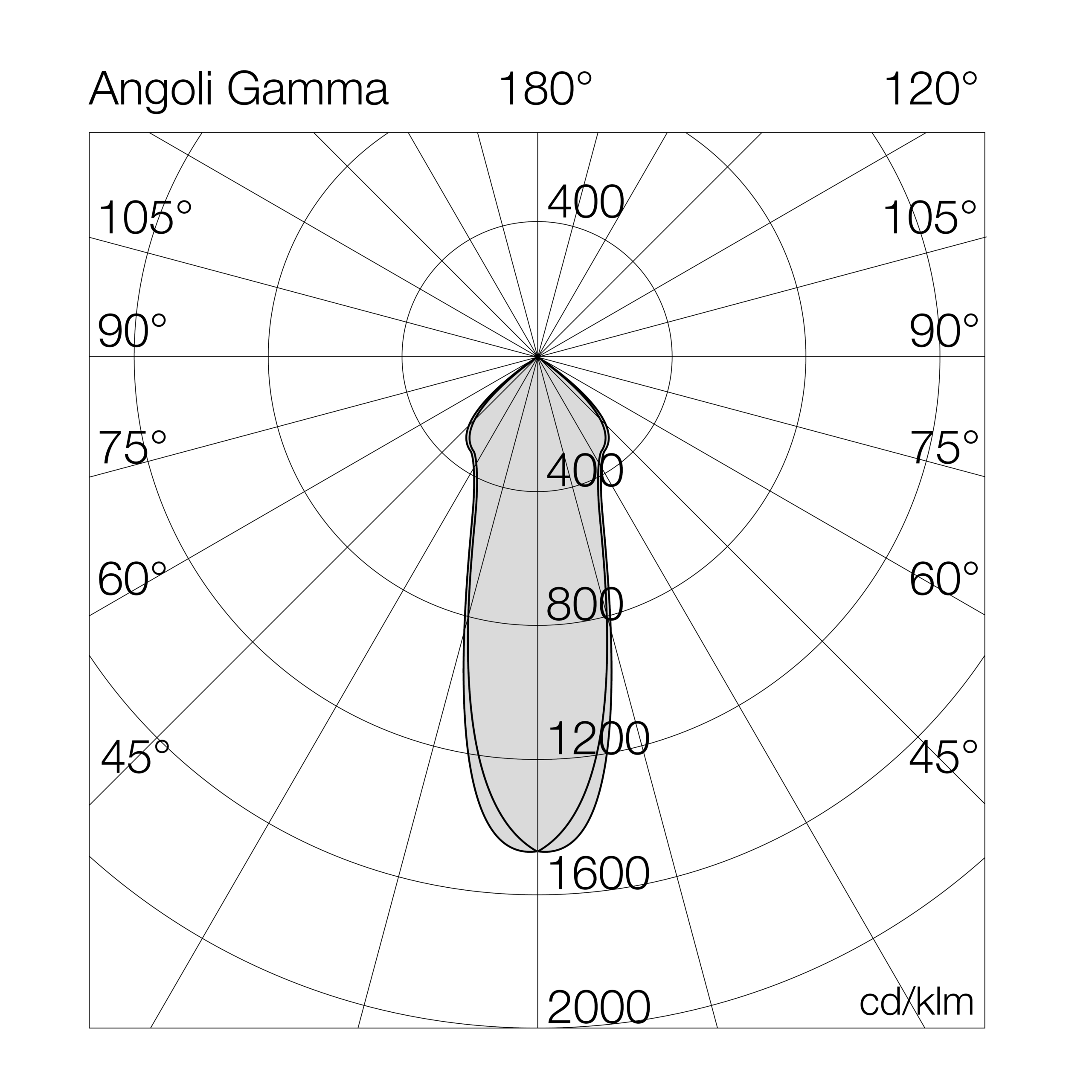

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8037CR3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)100GD= dali
5= 5000°K (CRI >80)120MG= virtual midnight
6= 6500°K (CRI >80)150G1= em. 1h
7= 5700°K (CRI >90)170GA= acid-etched glass
185

Models

W tot.
°K - CRI
Options

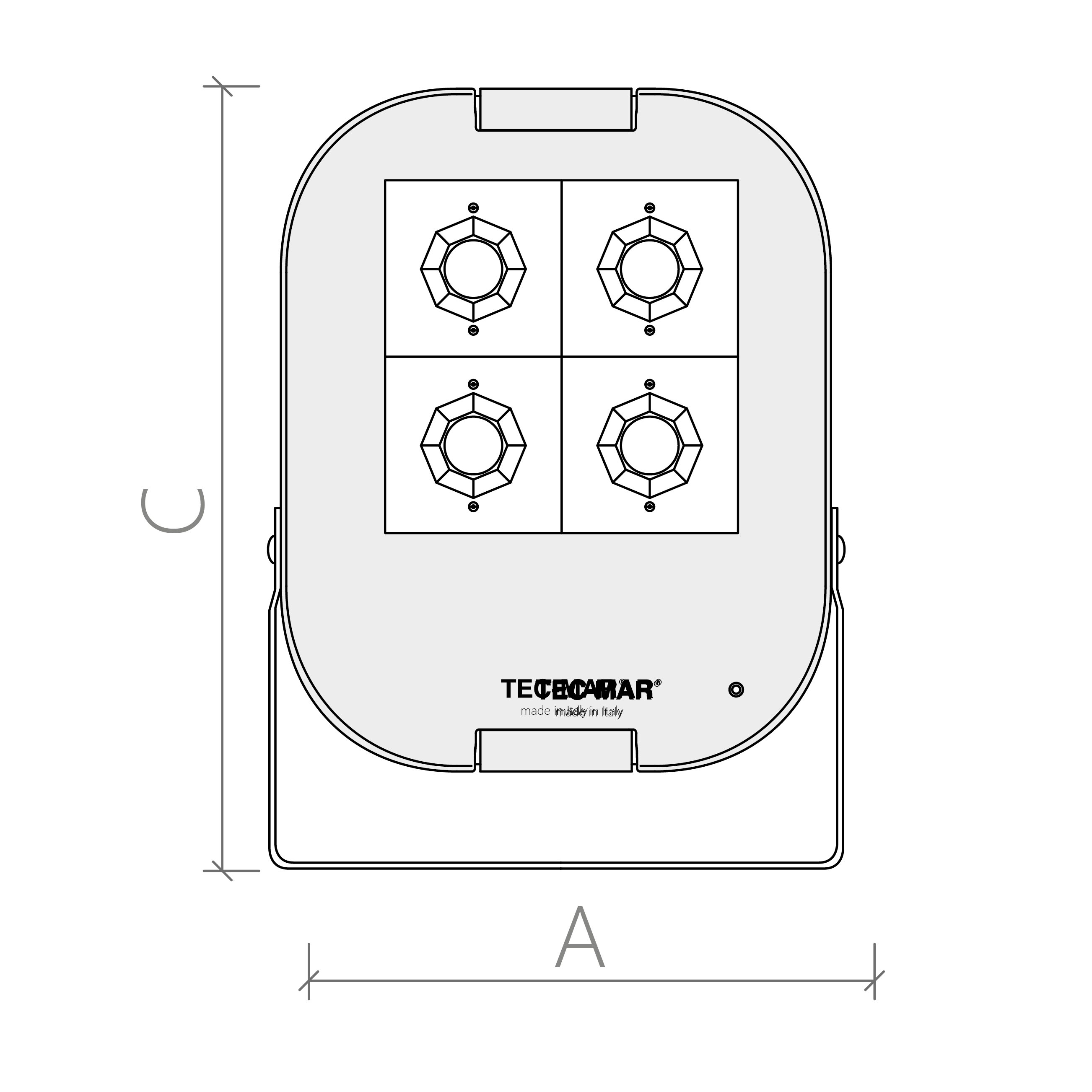

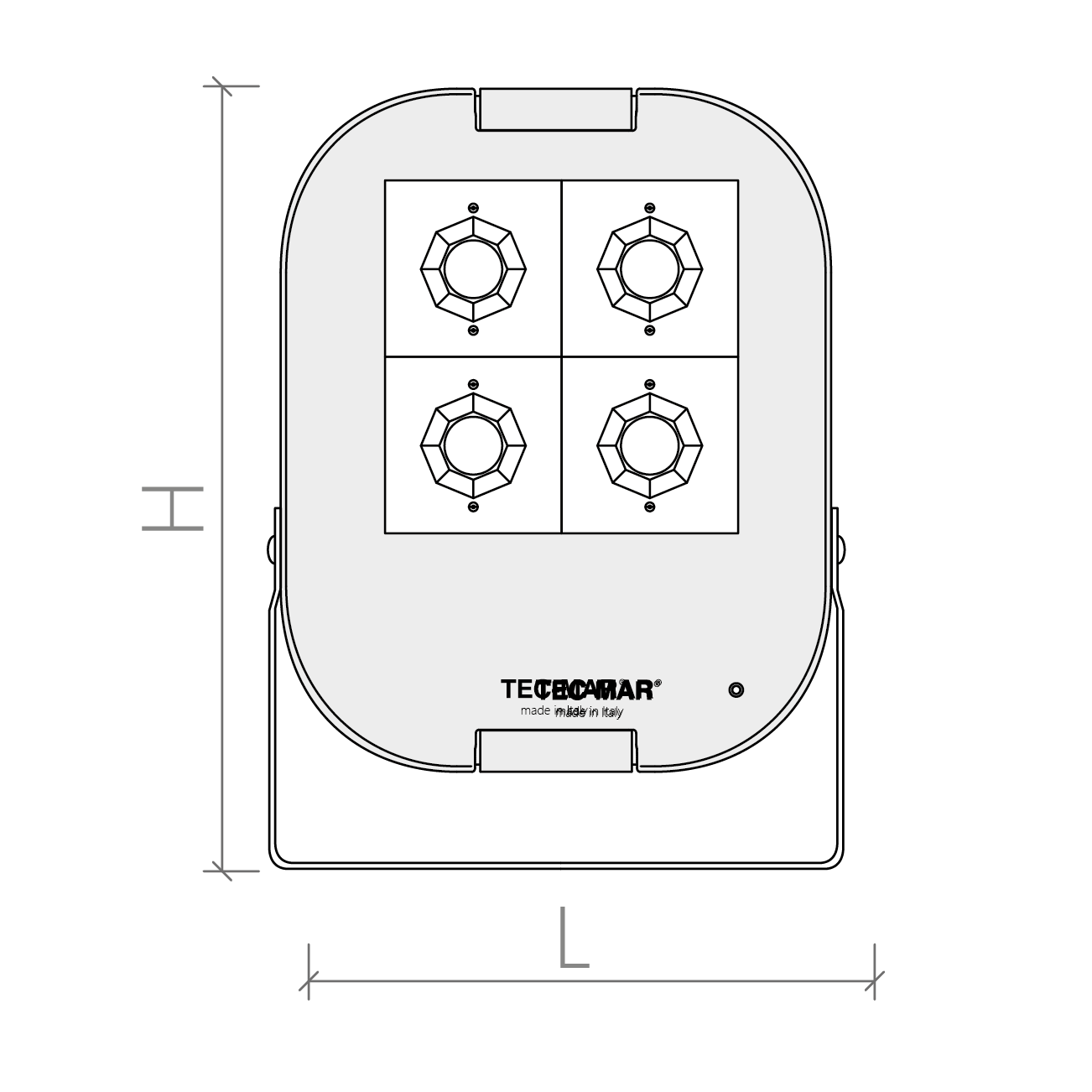

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8037CR4080GL80-4000°K - CRI>80on/off1194014931585445-6.5
8037CR4100GL100-4000°K - CRI>80on/off1466614731585445-6.5
8037CR4120GL120-4000°K - CRI>80on/off1710514331585445-6.5
8037CR4150GL150-4000°K - CRI>80on/off2079013931585445-6.5
8037CR4170GL170-4000°K - CRI>80on/off2308813631585445-6.5
8037CR4185GL185-4000°K - CRI>80on/off2508313631585445-6.5
8037CR4080GD80-4000°K - CRI>80dali1194014931585445-6.5
8037CR4100GD100-4000°K - CRI>80dali1466614731585445-6.5
8037CR4120GD120-4000°K - CRI>80dali1710514331585445-6.5
8037CR4150GD150-4000°K - CRI>80dali2079013931585445-6.5
8037CR4170GD170-4000°K - CRI>80dali2308813631585445-6.5
8037CR4185GD185-4000°K - CRI>80dali2508313631585445-6.5
8037CR4080MG80-4000°K - CRI>80virtual midnight1194014931585445-6.5
8037CR4100MG100-4000°K - CRI>80virtual midnight1466614731585445-6.5
8037CR4120MG120-4000°K - CRI>80virtual midnight1710514331585445-6.5
8037CR4150MG150-4000°K - CRI>80virtual midnight2079013931585445-6.5
8037CR4170MG170-4000°K - CRI>80virtual midnight2308813631585445-6.5
8037CR4185MG185-4000°K - CRI>80virtual midnight2508313631585445-6.5
8037CR4080G180-4000°K - CRI>80em. 1h1194014931585445-6.5
8037CR4100G1100-4000°K - CRI>80em. 1h1466614731585445-6.5
