LORD HP/PR

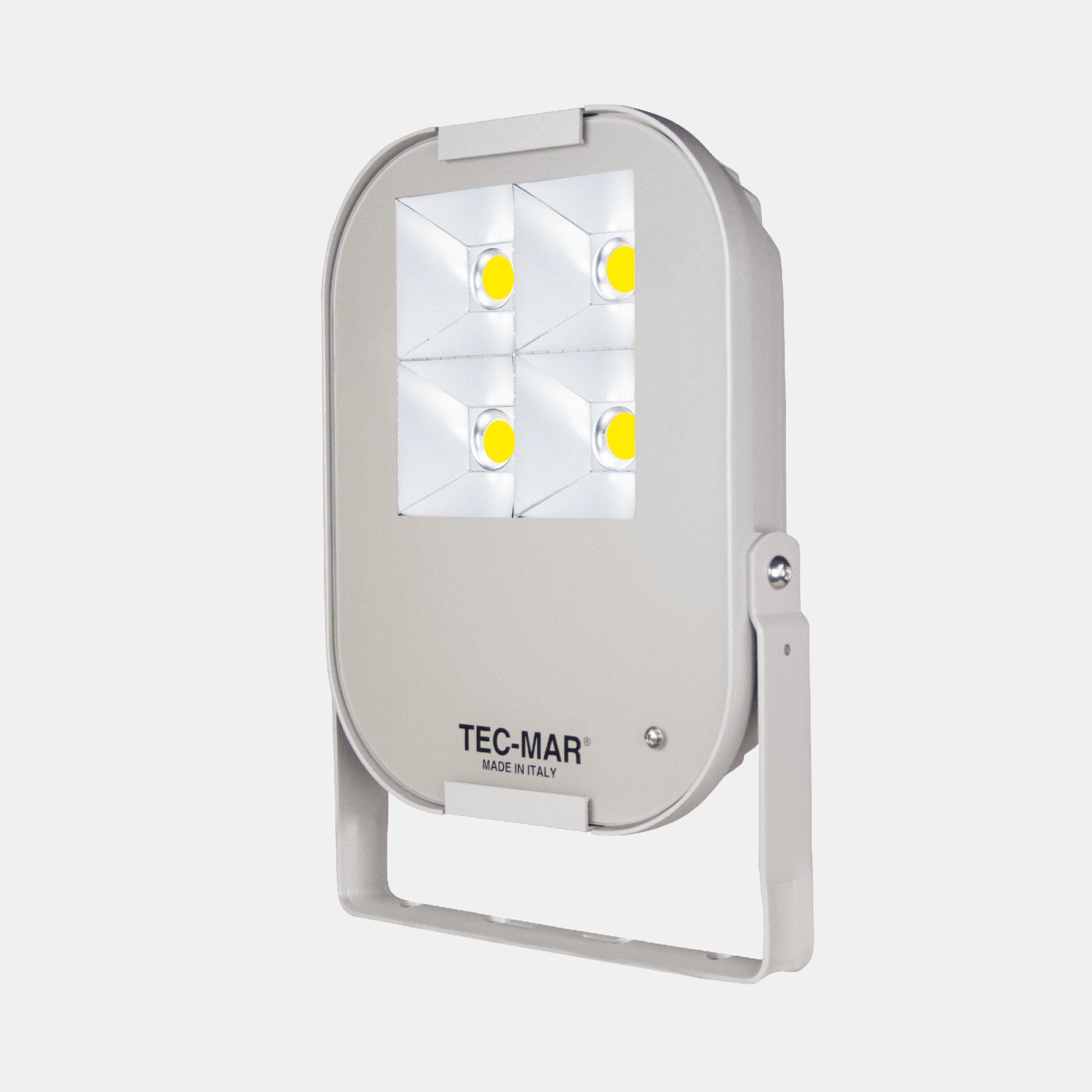

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LORD HP - 8037, Floodlights, art. 8037 Lord HP
Models: 150
Color: Silver
Catalogue abstract
Installation instructions

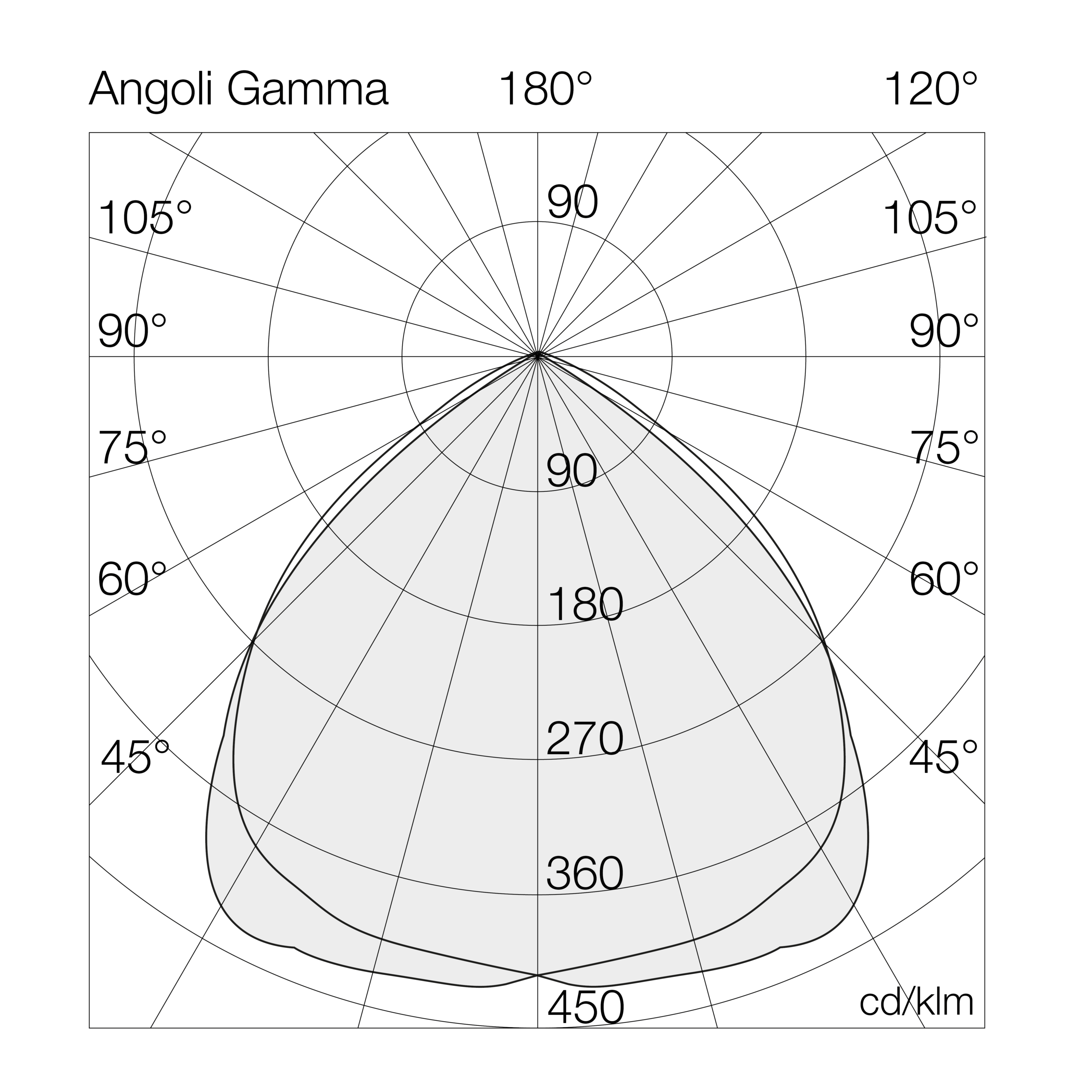

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8037PR3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)100GD= dali
5= 5000°K (CRI >80)120MG= virtual midnight
6= 6500°K (CRI >80)150G1= em. 1h
7= 5700°K (CRI >90)170GA= acid-etched glass
185

Models

W tot.
°K - CRI
Options

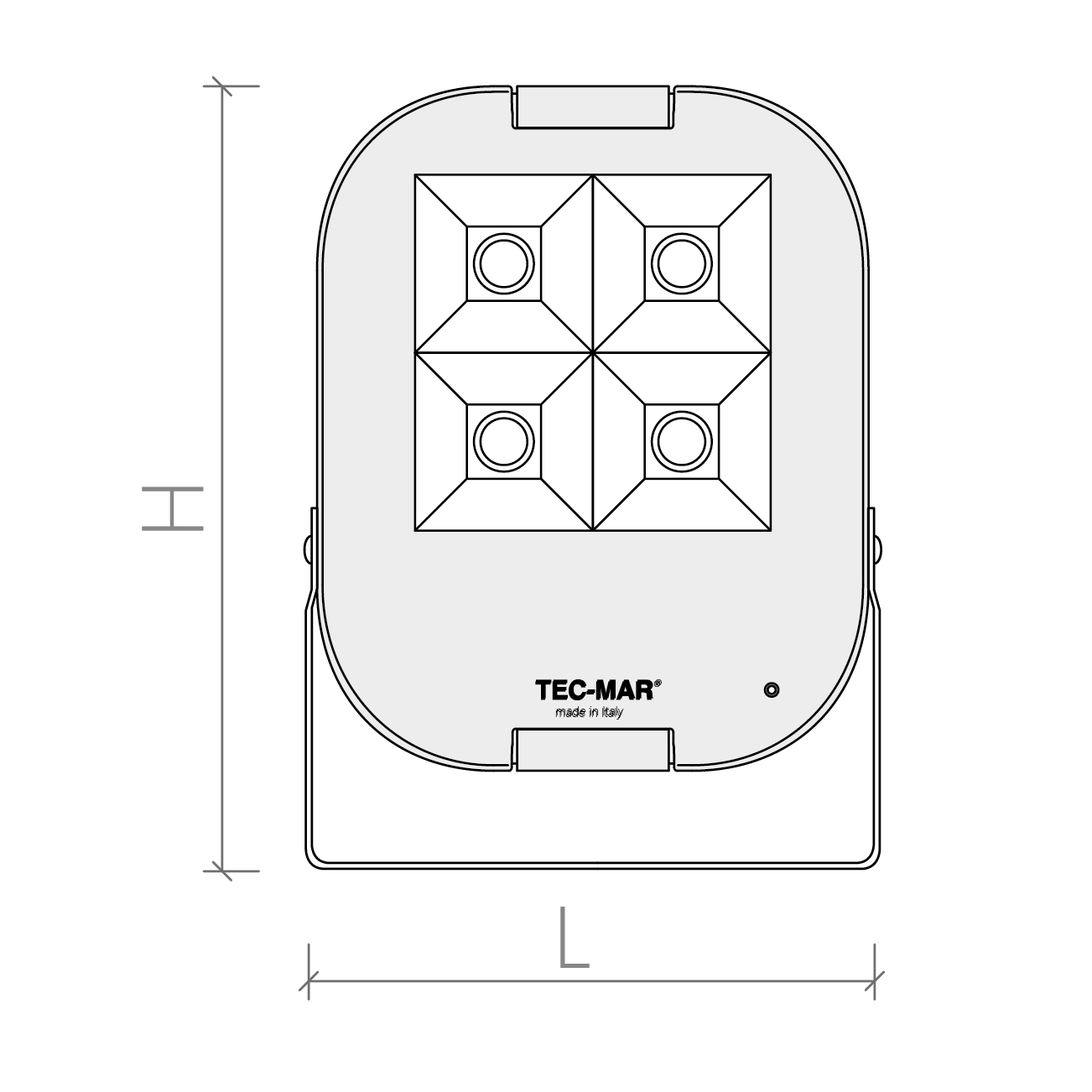

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8037PR4080GL80-4000°K - CRI>80on/off1315716431585445-6.5
8037PR4100GL100-4000°K - CRI>80on/off1616016231585445-6.5
8037PR4120GL120-4000°K - CRI>80on/off1884815731585445-6.5
8037PR4150GL150-4000°K - CRI>80on/off2290915331585445-6.5
8037PR4170GL170-4000°K - CRI>80on/off2544015031585445-6.5
8037PR4185GL185-4000°K - CRI>80on/off2763814931585445-6.5
8037PR4080GD80-4000°K - CRI>80dali1315716431585445-6.5
8037PR4100GD100-4000°K - CRI>80dali1616016231585445-6.5
8037PR4120GD120-4000°K - CRI>80dali1884815731585445-6.5
8037PR4150GD150-4000°K - CRI>80dali2290915331585445-6.5
8037PR4170GD170-4000°K - CRI>80dali2544015031585445-6.5
8037PR4185GD185-4000°K - CRI>80dali2763814931585445-6.5
8037PR4080MG80-4000°K - CRI>80virtual midnight1315716431585445-6.5
8037PR4100MG100-4000°K - CRI>80virtual midnight1616016231585445-6.5
8037PR4120MG120-4000°K - CRI>80virtual midnight1884815731585445-6.5
8037PR4150MG150-4000°K - CRI>80virtual midnight2290915331585445-6.5
8037PR4170MG170-4000°K - CRI>80virtual midnight2544015031585445-6.5
8037PR4185MG185-4000°K - CRI>80virtual midnight2763814931585445-6.5
8037PR4080G180-4000°K - CRI>80em. 1h1315716431585445-6.5
8037PR4100G1100-4000°K - CRI>80em. 1h1616016231585445-6.5

Accessories
