art.-8056-cosmic-1-a6

COSMIC 1/A6

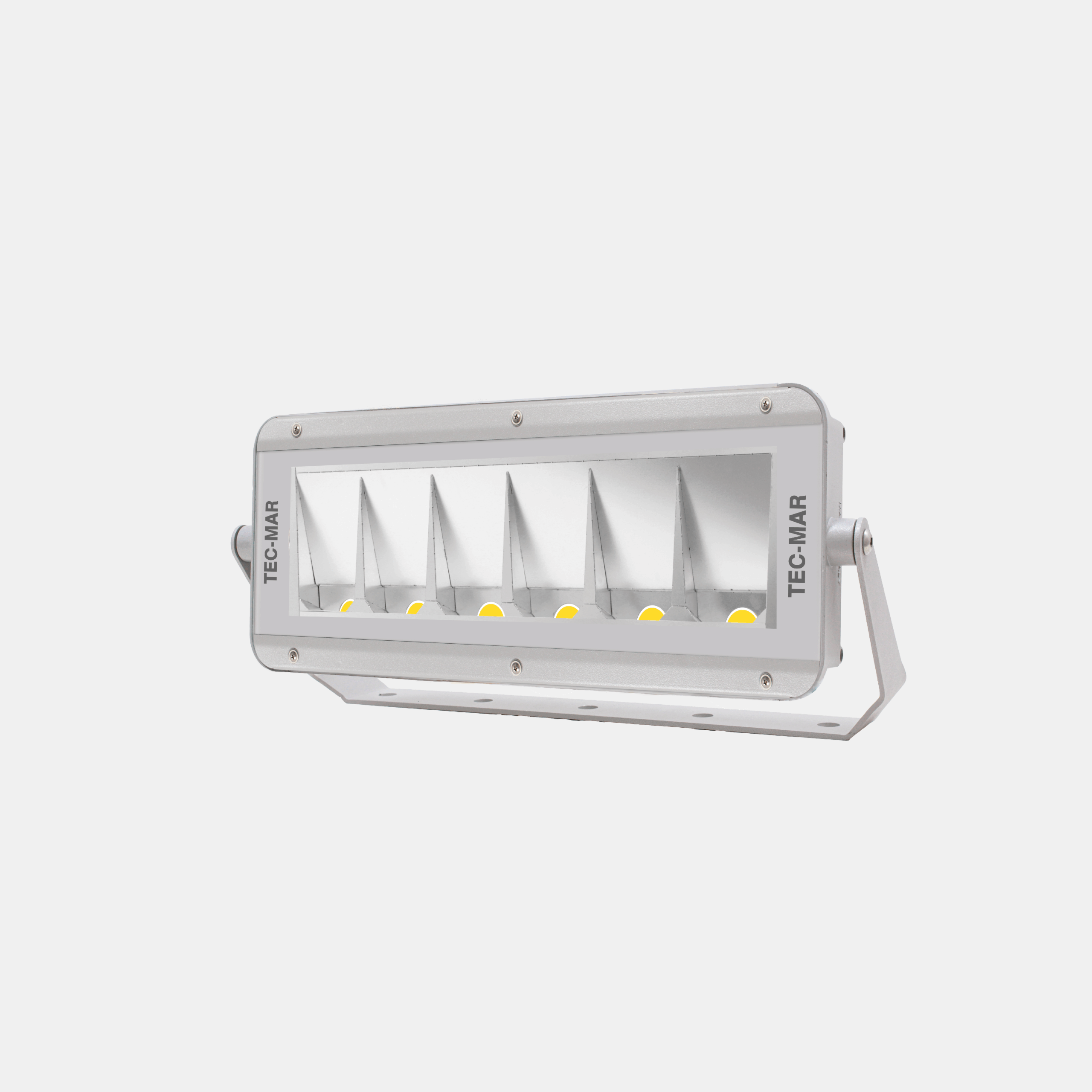

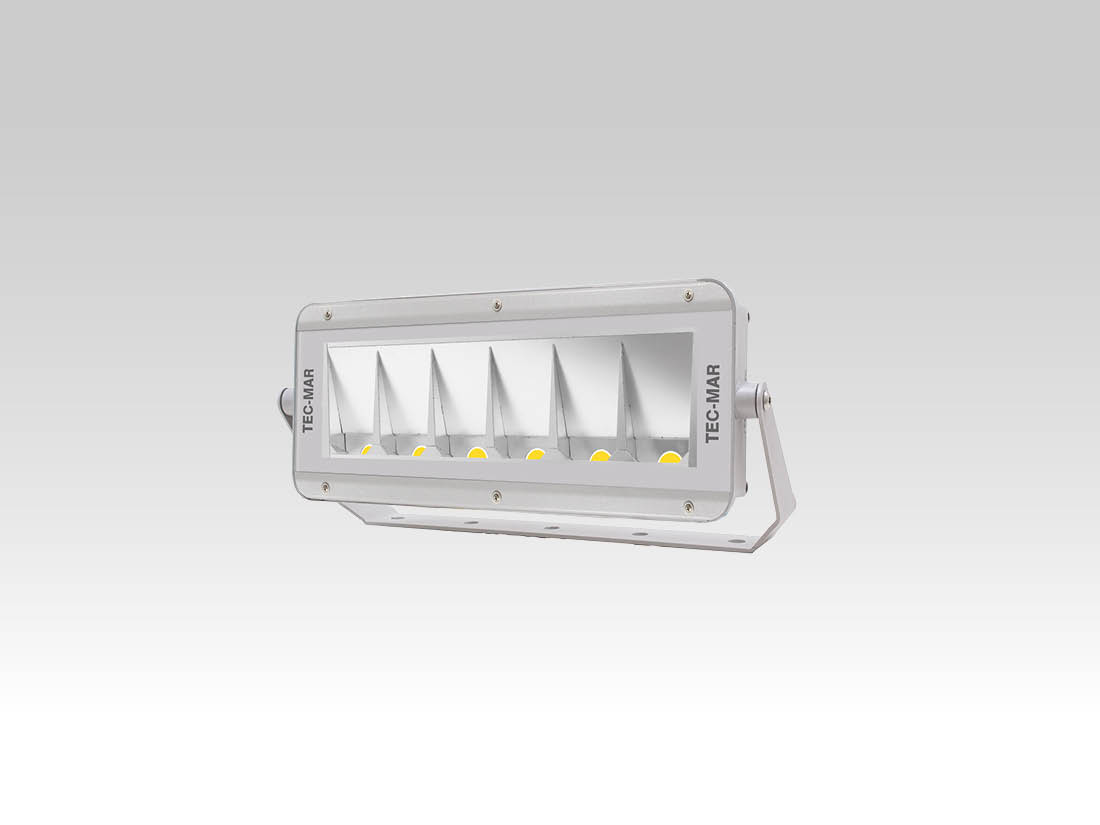

Indoor and outdoor led floodlight, suitable for large areas and sports areas. Silver Extruded oxidate aluminium body, zinc-coated and painted bracket, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, COSMIC 1 - 8056, Floodlights, art. 8056 Cosmic 1
Models: 180
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8056A63= 3000°K (CRI >70)275GL= on/off
4= 4000°K (CRI >70)300GM= 1-10v
5= 5000°K (CRI >70)340GD= dali
7= 5700°K (CRI >70)380G4= input 400Vac
R= 5700°K (CRI >90)410GX= 1-10v + dmx
450MG= virtual midnight

Models

W tot.
°K - CRI
Options

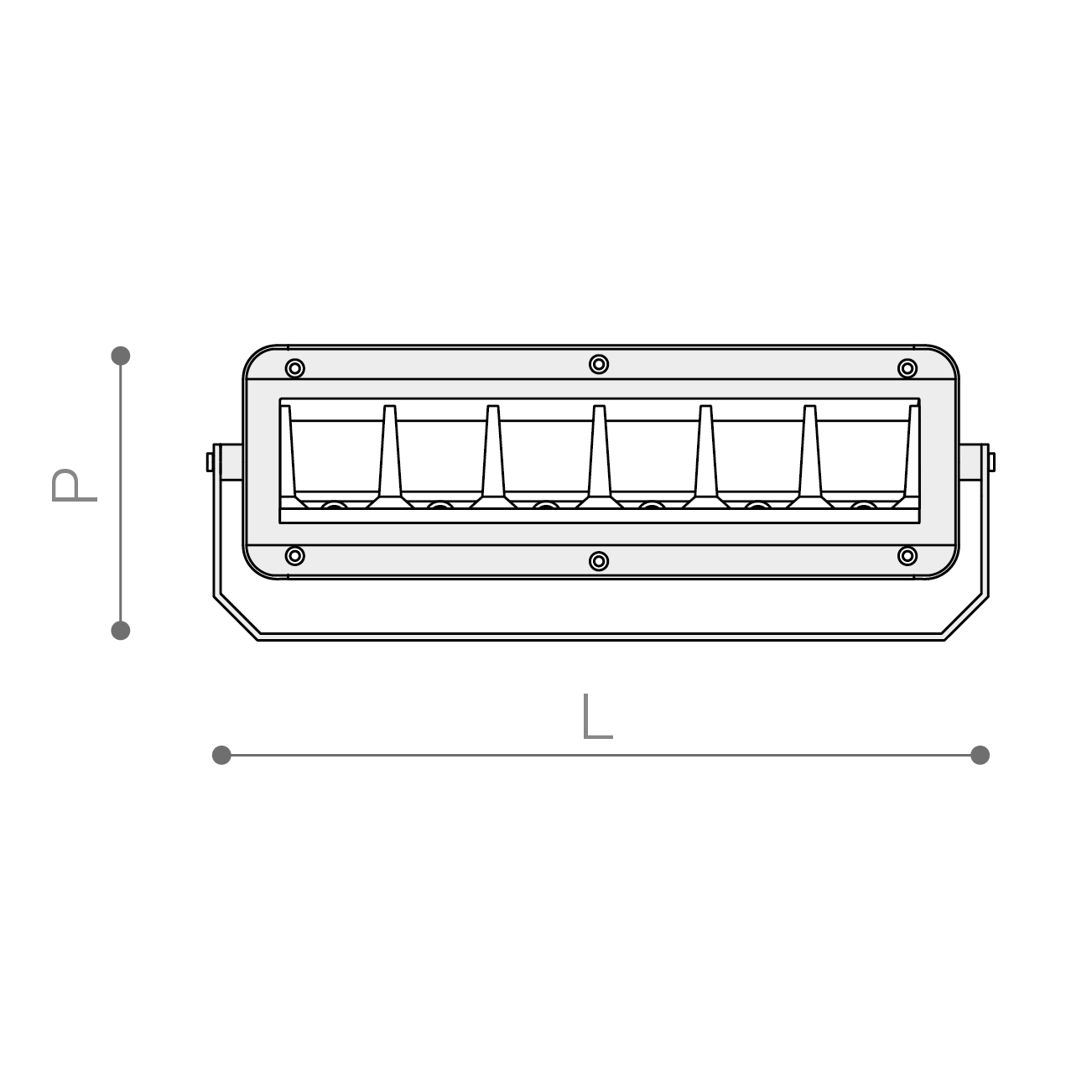

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8056A64275GL275-4000°K - CRI>70on/off45939168615240120-9.5
8056A64300GL300-4000°K - CRI>70on/off49483166615240120-9.5
8056A64340GL340-4000°K - CRI>70on/off57099171615240120-9.5
8056A64380GL380-4000°K - CRI>70on/off60916161615240120-9.5
8056A64410GL410-4000°K - CRI>70on/off68318168615240120-9.5
8056A64450GL450-4000°K - CRI>70on/off71809160615240120-9.5
8056A64275GM275-4000°K - CRI>701-10v45939168615240120-9.5
8056A64300GM300-4000°K - CRI>701-10v49483166615240120-9.5
8056A64340GM340-4000°K - CRI>701-10v57099171615240120-9.5
8056A64380GM380-4000°K - CRI>701-10v60916161615240120-9.5
8056A64410GM410-4000°K - CRI>701-10v68318168615240120-9.5
8056A64450GM450-4000°K - CRI>701-10v71809160615240120-9.5
8056A64275GD275-4000°K - CRI>70dali45939168615240120-9.5
8056A64300GD300-4000°K - CRI>70dali49483166615240120-9.5
8056A64340GD340-4000°K - CRI>70dali57099171615240120-9.5
8056A64380GD380-4000°K - CRI>70dali60916161615240120-9.5
8056A64410GD410-4000°K - CRI>70dali68318168615240120-9.5
8056A64450GD450-4000°K - CRI>70dali71809160615240120-9.5
8056A64275G4275-4000°K - CRI>70input 400Vac45939168615240120-9.5
8056A64300G4300-4000°K - CRI>70input 400Vac49483166615240120-9.5

Accessories
