| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8150 | S2 | 4 | = 4000°K (CRI >80) | 070 | 150 | GL | = on/off | ||||
| 5 | = 5000°K (CRI >80) | 080 | 160 | GD | = dali 2 | ||||||
| 089 | 170 | G3 | = em. 3h | ||||||||
| 090 | 180 | D3 | = dali 2 + em. 3h | ||||||||
| 098 | 190 | ||||||||||
| 100 | 195 | ||||||||||
| 110 | 200 | ||||||||||
| 120 | 220 | ||||||||||
| 130 | 230 | ||||||||||
| 140 | 240 | ||||||||||
| 148 | 245 |

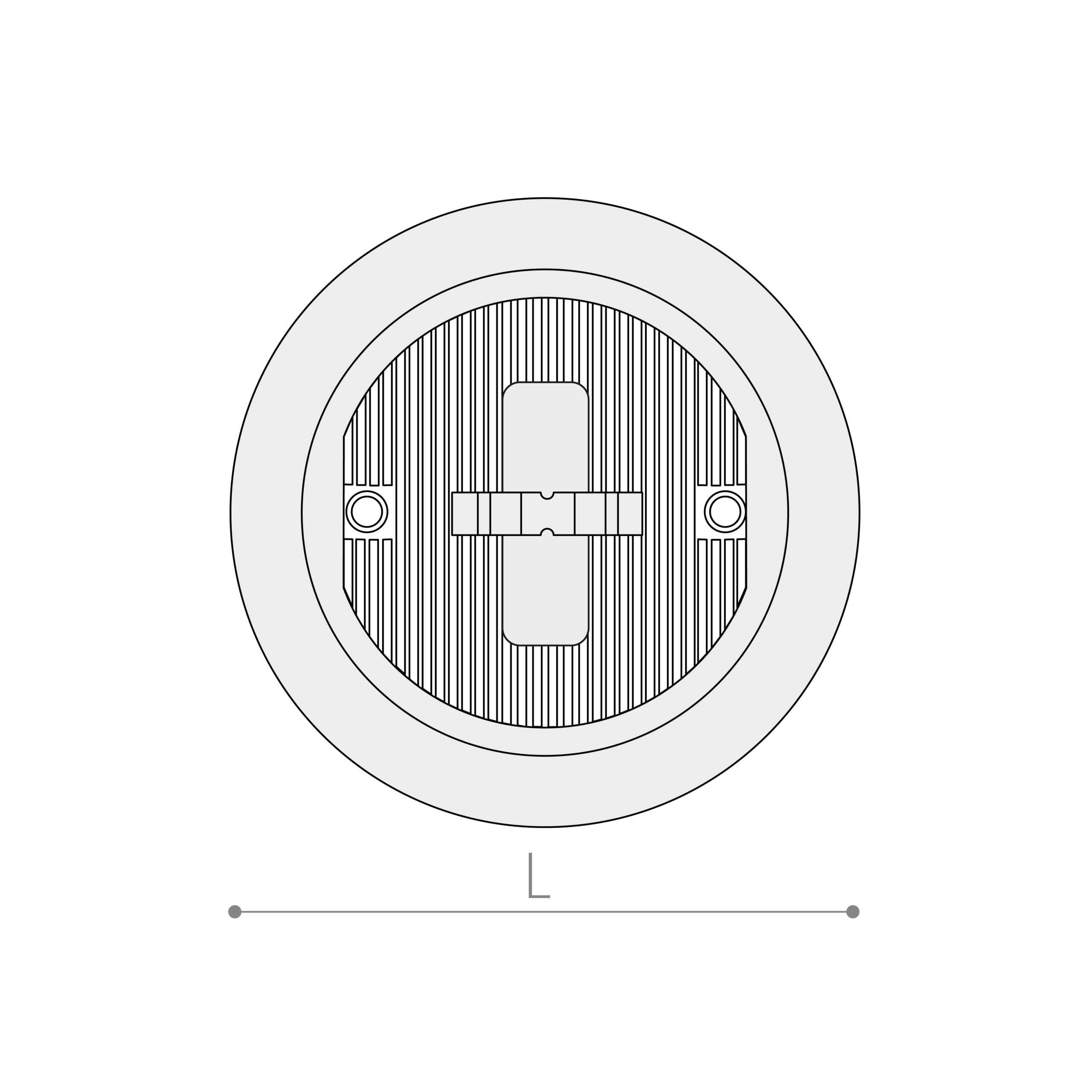

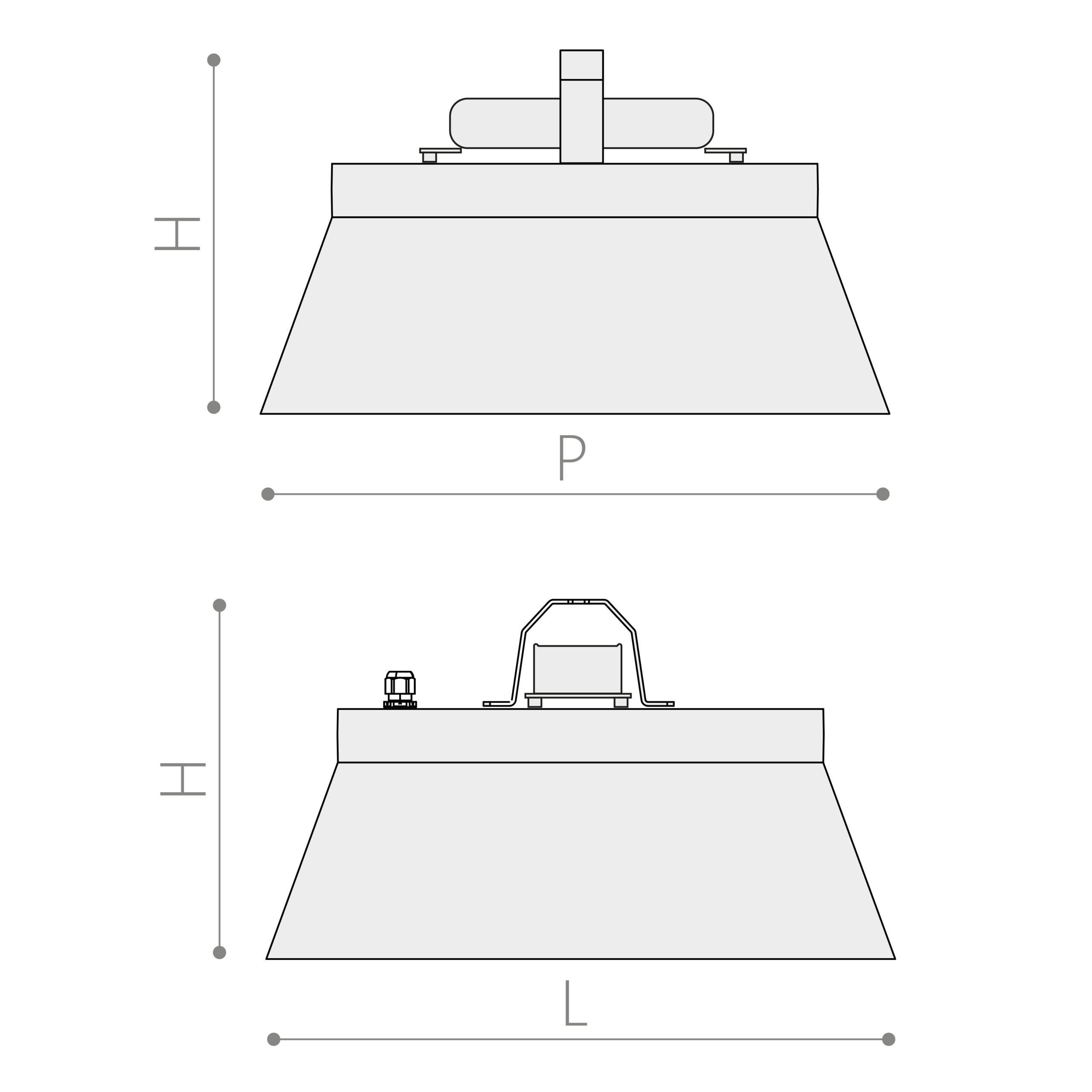

| Download | Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | L (mm) | P (mm) | H (mm) | D (mm) | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8150S24080GL | 80 | - | 4000°K - CRI>80 | on/off | 16003 | 200 | 485 | - | 280 | - | 5.2 | |
| 8150S24090GL | 90 | - | 4000°K - CRI>80 | on/off | 18271 | 203 | 485 | - | 280 | - | 5.2 | |
| 8150S24098GL | 98 | - | 4000°K - CRI>80 | on/off | 19702 | 201 | 485 | - | 280 | - | 5.2 | |
| 8150S24110GL | 110 | - | 4000°K - CRI>80 | on/off | 20143 | 183 | 485 | - | 280 | - | 5.2 | |
| 8150S24120GL | 120 | - | 4000°K - CRI>80 | on/off | 22112 | 184 | 485 | - | 280 | - | 5.2 | |
| 8150S24130GL | 130 | - | 4000°K - CRI>80 | on/off | 24062 | 185 | 485 | - | 280 | - | 5.2 | |
| 8150S24140GL | 140 | - | 4000°K - CRI>80 | on/off | 26705 | 191 | 485 | - | 280 | - | 5.2 | |
| 8150S24148GL | 148 | - | 4000°K - CRI>80 | on/off | 27345 | 185 | 485 | - | 280 | - | 5.2 | |
| 8150S24160GL | 160 | - | 4000°K - CRI>80 | on/off | 28539 | 178 | 485 | - | 280 | - | 5.2 | |
| 8150S24170GL | 170 | - | 4000°K - CRI>80 | on/off | 30429 | 179 | 485 | - | 280 | - | 5.2 | |
| 8150S24180GL | 180 | - | 4000°K - CRI>80 | on/off | 32304 | 179 | 485 | - | 280 | - | 5.2 | |
| 8150S24190GL | 190 | - | 4000°K - CRI>80 | on/off | 33545 | 177 | 485 | - | 280 | - | 5.2 | |
| 8150S24195GL | 195 | - | 4000°K - CRI>80 | on/off | 34779 | 178 | 485 | - | 280 | - | 5.2 | |
| 8150S24220GL | 220 | - | 4000°K - CRI>80 | on/off | 38444 | 175 | 485 | - | 280 | - | 5.2 | |
| 8150S24230GL | 230 | - | 4000°K - CRI>80 | on/off | 39653 | 172 | 485 | - | 280 | - | 5.2 | |
| 8150S24245GL | 245 | - | 4000°K - CRI>80 | on/off | 43367 | 177 | 485 | - | 280 | - | 5.6 | |
| 8150S24070GL | 70 | - | 4000°K - CRI>80 | on/off | 13249 | 189 | 485 | - | 280 | - | 5.2 | |
| 8150S24089GL | 89 | - | 4000°K - CRI>80 | on/off | 17344 | 195 | 485 | - | 280 | - | 5.2 | |
| 8150S24100GL | 100 | - | 4000°K - CRI>80 | on/off | 19156 | 192 | 485 | - | 280 | - | 5.2 | |
| 8150S24150GL | 150 | - | 4000°K - CRI>80 | on/off | 26700 | 178 | 485 | - | 280 | - | 5.2 |
