MIR HP – Mod. S2

(80° rotosymmetric diffusing optics - UGR<22)

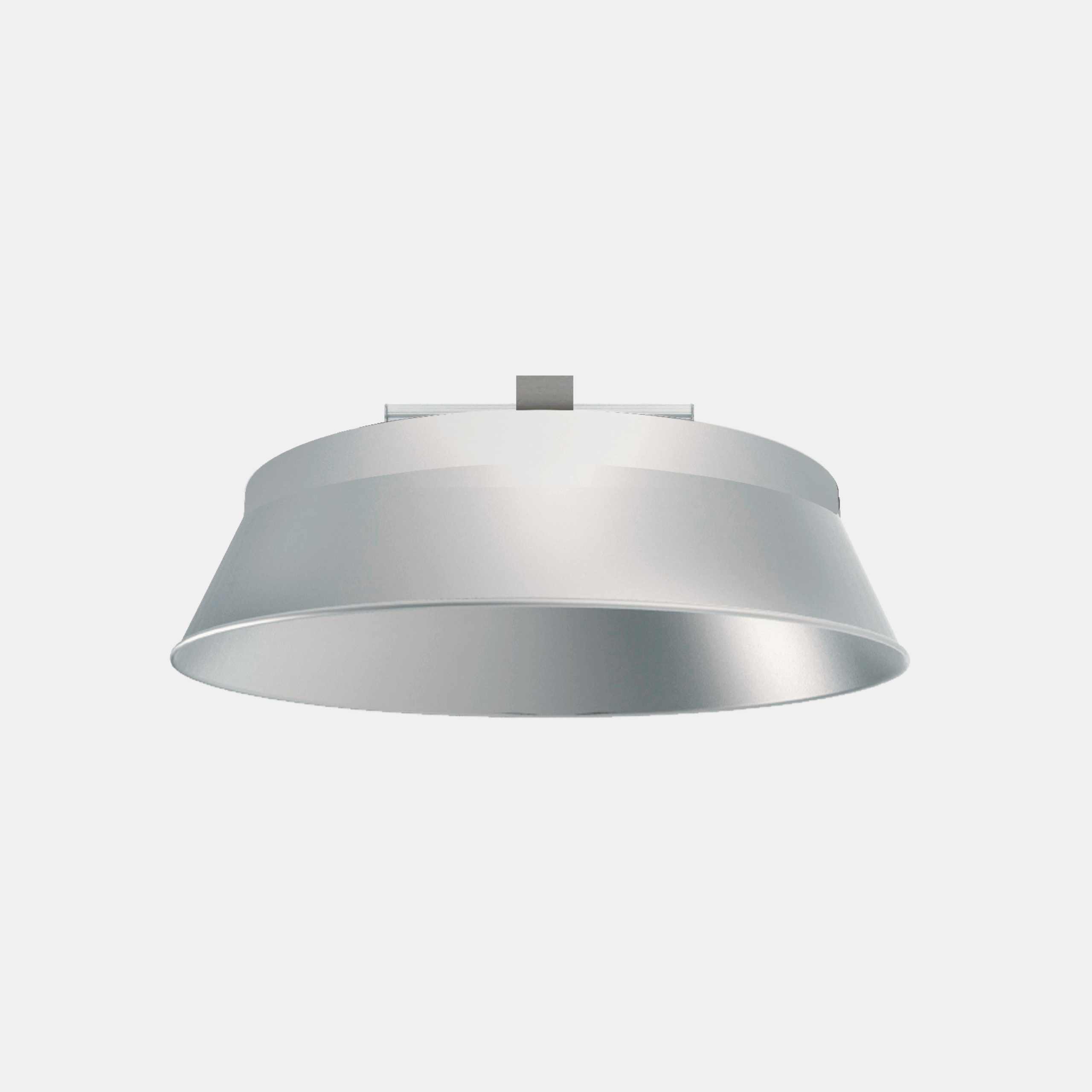

Industrial and commercial led reflector suitable for pendant, surface mounted and on blinds. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Silicone gasket. 80° (UGR<22) rotosymmetric diffusing optics.

Categories: Led, MIR, MIR HP - 8152, Industrial, MIR HP

Models: 40

Color: Graphite

Catalogue abstract

Installation instructions

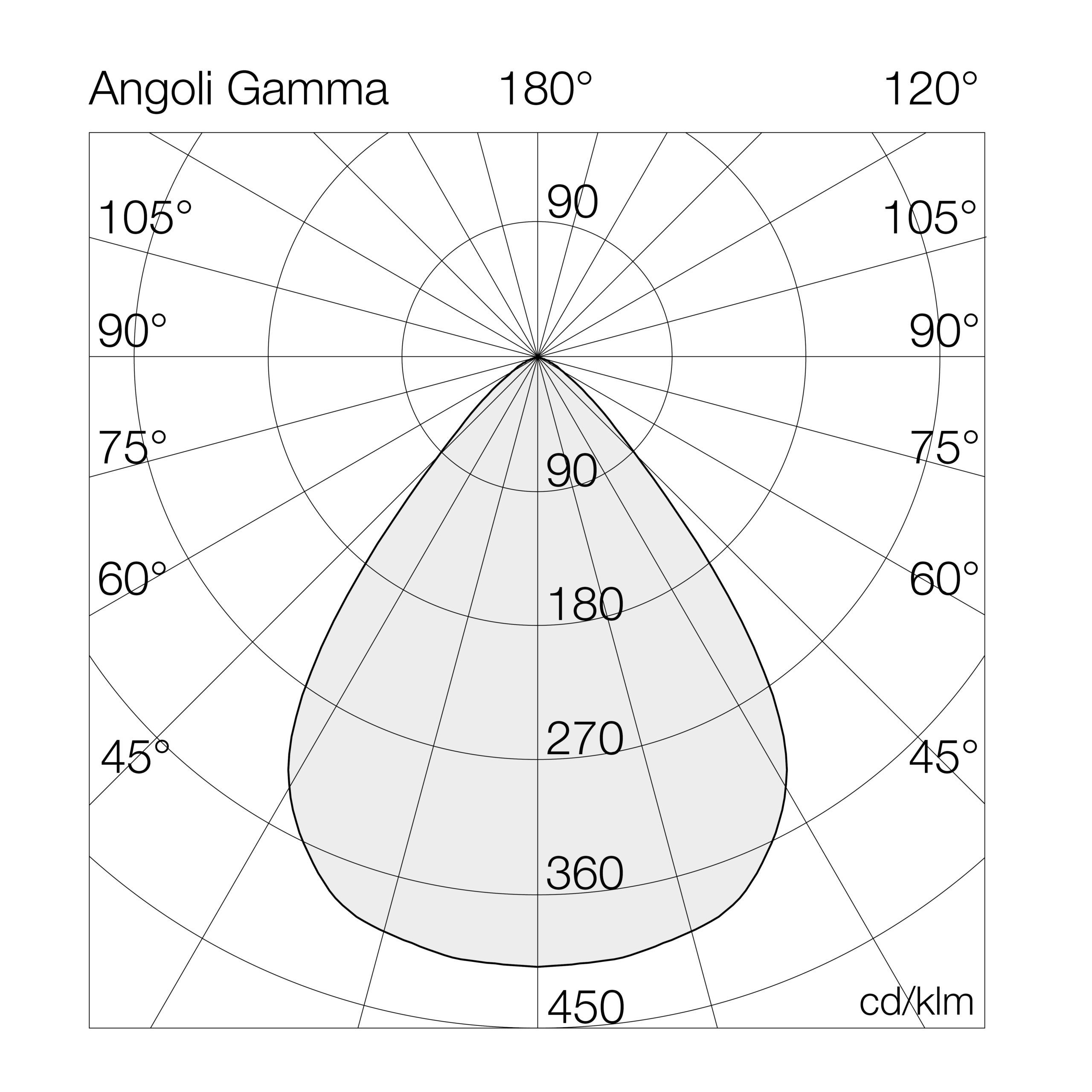

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
8152	S2	4	= 4000°K (CRI >80)	090	RL	= on/off
		5	= 5000°K (CRI >80)	140	RD	= dali
				190	1R	= dali + em. 1h
				230	R1	= em. 1h
					R3	= em. 3h

Models

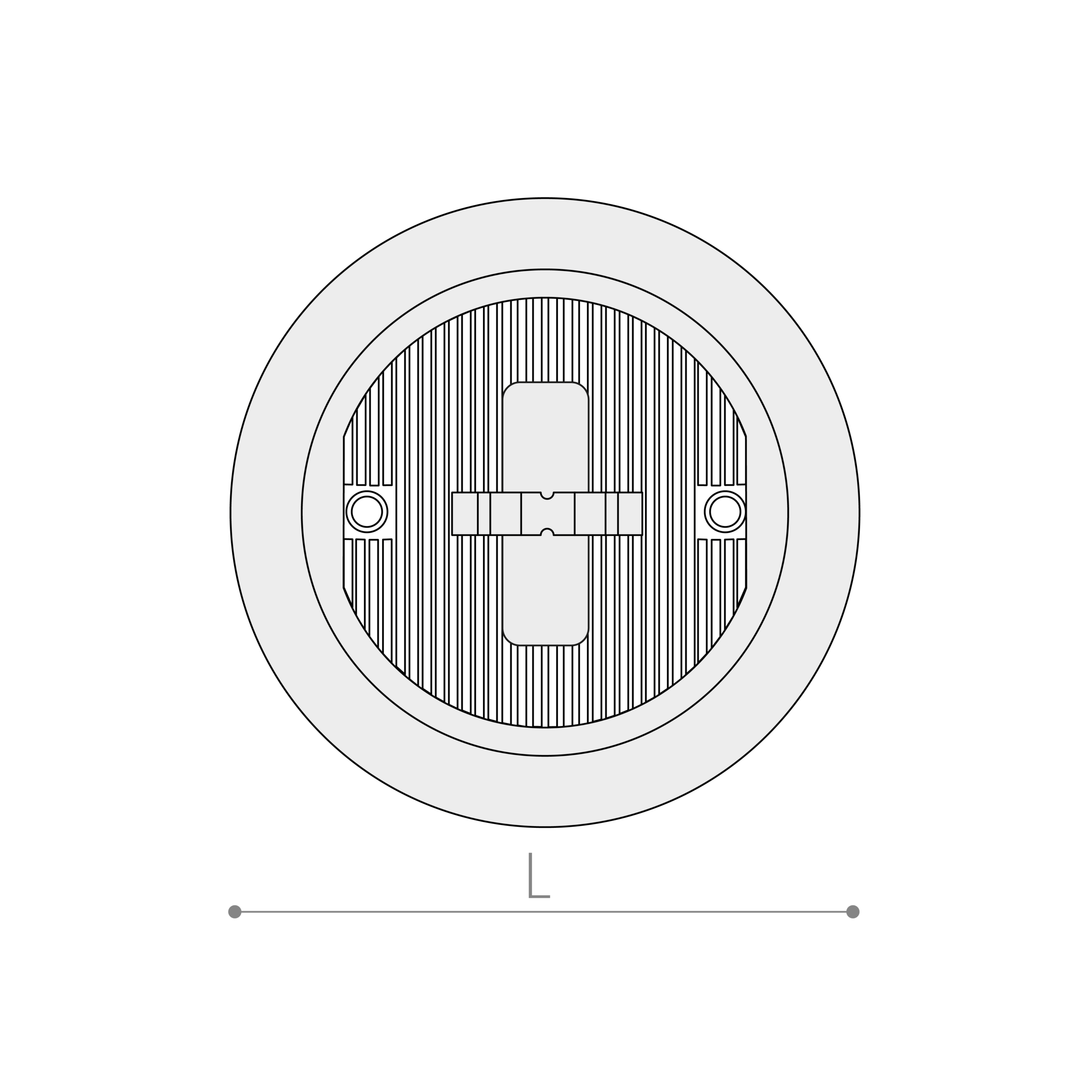

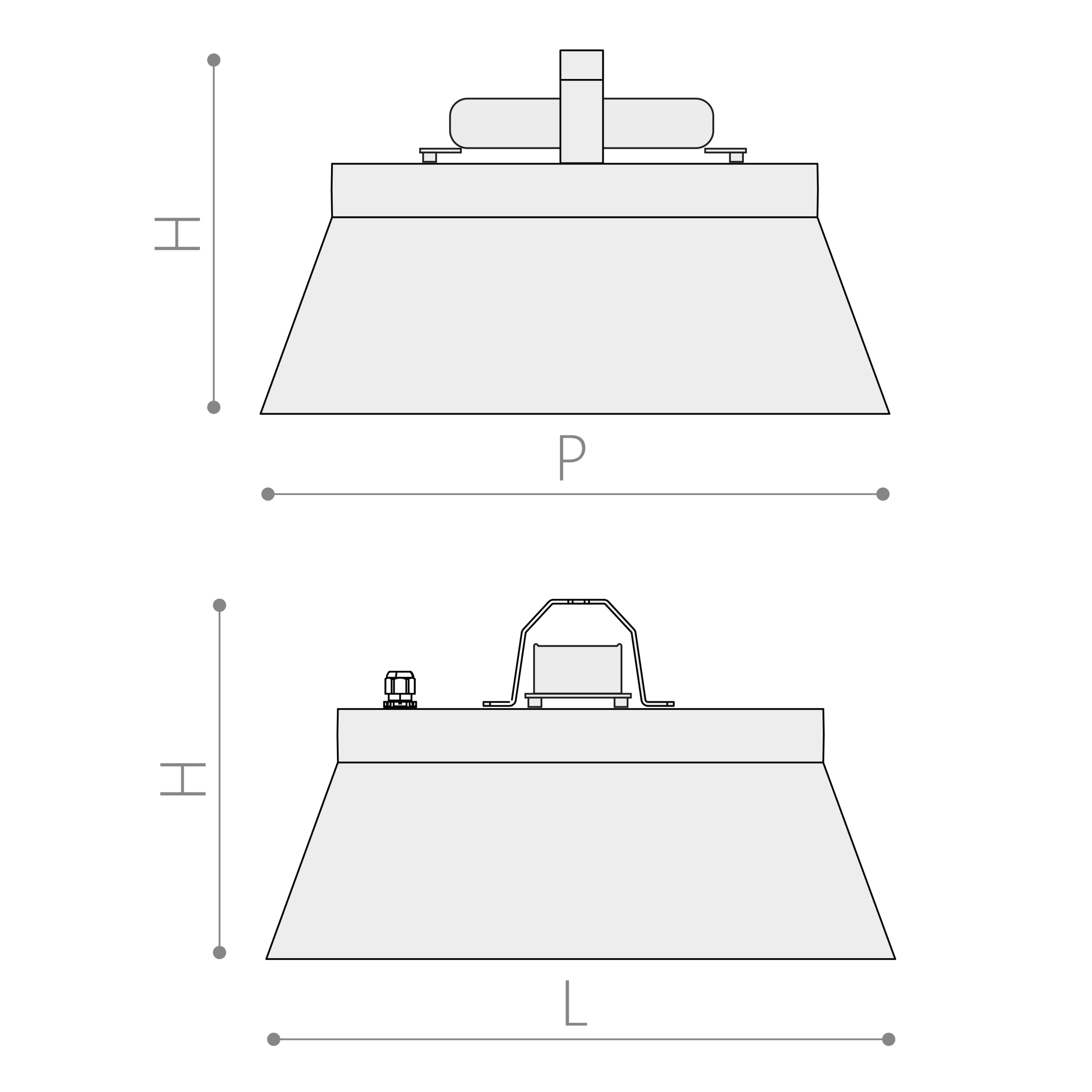

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
8152S24090RL	90	-	4000°K - CRI>80	on/off	16890	188	485	485	280	-	5.2
8152S24140RL	140	-	4000°K - CRI>80	on/off	25314	181	485	485	280	-	5.2
8152S24190RL	190	-	4000°K - CRI>80	on/off	32147	169	485	485	280	-	5.2
8152S24230RL	230	-	4000°K - CRI>80	on/off	38389	167	485	485	280	-	5.2
8152S24090RD	90	-	4000°K - CRI>80	dali	16890	188	485	485	280	-	5.2
8152S24140RD	140	-	4000°K - CRI>80	dali	25314	181	485	485	280	-	5.2
8152S24190RD	190	-	4000°K - CRI>80	dali	32147	169	485	485	280	-	5.2
8152S24230RD	230	-	4000°K - CRI>80	dali	38389	167	485	485	280	-	5.2
8152S240901R	90	-	4000°K - CRI>80	dali + em. 1h	16890	188	485	485	280	-	5.2
8152S241401R	140	-	4000°K - CRI>80	dali + em. 1h	25314	181	485	485	280	-	5.2
8152S241901R	190	-	4000°K - CRI>80	dali + em. 1h	32147	169	485	485	280	-	5.2
8152S242301R	230	-	4000°K - CRI>80	dali + em. 1h	38389	167	485	485	280	-	5.2
8152S24090R1	90	-	4000°K - CRI>80	em. 1h	16890	188	485	485	280	-	5.2
8152S24140R1	140	-	4000°K - CRI>80	em. 1h	25314	181	485	485	280	-	5.2
8152S24190R1	190	-	4000°K - CRI>80	em. 1h	32147	169	485	485	280	-	5.2
8152S24230R1	230	-	4000°K - CRI>80	em. 1h	38389	167	485	485	280	-	5.2
8152S24090R3	90	-	4000°K - CRI>80	em. 3h	16890	188	485	485	280	-	5.2
8152S24140R3	140	-	4000°K - CRI>80	em. 3h	25314	181	485	485	280	-	5.2
8152S24190R3	190	-	4000°K - CRI>80	em. 3h	32147	169	485	485	280	-	5.2
8152S24230R3	230	-	4000°K - CRI>80	em. 3h	38389	167	485	485	280	-	5.2
