MIR HP – Mod. S5

(90° rotosymmetric diffusing optics - UGR<25)

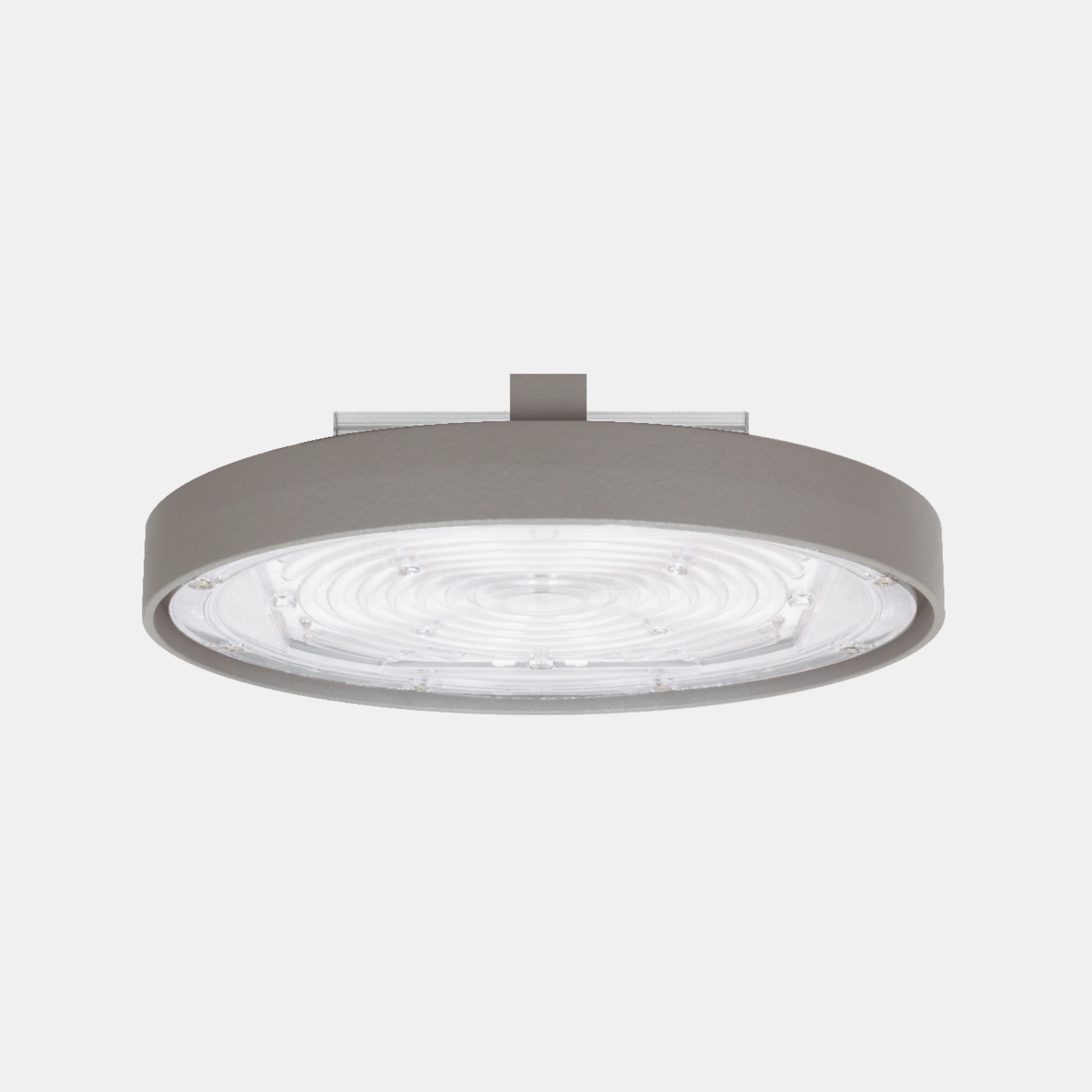

Industrial and commercial led reflector suitable for pendant, surface mounted and on blinds. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Silicone gasket. 90° (UGR<25) rotosymmetric diffusing optics.
Categories: Led, MIR, MIR HP - 8152, Industrial, MIR HP
Models: 40
Color: Graphite
Catalogue abstract
Installation instructions

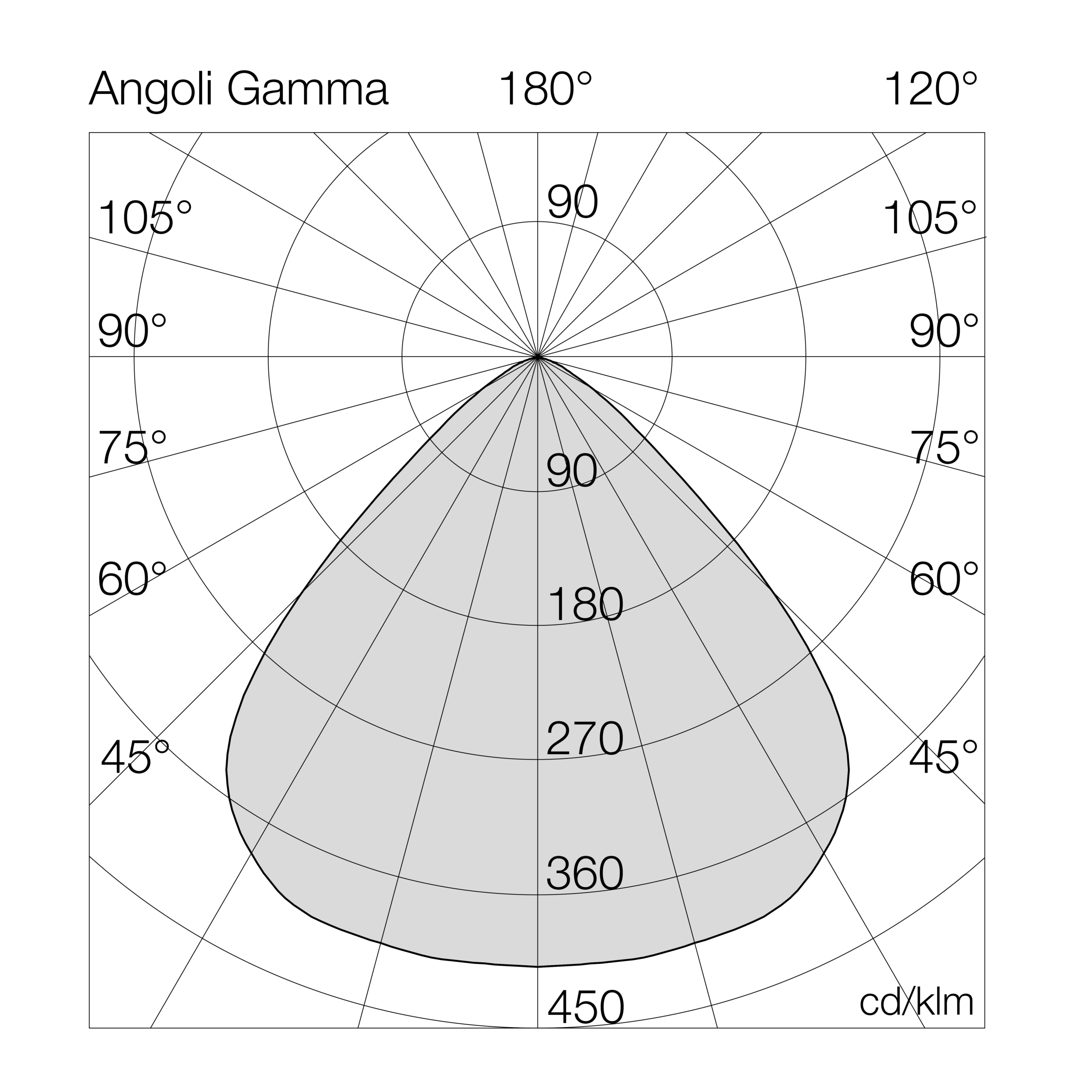

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8152S54= 4000°K (CRI >80)090RL= on/off
5= 5000°K (CRI >80)140RD= dali
1901R= dali + em. 1h
230R1= em. 1h
R3= em. 3h

Models

W tot.
°K - CRI
Options

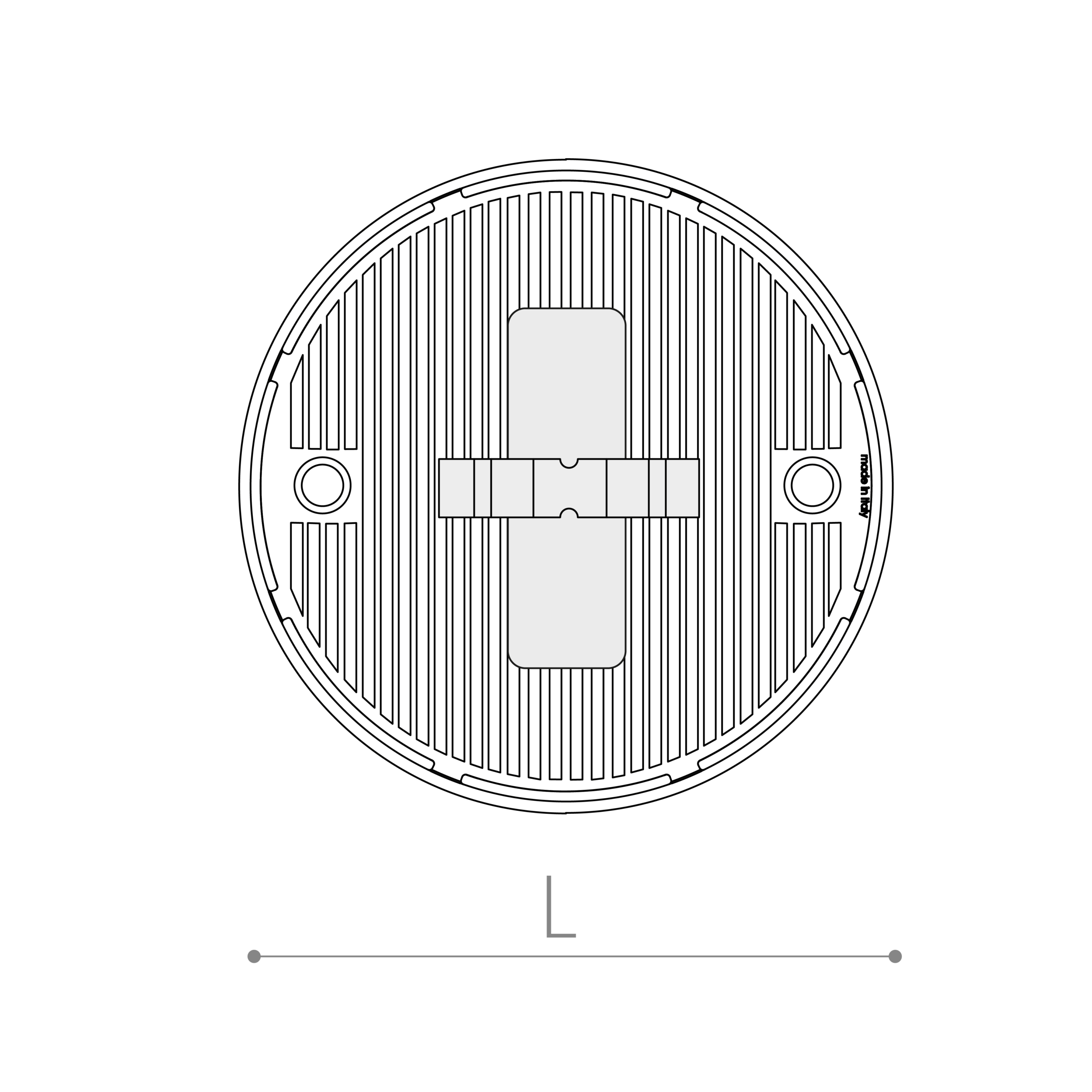

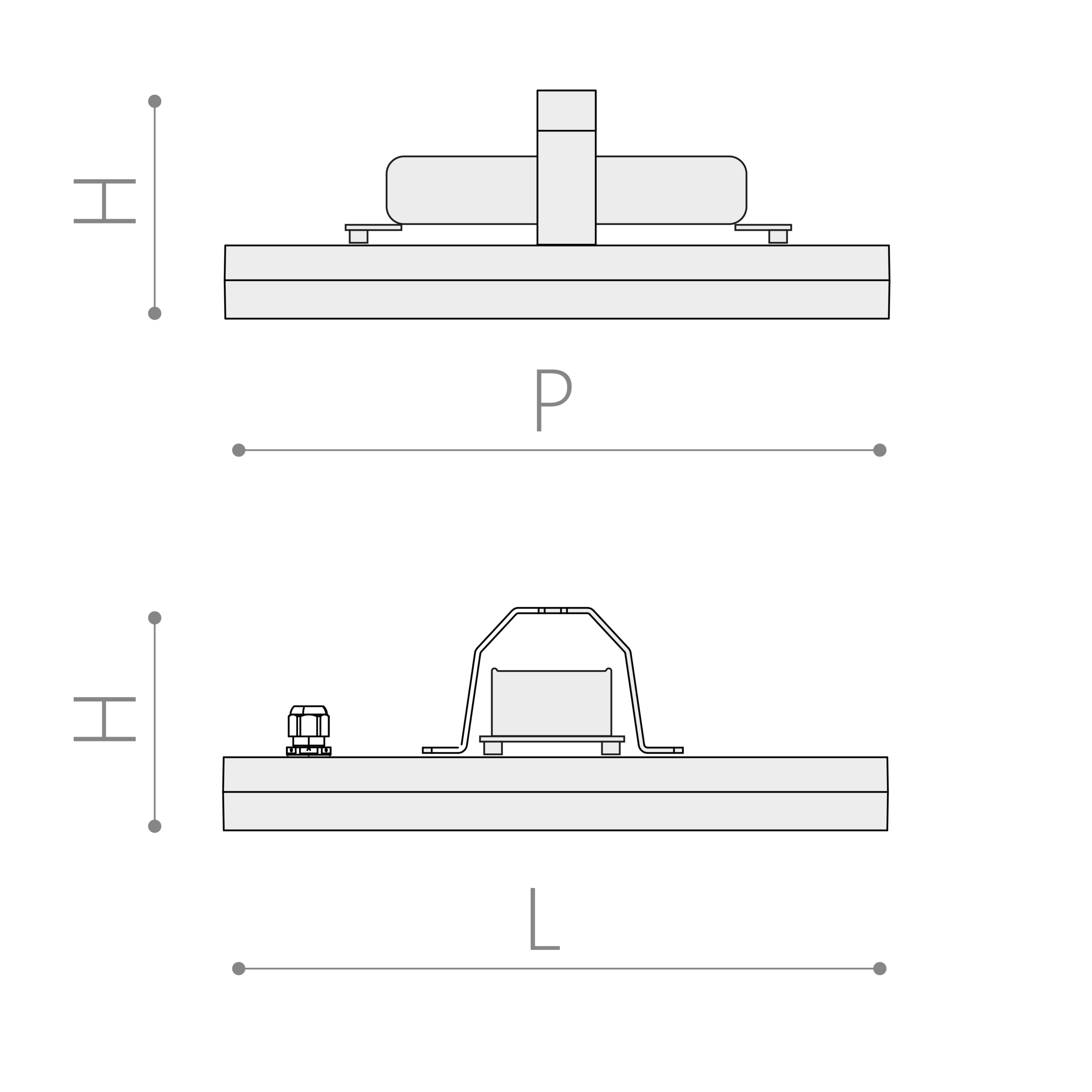

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8152S54090RL90-4000°K - CRI>80on/off17078190365365130-4.8
8152S54140RL140-4000°K - CRI>80on/off25596183365365130-4.8
8152S54190RL190-4000°K - CRI>80on/off32504171365365130-4.8
8152S54230RL230-4000°K - CRI>80on/off38815169365365130-4.8
8152S54090RD90-4000°K - CRI>80dali17078190365365130-4.8
8152S54140RD140-4000°K - CRI>80dali25596183365365130-4.8
8152S54190RD190-4000°K - CRI>80dali32504171365365130-4.8
8152S54230RD230-4000°K - CRI>80dali38815169365365130-4.8
8152S540901R90-4000°K - CRI>80dali + em. 1h17078190365365130-4.8
8152S541401R140-4000°K - CRI>80dali + em. 1h25596183365365130-4.8
8152S541901R190-4000°K - CRI>80dali + em. 1h32504171365365130-4.8
8152S542301R230-4000°K - CRI>80dali + em. 1h38815169365365130-4.8
8152S54090R190-4000°K - CRI>80em. 1h17078190365365130-4.8
8152S54140R1140-4000°K - CRI>80em. 1h25596183365365130-4.8
8152S54190R1190-4000°K - CRI>80em. 1h32504171365365130-4.8
8152S54230R1230-4000°K - CRI>80em. 1h38815169365365130-4.8
8152S54090R390-4000°K - CRI>80em. 3h17078190365365130-4.8
8152S54140R3140-4000°K - CRI>80em. 3h25596183365365130-4.8
8152S54190R3190-4000°K - CRI>80em. 3h32504171365365130-4.8
8152S54230R3230-4000°K - CRI>80em. 3h38815169365365130-4.8

Accessories
