art.-8153-mir-b-su

MIR B – Mod. SU

(90° rotosymmetric diffusing optics)

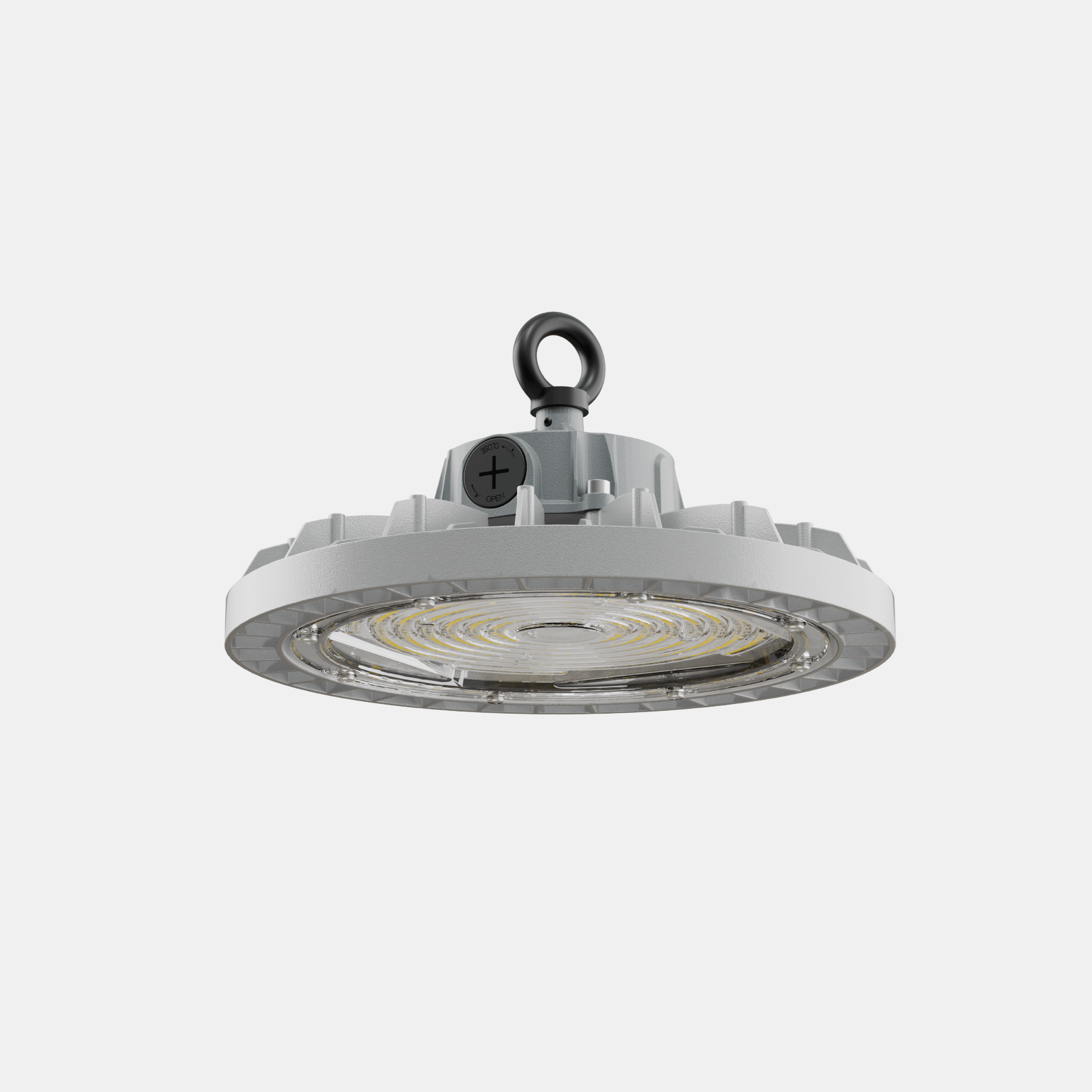

Industrial and commercial led DIP-switch reflector suitable for ceiling suspension and on blinds. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating gray color. Optics with IP66 diffusing 90° rotosymmetric polycarbonate lens with high flux efficiency, anti-glare and anti-reflection, silicone gasket.
Categories: Led, MIR B, MIR B - 8153, Industrial, MIR B
Models: 6
Color: Grey
Catalogue abstract
Installation instructions

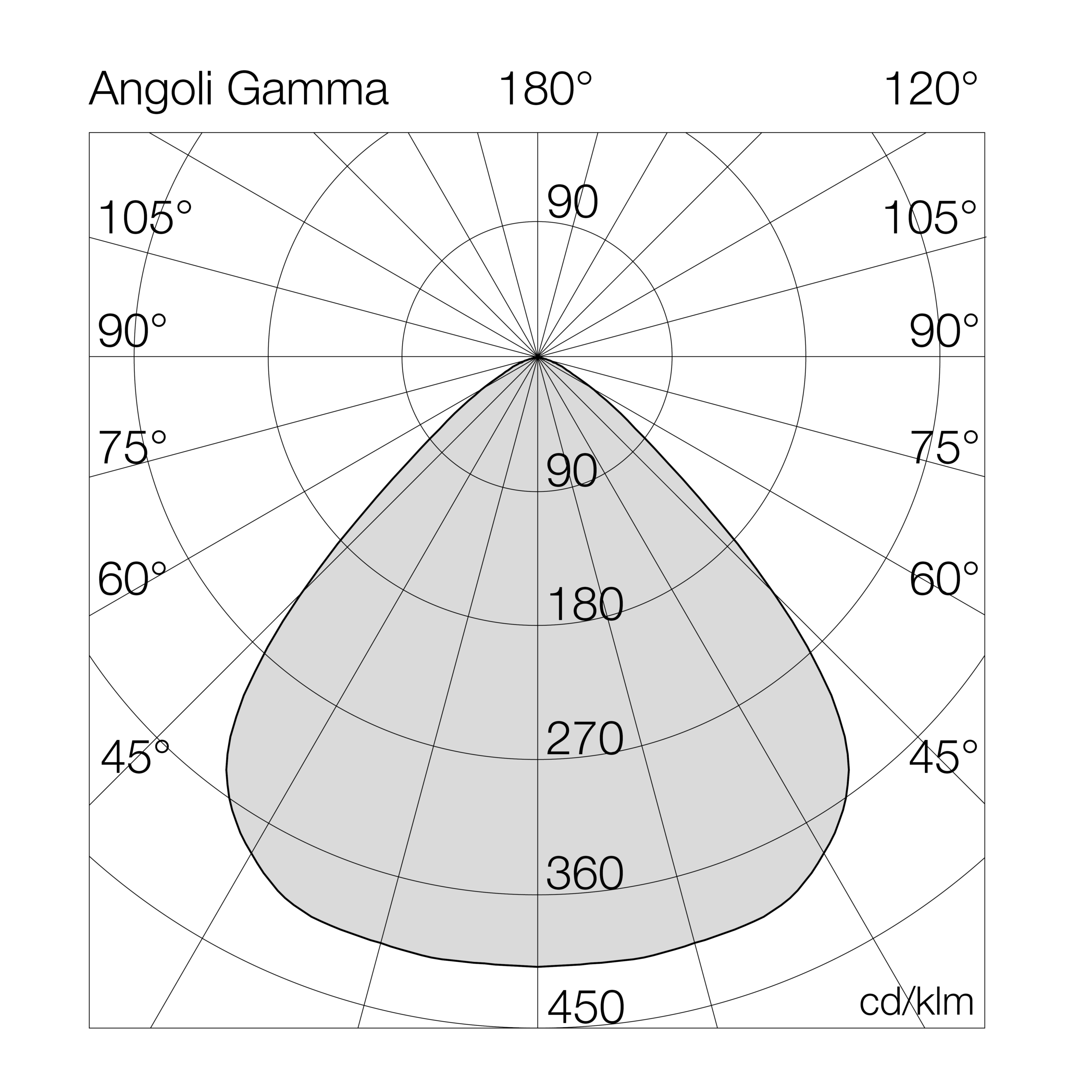

Photometric data

Legenda

Art.+Mod.+°K (CRI)++Options
8153SU4= 4000°K (CRI >80)100GL= on/off (DIP-switch)
120
145
160
185
200

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8153SU4100GL100-4000°K - CRI>80on/off (dip-switch)16839168280280145-2.05
8153SU4145GL145-4000°K - CRI>80on/off (dip-switch)23268160280280145-2.05
8153SU4185GL185-4000°K - CRI>80on/off (dip-switch)28551154280280145-2.05
8153SU4120GL120-4000°K - CRI>80on/off (dip-switch)19956166280280145-2.05
8153SU4160GL160-4000°K - CRI>80on/off (dip-switch)25347158280280145-2.05
8153SU4200GL200-4000°K - CRI>80on/off (dip-switch)30347152280280145-2.05

Accessories
