art.-8310-flat-1-s5-s2-el-cu

FLAT 1 – Mod. CU

(30° focusing optics)

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Diecast aluminum body painted with anti-corrosion polyester thermosetting powder coating black color. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Concentrating optics 30° (UGR<22).
Categories: Led, FLAT 1 - 8310, Industrial, FLAT 1
Models: 56
Color: Matt black
Catalogue abstract
Installation instructions

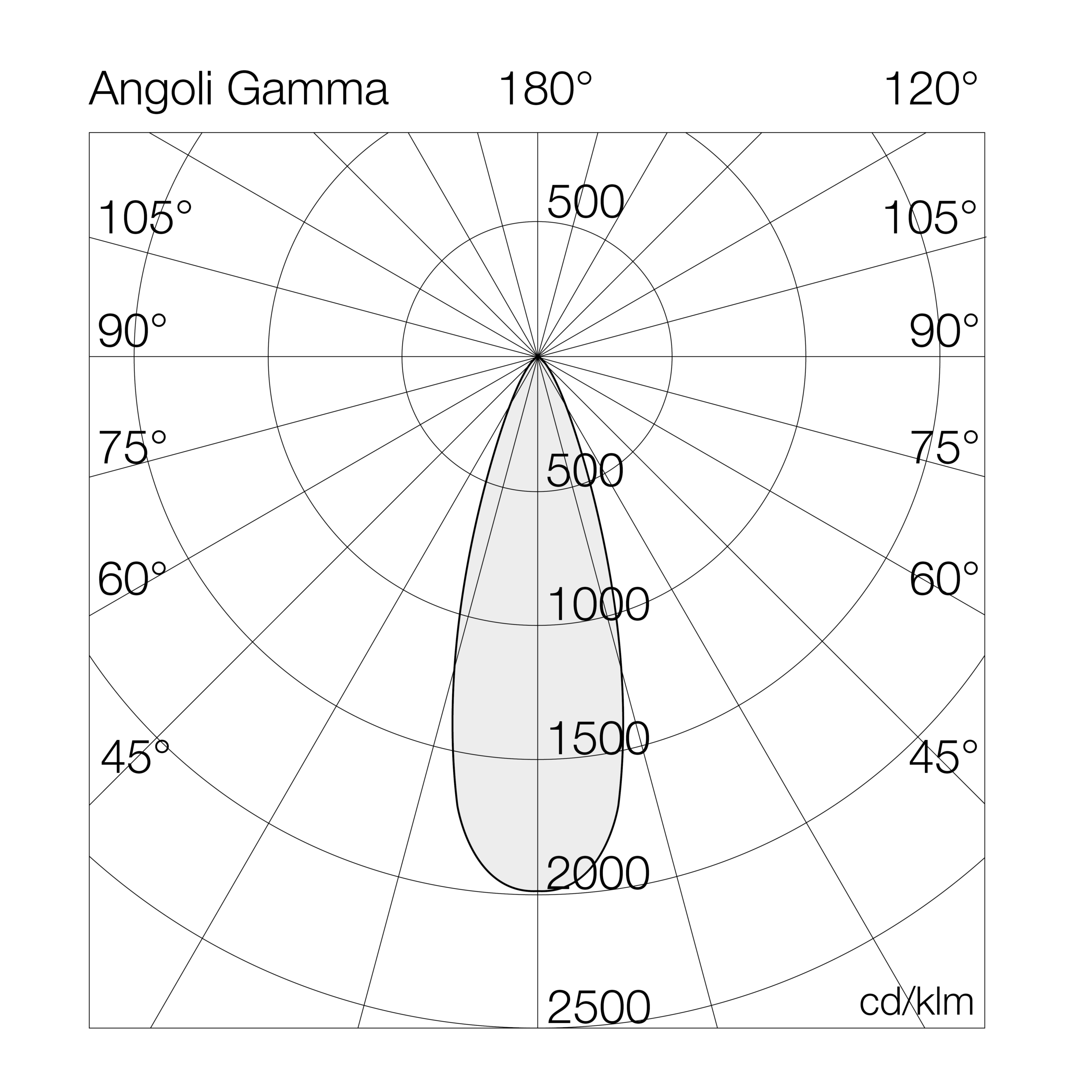

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8310CU4= 4000°K (CRI >80)056EL= on/off
5= 5000°K (CRI >80)080LD= dali
090E3= em. 3h
100D3= dali 2 + em. 3h
120
130
140

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8310CU4056EL56-4000°K - CRI>80on/off9025161265195155-3.9
8310CU4080EL80-4000°K - CRI>80on/off12623158265195155-3.9
8310CU4090EL90-4000°K - CRI>80on/off14247158265195155-3.9
8310CU4100EL100-4000°K - CRI>80on/off14852149265195155-3.9
8310CU4120EL120-4000°K - CRI>80on/off17165143265195155-3.9
8310CU4130EL130-4000°K - CRI>80on/off18253140265195155-3.9
8310CU4140EL140-4000°K - CRI>80on/off19296129265195155-3.9
8310CU4056LD56-4000°K - CRI>80dali9025161265195155-3.9
8310CU4080LD80-4000°K - CRI>80dali12623158265195155-3.9
8310CU4090LD90-4000°K - CRI>80dali14247158265195155-3.9
8310CU4100LD100-4000°K - CRI>80dali14852149265195155-3.9
8310CU4120LD120-4000°K - CRI>80dali17165143265195155-3.9
8310CU4130LD130-4000°K - CRI>80dali18253140265195155-3.9
8310CU4140LD140-4000°K - CRI>80dali19296129265195155-3.9
8310CU4056D356-4000°K - CRI>80dali + em. 3h9025161265195155-3.9
8310CU4080D380-4000°K - CRI>80dali + em. 3h12623158265195155-3.9
8310CU4090D390-4000°K - CRI>80dali + em. 3h14247158265195155-3.9
8310CU4100D3100-4000°K - CRI>80dali + em. 3h14852149265195155-3.9
8310CU4120D3120-4000°K - CRI>80dali + em. 3h17165143265195155-3.9
8310CU4130D3130-4000°K - CRI>80dali + em. 3h18253140265195155-3.9

Accessories
