FLAT 1 – Mod. EL

(Elliptical optics 23°/52°)

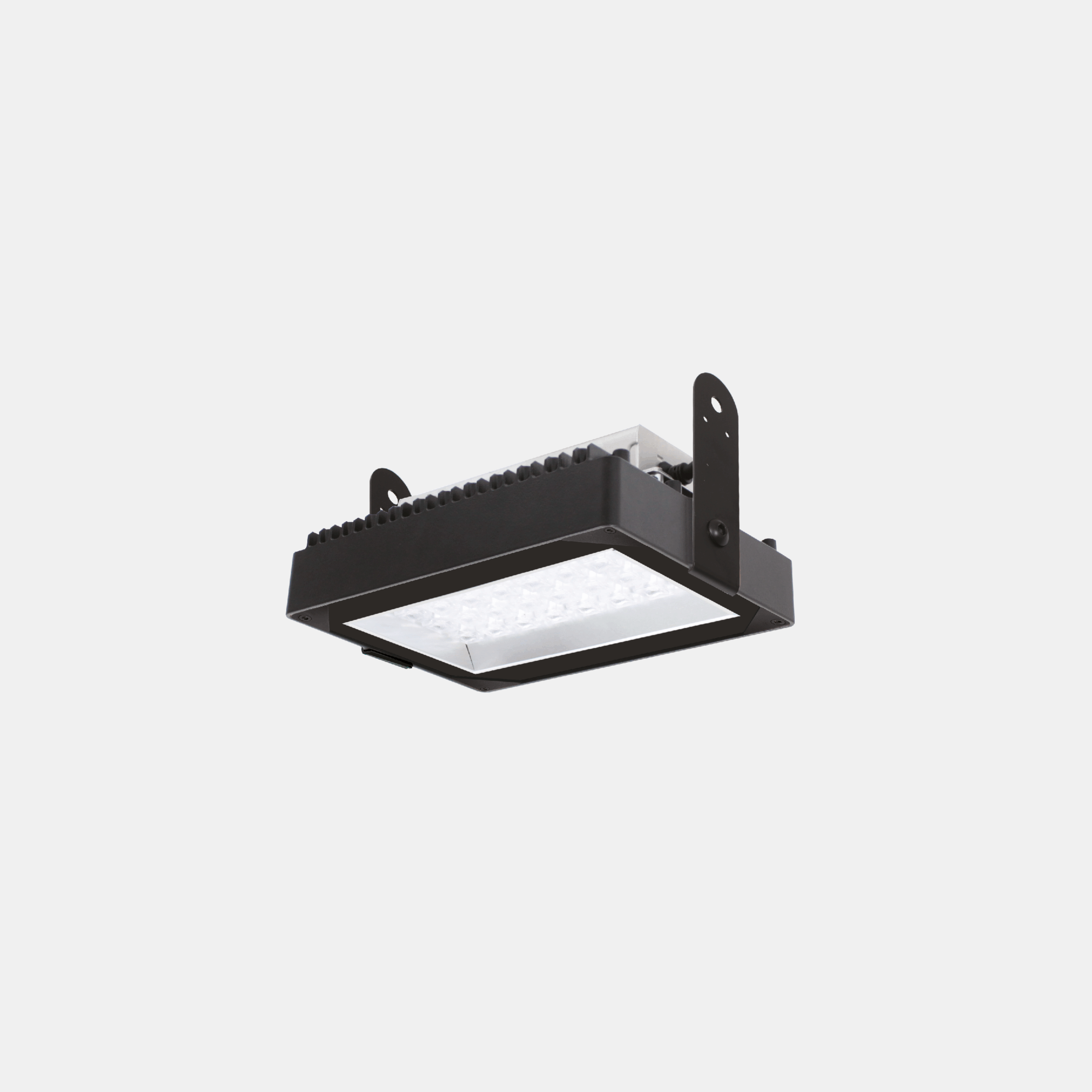

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Diecast aluminum body painted with anti-corrosion polyester thermosetting powder coating black color. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Elliptical optics 23°/52° (UGR<25).
Categories: Led, FLAT 1 - 8310, Industrial, FLAT 1
Models: 56
Color: Matt black
Catalogue abstract
Installation instructions

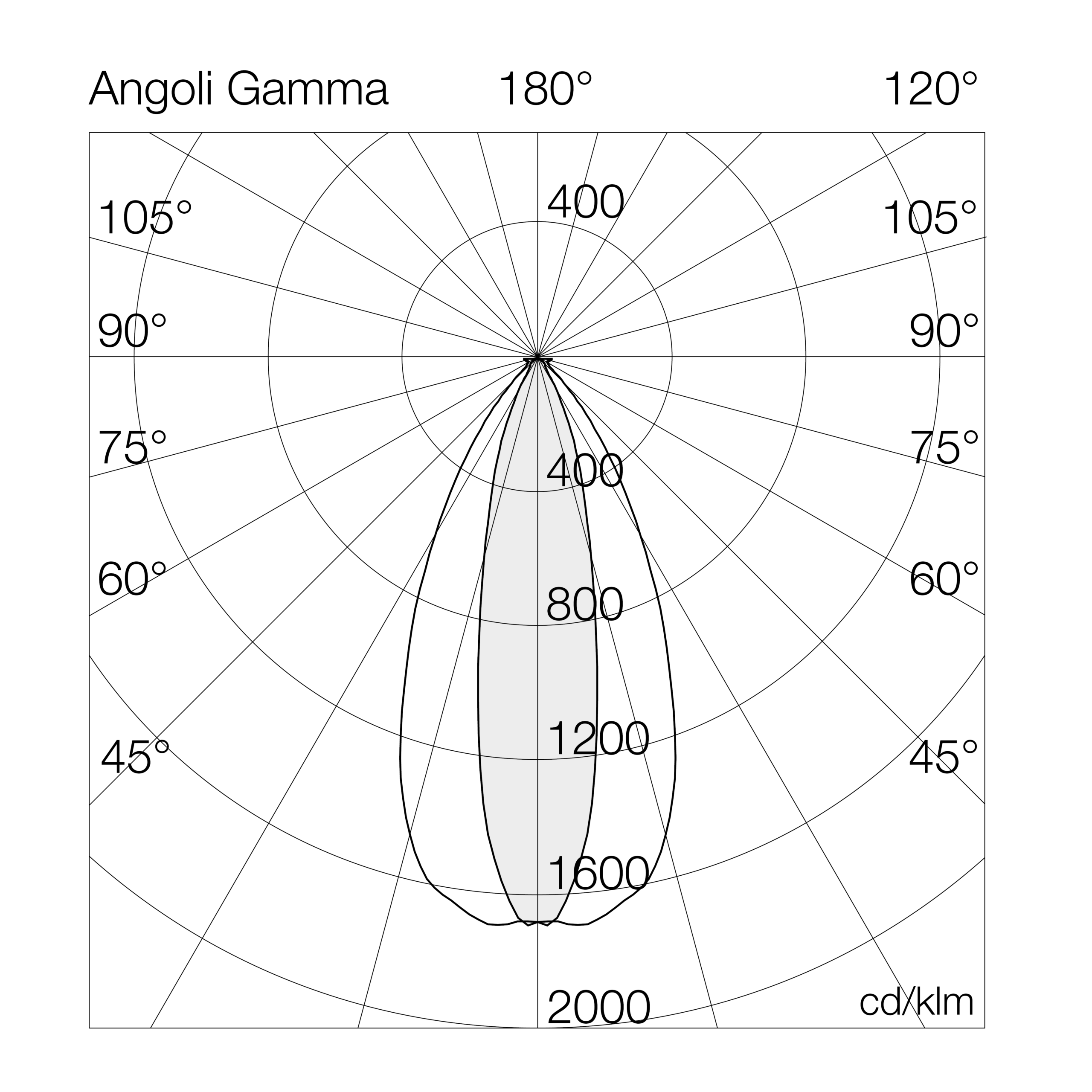

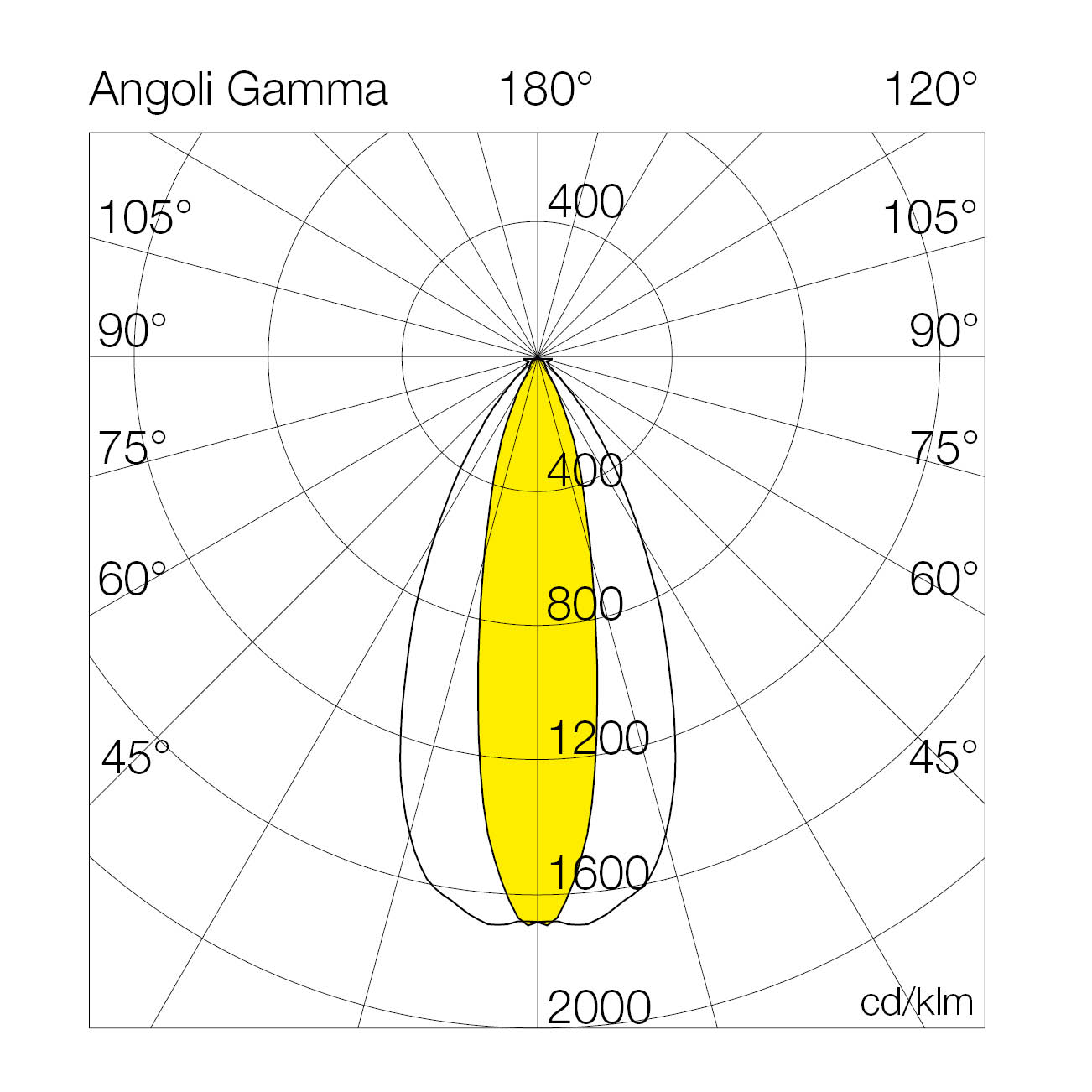

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8310EL4= 4000°K (CRI >80)056EL= on/off
5= 5000°K (CRI >80)080LD= dali
090E3= em. 3h
100D3= dali + em. 3h
120
130
140

Models

W tot.
°K - CRI
Options

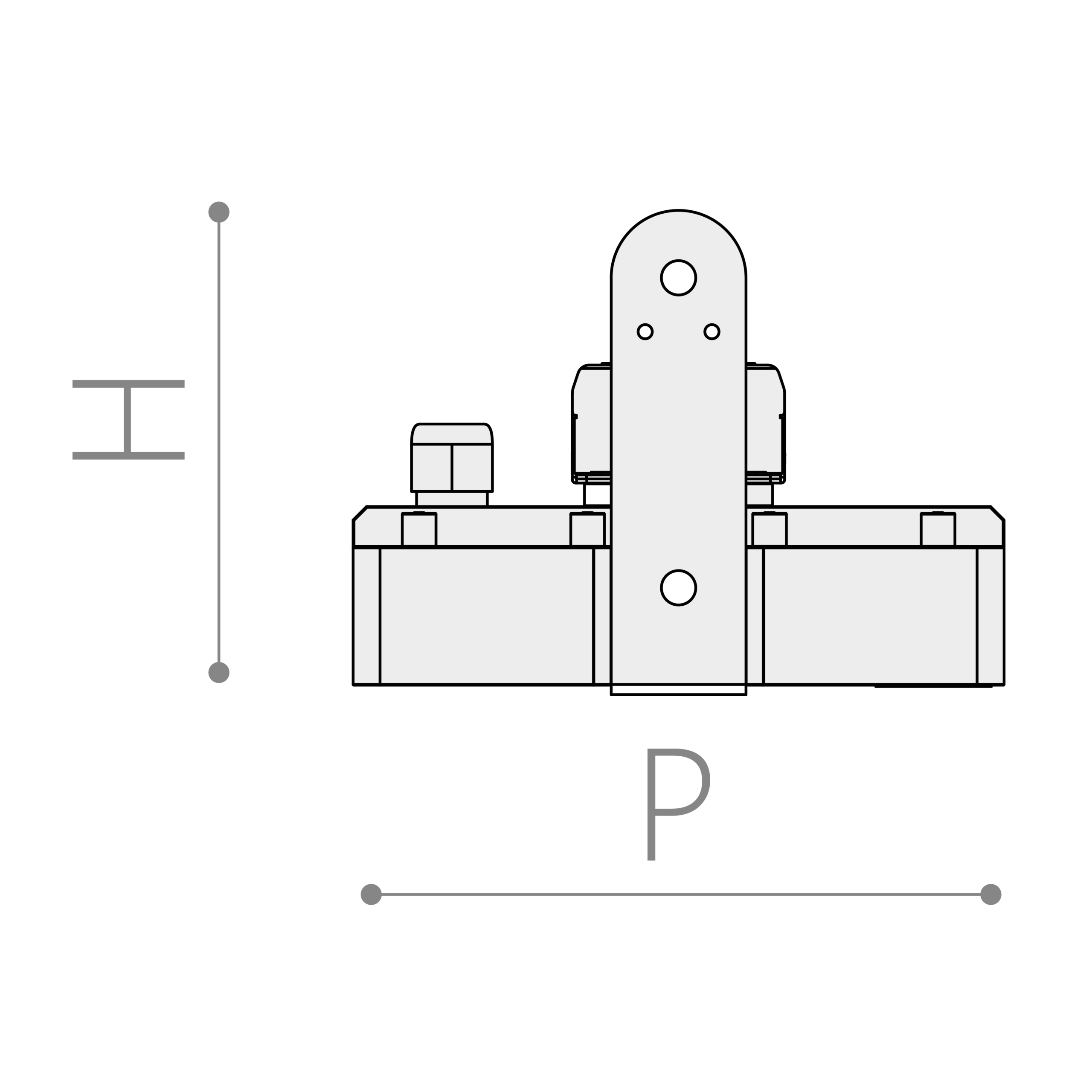

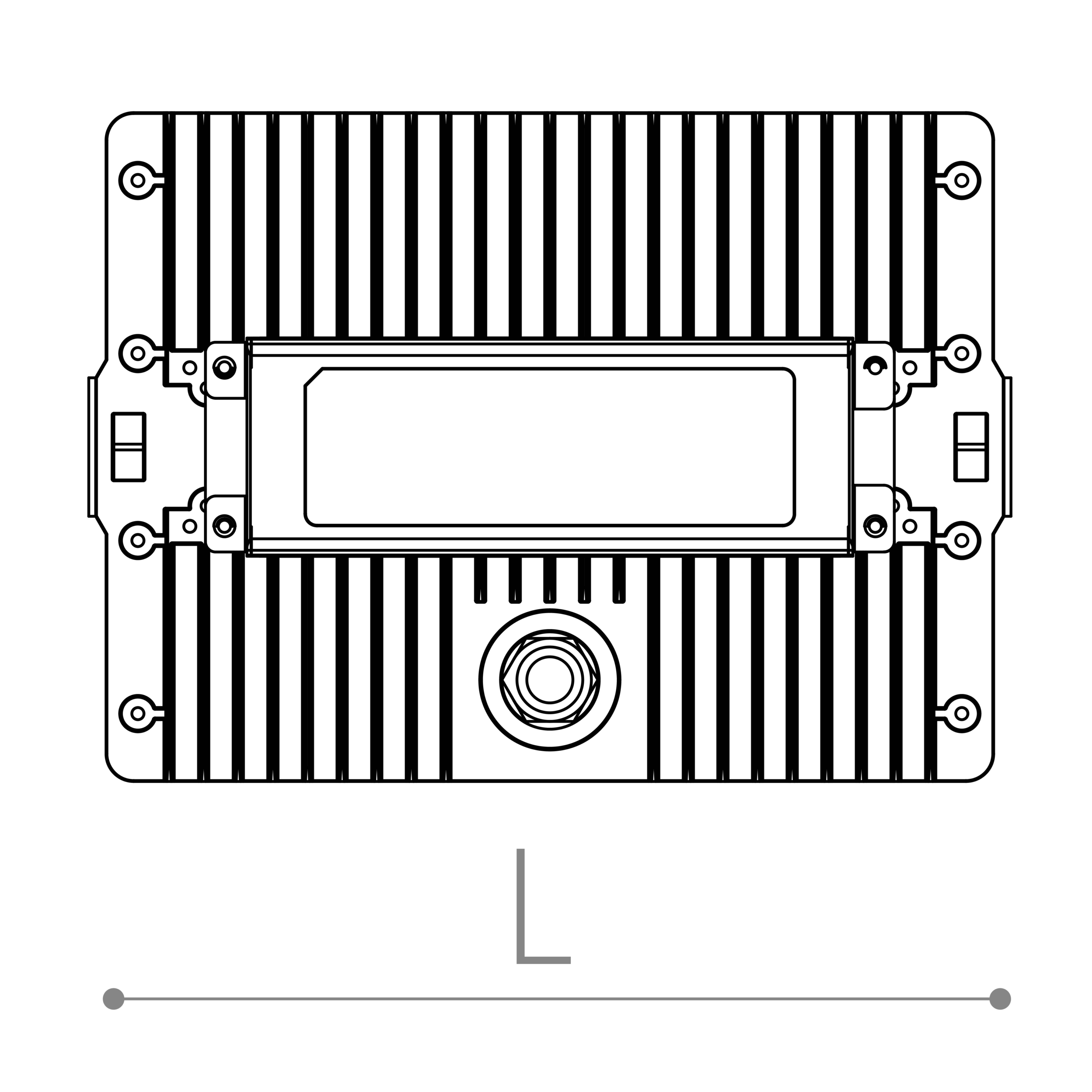

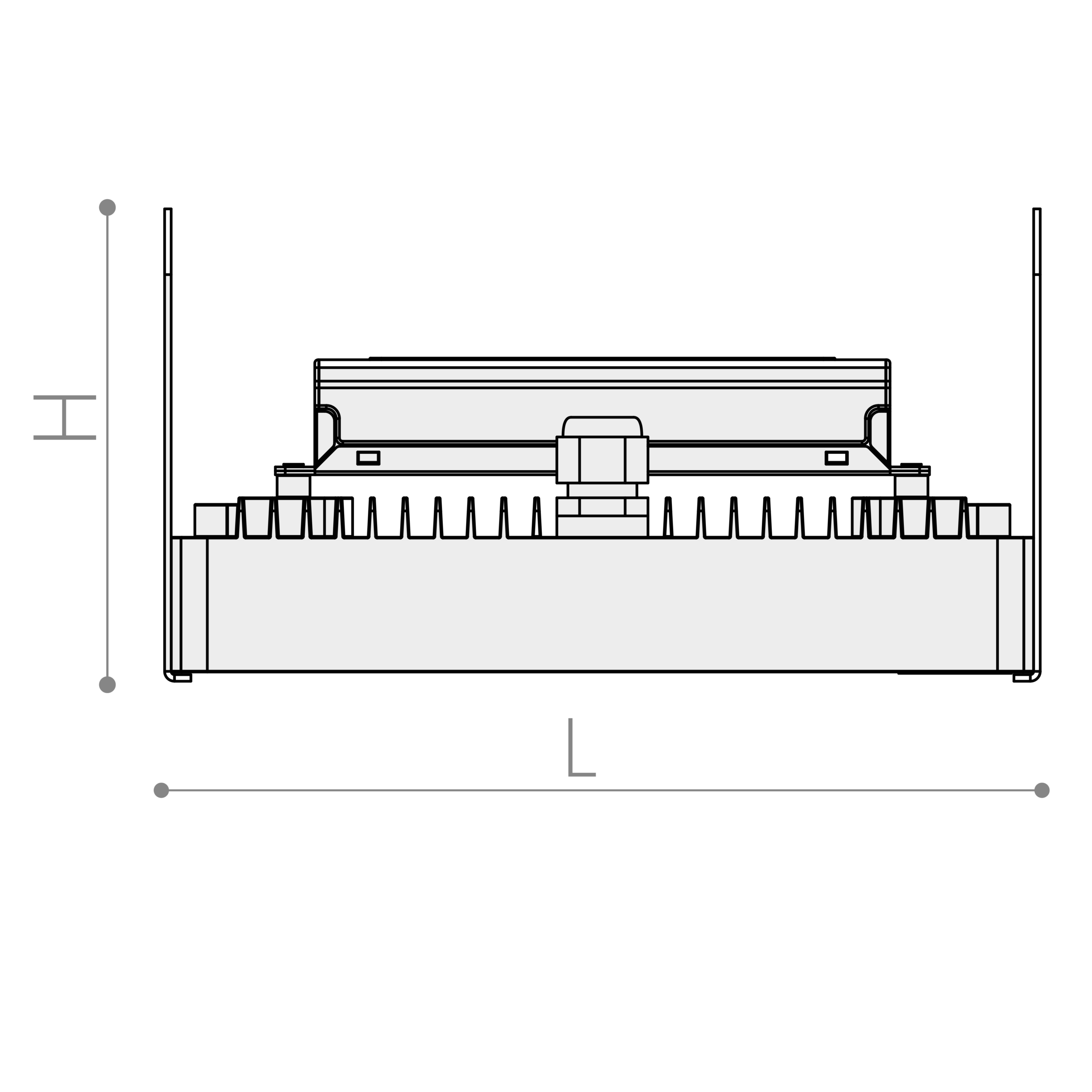

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8310EL4056EL56-4000°K - CRI>80on/off8619154265195155-3.9
8310EL4080EL80-4000°K - CRI>80on/off12056151265195155-3.9
8310EL4090EL90-4000°K - CRI>80on/off13607151265195155-3.9
8310EL4100EL100-4000°K - CRI>80on/off14185142265195155-3.9
8310EL4120EL120-4000°K - CRI>80on/off16393137265195155-3.9
8310EL4130EL130-4000°K - CRI>80on/off17433134265195155-3.9
8310EL4140EL140-4000°K - CRI>80on/off18429123265195155-3.9
8310EL4056LD56-4000°K - CRI>80dali8619154265195155-3.9
8310EL4080LD80-4000°K - CRI>80dali12056151265195155-3.9
8310EL4090LD90-4000°K - CRI>80dali13607151265195155-3.9
8310EL4100LD100-4000°K - CRI>80dali14185142265195155-3.9
8310EL4120LD120-4000°K - CRI>80dali16393137265195155-3.9
8310EL4130LD130-4000°K - CRI>80dali17433134265195155-3.9
8310EL4140LD140-4000°K - CRI>80dali18429123265195155-3.9
8310EL4056D356-4000°K - CRI>80dali + em. 3h8619154265195155-3.9
8310EL4080D380-4000°K - CRI>80dali + em. 3h12056151265195155-3.9
8310EL4090D390-4000°K - CRI>80dali + em. 3h13607151265195155-3.9
8310EL4100D3100-4000°K - CRI>80dali + em. 3h14185142265195155-3.9
8310EL4120D3120-4000°K - CRI>80dali + em. 3h16393137265195155-3.9
8310EL4130D3130-4000°K - CRI>80dali + em. 3h17433134265195155-3.9
