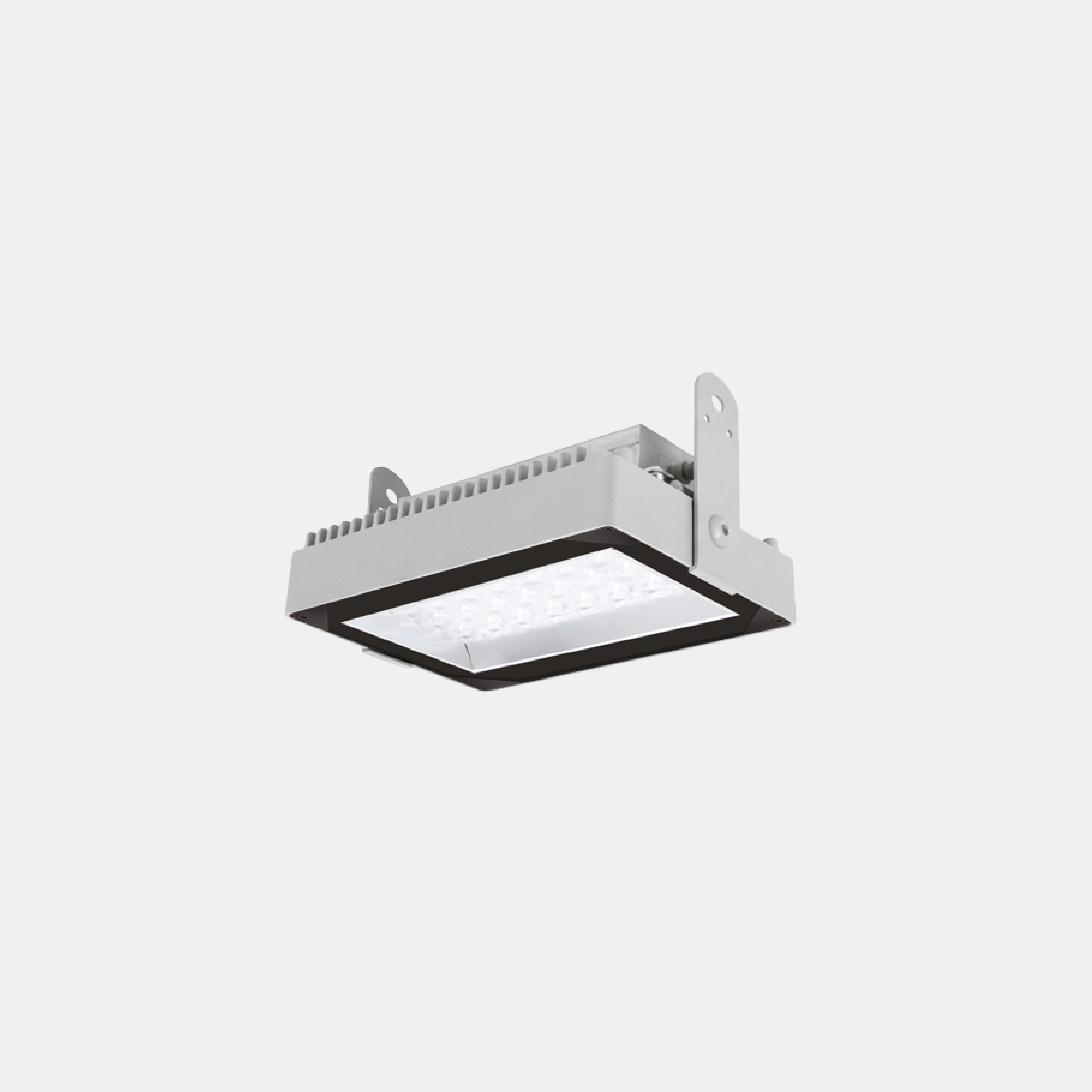

FLAT 1 – Mod. CU

(30° focusing optics)

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Diecast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Concentrating optics 30° (UGR<22).

Categories: Led, FLAT 1, FLAT 1, Industrial, FLAT 1

Models: 56

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
8310	CU	4	= 4000°K (CRI >80)	056	GL	= on/off
		5	= 5000°K (CRI >80)	080	GD	= dali
				090	G3	= em. 3h
				100	GE	= dali 2 + em. 3h
				120
				130
				140

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
8310CU4056GL	56	-	4000°K - CRI ≥80	on/off	9025	161	265	195	155	-	3.9
8310CU4080GL	80	-	4000°K - CRI ≥80	on/off	12623	158	265	195	155	-	3.9
8310CU4090GL	90	-	4000°K - CRI ≥80	on/off	14247	158	265	195	155	-	3.9
8310CU4100GL	100	-	4000°K - CRI ≥80	on/off	14852	149	265	195	155	-	3.9
8310CU4120GL	120	-	4000°K - CRI ≥80	on/off	17165	143	265	195	155	-	3.9
8310CU4130GL	130	-	4000°K - CRI ≥80	on/off	18253	140	265	195	155	-	3.9
8310CU4140GL	140	-	4000°K - CRI ≥80	on/off	19296	129	265	195	155	-	3.9
8310CU4056GD	56	-	4000°K - CRI ≥80	dali	9025	161	265	195	155	-	3.9
8310CU4080GD	80	-	4000°K - CRI ≥80	dali	12623	158	265	195	155	-	3.9
8310CU4090GD	90	-	4000°K - CRI ≥80	dali	14247	158	265	195	155	-	3.9
8310CU4100GD	100	-	4000°K - CRI ≥80	dali	14852	149	265	195	155	-	3.9
8310CU4120GD	120	-	4000°K - CRI ≥80	dali	17165	143	265	195	155	-	3.9
8310CU4130GD	130	-	4000°K - CRI ≥80	dali	18253	140	265	195	155	-	3.9
8310CU4140GD	140	-	4000°K - CRI ≥80	dali	19296	129	265	195	155	-	3.9
8310CU4056GE	56	-	4000°K - CRI ≥80	dali + em. 3h	9025	161	265	195	155	-	3.9
8310CU4080GE	80	-	4000°K - CRI ≥80	dali + em. 3h	12623	158	265	195	155	-	3.9
8310CU4090GE	90	-	4000°K - CRI ≥80	dali + em. 3h	14247	158	265	195	155	-	3.9
8310CU4100GE	100	-	4000°K - CRI ≥80	dali + em. 3h	14852	149	265	195	155	-	3.9
8310CU4120GE	120	-	4000°K - CRI ≥80	dali + em. 3h	17165	143	265	195	155	-	3.9
8310CU4130GE	130	-	4000°K - CRI ≥80	dali + em. 3h	18253	140	265	195	155	-	3.9
