FLAT 1/S2

Led industrial and commercial suspended high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, black color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, FLAT 1 - 8310, Industrial, art. 8310 Flat 1
Models: 56
Color: Matt black
Catalogue abstract
Installation instructions

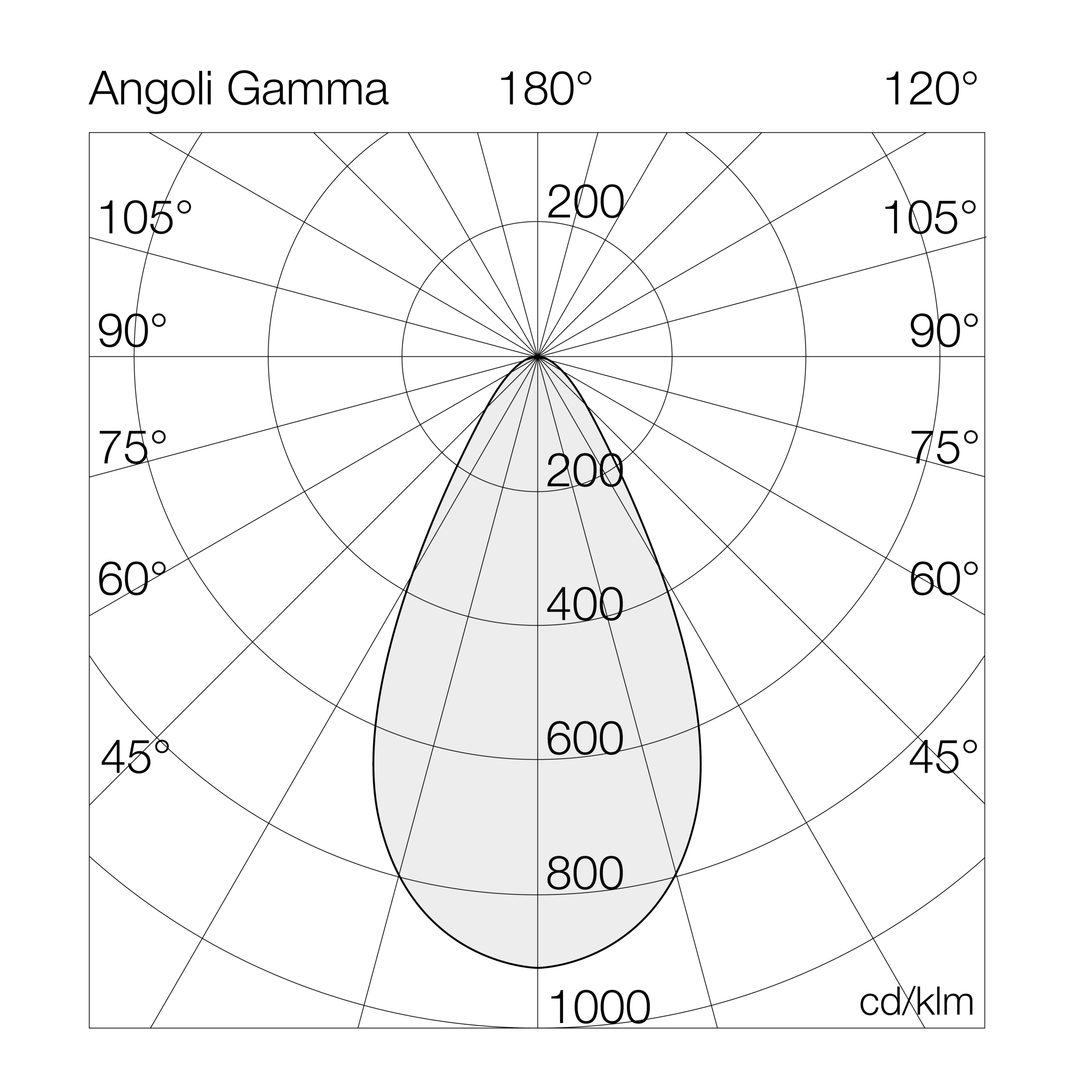

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8310S24= 4000°K (CRI >80)056EL= on/off
5= 5000°K (CRI >80)080LD= dali
090E3= em. 3h
100D3= dali + em. 3h
120
130
140

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8310S24056EL56-4000°K - CRI>80on/off9126163265195155-3.9
8310S24080EL80-4000°K - CRI>80on/off12765160265195155-3.9
8310S24090EL90-4000°K - CRI>80on/off14407160265195155-3.9
8310S24100EL100-4000°K - CRI>80on/off15019150265195155-3.9
8310S24120EL120-4000°K - CRI>80on/off17357145265195155-3.9
8310S24130EL130-4000°K - CRI>80on/off18458142265195155-3.9
8310S24140EL140-4000°K - CRI>80on/off19513130265195155-3.9
8310S24056LD56-4000°K - CRI>80dali9126163265195155-3.9
8310S24080LD80-4000°K - CRI>80dali12765160265195155-3.9
8310S24090LD90-4000°K - CRI>80dali14407160265195155-3.9
8310S24100LD100-4000°K - CRI>80dali15019150265195155-3.9
8310S24120LD120-4000°K - CRI>80dali17357145265195155-3.9
8310S24130LD130-4000°K - CRI>80dali18458142265195155-3.9
8310S24140LD140-4000°K - CRI>80dali19513130265195155-3.9
8310S24056D356-4000°K - CRI>80dali + em. 3h9126163265195155-3.9
8310S24080D380-4000°K - CRI>80dali + em. 3h12765160265195155-3.9
8310S24090D390-4000°K - CRI>80dali + em. 3h14407160265195155-3.9
8310S24100D3100-4000°K - CRI>80dali + em. 3h15019150265195155-3.9
8310S24120D3120-4000°K - CRI>80dali + em. 3h17357145265195155-3.9
8310S24130D3130-4000°K - CRI>80dali + em. 3h18458142265195155-3.9

Accessories
