FLAT 1/S5

Led industrial and commercial suspended high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, black color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, FLAT 1 - 8310, Industrial, art. 8310 Flat 1
Models: 56
Color: Matt black
Catalogue abstract
Installation instructions

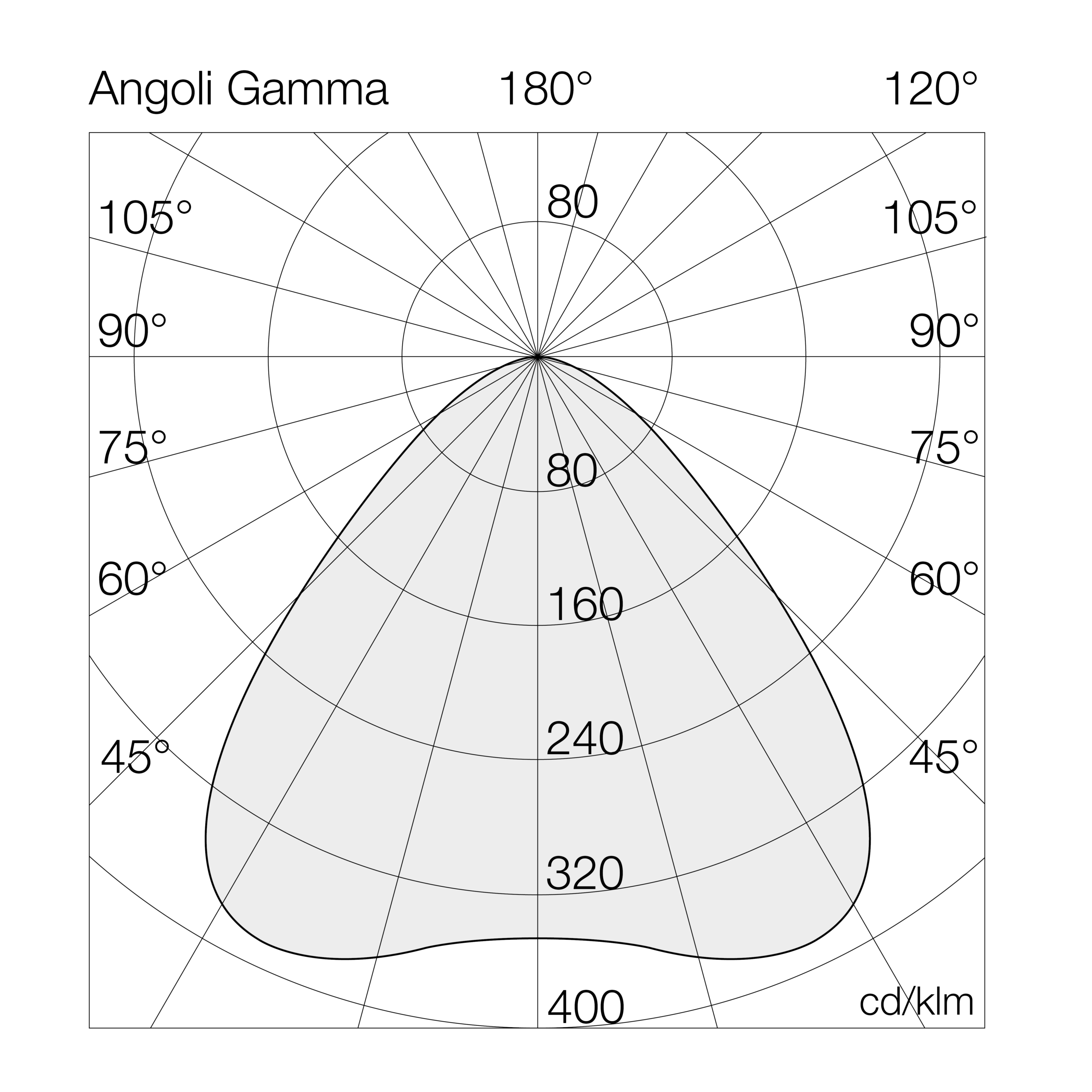

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8310S54= 4000°K (CRI >80)056EL= on/off
5= 5000°K (CRI >80)080LD= dali
090E3= em. 3h
100D3= dali + em. 3h
120
130
140

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8310S54056EL56-4000°K - CRI>80on/off9227165265195155-3.9
8310S54080EL80-4000°K - CRI>80on/off12907161265195155-3.9
8310S54090EL90-4000°K - CRI>80on/off14567162265195155-3.9
8310S54100EL100-4000°K - CRI>80on/off15186152265195155-3.9
8310S54120EL120-4000°K - CRI>80on/off17550146265195155-3.9
8310S54130EL130-4000°K - CRI>80on/off18663144265195155-3.9
8310S54140EL140-4000°K - CRI>80on/off19730132265195155-3.9
8310S54056LD56-4000°K - CRI>80dali9227165265195155-3.9
8310S54080LD80-4000°K - CRI>80dali12907161265195155-3.9
8310S54090LD90-4000°K - CRI>80dali14567162265195155-3.9
8310S54100LD100-4000°K - CRI>80dali15186152265195155-3.9
8310S54120LD120-4000°K - CRI>80dali17550146265195155-3.9
8310S54130LD130-4000°K - CRI>80dali18663144265195155-3.9
8310S54140LD140-4000°K - CRI>80dali19730132265195155-3.9
8310S54056D356-4000°K - CRI>80dali + em. 3h9227165265195155-3.9
8310S54080D380-4000°K - CRI>80dali + em. 3h12907161265195155-3.9
8310S54090D390-4000°K - CRI>80dali + em. 3h14567162265195155-3.9
8310S54100D3100-4000°K - CRI>80dali + em. 3h15186152265195155-3.9
8310S54120D3120-4000°K - CRI>80dali + em. 3h17550146265195155-3.9
8310S54130D3130-4000°K - CRI>80dali + em. 3h18663144265195155-3.9
