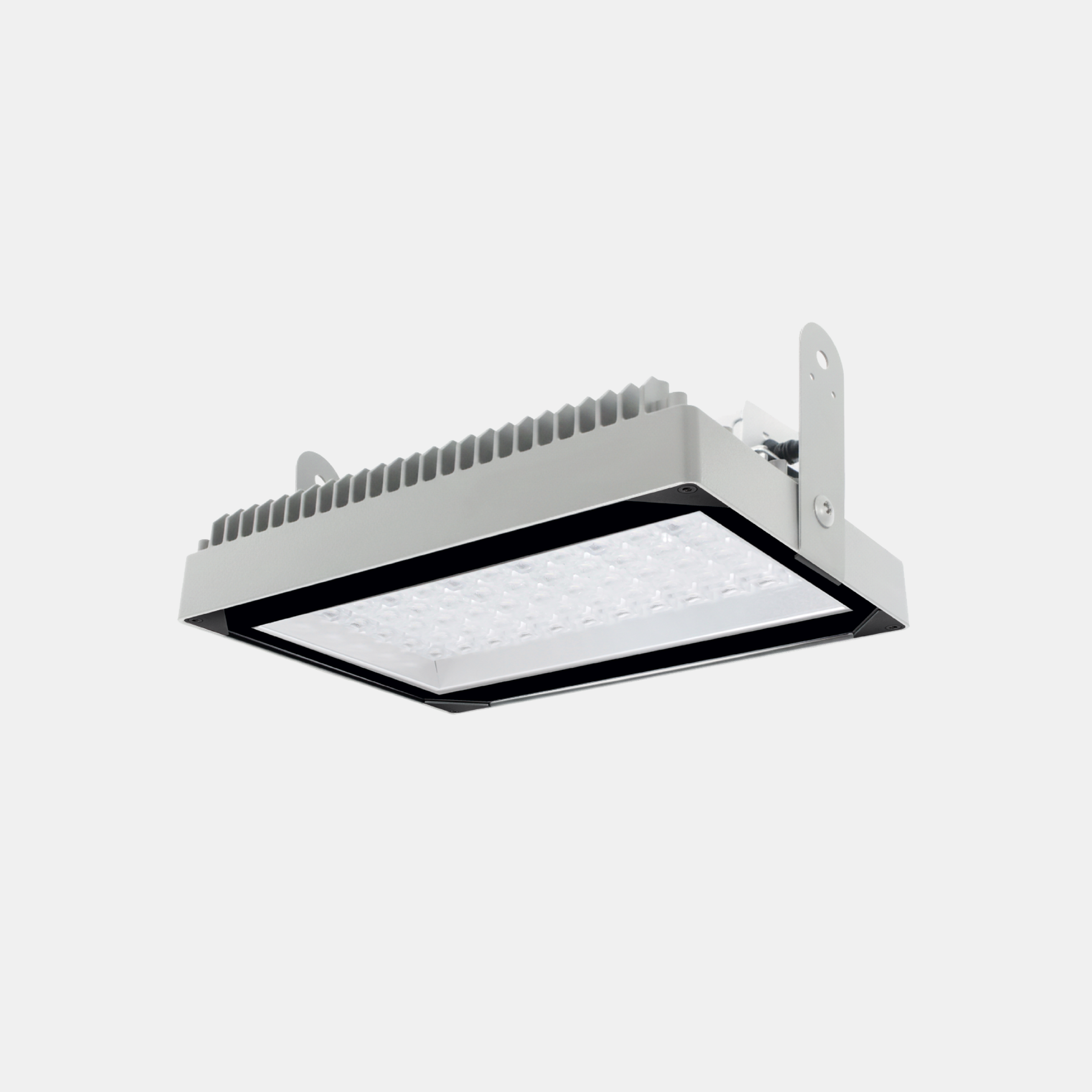

FLAT 2 – Mod. CU

(30° focusing optics)

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Diecast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Concentrating optics 30° (UGR<22).

Categories: Led, FLAT 2, FLAT 2, Industrial, FLAT 2

Models: 224

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
8311	CU	4	= 4000°K (CRI >80)	070	140	GL	= on/off
		5	= 5000°K (CRI >80)	080	150	GD	= dali
				090	165	G3	= em. 3h
				100	190	GE	= dali + em. 3h
				110	230
				120	300
				130

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
8311CU4070GL	70	-	4000°K - CRI ≥80	on/off	11883	170	360	260	155	-	7.1
8311CU4080GL	80	-	4000°K - CRI ≥80	on/off	13217	165	360	260	155	-	7.1
8311CU4090GL	90	-	4000°K - CRI ≥80	on/off	14866	165	360	260	155	-	7.1
8311CU4100GL	100	-	4000°K - CRI ≥80	on/off	16492	165	360	260	155	-	7.1
8311CU4110GL	110	-	4000°K - CRI ≥80	on/off	17136	156	360	260	155	-	7.1
8311CU4120GL	120	-	4000°K - CRI ≥80	on/off	18731	156	360	260	155	-	7.1
8311CU4130GL	130	-	4000°K - CRI ≥80	on/off	20304	156	360	260	155	-	7.1
8311CU4140GL	140	-	4000°K - CRI ≥80	on/off	21854	156	360	260	155	-	7.1
8311CU4150GL	150	-	4000°K - CRI ≥80	on/off	23078	154	360	260	155	-	7.1
8311CU4165GL	165	-	4000°K - CRI ≥80	on/off	25184	153	360	260	155	-	7.1
8311CU4190GL	190	-	4000°K - CRI ≥80	on/off	28402	149	360	260	155	-	7.1
8311CU4200GL	200	-	4000°K - CRI ≥80	on/off	32983	165	720	260	155	-	14.4
8311CU4230GL	230	-	4000°K - CRI ≥80	on/off	33419	145	360	260	155	-	7.9
8311CU4300GL	300	-	4000°K - CRI ≥80	on/off	40345	134	360	260	155	-	7.9
8311CU4070GD	70	-	4000°K - CRI ≥80	dali	11883	170	360	260	155	-	7.1
8311CU4080GD	80	-	4000°K - CRI ≥80	dali	13217	165	360	260	155	-	7.1
8311CU4090GD	90	-	4000°K - CRI ≥80	dali	14866	165	360	260	155	-	7.1
8311CU4100GD	100	-	4000°K - CRI ≥80	dali	16492	165	360	260	155	-	7.1
8311CU4110GD	110	-	4000°K - CRI ≥80	dali	17136	156	360	260	155	-	7.1
8311CU4120GD	120	-	4000°K - CRI ≥80	dali	18731	156	360	260	155	-	7.1
