FLAT 2/CU

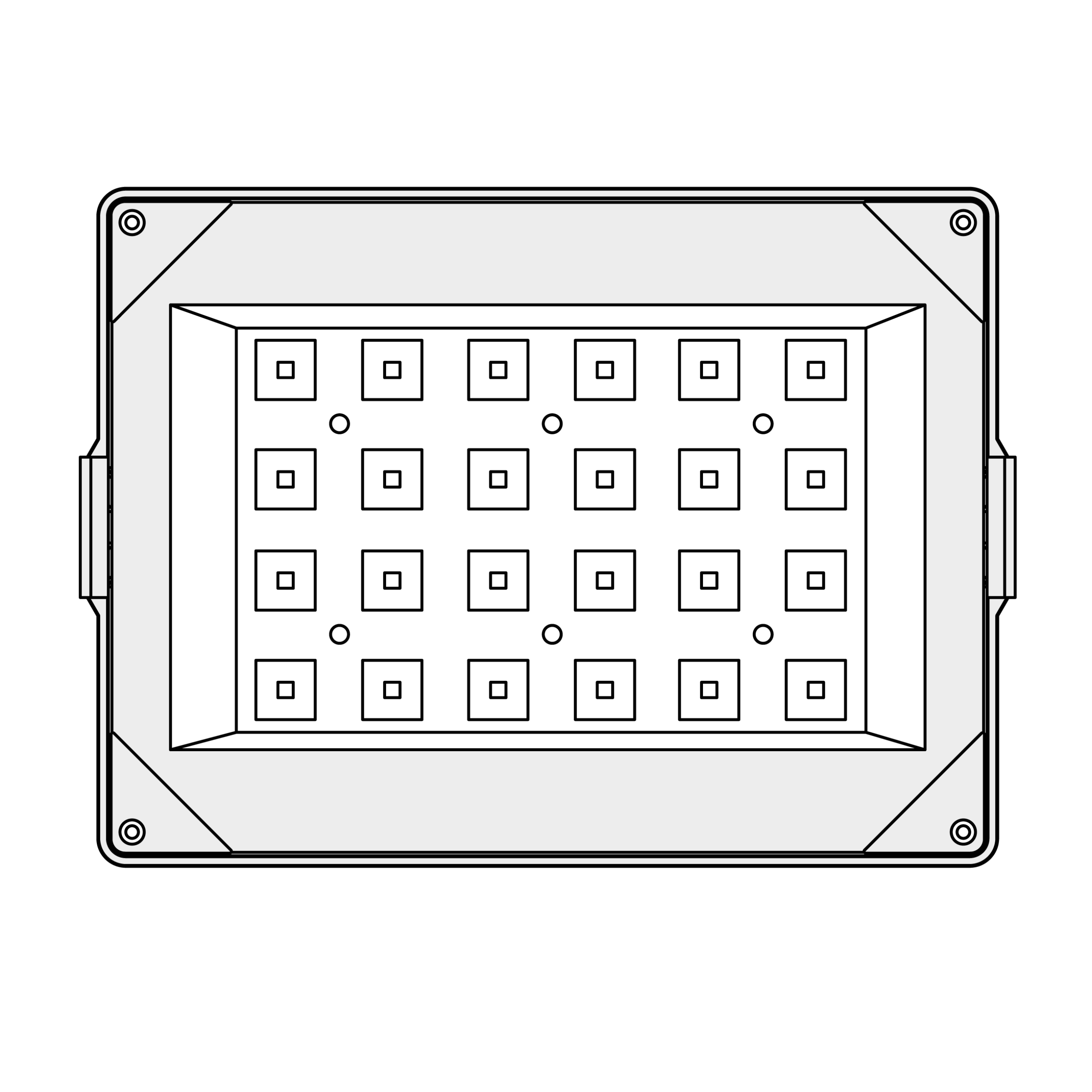

Led industrial and commercial suspended high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, black color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, FLAT 2 - 8311, Industrial, art. 8311 Flat 2
Models: 224
Color: Matt black
Catalogue abstract
Installation instructions

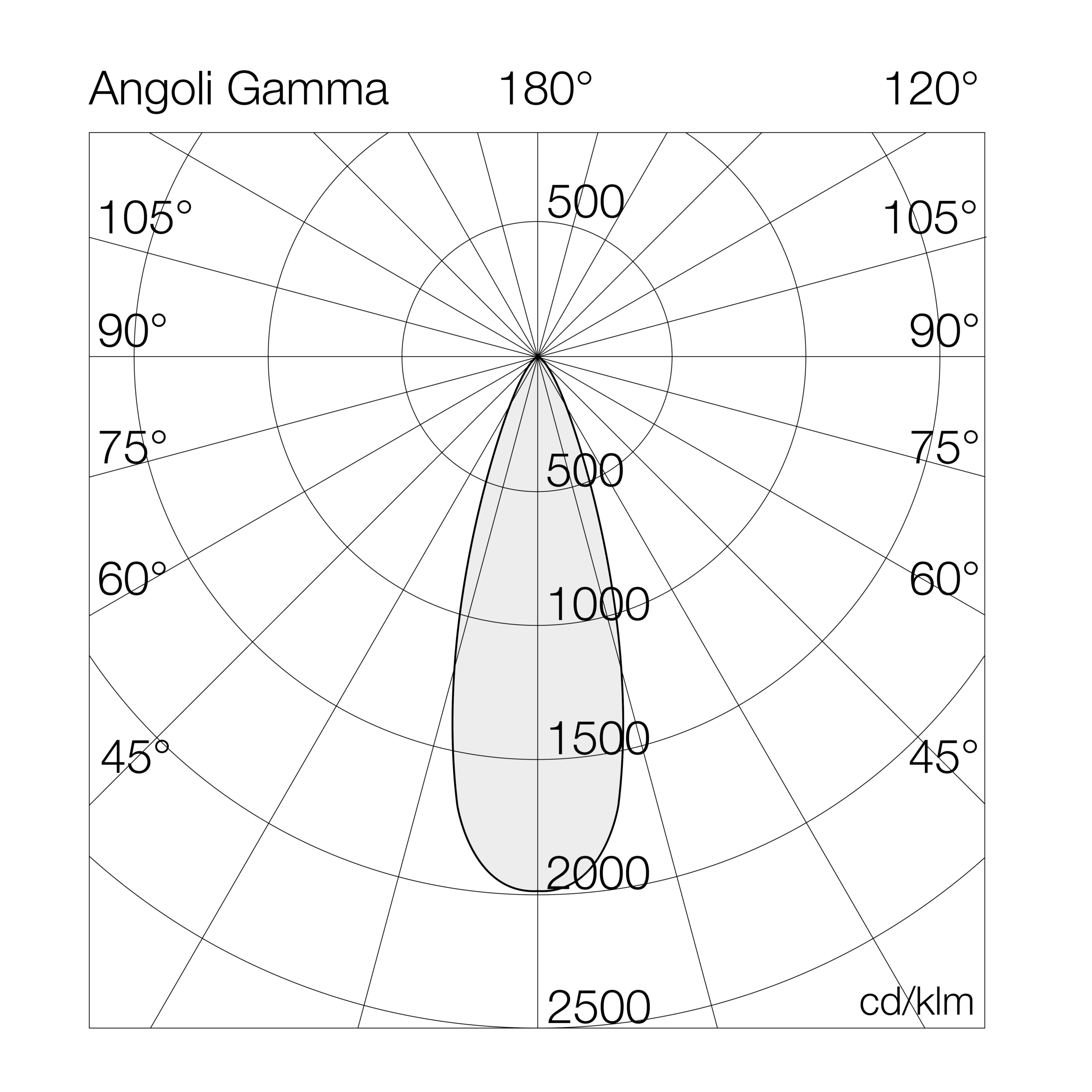

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8311CU4= 4000°K (CRI >80)070140EL= on/off
5= 5000°K (CRI >80)080150LD= dali
090165E3= em. 3h
100190D3= dali + em. 3h
110230
120300
130

Models

W tot.
°K - CRI
Options

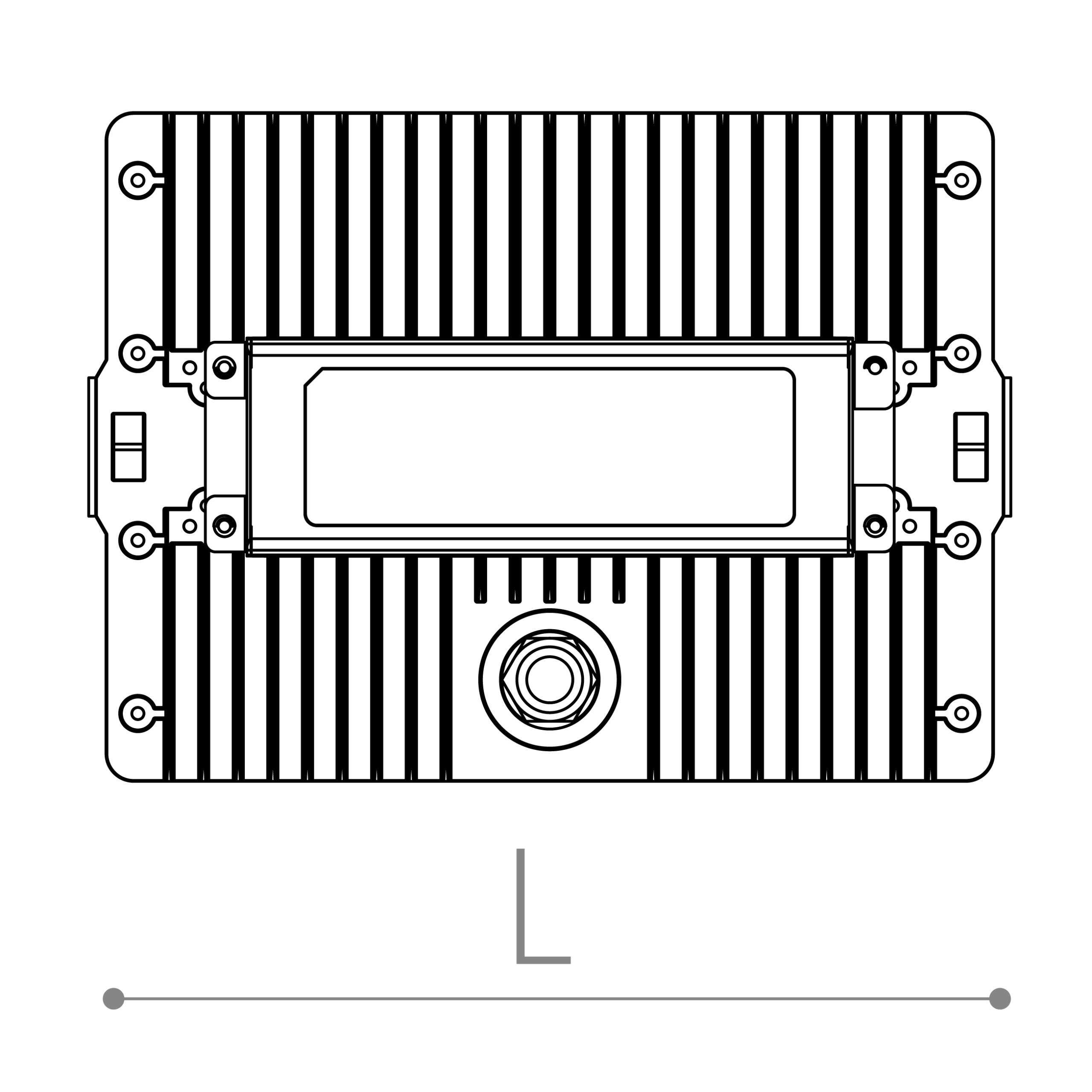

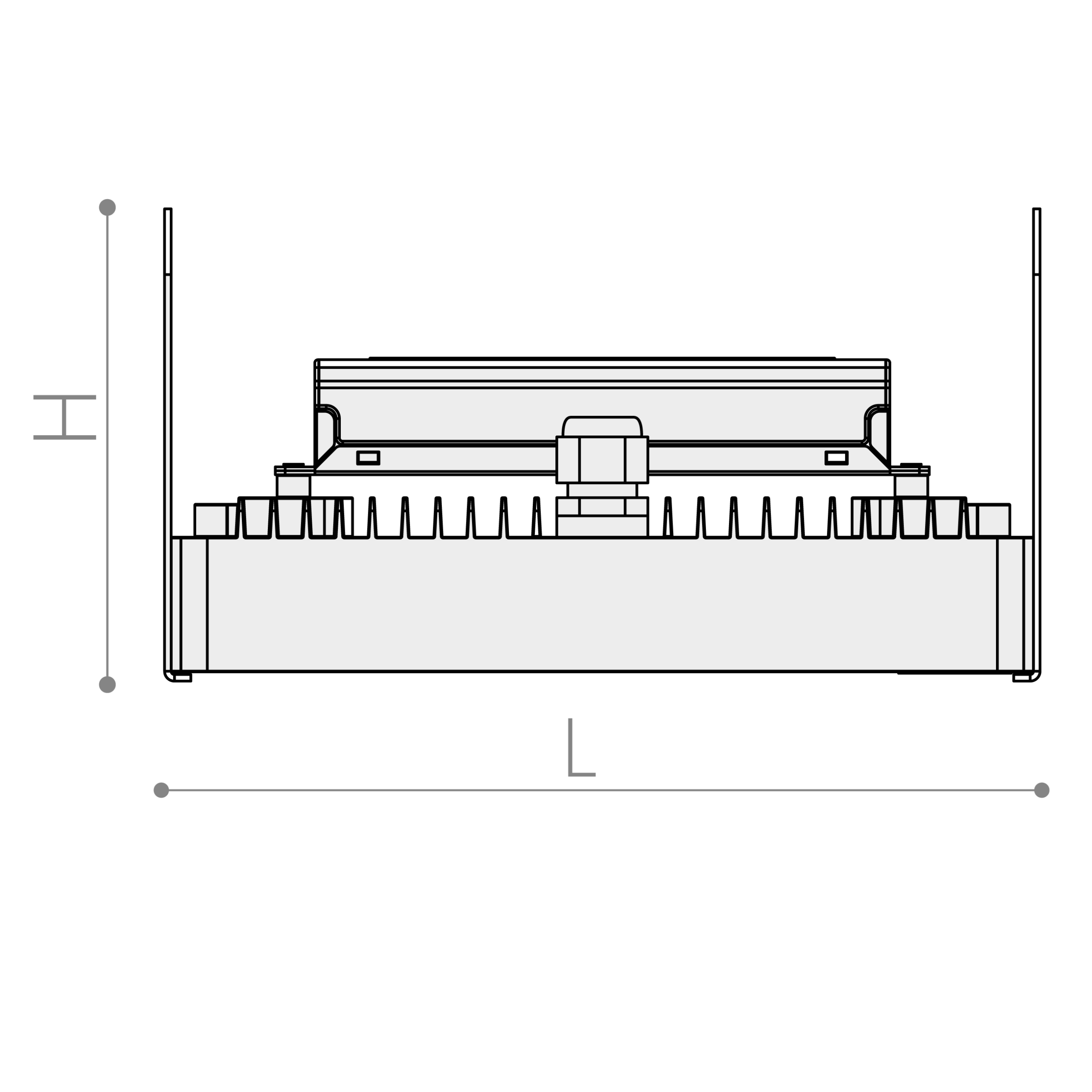

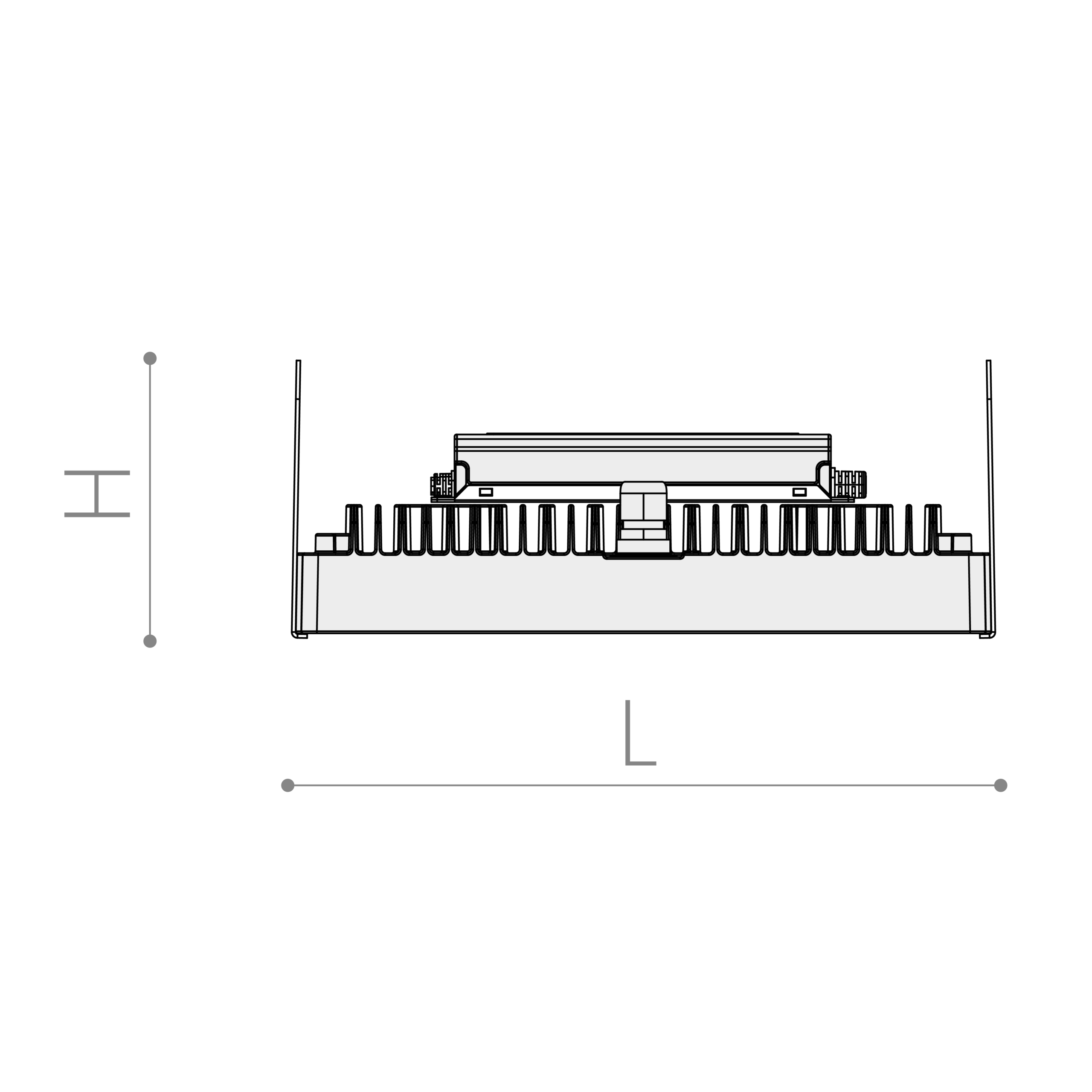

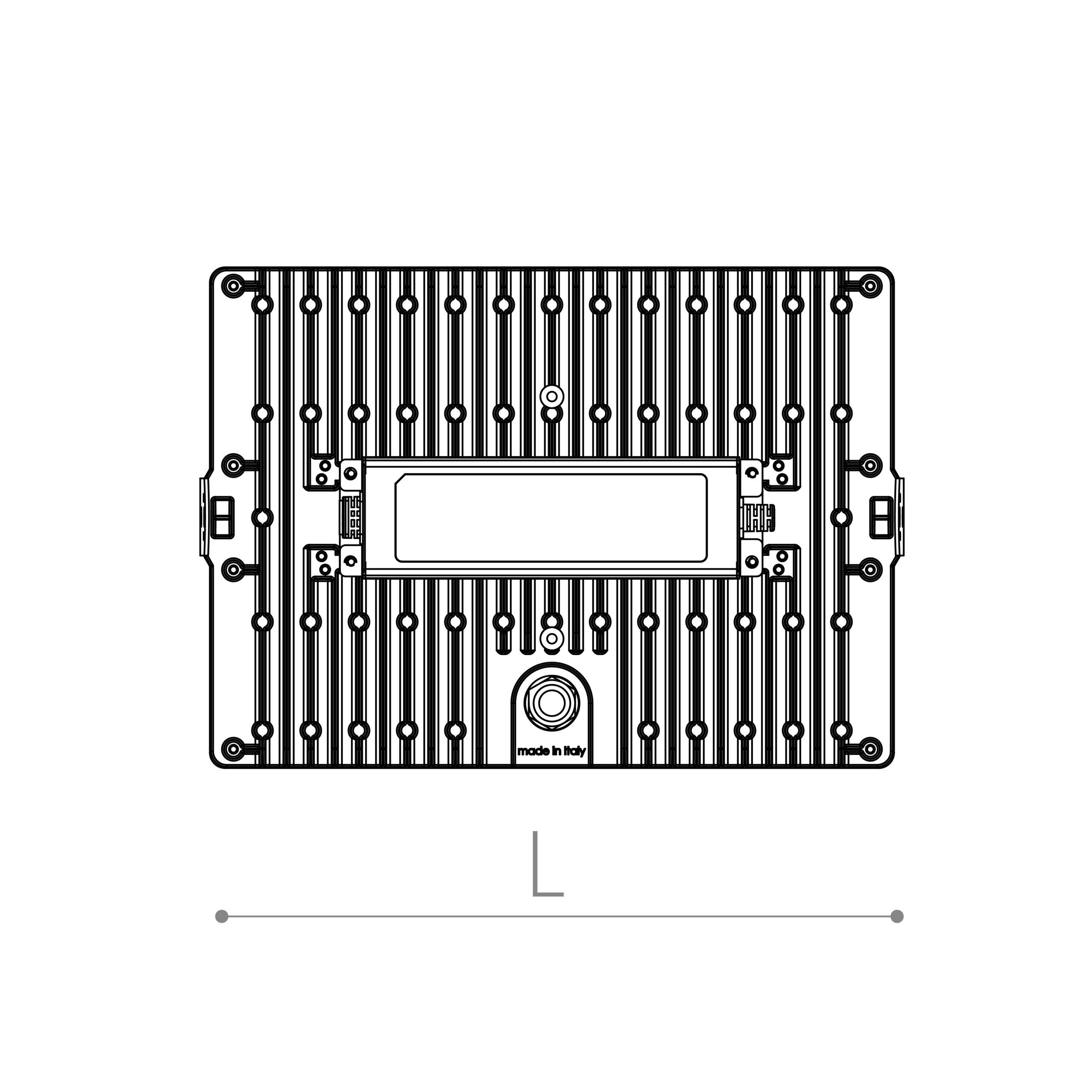

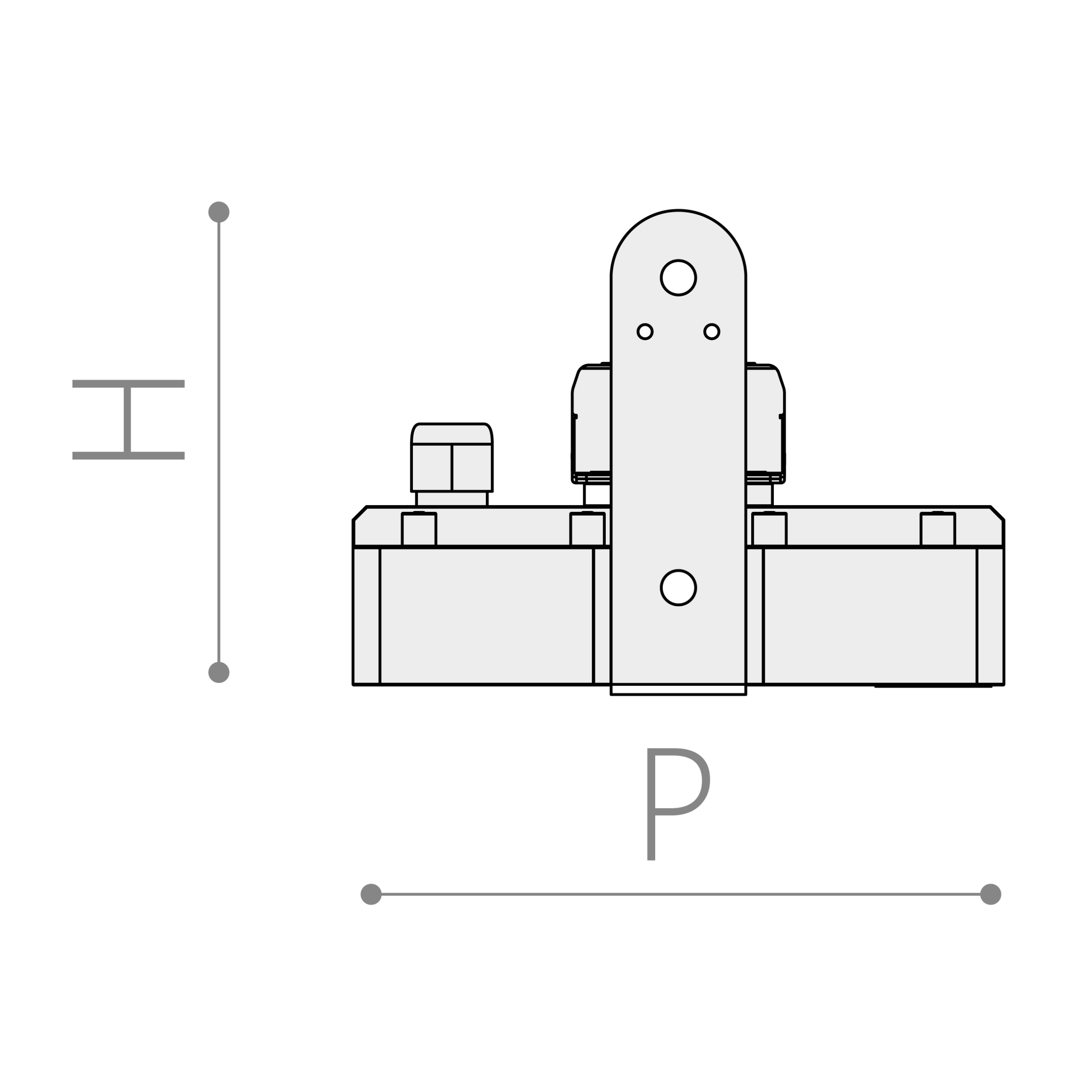

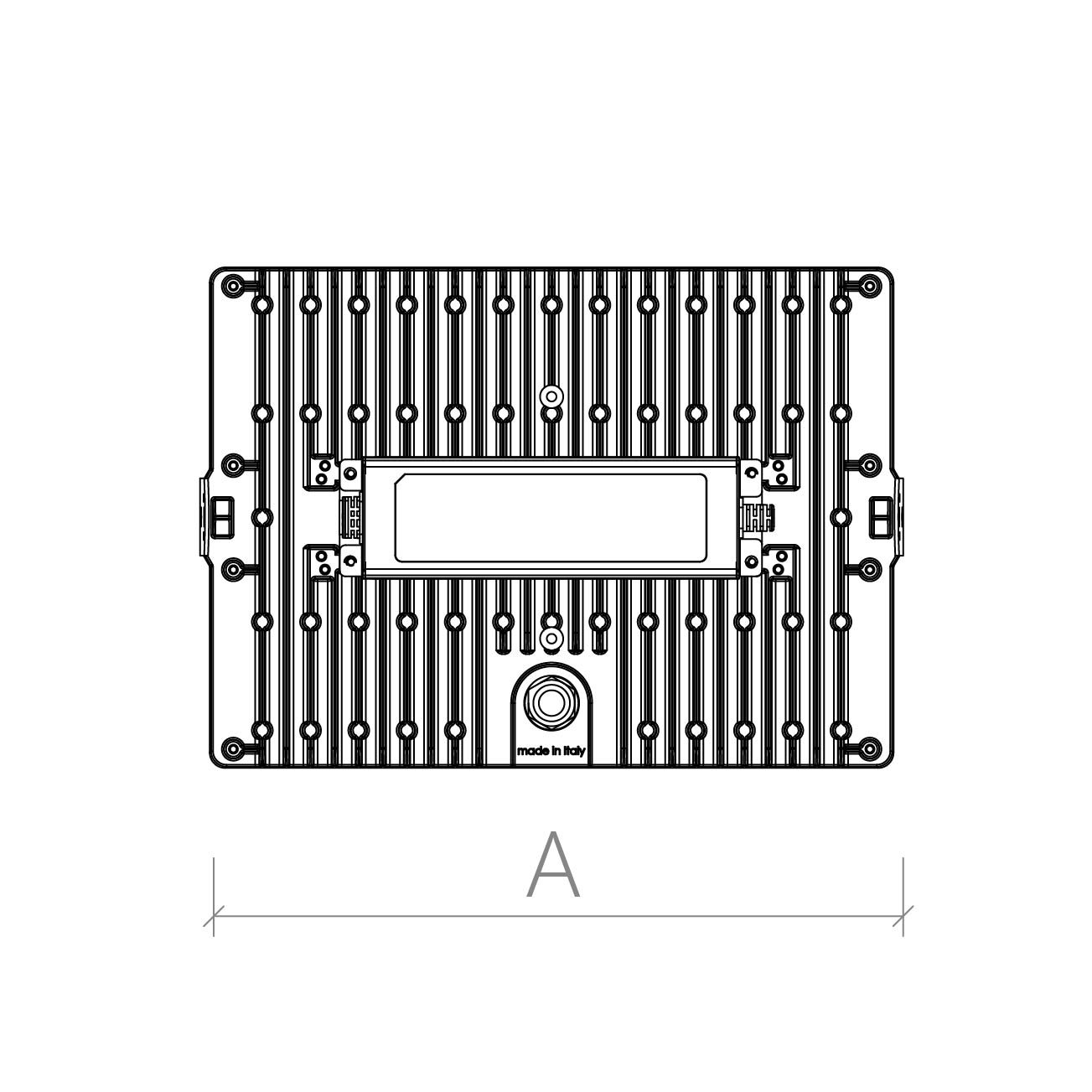

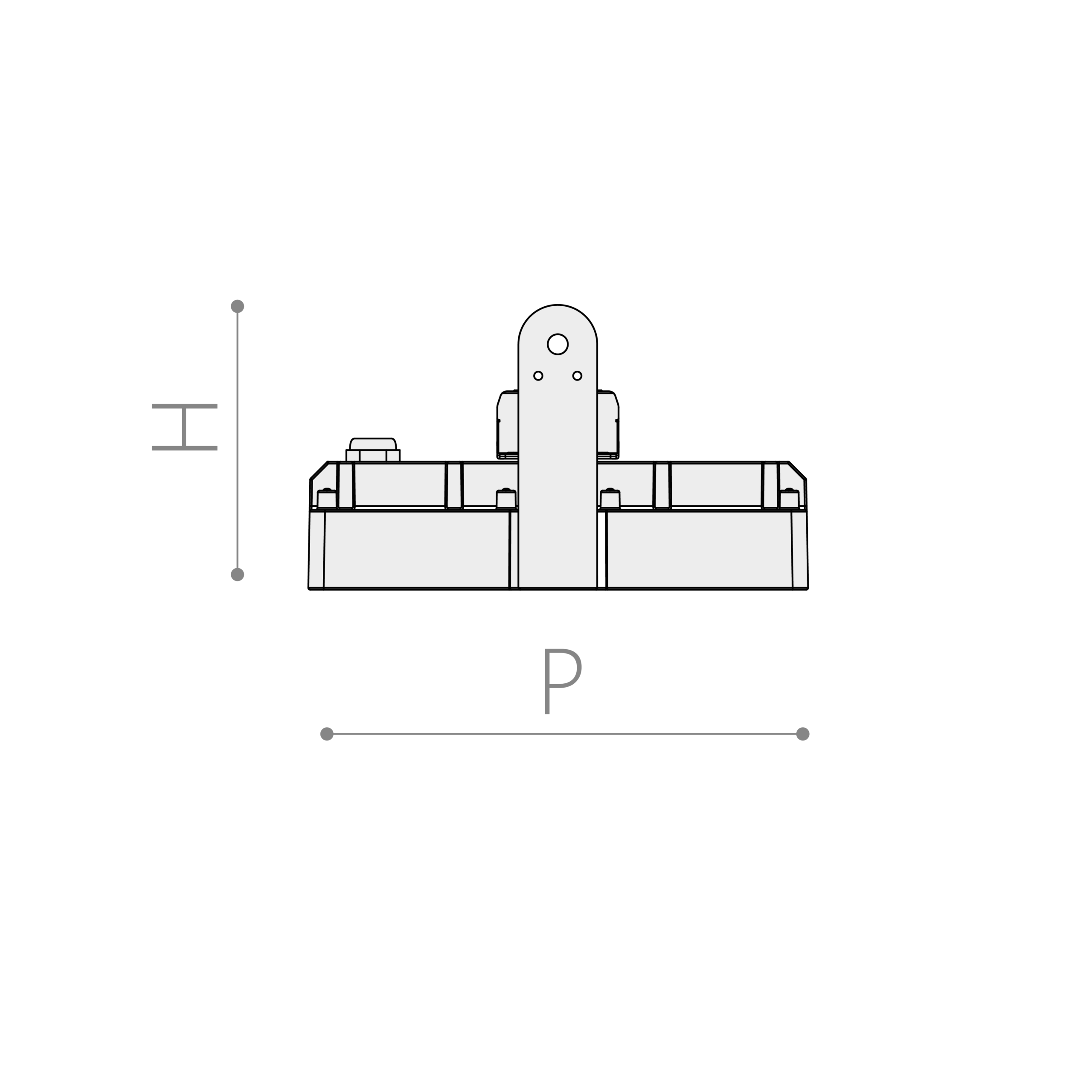

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8311CU4070EL70-4000°K - CRI>80on/off11883170360260155-7.1
8311CU4080EL80-4000°K - CRI>80on/off13217165360260155-7.1
8311CU4090EL90-4000°K - CRI>80on/off14866165360260155-7.1
8311CU4100EL100-4000°K - CRI>80on/off16492165360260155-7.1
8311CU4110EL110-4000°K - CRI>80on/off17136156360260155-7.1
8311CU4120EL120-4000°K - CRI>80on/off18731156360260155-7.1
8311CU4130EL130-4000°K - CRI>80on/off20304156360260155-7.1
8311CU4140EL140-4000°K - CRI>80on/off21854156360260155-7.1
8311CU4150EL150-4000°K - CRI>80on/off23078154360260155-7.1
8311CU4165EL165-4000°K - CRI>80on/off25184153360260155-7.1
8311CU4190EL190-4000°K - CRI>80on/off28402149360260155-7.1

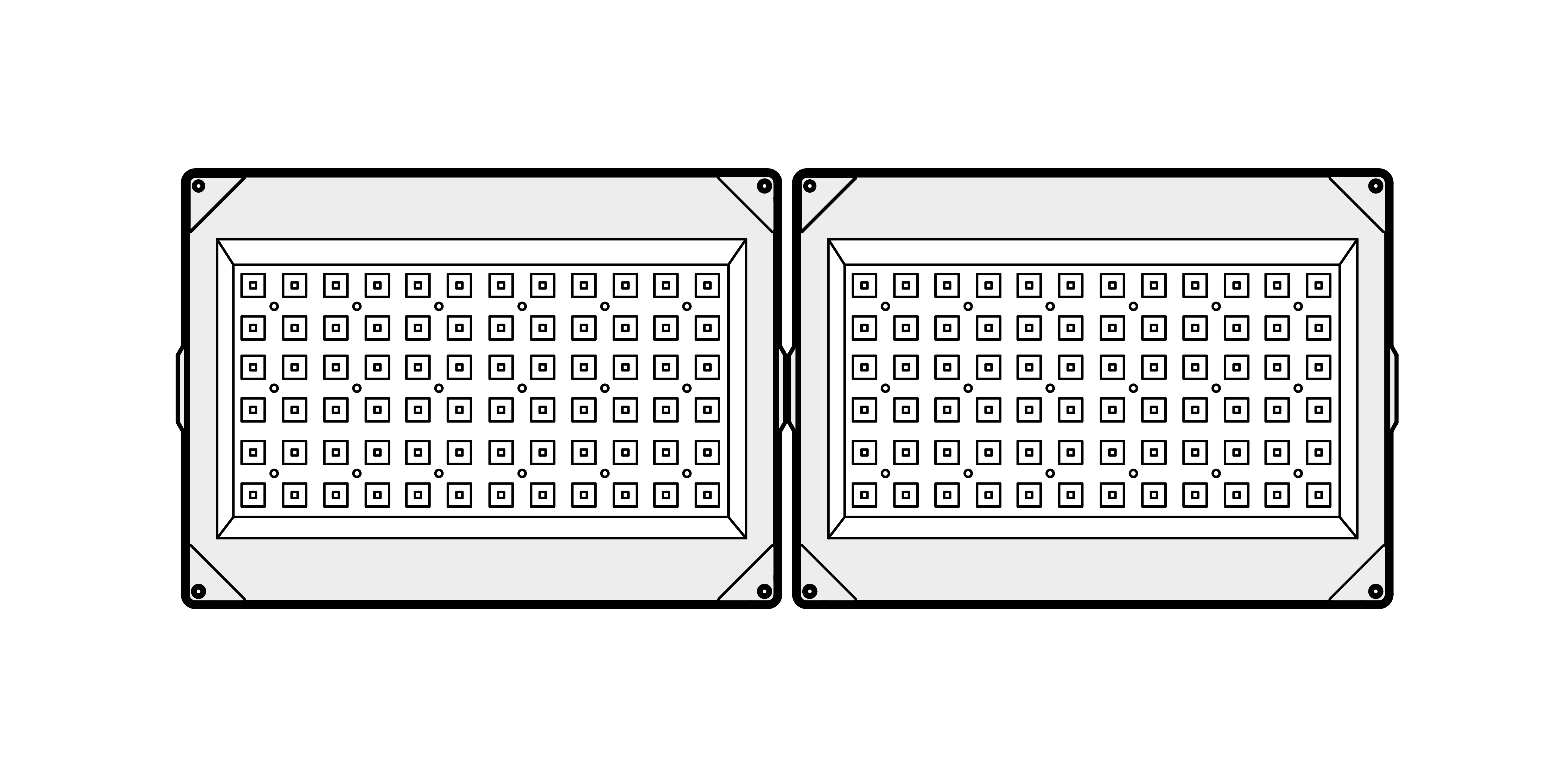

8311CU4200EL200-4000°K - CRI>80on/off32983165720260155-14.4
8311CU4230EL230-4000°K - CRI>80on/off33419145360260155-7.9
8311CU4300EL300-4000°K - CRI>80on/off40345134360260155-7.9
8311CU4070LD70-4000°K - CRI>80dali11883170360260155-7.1
8311CU4080LD80-4000°K - CRI>80dali13217165360260155-7.1
8311CU4090LD90-4000°K - CRI>80dali14866165360260155-7.1
8311CU4100LD100-4000°K - CRI>80dali16492165360260155-7.1
8311CU4110LD110-4000°K - CRI>80dali17136156360260155-7.1
8311CU4120LD120-4000°K - CRI>80dali18731156360260155-7.1
