FLAT 2 – Mod. EL

(Elliptical optics 23°/52°)

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Diecast aluminum body painted with anti-corrosion polyester thermosetting powder coating black color. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Elliptical optics 23°/52° (UGR<25).
Categories: Led, FLAT 2 - 8311, Industrial, FLAT 2
Models: 224
Color: Matt black
Catalogue abstract
Installation instructions

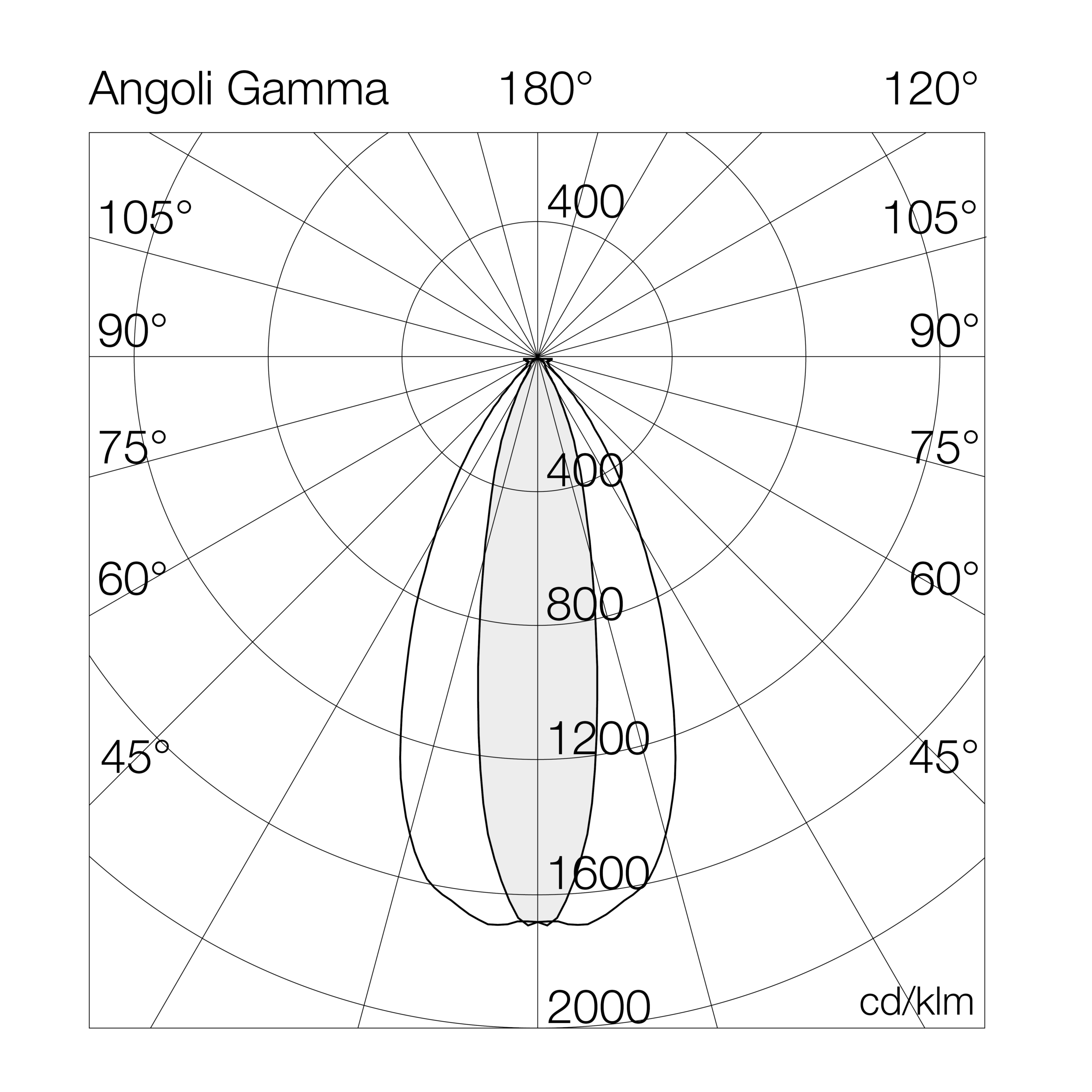

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8311EL4= 4000°K (CRI >80)070140EL= on/off
5= 5000°K (CRI >80)080150LD= dali
090165E3= em. 3h
100190D3= dali + em. 3h
110230
120300
130

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8311EL4070EL70-4000°K - CRI>80on/off11349162360260155-7.1
8311EL4080EL80-4000°K - CRI>80on/off12623158360260155-7.1
8311EL4090EL90-4000°K - CRI>80on/off14198158360260155-7.1
8311EL4100EL100-4000°K - CRI>80on/off15751158360260155-7.1
8311EL4110EL110-4000°K - CRI>80on/off16366149360260155-7.1
8311EL4120EL120-4000°K - CRI>80on/off17889149360260155-7.1
8311EL4130EL130-4000°K - CRI>80on/off19391149360260155-7.1
8311EL4140EL140-4000°K - CRI>80on/off20872149360260155-7.1
8311EL4150EL150-4000°K - CRI>80on/off22041147360260155-7.1
8311EL4165EL165-4000°K - CRI>80on/off24052146360260155-7.1
8311EL4190EL190-4000°K - CRI>80on/off27125143360260155-7.1
8311EL4200EL200-4000°K - CRI>80on/off31501158720260155-14.4
8311EL4230EL230-4000°K - CRI>80on/off31917139360260155-7.9
8311EL4300EL300-4000°K - CRI>80on/off38532128360260155-7.9
8311EL4070LD70-4000°K - CRI>80dali11349162360260155-7.1
8311EL4080LD80-4000°K - CRI>80dali12623158360260155-7.1
8311EL4090LD90-4000°K - CRI>80dali14198158360260155-7.1
8311EL4100LD100-4000°K - CRI>80dali15751158360260155-7.1
8311EL4110LD110-4000°K - CRI>80dali16366149360260155-7.1
8311EL4120LD120-4000°K - CRI>80dali17889149360260155-7.1

Accessories
