PLANAR | Mod. CU

Narrow beam 30° optics (UGR<22)

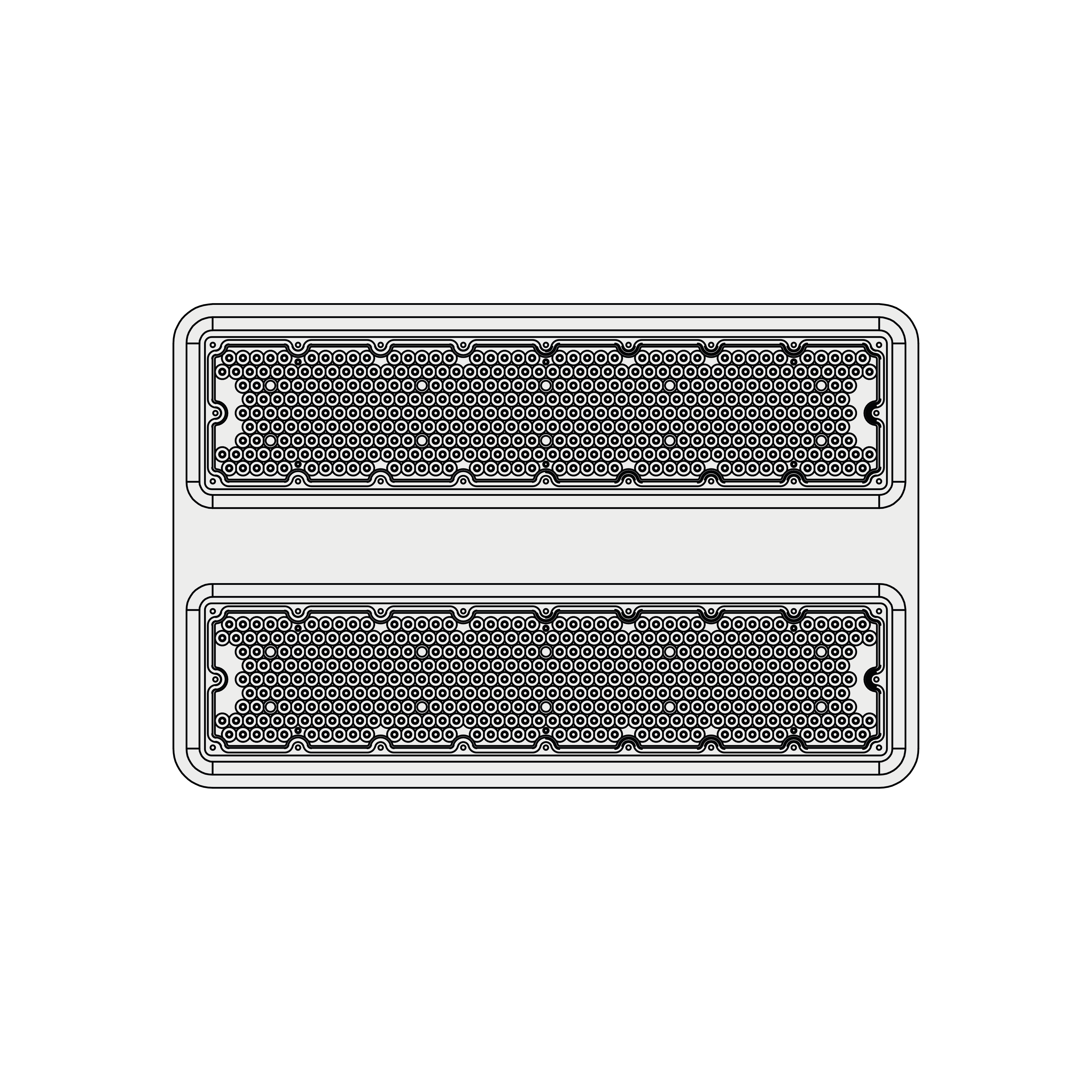

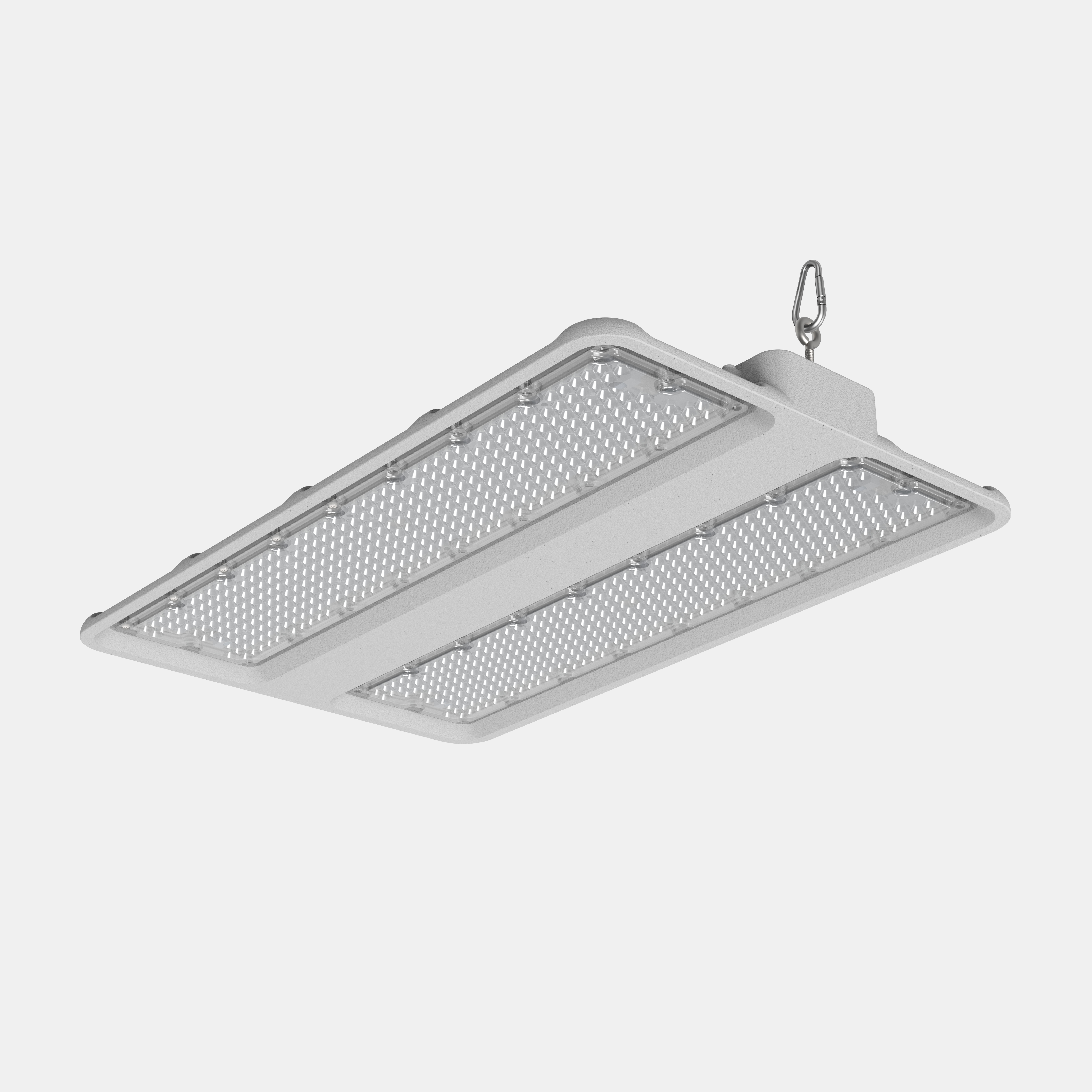

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Narrow beam 30° optics (UGR<22), IP66 with polycarbonate lenses with high flux efficiency, anti-glare and anti-reflection.

Categories: Led, PLANAR, PLANAR, Industrial, PLANAR

Models: 128

Color: Silver

Catalogue abstract

Installation instructions

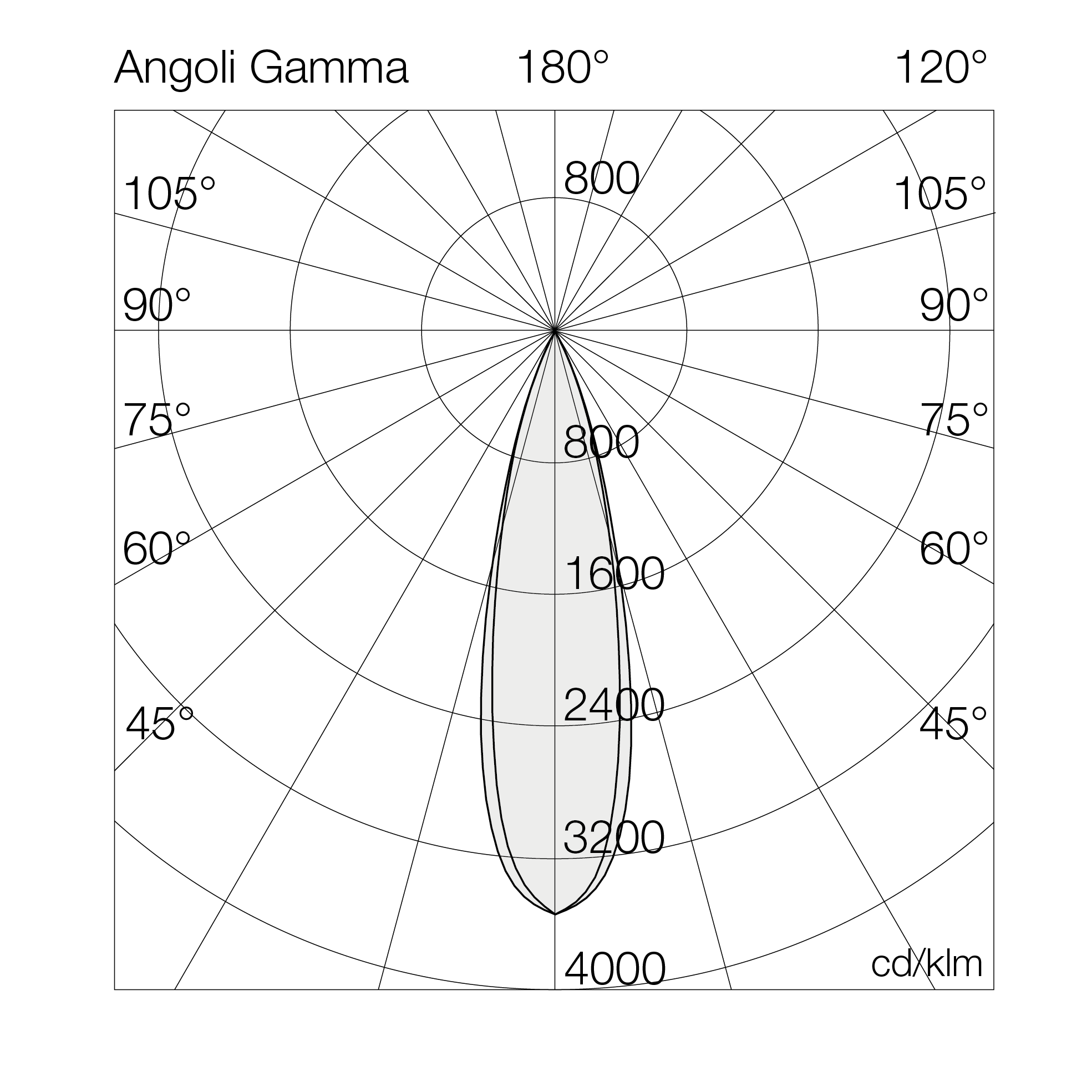

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
8320	CU	4	= 4000°K (CRI >80)	055	130	GL	= on/off
		5	= 5000°K (CRI >80)	060	150	GD	= dali 2
				070	170	G3	= em. 3h
				080	190	D3	= dali 2 + em. 3h
				090	210
				100	230
				110	250
				120	270

Models

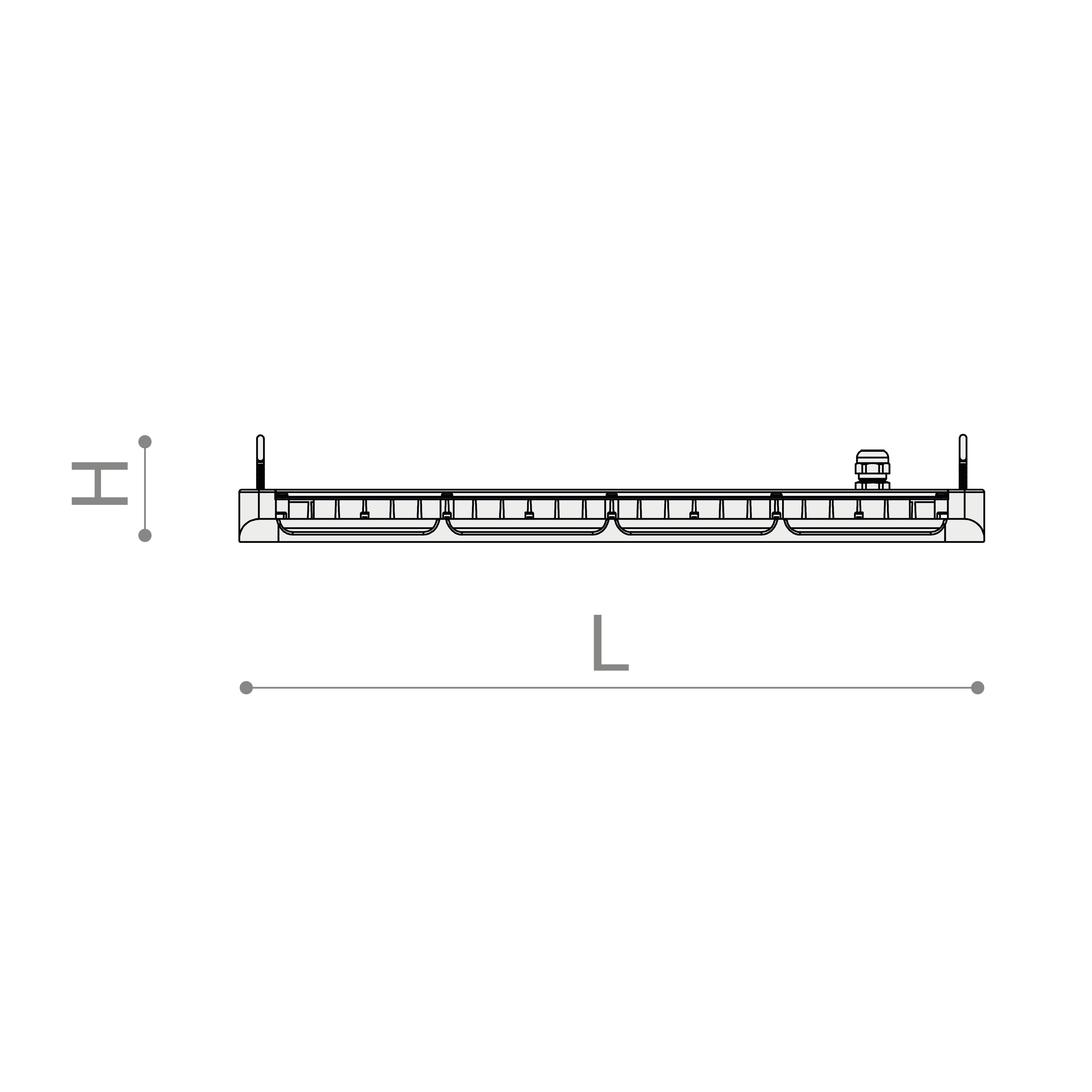

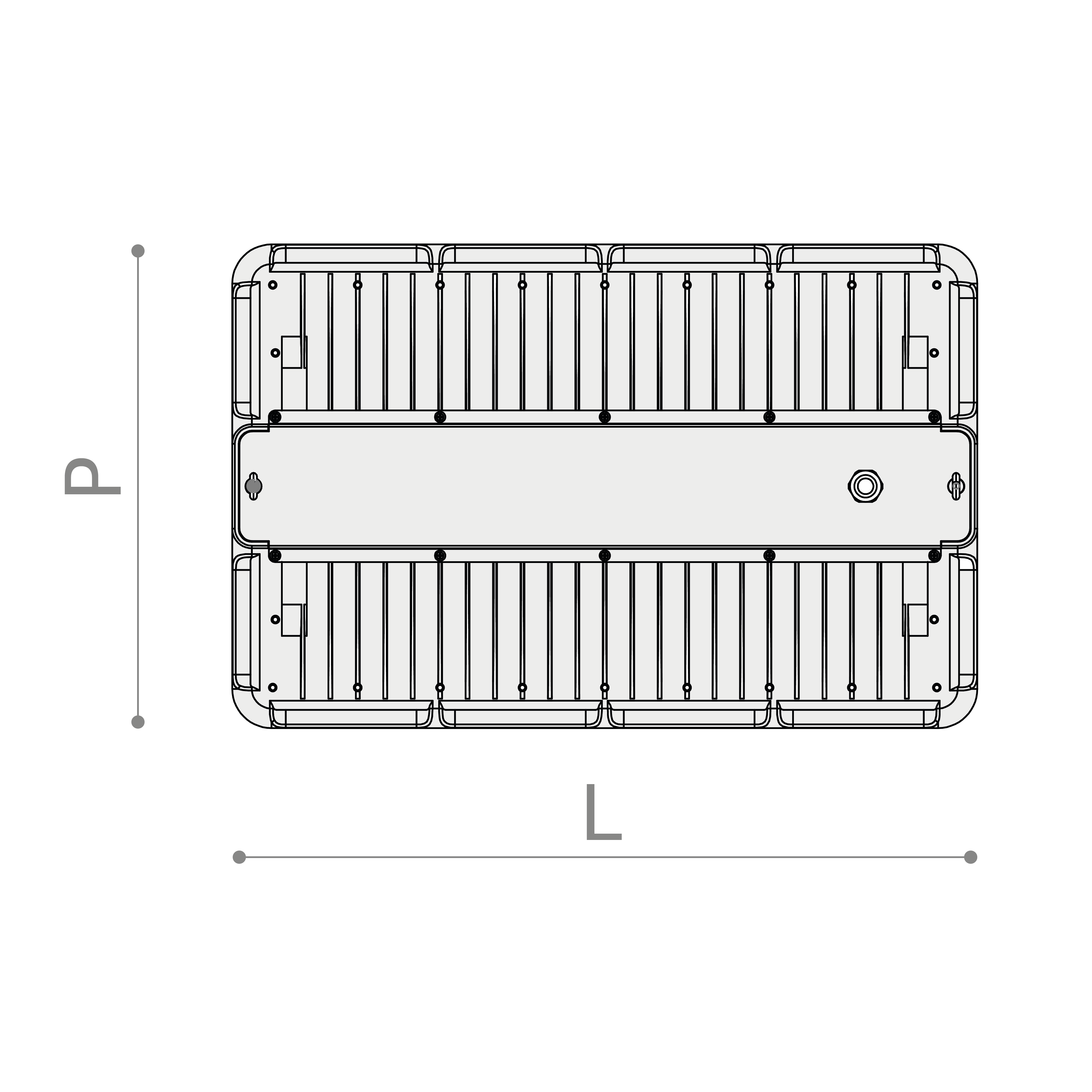

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
8320CU4055GL	55	-	4000°K - CRI ≥80	on/off	10183	185	570	370	70	-	5
8320CU4060GL	60	-	4000°K - CRI ≥80	on/off	11873	198	570	370	70	-	5
8320CU4070GL	70	-	4000°K - CRI ≥80	on/off	13506	193	570	370	70	-	5
8320CU4080GL	80	-	4000°K - CRI ≥80	on/off	15165	190	570	370	70	-	5
8320CU4090GL	90	-	4000°K - CRI ≥80	on/off	16808	187	570	370	70	-	5
8320CU4100GL	100	-	4000°K - CRI ≥80	on/off	18399	184	570	370	70	-	5
8320CU4110GL	110	-	4000°K - CRI ≥80	on/off	20015	182	570	370	70	-	5
8320CU4120GL	120	-	4000°K - CRI ≥80	on/off	21617	180	570	370	70	-	5
8320CU4130GL	130	-	4000°K - CRI ≥80	on/off	23169	178	570	370	70	-	5
8320CU4150GL	150	-	4000°K - CRI ≥80	on/off	26315	175	570	370	70	-	5
8320CU4170GL	170	-	4000°K - CRI ≥80	on/off	29379	173	570	370	70	-	5
8320CU4190GL	190	-	4000°K - CRI ≥80	on/off	32403	171	570	370	70	-	5
8320CU4210GL	210	-	4000°K - CRI ≥80	on/off	35424	169	570	370	70	-	5
8320CU4230GL	230	-	4000°K - CRI ≥80	on/off	38374	167	570	370	70	-	5
8320CU4250GL	250	-	4000°K - CRI ≥80	on/off	41291	165	570	370	70	-	5
8320CU4270GL	270	-	4000°K - CRI ≥80	on/off	44212	164	570	370	70	-	5
8320CU4055GD	55	-	4000°K - CRI ≥80	dali 2	10183	185	570	370	70	-	5
8320CU4060GD	60	-	4000°K - CRI ≥80	dali 2	11873	198	570	370	70	-	5
8320CU4070GD	70	-	4000°K - CRI ≥80	dali 2	13506	193	570	370	70	-	5
8320CU4080GD	80	-	4000°K - CRI ≥80	dali 2	15165	190	570	370	70	-	5
