PLANAR | Mod. EL

Elliptical beam 30°/60° optics (UGR<25)

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Medium wide beam optics 60°, IP66 with polycarbonate lenses with high flux efficiency, anti-glare and anti-reflection.

Categories: Led, PLANAR, PLANAR, Industrial, PLANAR

Models: 128

Color: Silver

Catalogue abstract

Installation instructions

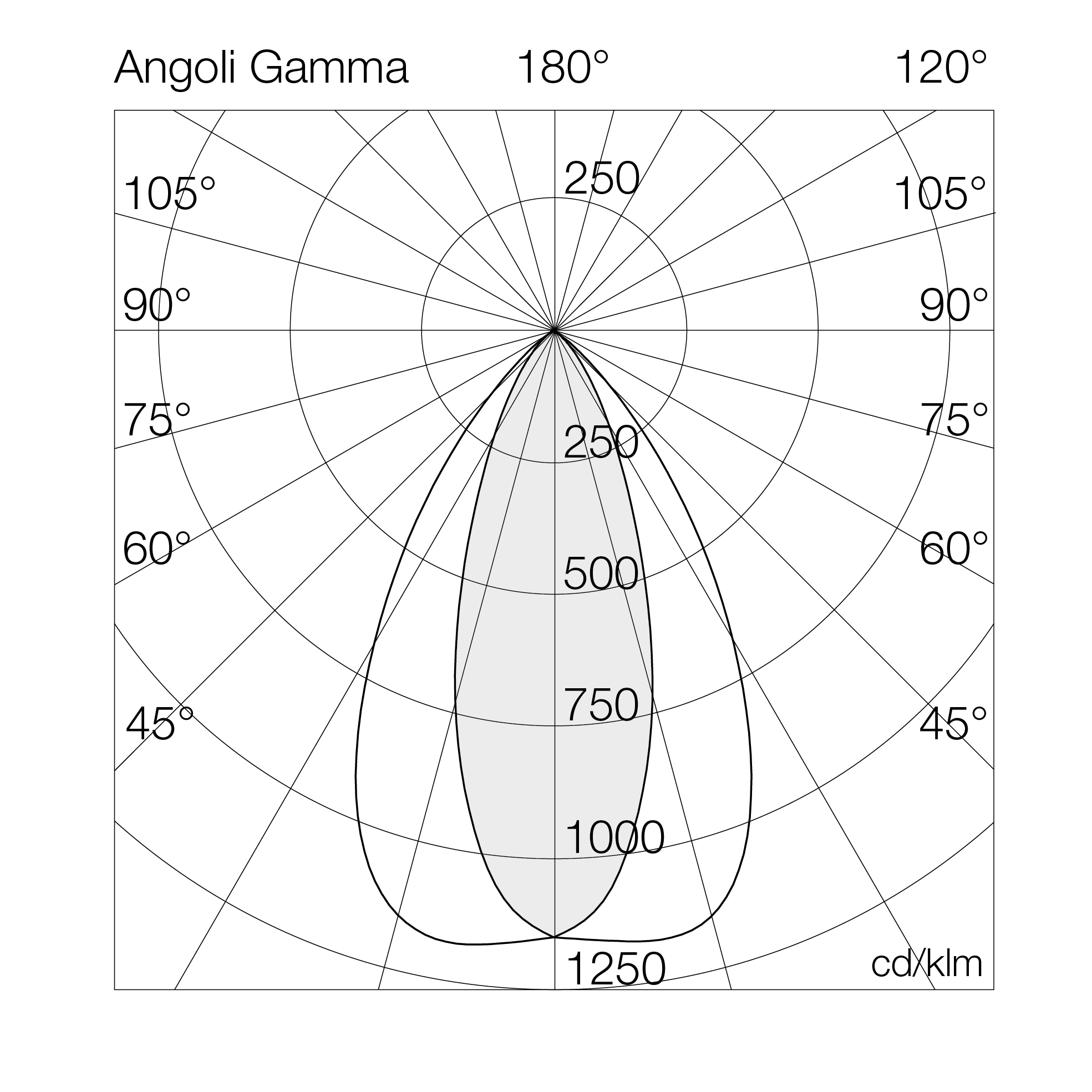

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
8320	EL	4	= 4000°K (CRI >80)	055	130	GL	= on/off
		5	= 5000°K (CRI >80)	060	150	GD	= dali 2
				070	170	G3	= em. 3h
				080	190	D3	= dali 2 + em. 3h
				090	210
				100	230
				110	250
				120	270

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
8320EL4055GL	55	-	4000°K - CRI ≥80	on/off	9823	179	570	370	70	-	5
8320EL4060GL	60	-	4000°K - CRI ≥80	on/off	11454	191	570	370	70	-	5
8320EL4070GL	70	-	4000°K - CRI ≥80	on/off	13030	186	570	370	70	-	5
8320EL4080GL	80	-	4000°K - CRI ≥80	on/off	14630	183	570	370	70	-	5
8320EL4090GL	90	-	4000°K - CRI ≥80	on/off	16215	180	570	370	70	-	5
8320EL4100GL	100	-	4000°K - CRI ≥80	on/off	17750	177	570	370	70	-	5
8320EL4110GL	110	-	4000°K - CRI ≥80	on/off	19308	176	570	370	70	-	5
8320EL4120GL	120	-	4000°K - CRI ≥80	on/off	20854	174	570	370	70	-	5
8320EL4130GL	130	-	4000°K - CRI ≥80	on/off	22352	172	570	370	70	-	5
8320EL4150GL	150	-	4000°K - CRI ≥80	on/off	25386	169	570	370	70	-	5
8320EL4170GL	170	-	4000°K - CRI ≥80	on/off	28342	167	570	370	70	-	5
8320EL4190GL	190	-	4000°K - CRI ≥80	on/off	31259	165	570	370	70	-	5
8320EL4210GL	210	-	4000°K - CRI ≥80	on/off	34174	163	570	370	70	-	5
8320EL4230GL	230	-	4000°K - CRI ≥80	on/off	37020	161	570	370	70	-	5
8320EL4250GL	250	-	4000°K - CRI ≥80	on/off	39834	159	570	370	70	-	5
8320EL4270GL	270	-	4000°K - CRI ≥80	on/off	42652	158	570	370	70	-	5
8320EL4055GD	55	-	4000°K - CRI ≥80	dali 2	9823	179	570	370	70	-	5
8320EL4060GD	60	-	4000°K - CRI ≥80	dali 2	11454	191	570	370	70	-	5
8320EL4070GD	70	-	4000°K - CRI ≥80	dali 2	13030	186	570	370	70	-	5
8320EL4080GD	80	-	4000°K - CRI ≥80	dali 2	14630	183	570	370	70	-	5
