PLANAR | Mod. S2

Medium wide beam 60° optics (UGR<22)

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Medium wide beam optics 60°, IP66 with polycarbonate lenses with high flux efficiency, anti-glare and anti-reflection.

Categories: Led, PLANAR, PLANAR, Industrial, PLANAR

Models: 128

Color: Silver

Catalogue abstract

Installation instructions

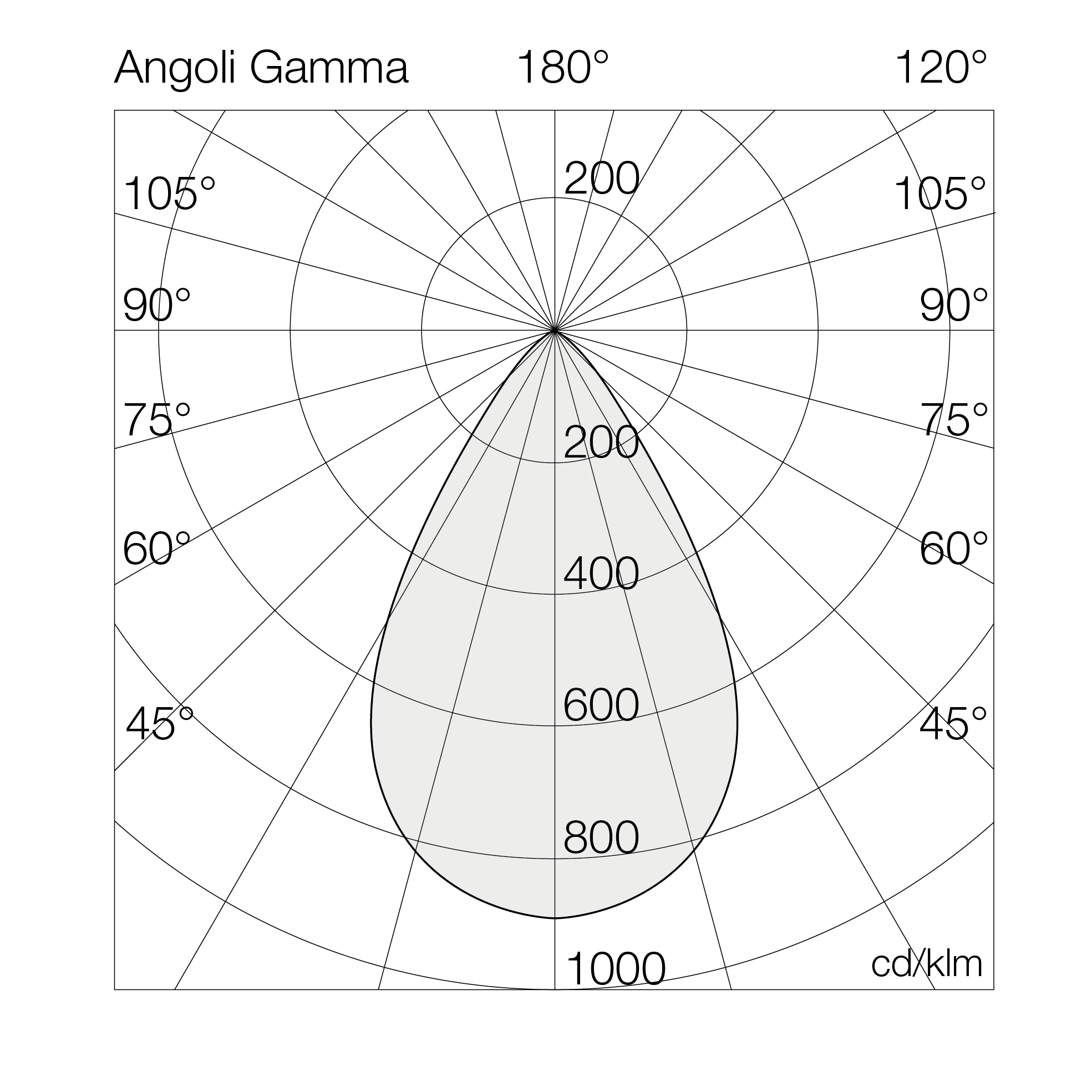

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
8320	S2	4	= 4000°K (CRI >80)	055	130	GL	= on/off
		5	= 5000°K (CRI >80)	060	150	GD	= dali 2
				070	170	G3	= em. 3h
				080	190	D3	= dali 2 + em. 3h
				090	210
				100	230
				110	250
				120	270

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
8320S24055GL	55	-	4000°K - CRI ≥80	on/off	10542	192	570	370	70	-	5
8320S24060GL	60	-	4000°K - CRI ≥80	on/off	12292	205	570	370	70	-	5
8320S24070GL	70	-	4000°K - CRI ≥80	on/off	13983	200	570	370	70	-	5
8320S24080GL	80	-	4000°K - CRI ≥80	on/off	15700	195	570	370	70	-	5
8320S24090GL	90	-	4000°K - CRI ≥80	on/off	17402	193	570	370	70	-	5
8320S24100GL	100	-	4000°K - CRI ≥80	on/off	19048	190	570	370	70	-	5
8320S24110GL	110	-	4000°K - CRI ≥80	on/off	20721	188	570	370	70	-	5
8320S24120GL	120	-	4000°K - CRI ≥80	on/off	22380	187	570	370	70	-	5
8320S24130GL	130	-	4000°K - CRI ≥80	on/off	23987	185	570	370	70	-	5
8320S24150GL	150	-	4000°K - CRI ≥80	on/off	27244	182	570	370	70	-	5
8320S24170GL	170	-	4000°K - CRI ≥80	on/off	30416	179	570	370	70	-	5
8320S24190GL	190	-	4000°K - CRI ≥80	on/off	33547	177	570	370	70	-	5
8320S24210GL	210	-	4000°K - CRI ≥80	on/off	36675	175	570	370	70	-	5
8320S24230GL	230	-	4000°K - CRI ≥80	on/off	39729	173	570	370	70	-	5
8320S24250GL	250	-	4000°K - CRI ≥80	on/off	42749	171	570	370	70	-	5
8320S24270GL	270	-	4000°K - CRI ≥80	on/off	45772	170	570	370	70	-	5
8320S24055GD	55	-	4000°K - CRI ≥80	dali 2	10542	192	570	370	70	-	5
8320S24060GD	60	-	4000°K - CRI ≥80	dali 2	12292	205	570	370	70	-	5
8320S24070GD	70	-	4000°K - CRI ≥80	dali 2	13983	200	570	370	70	-	5
8320S24080GD	80	-	4000°K - CRI ≥80	dali 2	15700	195	570	370	70	-	5
