PLANAR | Mod. S5

90° rotosymmetric diffusing optics UGR<25

Industrial and commercial led reflector suitable for pendant, ceiling and on-bar installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Wide beam optics 90° (UGR<25)°, IP66 with polycarbonate lenses with high flux efficiency, anti-glare and anti-reflection.

Categories: Led, PLANAR, PLANAR, Industrial, PLANAR

Models: 128

Color: Silver

Catalogue abstract

Installation instructions

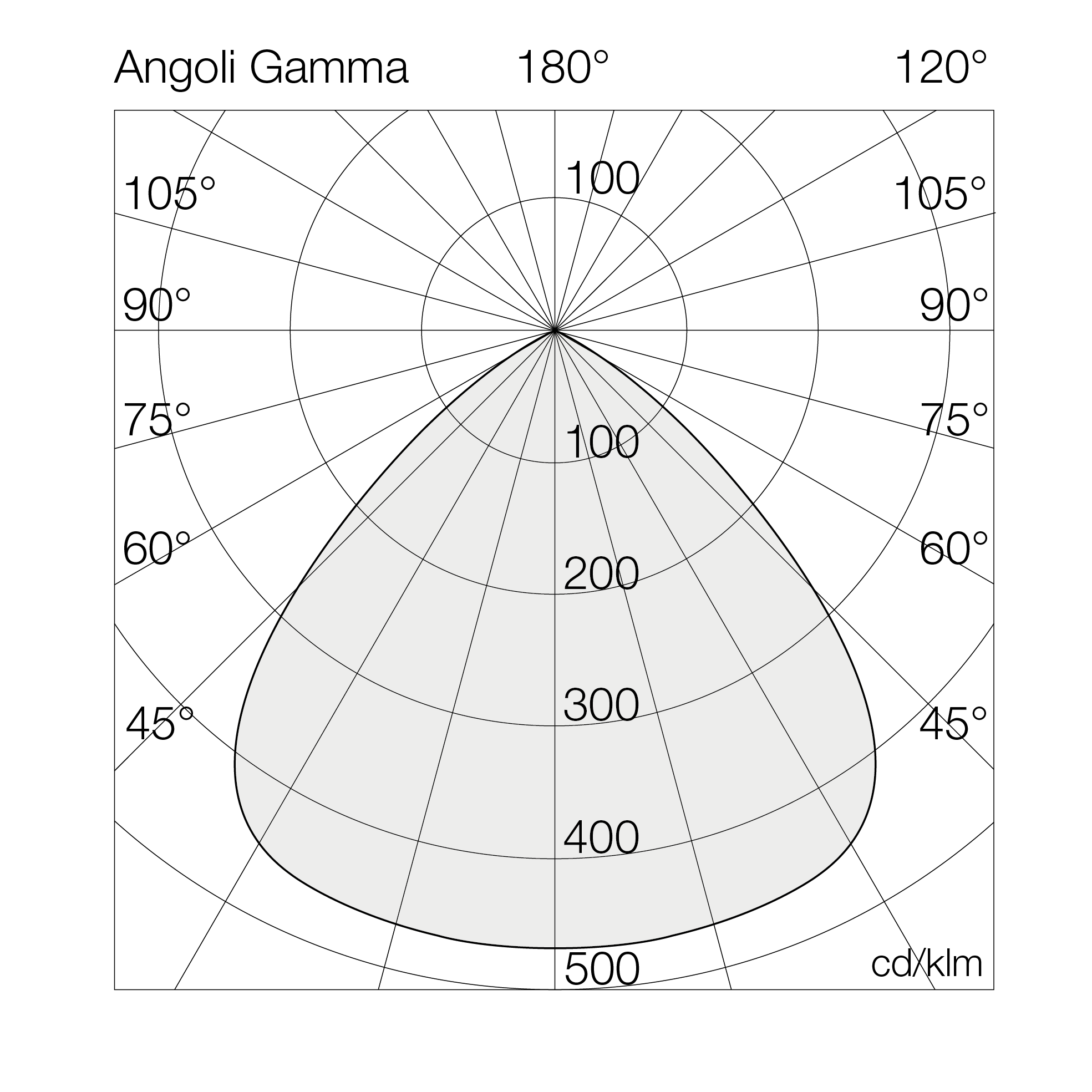

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
8320	S5	4	= 4000°K (CRI >80)	055	130	GL	= on/off
		5	= 5000°K (CRI >80)	060	150	GD	= dali 2
				070	170	G3	= em. 3h
				080	190	D3	= dali 2 + em. 3h
				090	210
				100	230
				110	250
				120	270

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
8320S54055GL	55	-	4000°K - CRI ≥80	on/off	10902	198	570	370	70	-	5
8320S54060GL	60	-	4000°K - CRI ≥80	on/off	12711	212	570	370	70	-	5
8320S54070GL	70	-	4000°K - CRI ≥80	on/off	14460	207	570	370	70	-	5
8320S54080GL	80	-	4000°K - CRI ≥80	on/off	16236	203	570	370	70	-	5
8320S54090GL	90	-	4000°K - CRI ≥80	on/off	17995	200	570	370	70	-	5
8320S54100GL	100	-	4000°K - CRI ≥80	on/off	19698	197	570	370	70	-	5
8320S54110GL	110	-	4000°K - CRI ≥80	on/off	21428	195	570	370	70	-	5
8320S54120GL	120	-	4000°K - CRI ≥80	on/off	23143	193	570	370	70	-	5
8320S54130GL	130	-	4000°K - CRI ≥80	on/off	24805	191	570	370	70	-	5
8320S54150GL	150	-	4000°K - CRI ≥80	on/off	28173	188	570	370	70	-	5
8320S54170GL	170	-	4000°K - CRI ≥80	on/off	31452	183	570	370	70	-	5
8320S54190GL	190	-	4000°K - CRI ≥80	on/off	34690	183	570	370	70	-	5
8320S54210GL	210	-	4000°K - CRI ≥80	on/off	37925	181	570	370	70	-	5
8320S54230GL	230	-	4000°K - CRI ≥80	on/off	41083	179	570	370	70	-	5
8320S54250GL	250	-	4000°K - CRI ≥80	on/off	44206	177	570	370	70	-	5
8320S54270GL	270	-	4000°K - CRI ≥80	on/off	47333	175	570	370	70	-	5
8320S54055GD	55	-	4000°K - CRI ≥80	dali 2	10902	198	570	370	70	-	5
8320S54060GD	60	-	4000°K - CRI ≥80	dali 2	12711	212	570	370	70	-	5
8320S54070GD	70	-	4000°K - CRI ≥80	dali 2	14460	207	570	370	70	-	5
8320S54080GD	80	-	4000°K - CRI ≥80	dali 2	16236	203	570	370	70	-	5
