art.-8400-pier-cu

PIER/CU

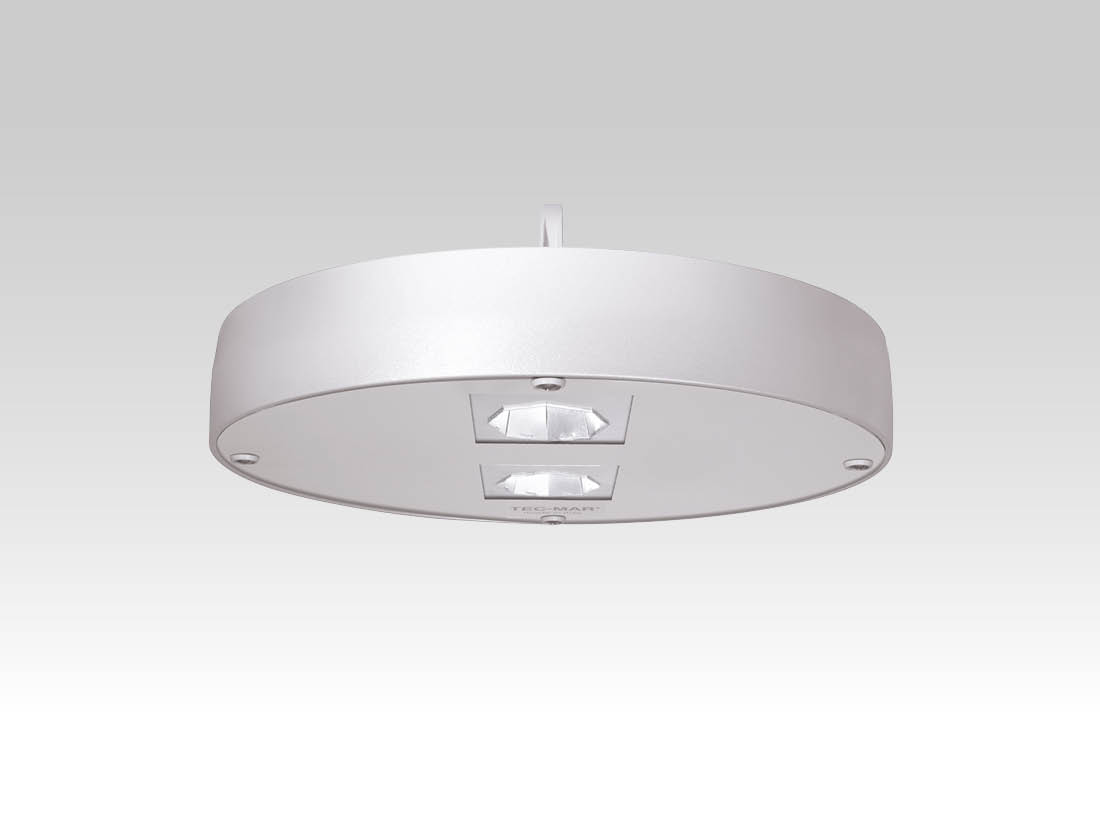

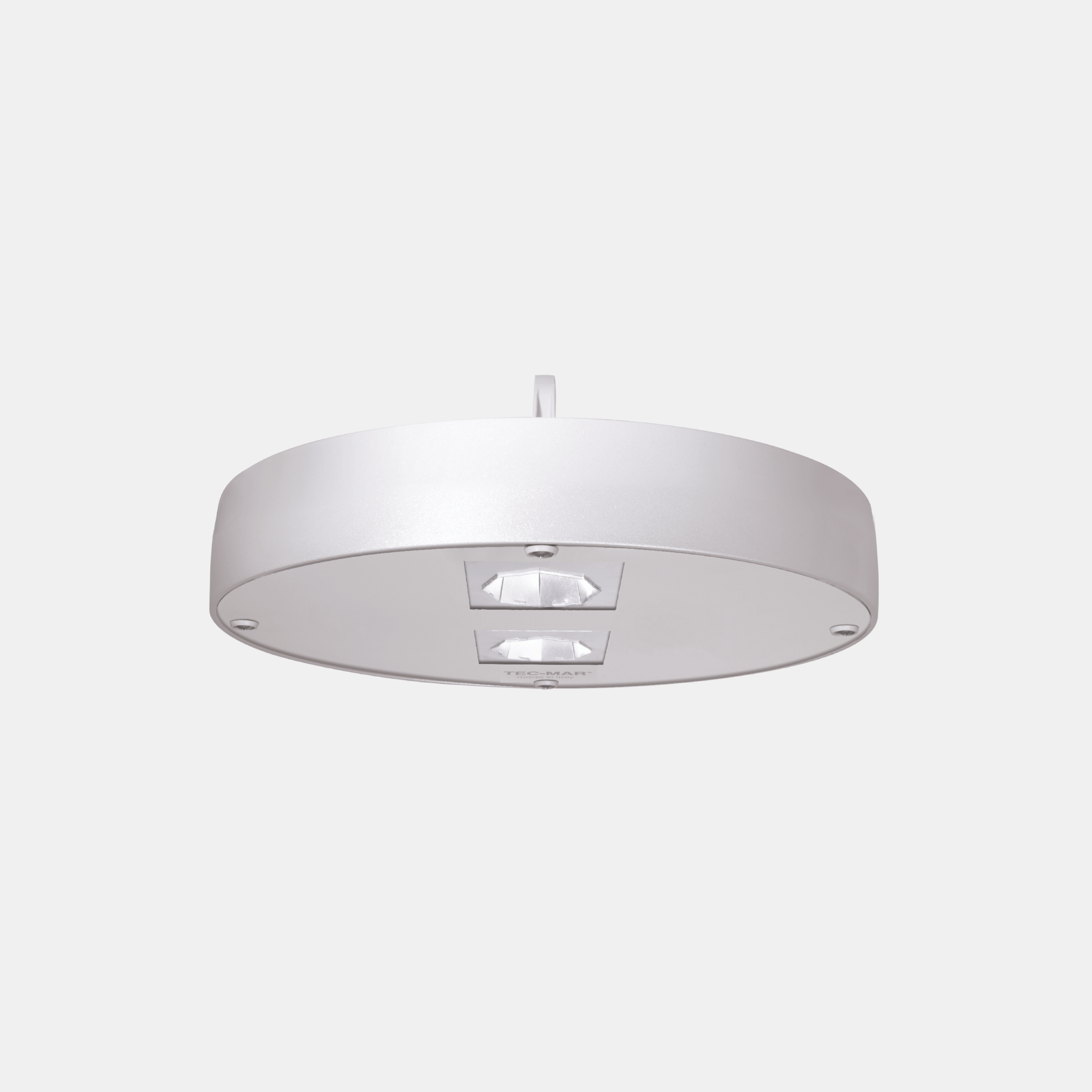

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER - 8400, Industrial, art. 8400 Pier
Models: 96
Color: Silver
Catalogue abstract
Installation instructions

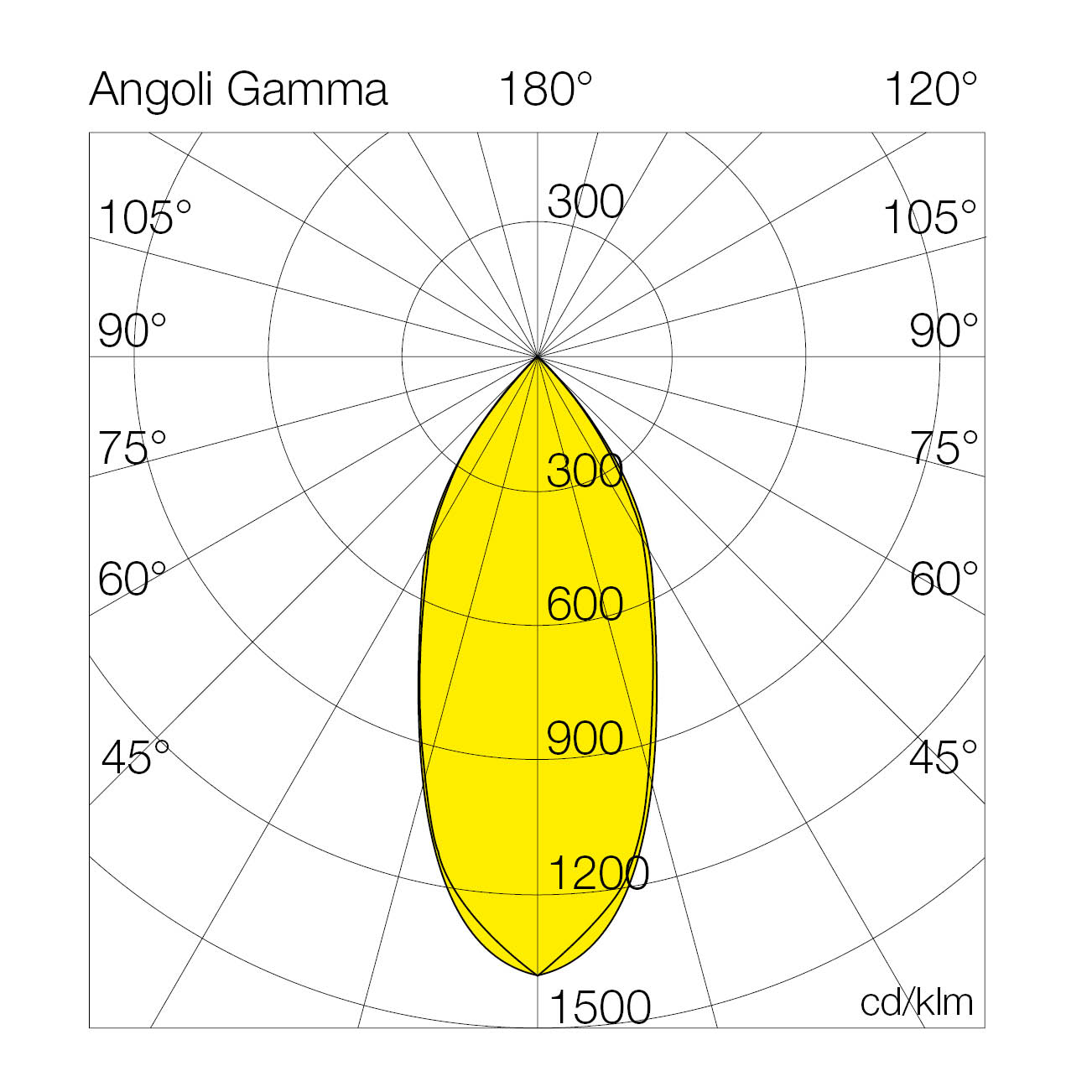

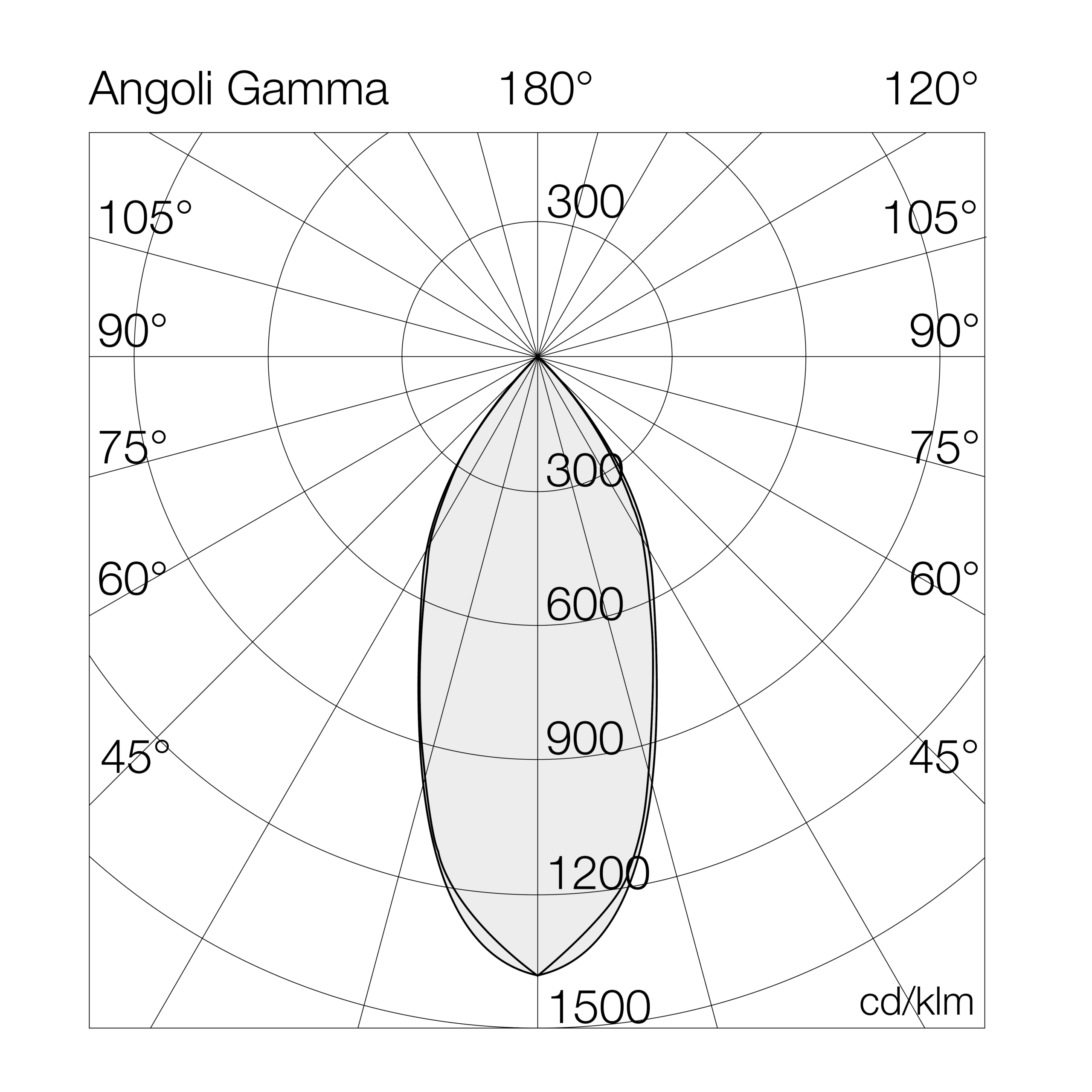

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8400CU4= 4000°K (CRI >80)040118GL= on/off
5= 5000°K (CRI >80)058130GD= dali
065140G3= em. 3h
080150D3= dali 2 + em. 3h
090170
100190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8400CU4040GL40-4000°K - CRI>80on/off5280132365-150-5.5
8400CU4058GL58-4000°K - CRI>80on/off8655149365-150-5.5
8400CU4065GL65-4000°K - CRI>80on/off9626148365-150-5.5
8400CU4080GL80-4000°K - CRI>80on/off11985150365-150-5.5
8400CU4090GL90-4000°K - CRI>80on/off13365149365-150-5.5
8400CU4100GL100-4000°K - CRI>80on/off14257143365-150-5.5
8400CU4118GL118-4000°K - CRI>80on/off17483146365-150-5.5
8400CU4130GL130-4000°K - CRI>80on/off18522142365-150-5.5
8400CU4140GL140-4000°K - CRI>80on/off19578140365-150-5.5
8400CU4150GL150-4000°K - CRI>80on/off20236135365-150-5.5
8400CU4170GL170-4000°K - CRI>80on/off22800134365-150-5.5
8400CU4190GL190-4000°K - CRI>80on/off27166143365-150-5.5
8400CU4040GD40-4000°K - CRI>80dali 25280132365-150-5.5
8400CU4058GD58-4000°K - CRI>80dali 28655149365-150-5.5
8400CU4065GD65-4000°K - CRI>80dali 29626148365-150-5.5
8400CU4080GD80-4000°K - CRI>80dali 211985150365-150-5.5
8400CU4090GD90-4000°K - CRI>80dali 213365149365-150-5.5
8400CU4100GD100-4000°K - CRI>80dali 214257143365-150-5.5
8400CU4118GD118-4000°K - CRI>80dali 217483146365-150-5.5
8400CU4130GD130-4000°K - CRI>80dali 218522142365-150-5.5
