art.-8400-pier-s2

PIER/S2

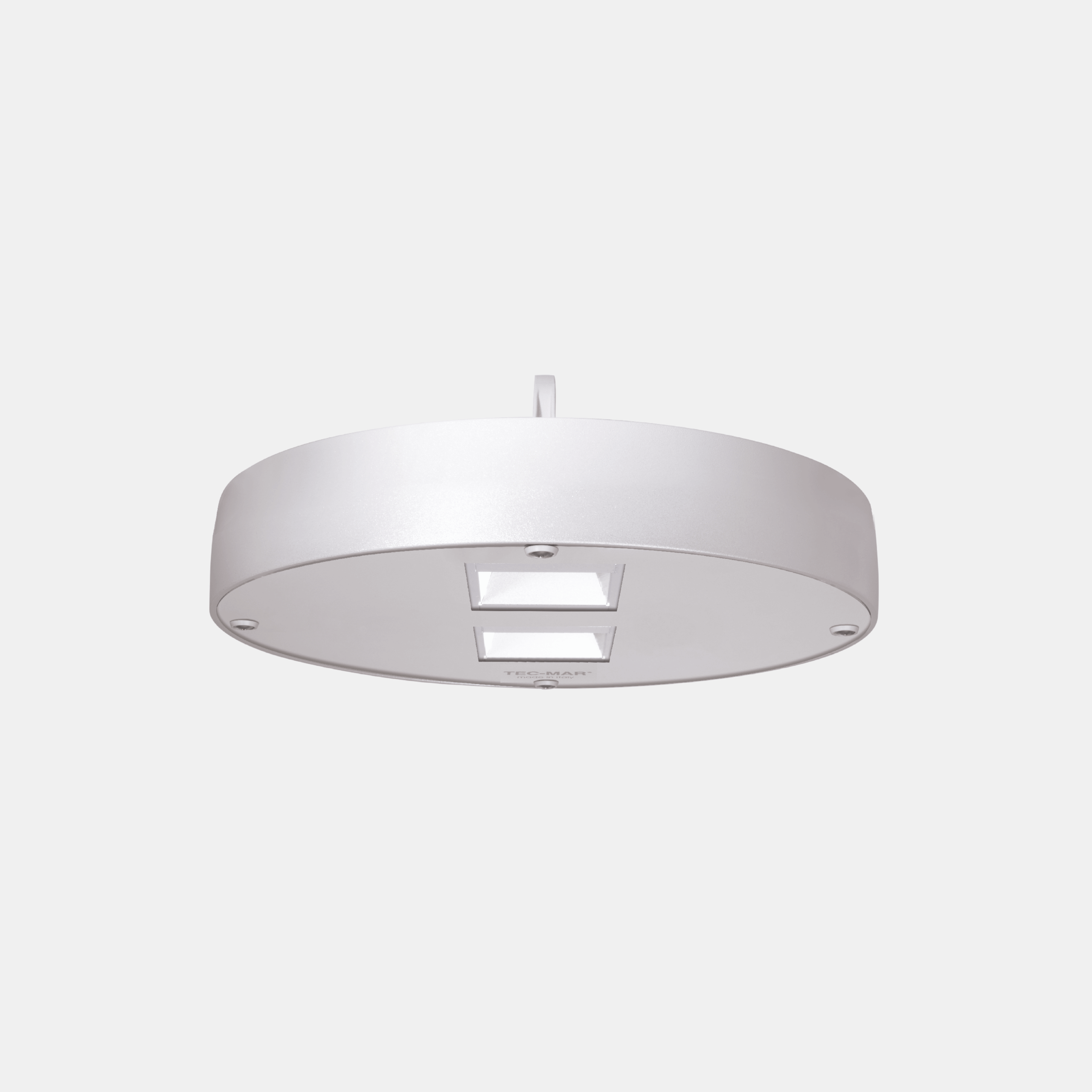

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER - 8400, Industrial, art. 8400 Pier
Models: 96
Color: Silver
Catalogue abstract
Installation instructions

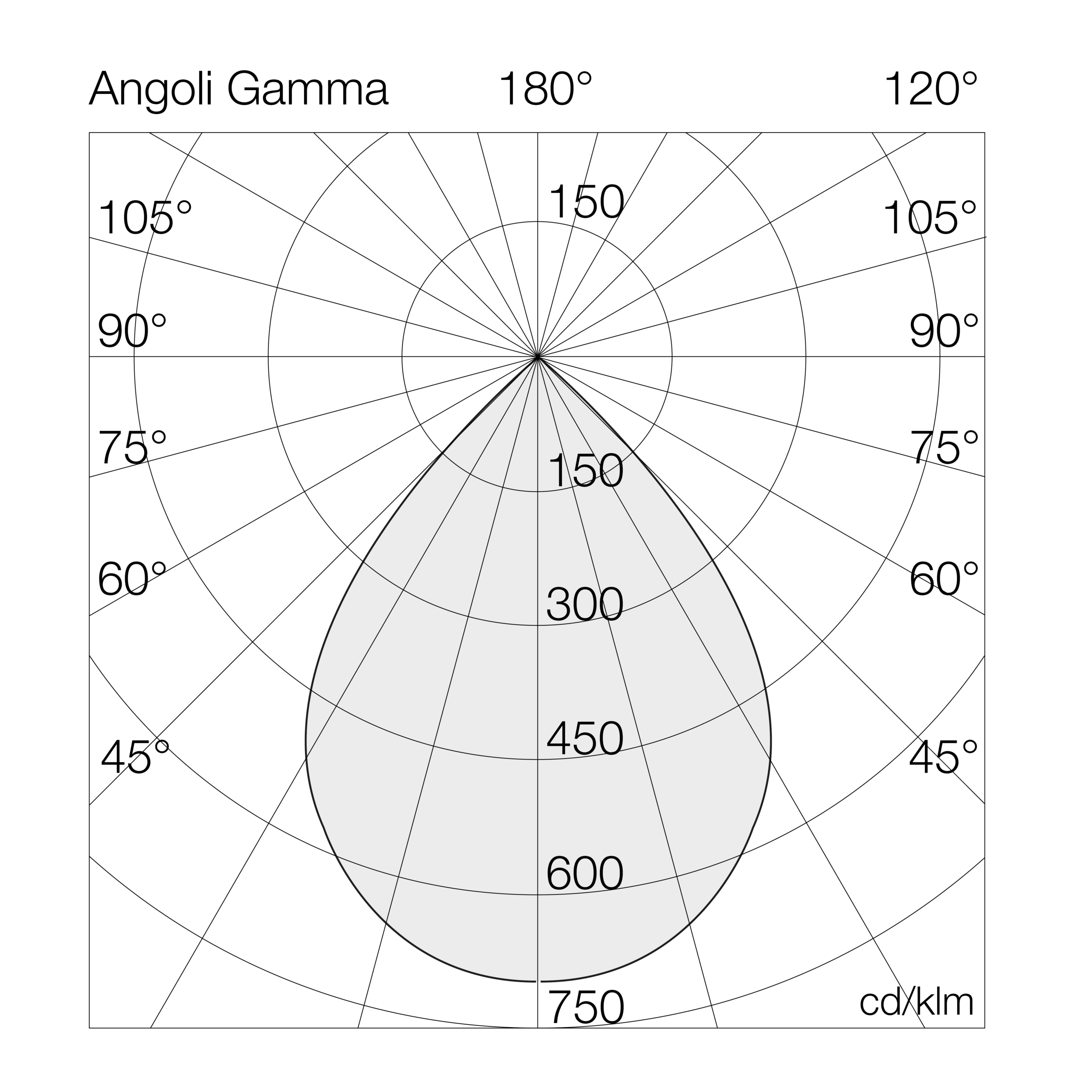

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8400S24= 4000°K (CRI >80)040118GL= on/off
5= 5000°K (CRI >80)058130GD= dali 2
065140G3= em. 3h
080150D3= dali 2 + em. 3h
090170
100190

Models

W tot.
°K - CRI
Options

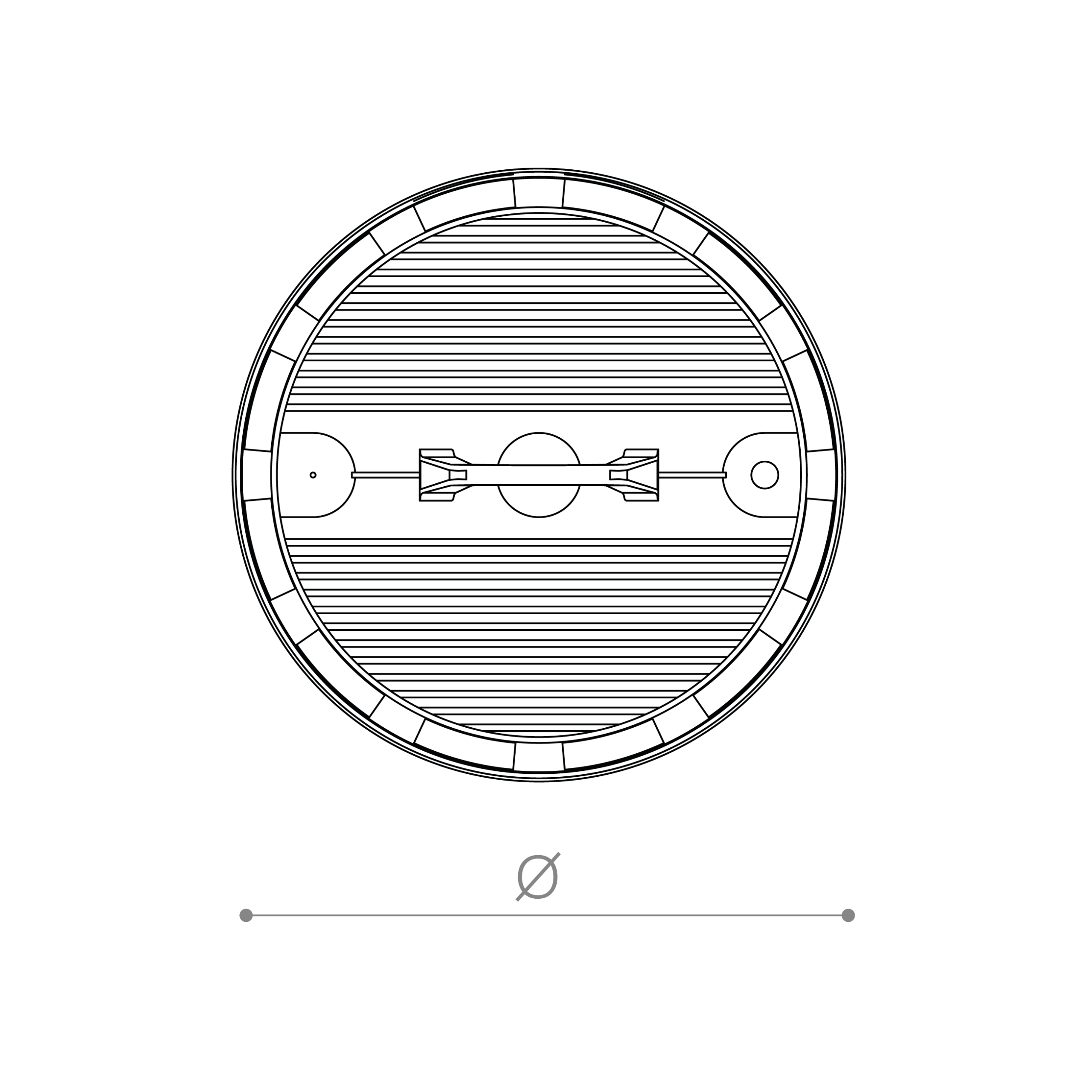

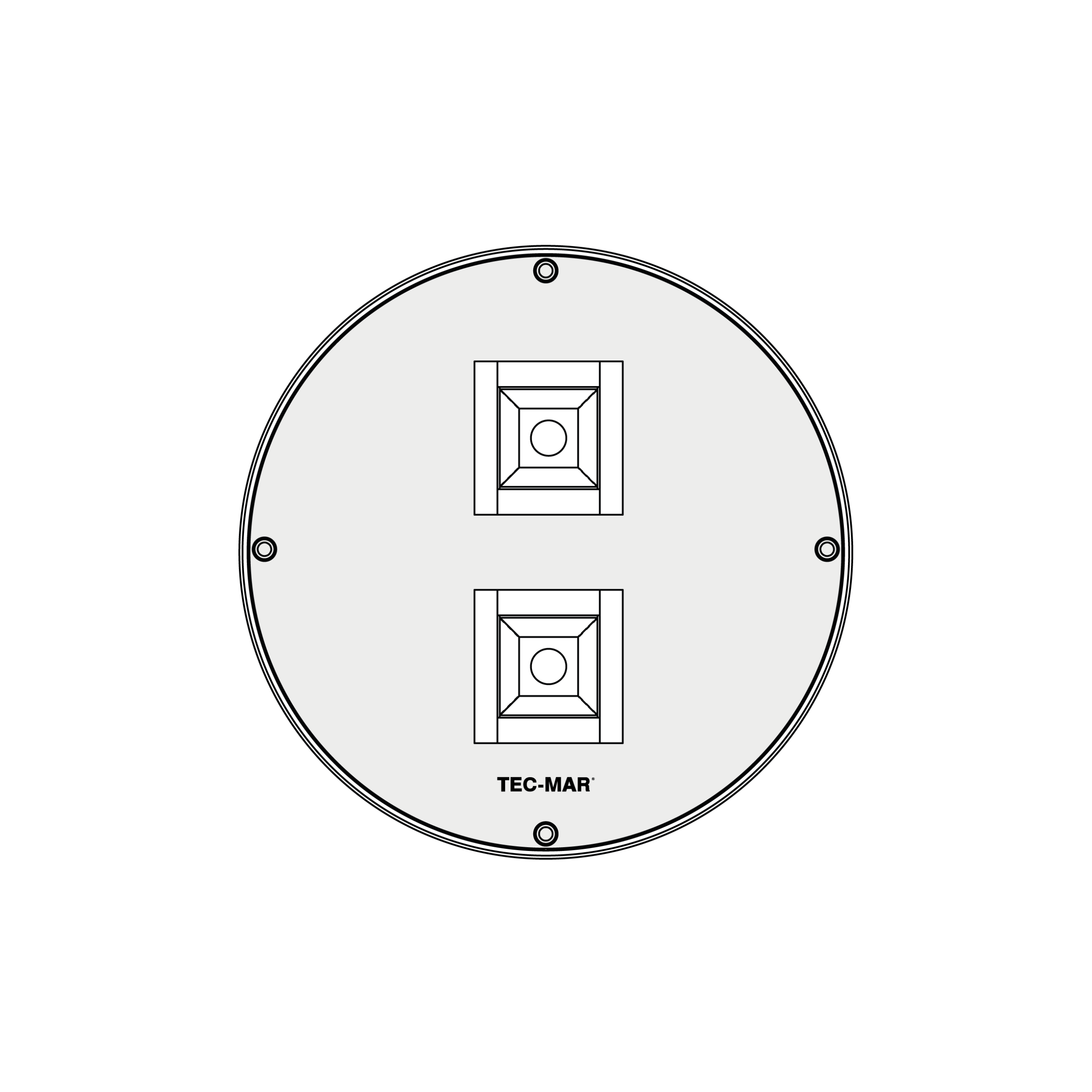

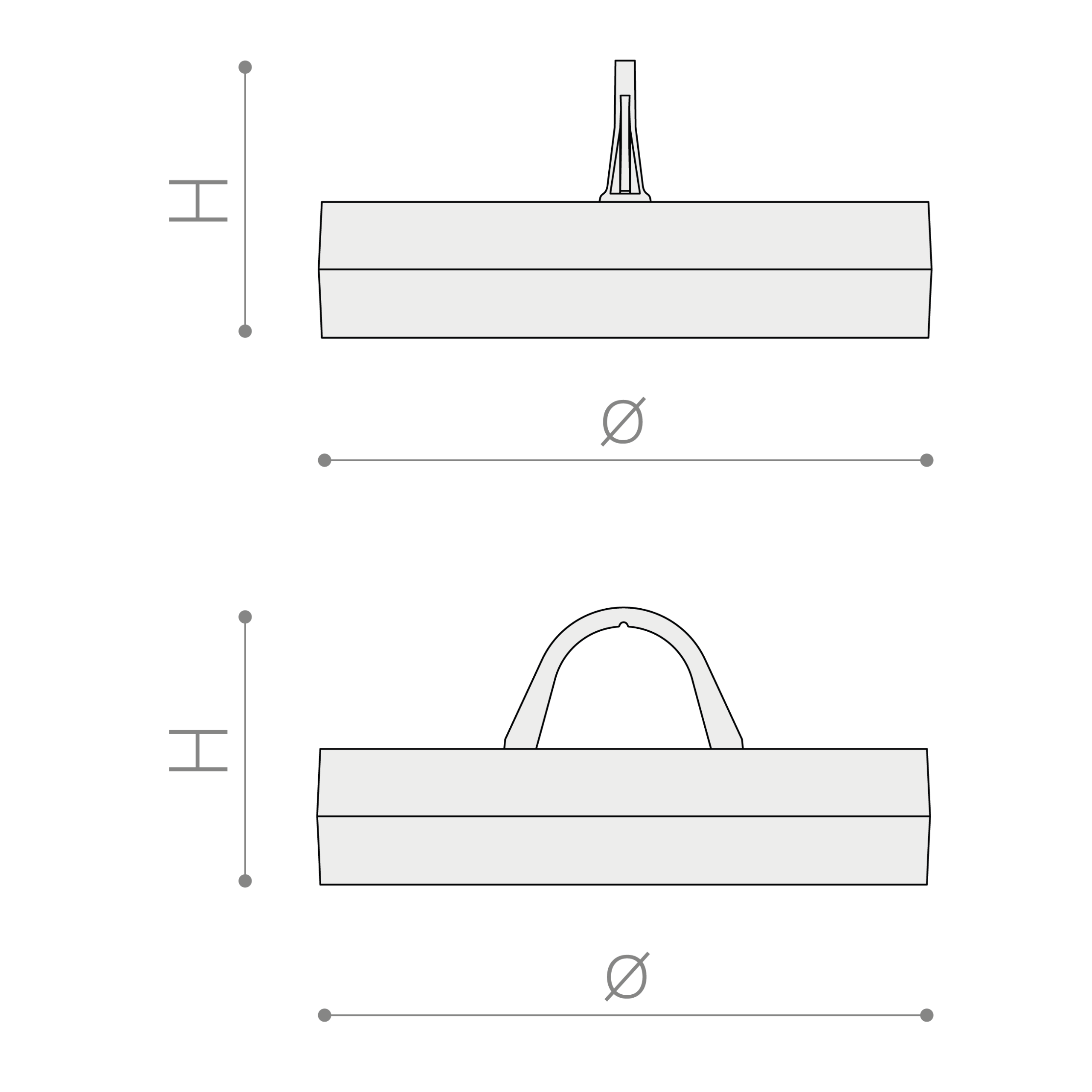

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8400S24040GL40-4000°K - CRI>80on/off5505138365-150-5.5
8400S24058GL58-4000°K - CRI>80on/off9015155365-150-5.5
8400S24065GL65-4000°K - CRI>80on/off10027154365-150-5.5
8400S24080GL80-4000°K - CRI>80on/off12485156365-150-5.5
8400S24090GL90-4000°K - CRI>80on/off13922155365-150-5.5
8400S24100GL100-4000°K - CRI>80on/off14851149365-150-5.5
8400S24118GL118-4000°K - CRI>80on/off18211152365-150-5.5
8400S24130GL130-4000°K - CRI>80on/off19294148365-150-5.5
8400S24140GL140-4000°K - CRI>80on/off20394146365-150-5.5
8400S24150GL150-4000°K - CRI>80on/off21080141365-150-5.5
8400S24170GL170-4000°K - CRI>80on/off23750140365-150-5.5
8400S24190GL190-4000°K - CRI>80on/off28298149365-150-5.5
8400S24040GD40-4000°K - CRI>80dali 25505138365-150-5.5
8400S24058GD58-4000°K - CRI>80dali 29015155365-150-5.5
8400S24065GD65-4000°K - CRI>80dali 210027154365-150-5.5
8400S24080GD80-4000°K - CRI>80dali 212485156365-150-5.5
8400S24090GD90-4000°K - CRI>80dali 213922155365-150-5.5
8400S24100GD100-4000°K - CRI>80dali 214851149365-150-5.5
8400S24118GD118-4000°K - CRI>80dali 218211152365-150-5.5
8400S24130GD130-4000°K - CRI>80dali 219294148365-150-5.5

Accessories
