art.-8400-pier-s5

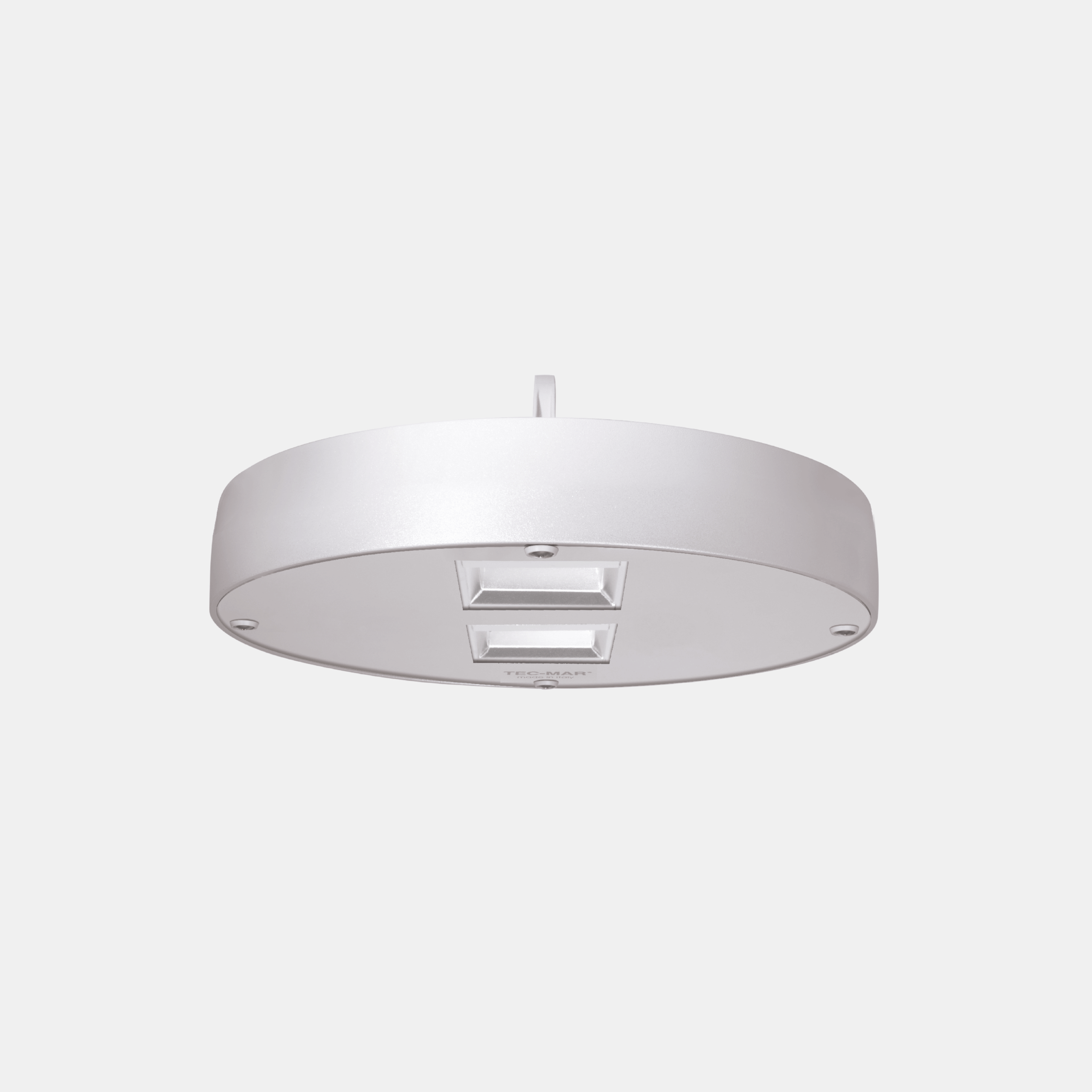

PIER/S5

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER - 8400, Industrial, art. 8400 Pier
Models: 96
Color: Silver
Catalogue abstract
Installation instructions

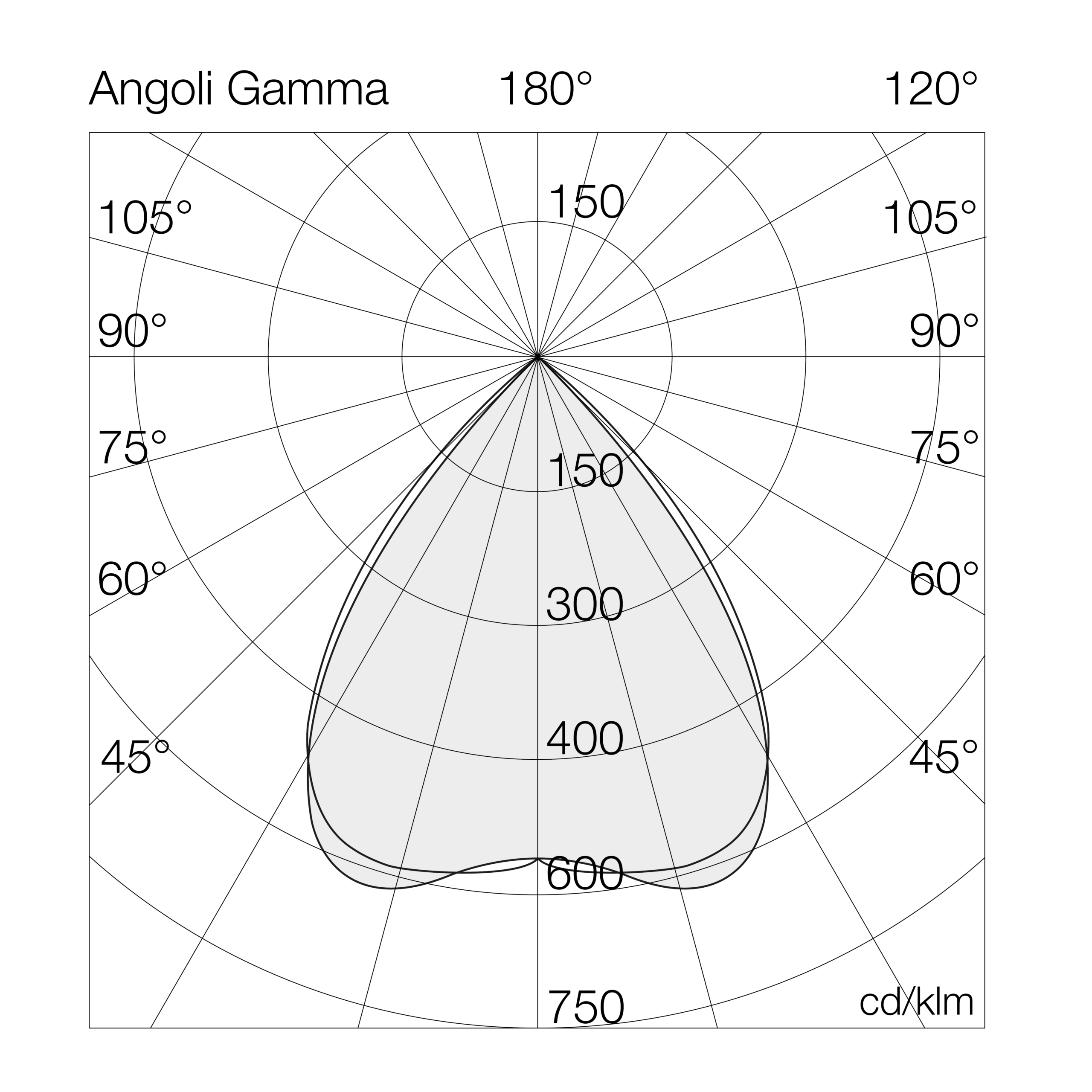

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8400S54= 4000°K (CRI >80)040118GL= on/off
5= 5000°K (CRI >80)058130GD= dali
065140G3= em. 3h
080150D3= dali 2 + em. 3h
090170
100190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8400S54040GL40-4000°K - CRI>80on/off5731143365-150-5.5
8400S54058GL58-4000°K - CRI>80on/off9376162365-150-5.5
8400S54065GL65-4000°K - CRI>80on/off10428160365-150-5.5
8400S54080GL80-4000°K - CRI>80on/off12984162365-150-5.5
8400S54090GL90-4000°K - CRI>80on/off14479161365-150-5.5
8400S54100GL100-4000°K - CRI>80on/off15445154365-150-5.5
8400S54118GL118-4000°K - CRI>80on/off18940158365-150-5.5
8400S54130GL130-4000°K - CRI>80on/off20066154365-150-5.5
8400S54140GL140-4000°K - CRI>80on/off21209151365-150-5.5
8400S54150GL150-4000°K - CRI>80on/off21923146365-150-5.5
8400S54170GL170-4000°K - CRI>80on/off24700145365-150-5.5
8400S54190GL190-4000°K - CRI>80on/off29430155365-150-5.5
8400S54040GD40-4000°K - CRI>80dali 25731143365-150-5.5
8400S54058GD58-4000°K - CRI>80dali 29376162365-150-5.5
8400S54065GD65-4000°K - CRI>80dali 210428160365-150-5.5
8400S54080GD80-4000°K - CRI>80dali 212984162365-150-5.5
8400S54090GD90-4000°K - CRI>80dali 214479161365-150-5.5
8400S54100GD100-4000°K - CRI>80dali 215445154365-150-5.5
8400S54118GD118-4000°K - CRI>80dali 218940158365-150-5.5
8400S54130GD130-4000°K - CRI>80dali 220066154365-150-5.5

Accessories
