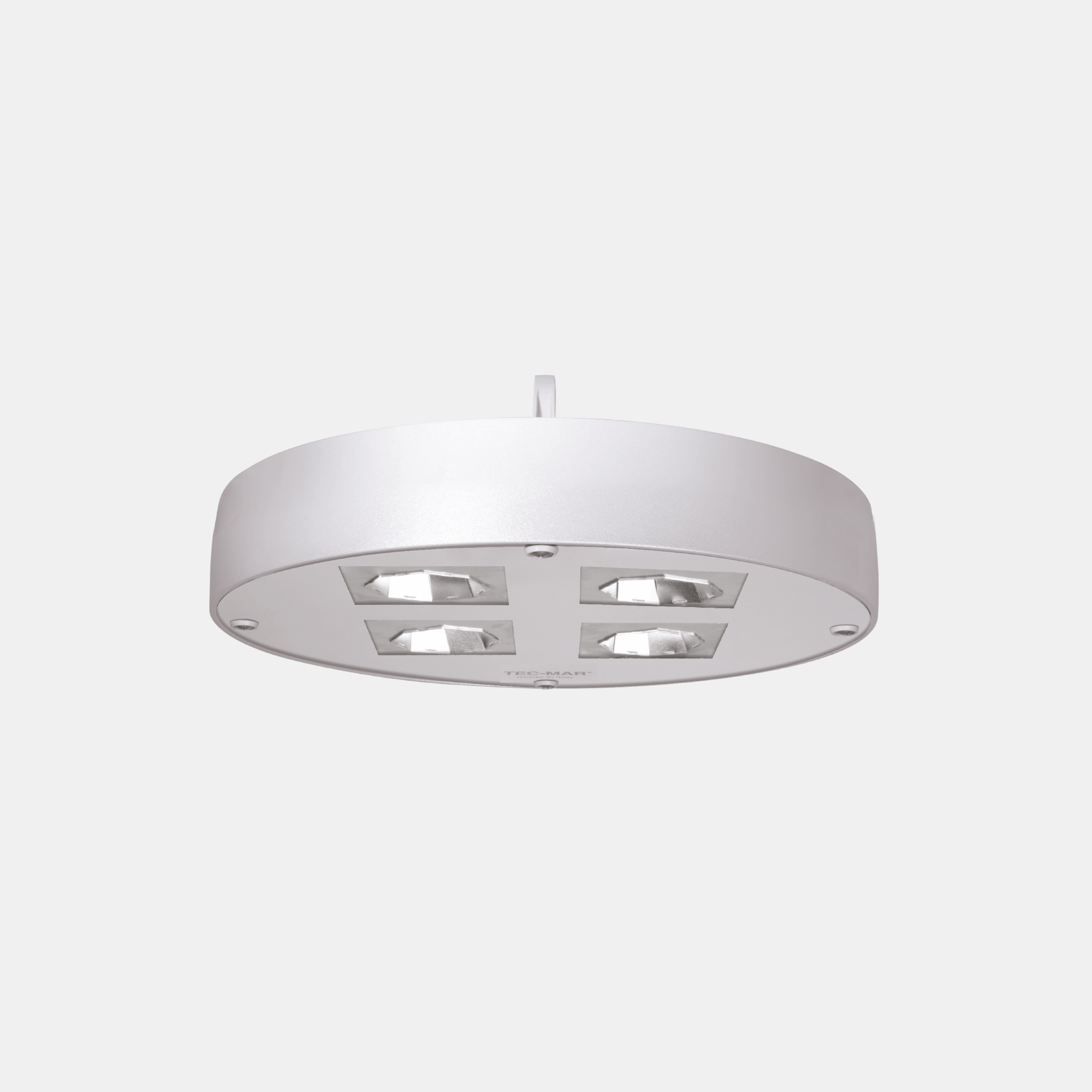

PIER HP – Mod. CU

(30° rotosymmetrical focusing optics)

Industrial and commercial led reflector, suitable for pendant, ceiling and on-bar installations. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder silver color, diffuser made of 4 mm thick extra-clear tempered glass, silicone gasket. Concentrating optics 30°.
Categories: Led, PIER HP - 8401, Industrial, PIER HP
Models: 80
Color: Silver
Catalogue abstract
Installation instructions

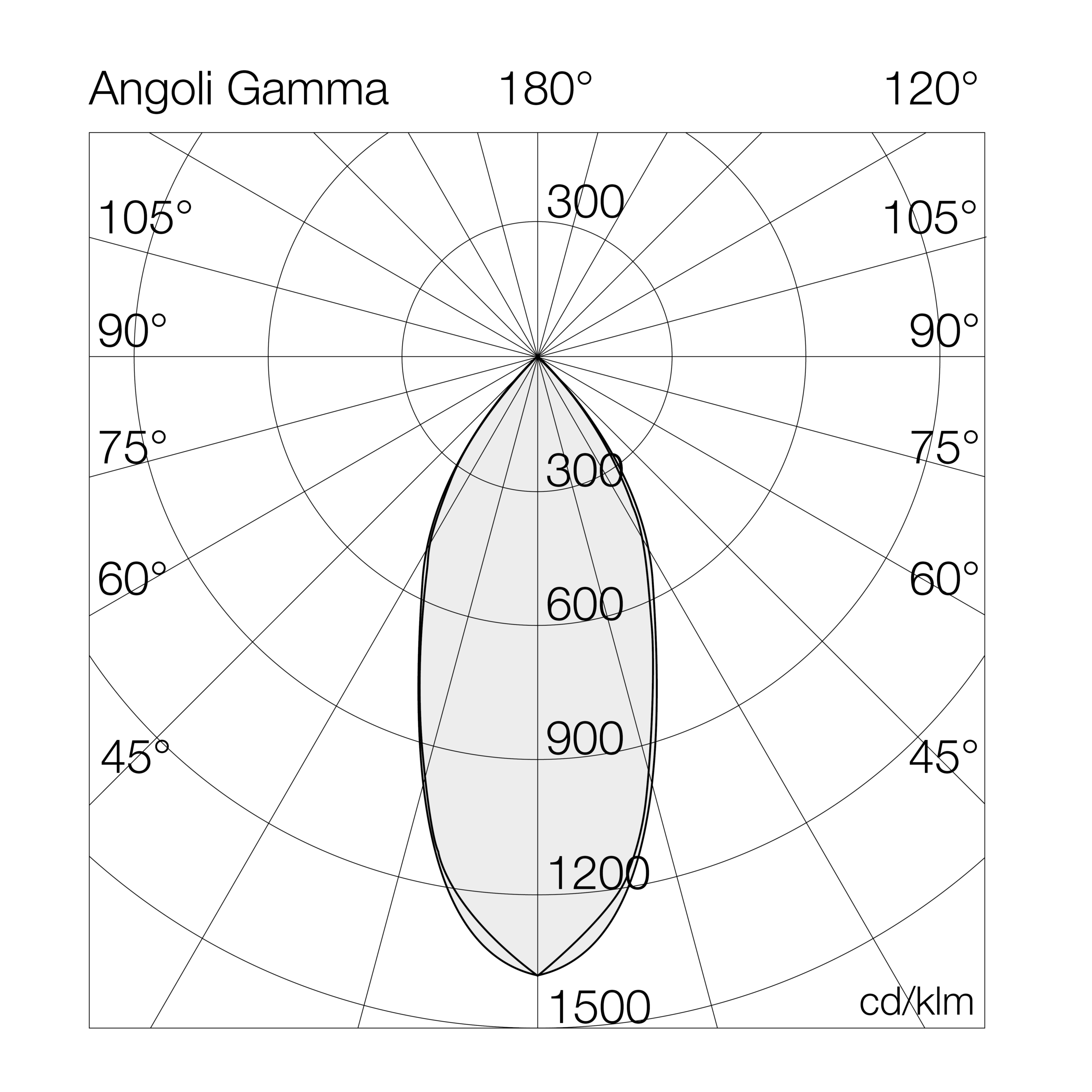

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8401CU4= 4000°K (CRI >80)056130GL= on/off
5= 5000°K (CRI >80)080140GD= dali 2
090150G3= em. 3h
100170D3= dali 2 + em. 3h
120190

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8401CU4056GL56-4000°K - CRI>80on/off9266165365-150-5.5
8401CU4080GL80-4000°K - CRI>80on/off13275166365-150-5.5
8401CU4090GL90-4000°K - CRI>80on/off14805165365-150-5.5
8401CU4100GL100-4000°K - CRI>80on/off16286163365-150-5.5
8401CU4120GL120-4000°K - CRI>80on/off19012158365-150-5.5
8401CU4130GL130-4000°K - CRI>80on/off20524158365-150-5.5
8401CU4140GL140-4000°K - CRI>80on/off21853156365-150-5.5
8401CU4150GL150-4000°K - CRI>80on/off23021153365-150-5.5
8401CU4170GL170-4000°K - CRI>80on/off25905152365-150-5.5
8401CU4190GL190-4000°K - CRI>80on/off29856157365-150-5.5
8401CU4056GD56-4000°K - CRI>80dali 29266165365-150-5.5
8401CU4080GD80-4000°K - CRI>80dali 213275166365-150-5.5
8401CU4090GD90-4000°K - CRI>80dali 214805165365-150-5.5
8401CU4100GD100-4000°K - CRI>80dali 216286163365-150-5.5
8401CU4120GD120-4000°K - CRI>80dali 219012158365-150-5.5
8401CU4130GD130-4000°K - CRI>80dali 220524158365-150-5.5
8401CU4140GD140-4000°K - CRI>80dali 221853156365-150-5.5
8401CU4150GD150-4000°K - CRI>80dali 223021153365-150-5.5
8401CU4170GD170-4000°K - CRI>80dali 225905152365-150-5.5
8401CU4190GD190-4000°K - CRI>80dali 229856157365-150-5.5
