PIER HP/EL

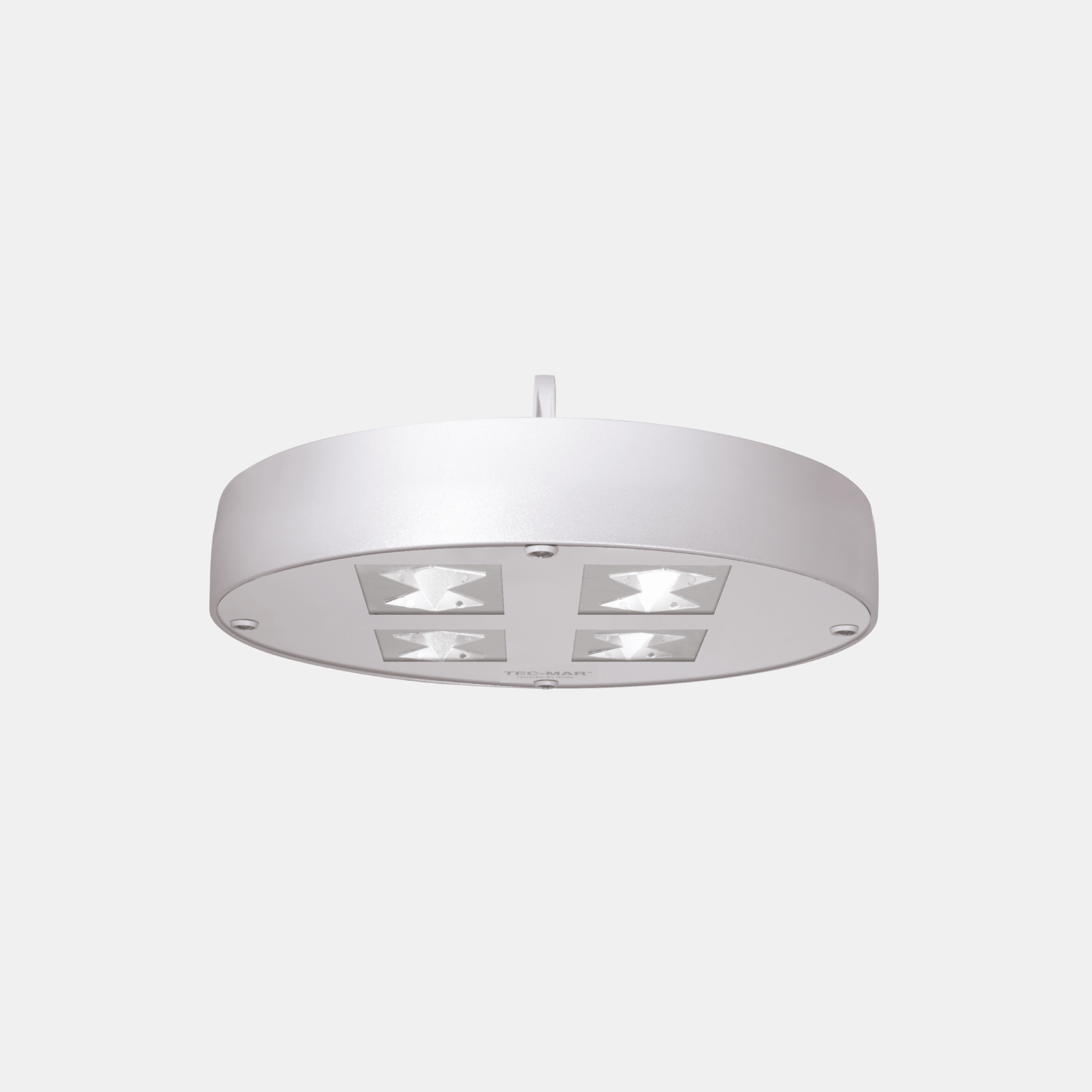

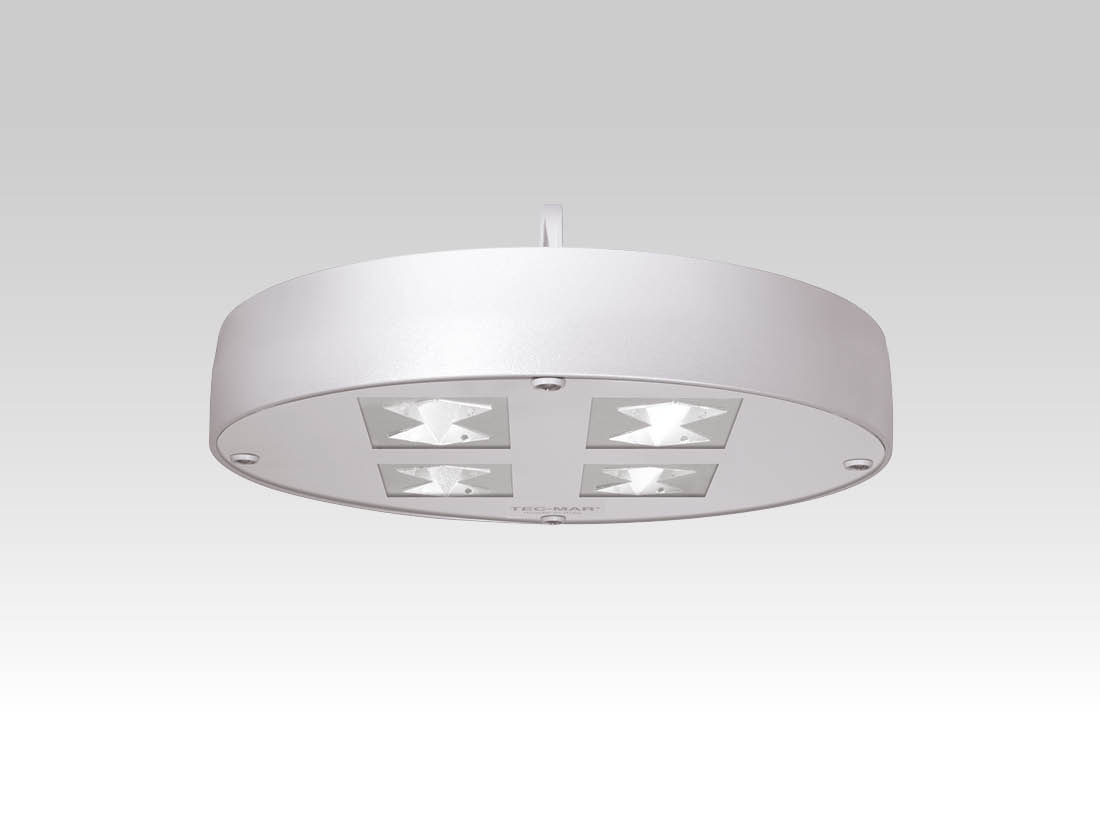

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER HP - 8401, Industrial, art. 8401 Pier HP
Models: 80
Color: Silver
Catalogue abstract
Installation instructions

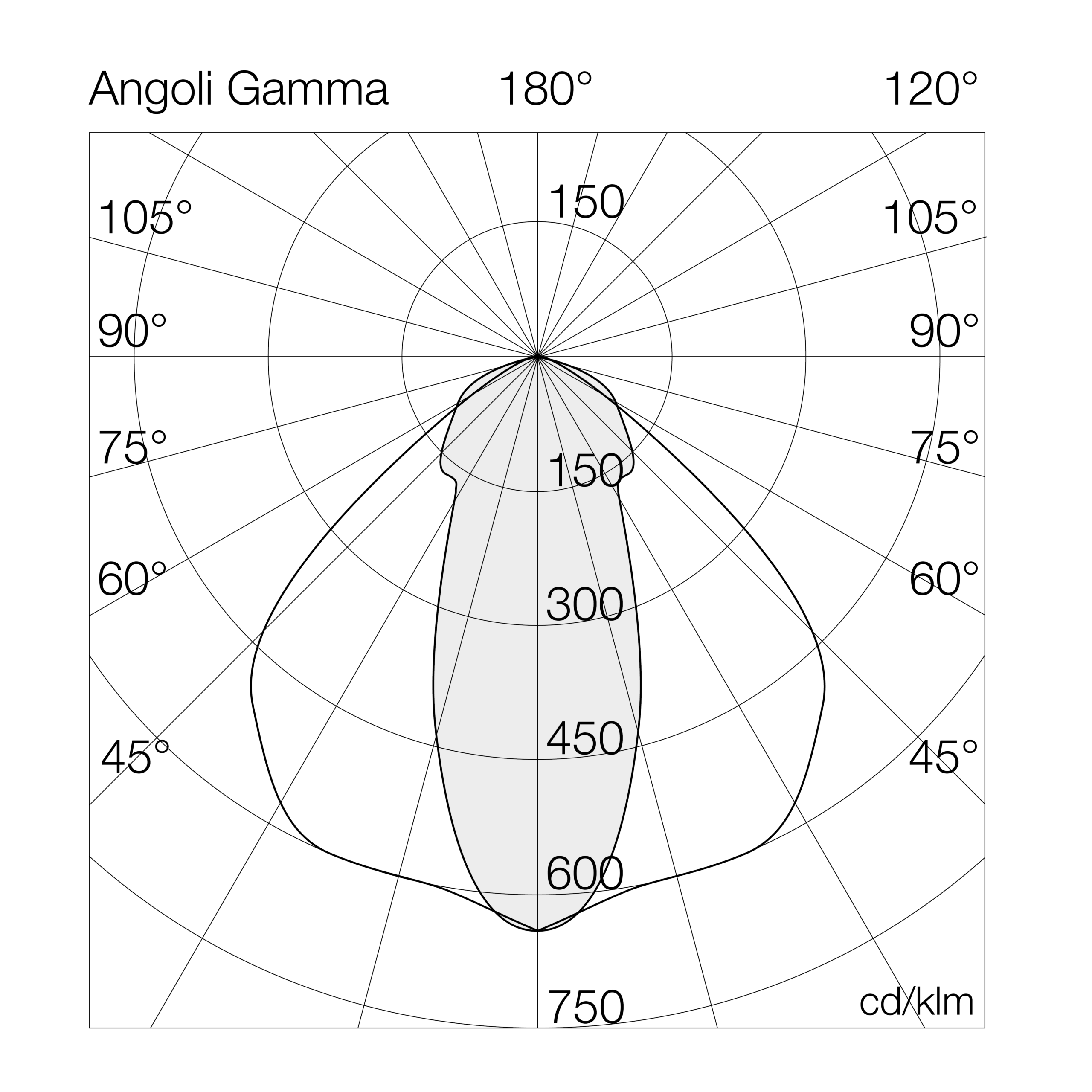

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8401EL4= 4000°K (CRI >80)056130GL= on/off
5= 5000°K (CRI >80)080140GD= dali 2
090150G3= em. 3h
100170D3= dali 2 + em. 3h
120190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8401EL4056GL56-4000°K - CRI>80on/off9680173365-150-5.5
8401EL4080GL80-4000°K - CRI>80on/off13868173365-150-5.5
8401EL4090GL90-4000°K - CRI>80on/off15466172365-150-5.5
8401EL4100GL100-4000°K - CRI>80on/off17013170365-150-5.5
8401EL4120GL120-4000°K - CRI>80on/off19860166365-150-5.5
8401EL4130GL130-4000°K - CRI>80on/off21440165365-150-5.5
8401EL4140GL140-4000°K - CRI>80on/off22829163365-150-5.5
8401EL4150GL150-4000°K - CRI>80on/off24049160365-150-5.5
8401EL4170GL170-4000°K - CRI>80on/off27061159365-150-5.5
8401EL4190GL190-4000°K - CRI>80on/off31189164365-150-5.5
8401EL4056GD56-4000°K - CRI>80dali 29680173365-150-5.5
8401EL4080GD80-4000°K - CRI>80dali 213868173365-150-5.5
8401EL4090GD90-4000°K - CRI>80dali 215466172365-150-5.5
8401EL4100GD100-4000°K - CRI>80dali 217013170365-150-5.5
8401EL4120GD120-4000°K - CRI>80dali 219860166365-150-5.5
8401EL4130GD130-4000°K - CRI>80dali 221440165365-150-5.5
8401EL4140GD140-4000°K - CRI>80dali 222829163365-150-5.5
8401EL4150GD150-4000°K - CRI>80dali 224049160365-150-5.5
8401EL4170GD170-4000°K - CRI>80dali 227061159365-150-5.5
8401EL4190GD190-4000°K - CRI>80dali 231189164365-150-5.5
