art.-8401-pier-hp-s2

PIER HP – Mod. S2

(80° rotosymmetric diffusing optics - UGR<22)

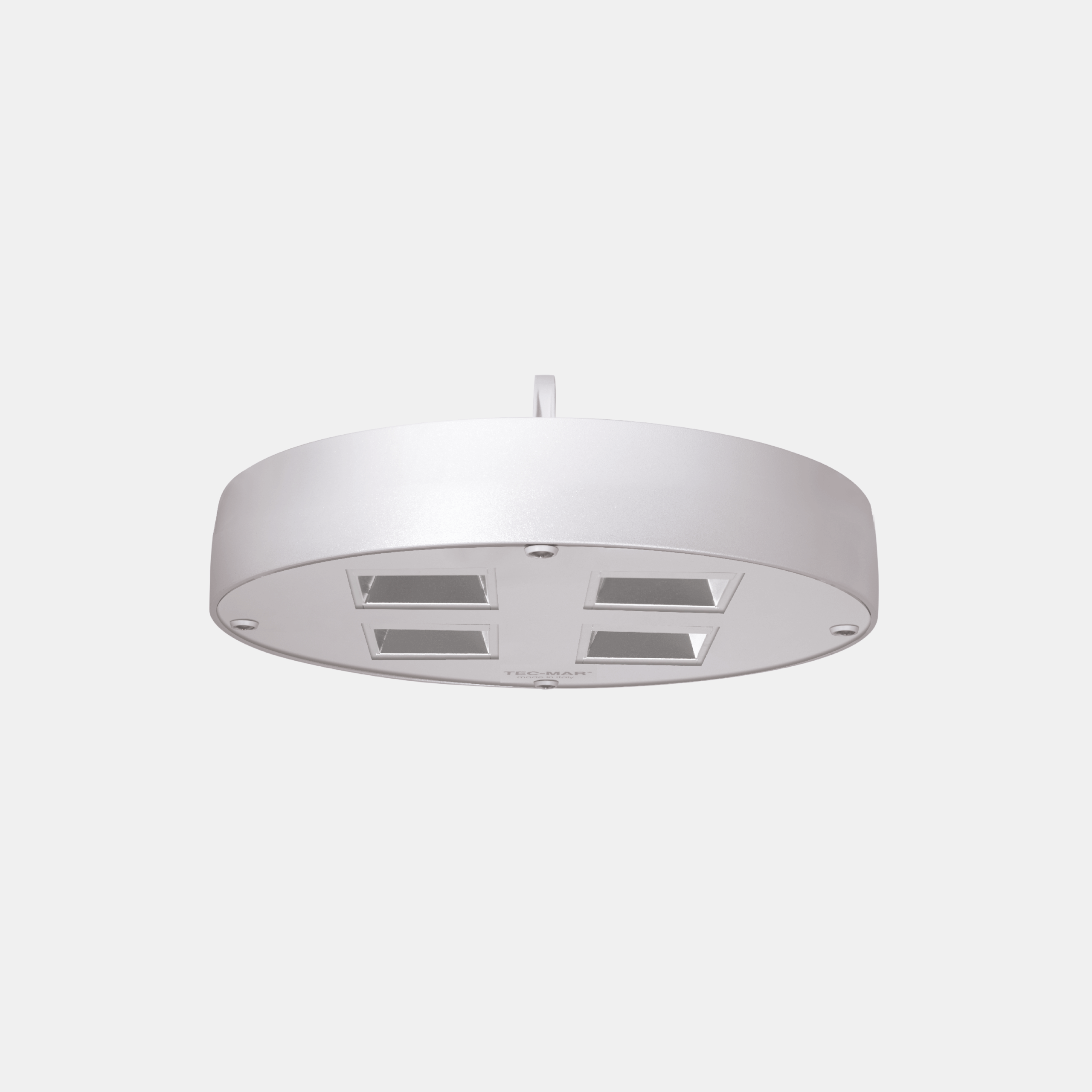

Industrial and commercial led reflector, suitable for pendant, ceiling and on-bar installations. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder silver color, diffuser made of 4 mm thick extra-clear tempered glass, silicone gasket. Diffusing optics 80° (UGR<22).
Categories: Led, PIER HP - 8401, Industrial, PIER HP
Models: 80
Color: Silver
Catalogue abstract
Installation instructions

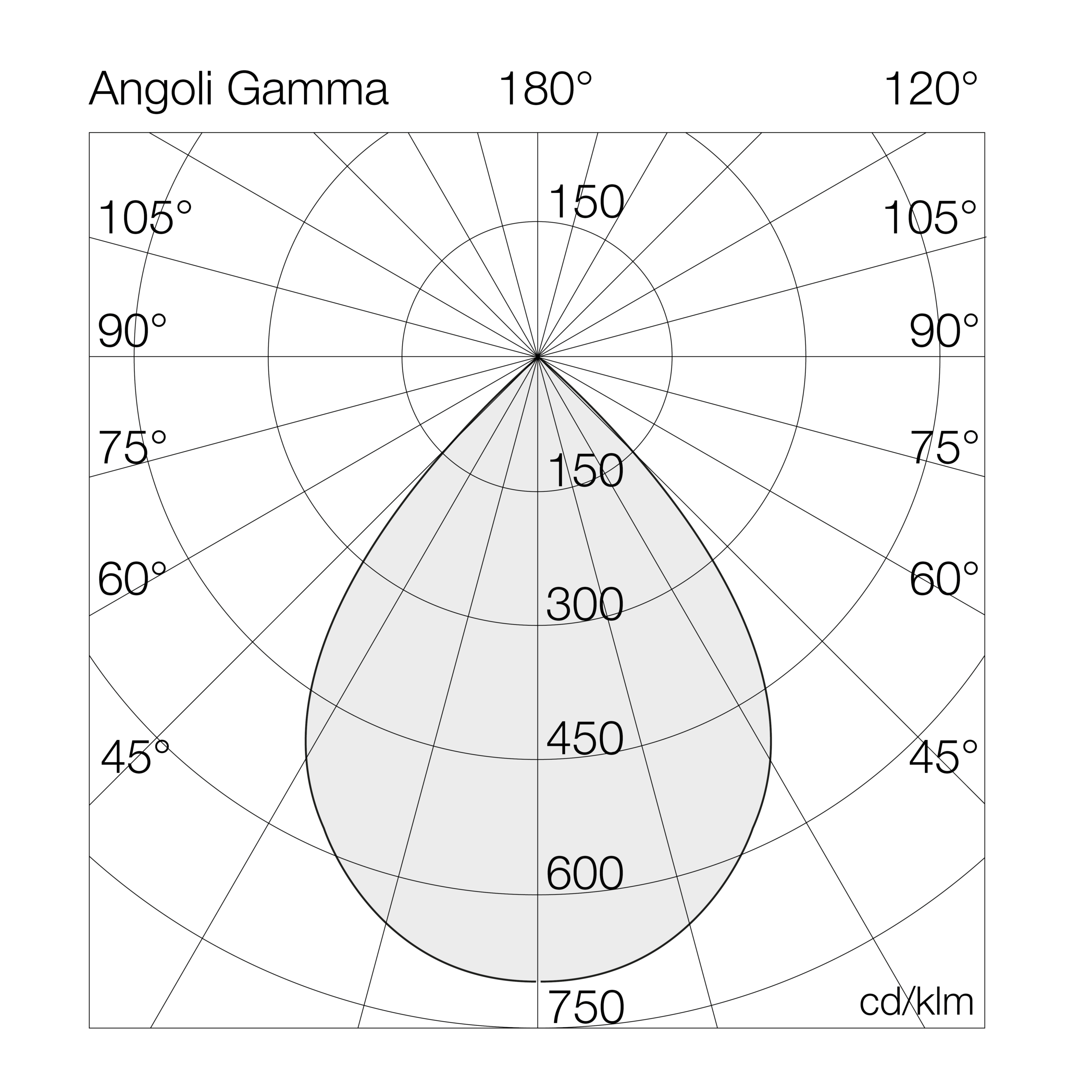

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8401S24= 4000°K (CRI >80)056130GL= on/off
5= 5000°K (CRI >80)080140GD= dali 2
090150G3= em. 3h
100170D3= dali 2 + em. 3h
120190

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8401S24056GL56-4000°K - CRI>80on/off9652172365-150-5.5
8401S24080GL80-4000°K - CRI>80on/off13829173365-150-5.5
8401S24090GL90-4000°K - CRI>80on/off15422171365-150-5.5
8401S24100GL100-4000°K - CRI>80on/off16965170365-150-5.5
8401S24120GL120-4000°K - CRI>80on/off19804165365-150-5.5
8401S24130GL130-4000°K - CRI>80on/off21379164365-150-5.5
8401S24140GL140-4000°K - CRI>80on/off22764163365-150-5.5
8401S24150GL150-4000°K - CRI>80on/off23980160365-150-5.5
8401S24170GL170-4000°K - CRI>80on/off26984159365-150-5.5
8401S24190GL190-4000°K - CRI>80on/off31100164365-150-5.5
8401S24056GD56-4000°K - CRI>80dali 29652172365-150-5.5
8401S24080GD80-4000°K - CRI>80dali 213829173365-150-5.5
8401S24090GD90-4000°K - CRI>80dali 215422171365-150-5.5
8401S24100GD100-4000°K - CRI>80dali 216965170365-150-5.5
8401S24120GD120-4000°K - CRI>80dali 219804165365-150-5.5
8401S24130GD130-4000°K - CRI>80dali 221379164365-150-5.5
8401S24140GD140-4000°K - CRI>80dali 222764163365-150-5.5
8401S24150GD150-4000°K - CRI>80dali 223980160365-150-5.5
8401S24170GD170-4000°K - CRI>80dali 226984159365-150-5.5
8401S24190GD190-4000°K - CRI>80dali 231100164365-150-5.5
