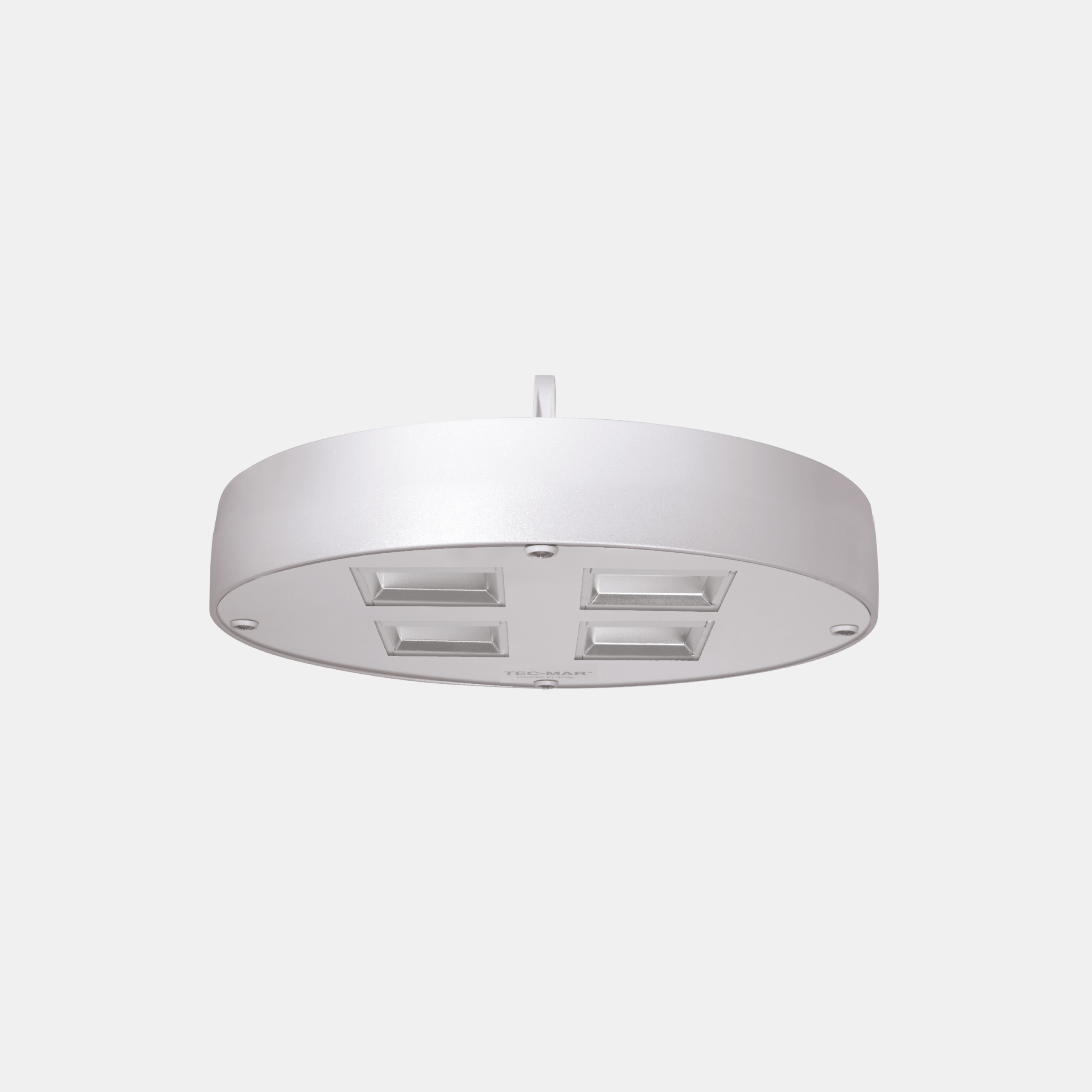

PIER HP – Mod. S5

(90° rotosymmetric diffusing optics - UGR<25)

Industrial and commercial led reflector, suitable for pendant, ceiling and on-bar installations. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder silver color, diffuser made of 4 mm thick extra-clear tempered glass, silicone gasket. Diffusing optics 90° (UGR<25).
Categories: Led, PIER HP - 8401, Industrial, PIER HP
Models: 80
Color: Silver
Catalogue abstract
Installation instructions

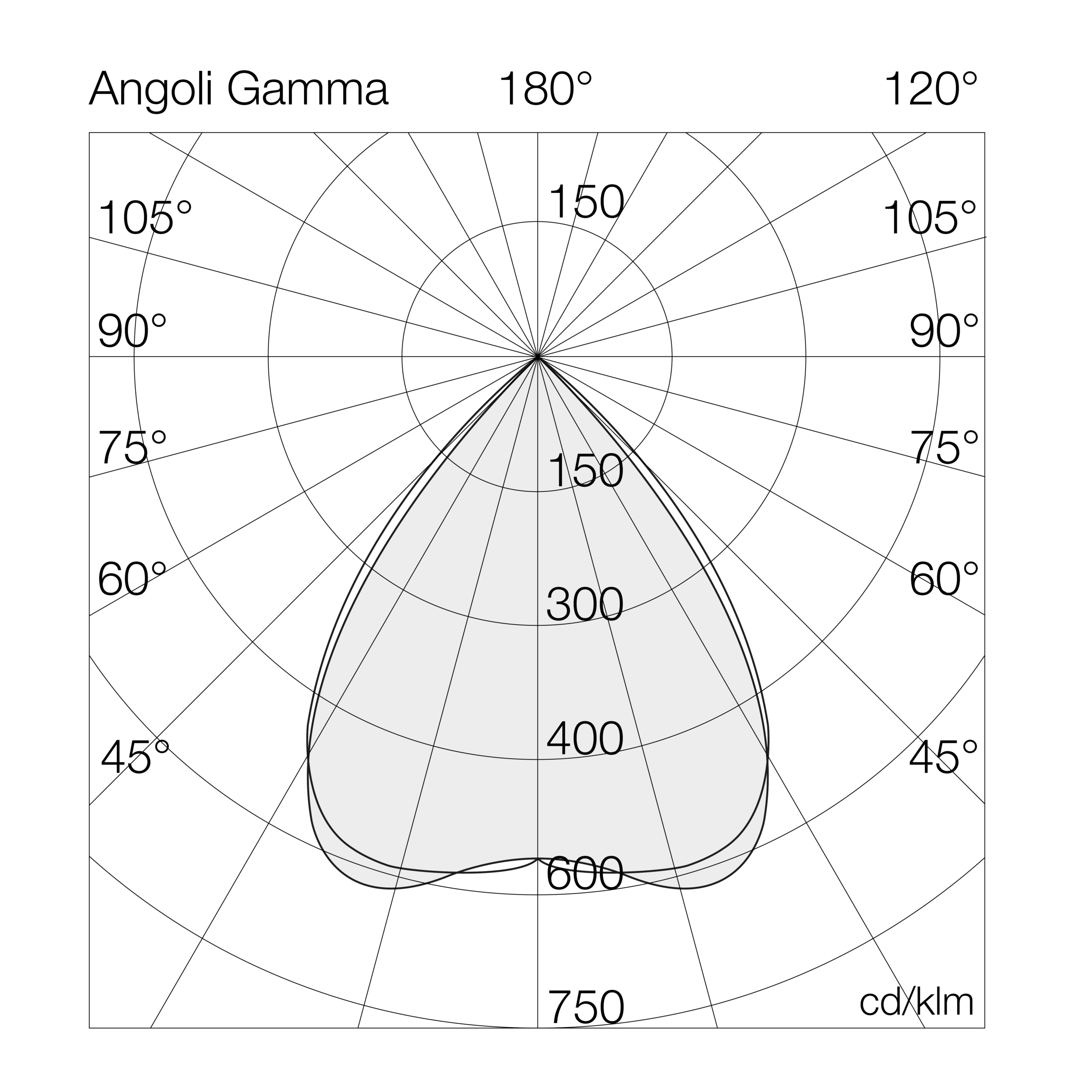

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8401S54= 4000°K (CRI >80)056130GL= on/off
5= 5000°K (CRI >80)080140GD= dali 2
090150G3= em. 3h
100170D3= dali 2 + em. 3h
120190

Models

W tot.
°K - CRI
Options

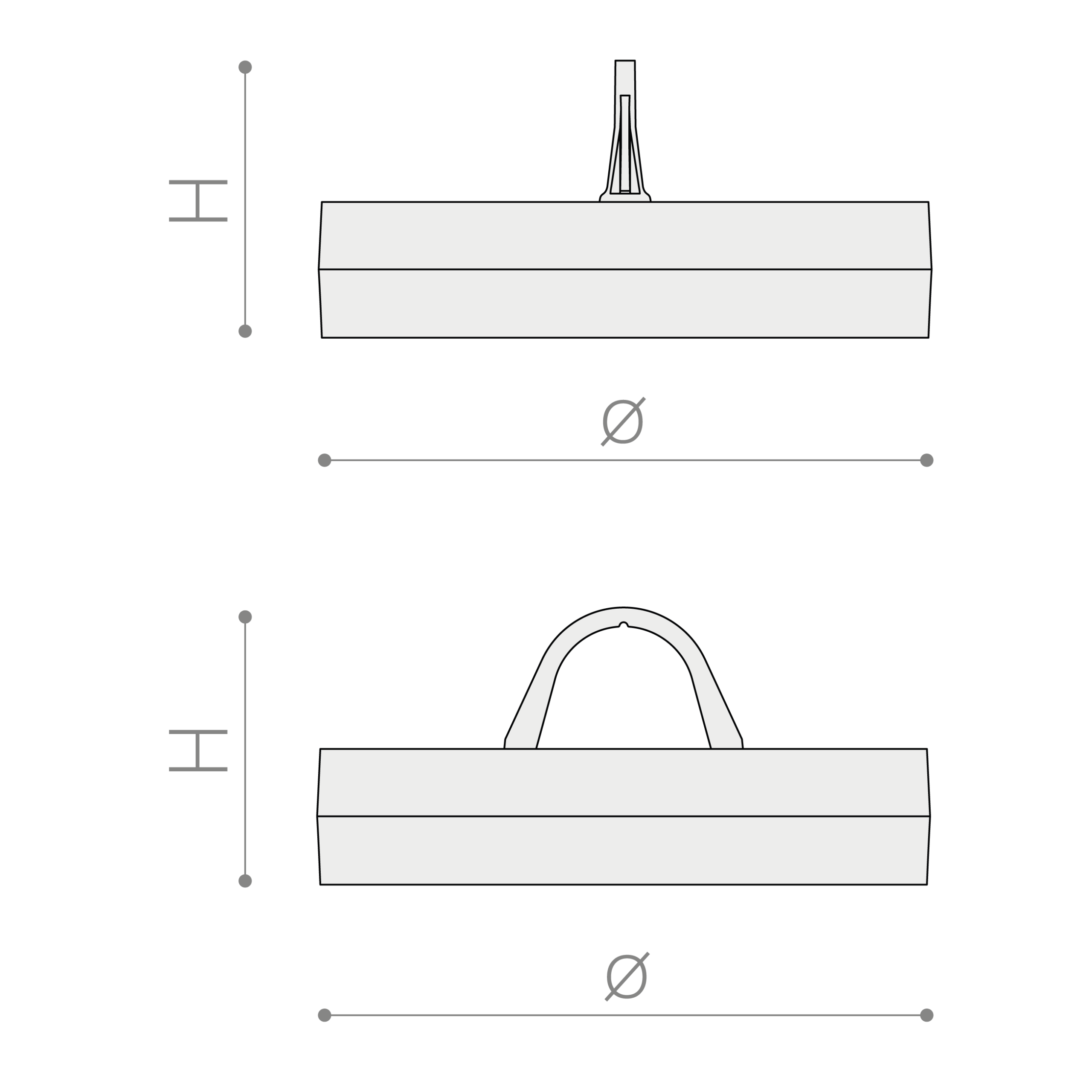

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8401S54056GL56-4000°K - CRI>80on/off10038179365-150-5.5
8401S54080GL80-4000°K - CRI>80on/off14382180365-150-5.5
8401S54090GL90-4000°K - CRI>80on/off16039178365-150-5.5
8401S54100GL100-4000°K - CRI>80on/off17643176365-150-5.5
8401S54120GL120-4000°K - CRI>80on/off20596172365-150-5.5
8401S54130GL130-4000°K - CRI>80on/off22234171365-150-5.5
8401S54140GL140-4000°K - CRI>80on/off23675169365-150-5.5
8401S54150GL150-4000°K - CRI>80on/off24939166365-150-5.5
8401S54170GL170-4000°K - CRI>80on/off28063165365-150-5.5
8401S54190GL190-4000°K - CRI>80on/off32344170365-150-5.5
8401S54056GD56-4000°K - CRI>80dali 210038179365-150-5.5
8401S54080GD80-4000°K - CRI>80dali 214382180365-150-5.5
8401S54090GD90-4000°K - CRI>80dali 216039178365-150-5.5
8401S54100GD100-4000°K - CRI>80dali 217643176365-150-5.5
8401S54120GD120-4000°K - CRI>80dali 220596172365-150-5.5
8401S54130GD130-4000°K - CRI>80dali 222234171365-150-5.5
8401S54140GD140-4000°K - CRI>80dali 223675169365-150-5.5
8401S54150GD150-4000°K - CRI>80dali 224939166365-150-5.5
8401S54170GD170-4000°K - CRI>80dali 228063165365-150-5.5
8401S54190GD190-4000°K - CRI>80dali 232344170365-150-5.5
