art.-8401-pier-hp-su

PIER HP/SU

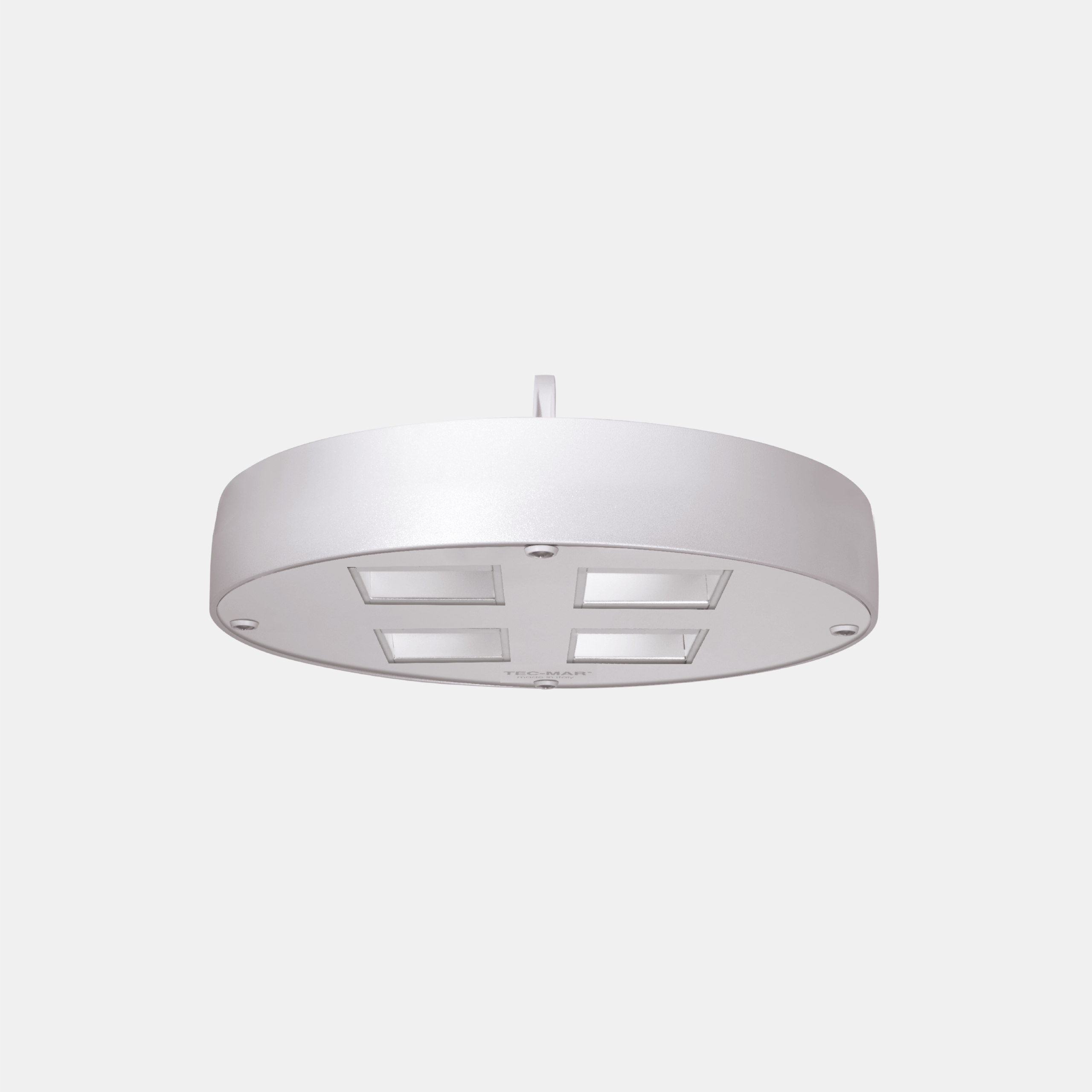

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER HP - 8401, Industrial, art. 8401 Pier HP
Models: 80
Color: Silver
Catalogue abstract
Installation instructions

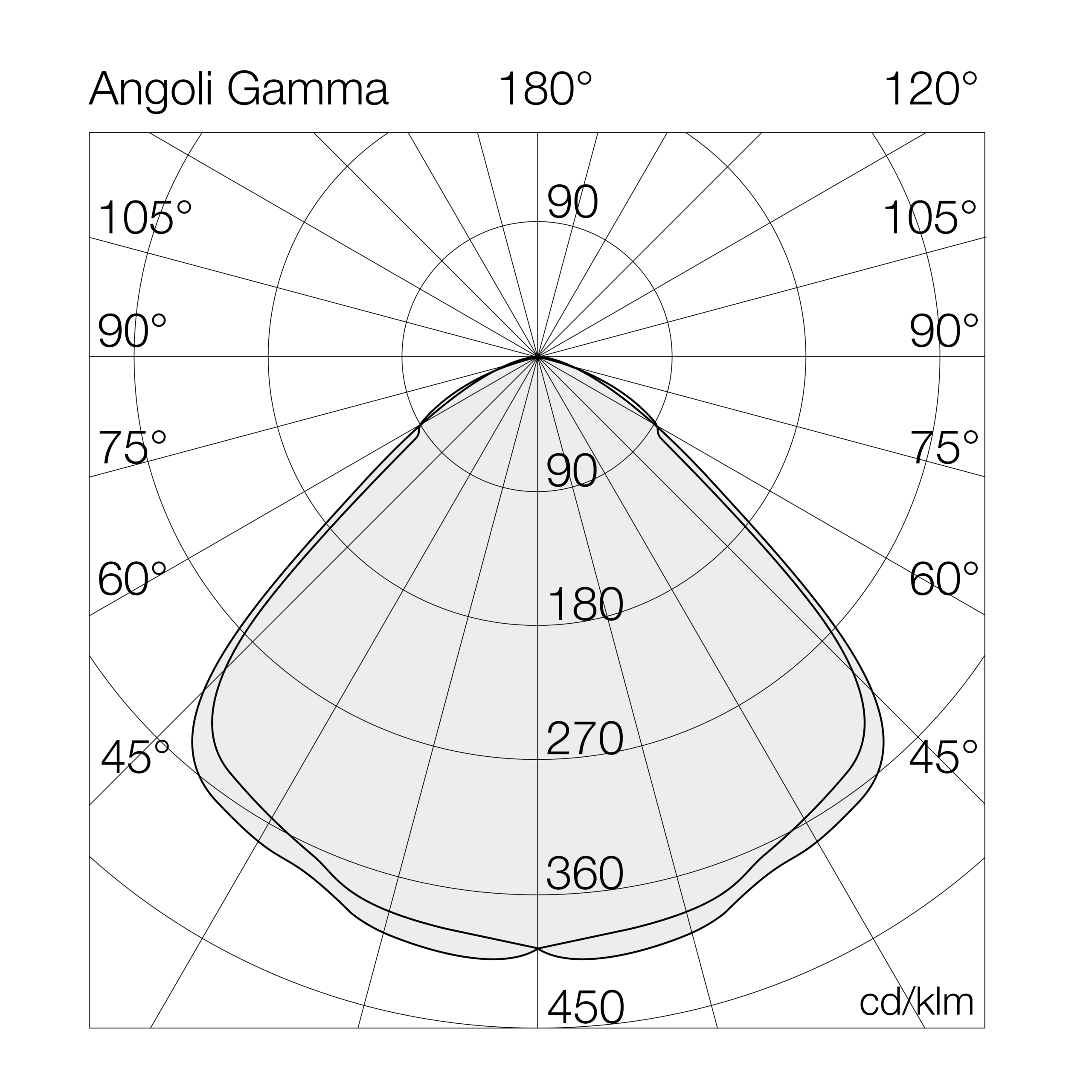

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8401SU4= 4000°K (CRI >80)056130GL= on/off
5= 5000°K (CRI >80)080140GD= dali 2
090150G3= em. 3h
100170D3= dali 2 + em. 3h
120190

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8401SU4056GL56-4000°K - CRI>80on/off10093180365-150-5.5
8401SU4080GL80-4000°K - CRI>80on/off14461181365-150-5.5
8401SU4090GL90-4000°K - CRI>80on/off16127179365-150-5.5
8401SU4100GL100-4000°K - CRI>80on/off17740177365-150-5.5
8401SU4120GL120-4000°K - CRI>80on/off20709173365-150-5.5
8401SU4130GL130-4000°K - CRI>80on/off22356172365-150-5.5
8401SU4140GL140-4000°K - CRI>80on/off23805170365-150-5.5
8401SU4150GL150-4000°K - CRI>80on/off25076167365-150-5.5
8401SU4170GL170-4000°K - CRI>80on/off28218166365-150-5.5
8401SU4190GL190-4000°K - CRI>80on/off32522171365-150-5.5
8401SU4056GD56-4000°K - CRI>80dali 210093180365-150-5.5
8401SU4080GD80-4000°K - CRI>80dali 214461181365-150-5.5
8401SU4090GD90-4000°K - CRI>80dali 216127179365-150-5.5
8401SU4100GD100-4000°K - CRI>80dali 217740177365-150-5.5
8401SU4120GD120-4000°K - CRI>80dali 220709173365-150-5.5
8401SU4130GD130-4000°K - CRI>80dali 222356172365-150-5.5
8401SU4140GD140-4000°K - CRI>80dali 223805170365-150-5.5
8401SU4150GD150-4000°K - CRI>80dali 225076167365-150-5.5
8401SU4170GD170-4000°K - CRI>80dali 228218166365-150-5.5
8401SU4190GD190-4000°K - CRI>80dali 232522171365-150-5.5
