PIER HP2 – Mod. CU

(30° rotosymmetrical focusing optics)

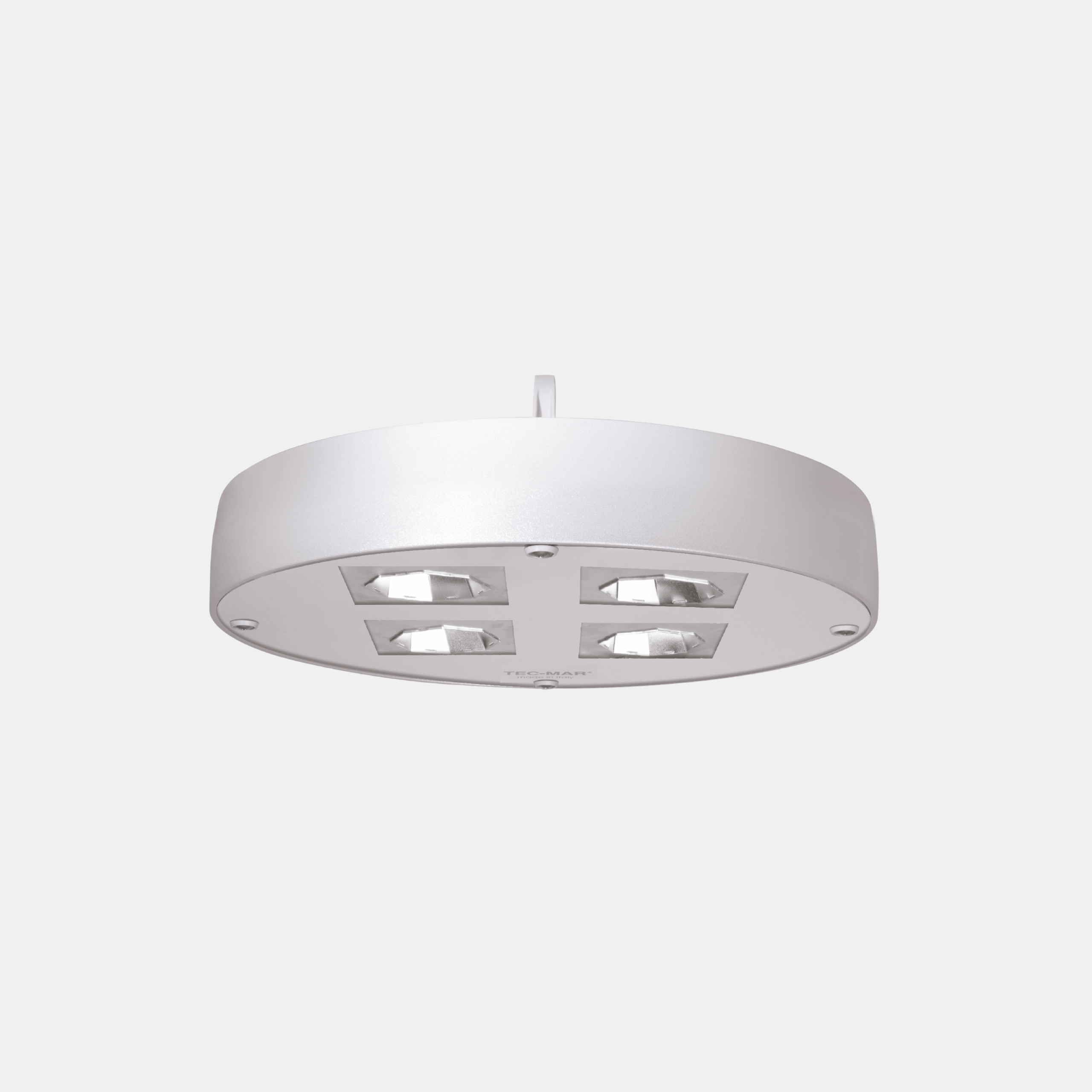

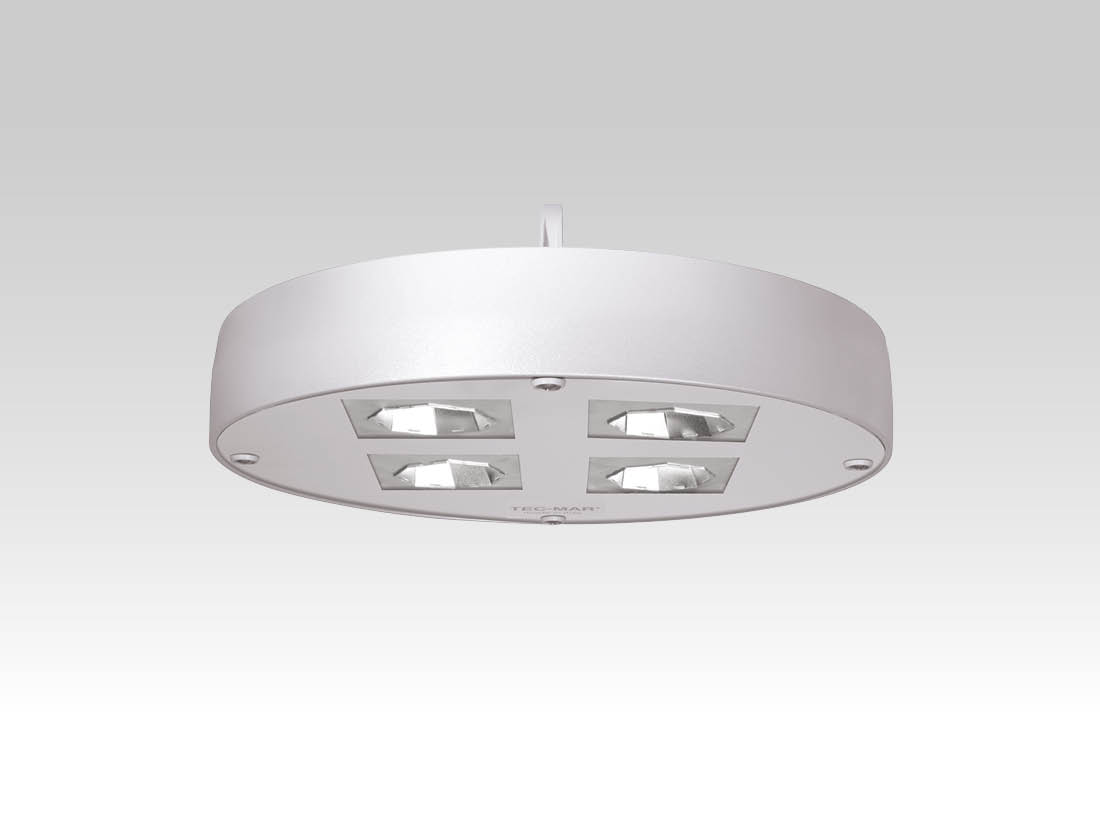

Industrial and commercial led reflector, suitable for pendant, ceiling and on-bar installations. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder silver color, diffuser made of 4 mm thick extra-clear tempered glass, silicone gasket. Concentrating optics 30°.
Categories: Led, PIER HP2 - 8402, Industrial, PIER HP2
Models: 32
Color: Silver
Catalogue abstract
Installation instructions

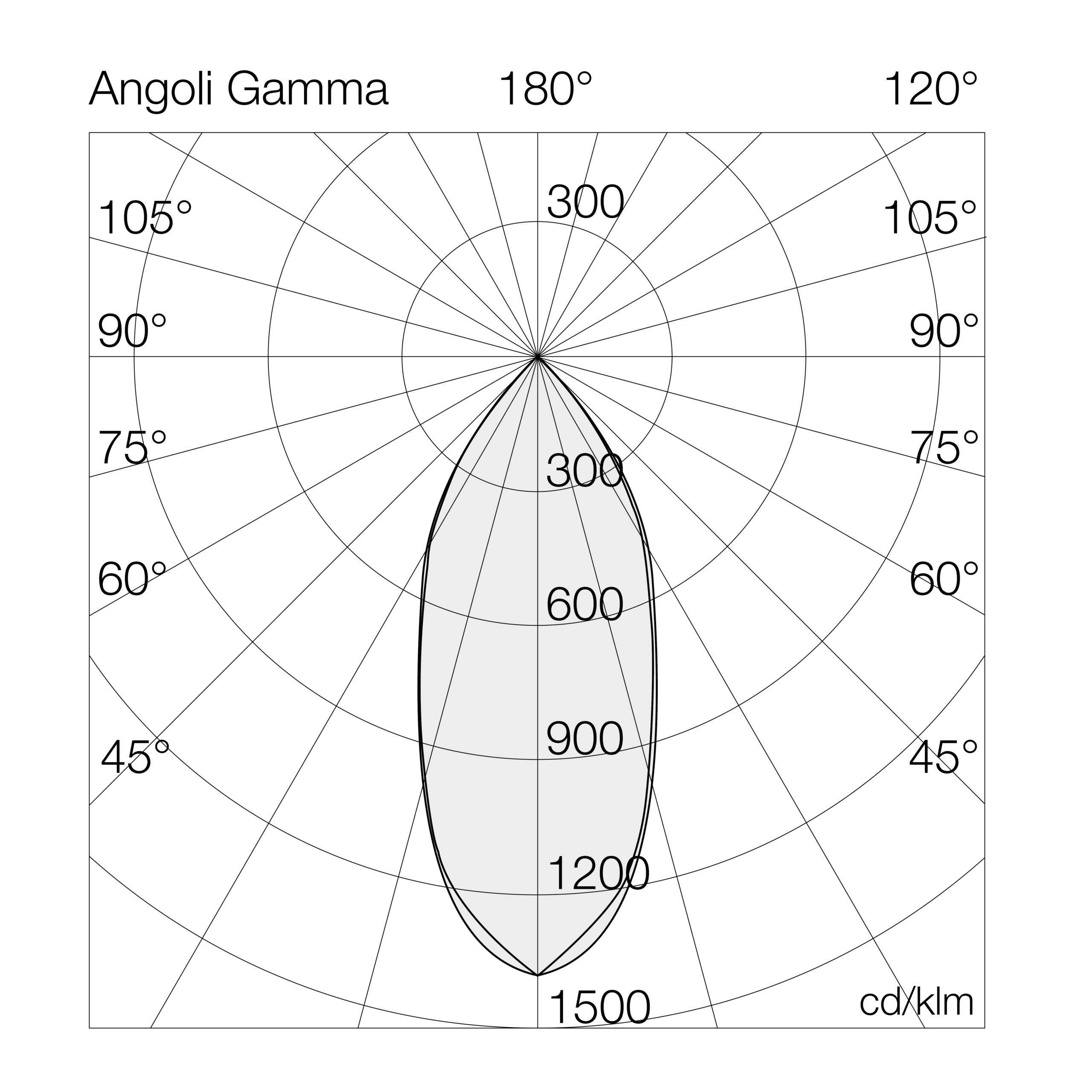

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8402CU4= 4000°K (CRI >80)200GL= on/off
5= 5000°K (CRI >80)230GD= dali 2
240G3= em. 3h
280D3= dali 2 + em. 3h

Models

W tot.
°K - CRI
Options

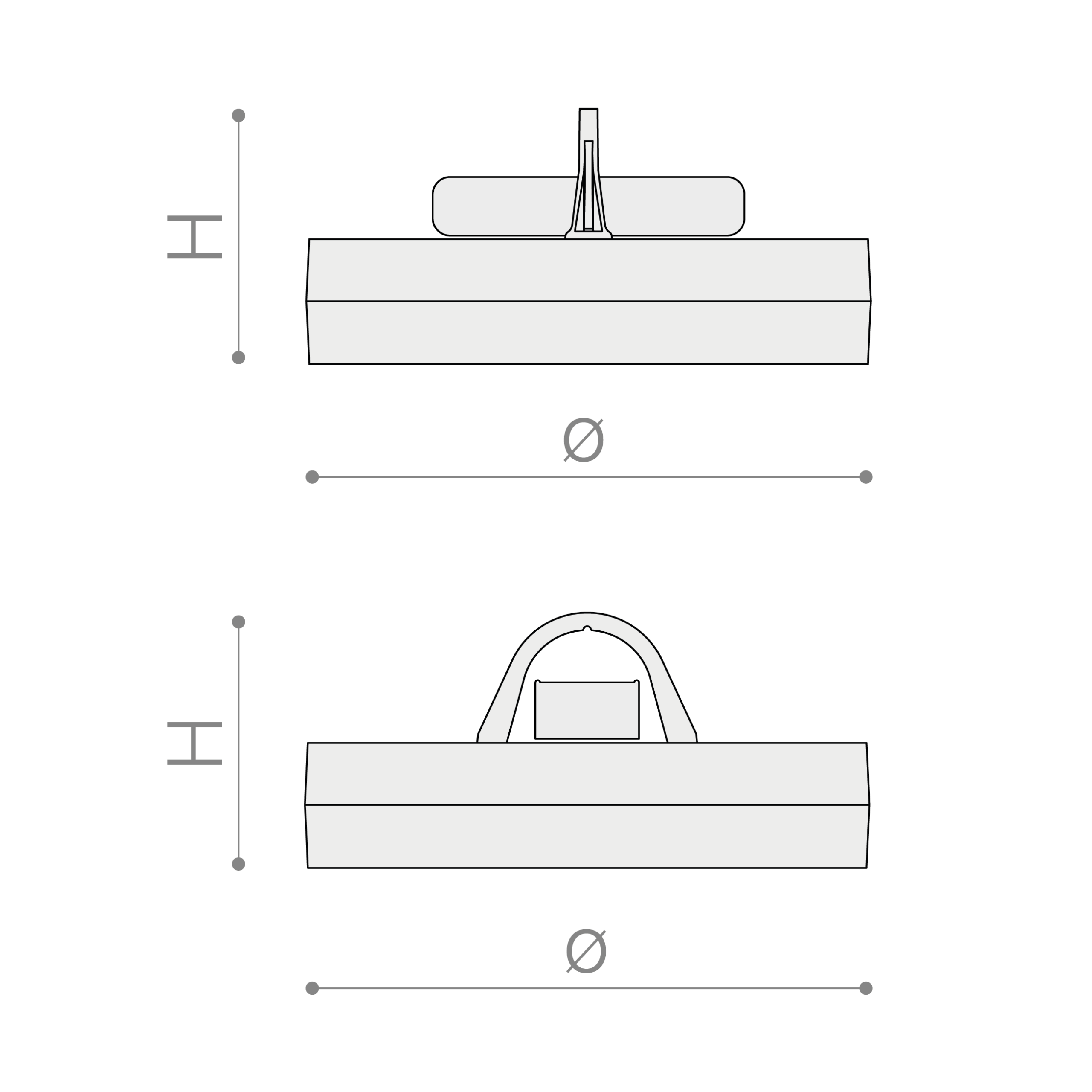

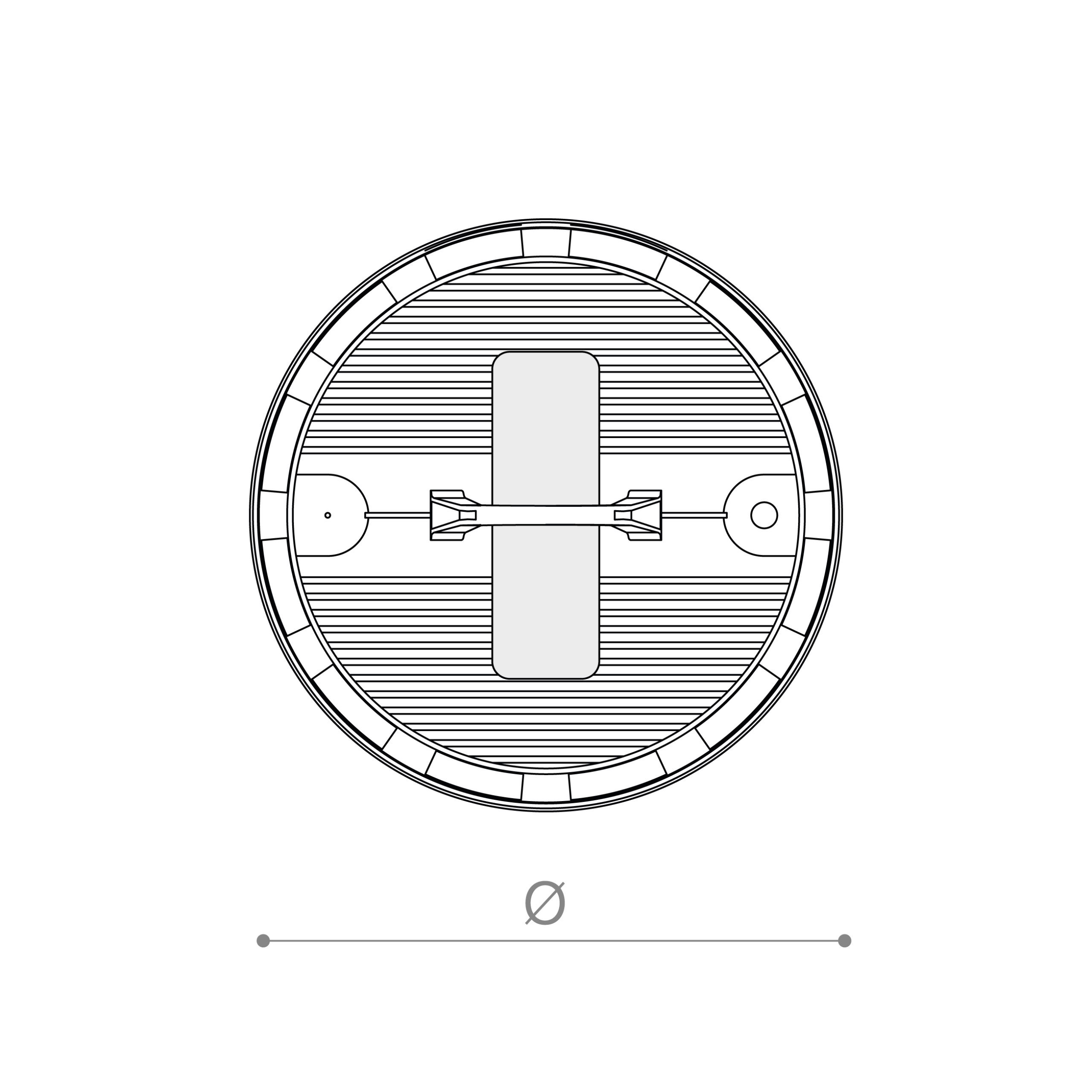

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8402CU4200GL200-4000°K - CRI>80on/off30993155365-150-5.8
8402CU4230GL230-4000°K - CRI>80on/off33880147365-150-5.8
8402CU4240GL240-4000°K - CRI>80on/off34609144365-150-5.8
8402CU4280GL280-4000°K - CRI>80on/off40690145365-150-6.8
8402CU4200GD200-4000°K - CRI>80dali 230993155365-150-5.8
8402CU4230GD230-4000°K - CRI>80dali 233880147365-150-5.8
8402CU4240GD240-4000°K - CRI>80dali 234609144365-150-5.8
8402CU4280GD280-4000°K - CRI>80dali 240690145365-150-6.8
8402CU4200D3200-4000°K - CRI>80dali 2 + em. 3h30993155365-150-5.8
8402CU4230D3230-4000°K - CRI>80dali 2 + em. 3h33880147365-150-5.8
8402CU4240D3240-4000°K - CRI>80dali 2 + em. 3h34609144365-150-5.8
8402CU4280D3280-4000°K - CRI>80dali 2 + em. 3h40690145365-150-6.8
8402CU4200G3200-4000°K - CRI>80em. 3h30993155365-150-5.8
8402CU4230G3230-4000°K - CRI>80em. 3h33880147365-150-5.8
8402CU4240G3240-4000°K - CRI>80em. 3h34609144365-150-5.8
8402CU4280G3280-4000°K - CRI>80em. 3h40690145365-150-6.8
8402CU5200GL200-5000°K - CRI>80on/off31272156365-150-5.8
8402CU5230GL230-5000°K - CRI>80on/off34185149365-150-5.8
8402CU5240GL240-5000°K - CRI>80on/off34920146365-150-5.8
8402CU5280GL280-5000°K - CRI>80on/off41056147365-150-6.8
