PIER HP2/EL

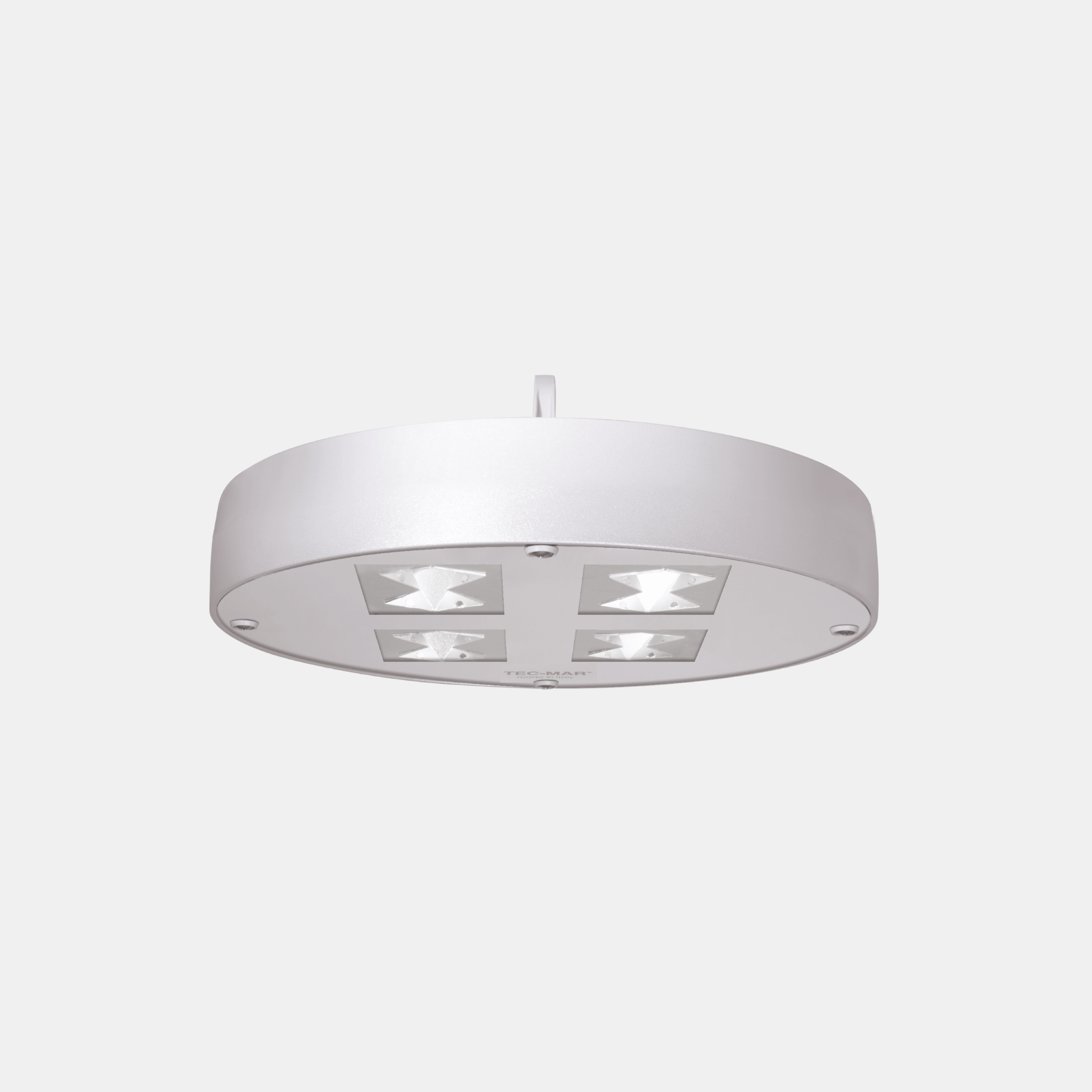

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER HP2 - 8402, Industrial, art. 8402 Pier HP2
Models: 32
Color: Silver
Catalogue abstract
Installation instructions

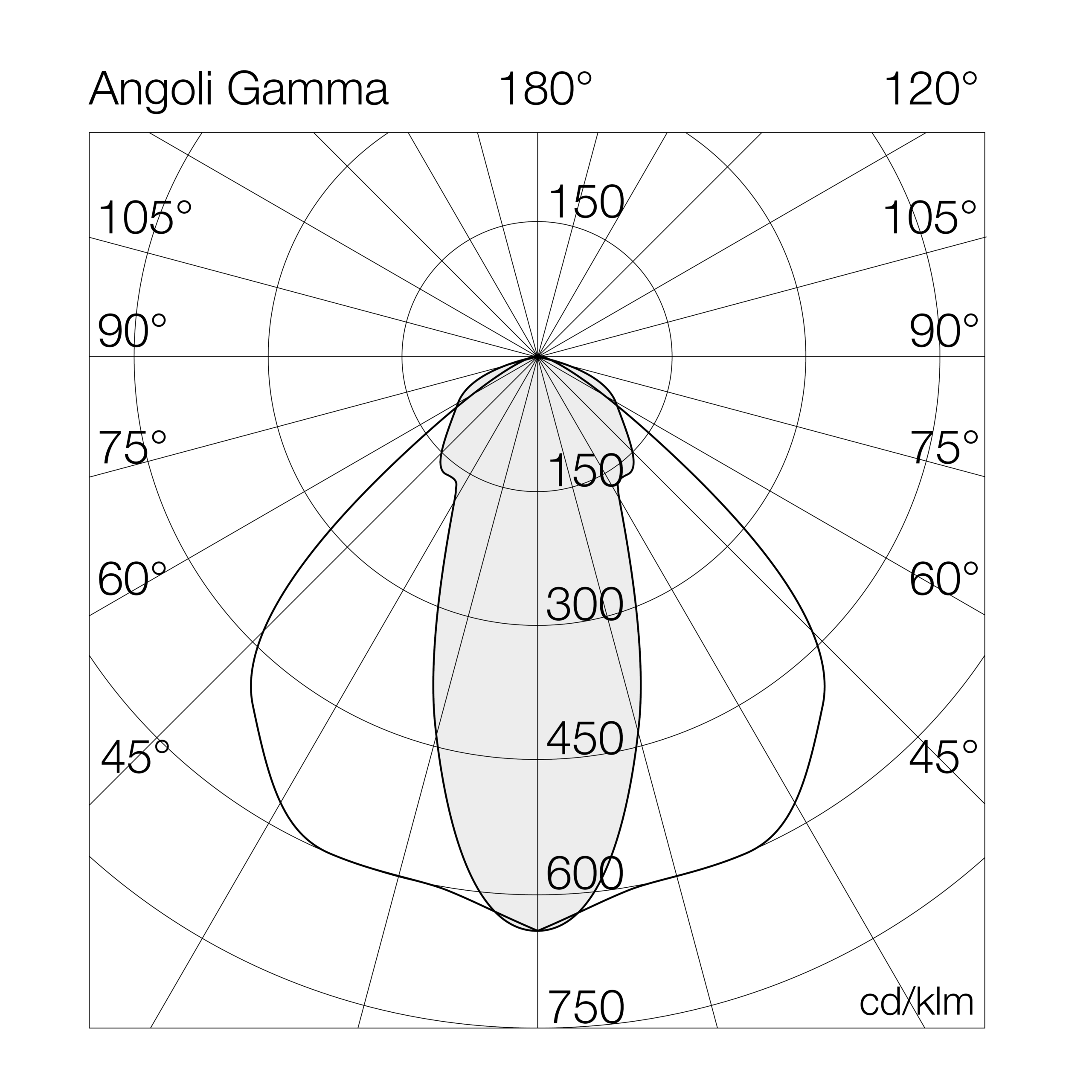

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8402EL4= 4000°K (CRI >80)200GL= on/off
5= 5000°K (CRI >80)230GD= dali 2
240G3= em. 3h
280D3= dali 2 + em. 3h

Models

W tot.
°K - CRI
Options

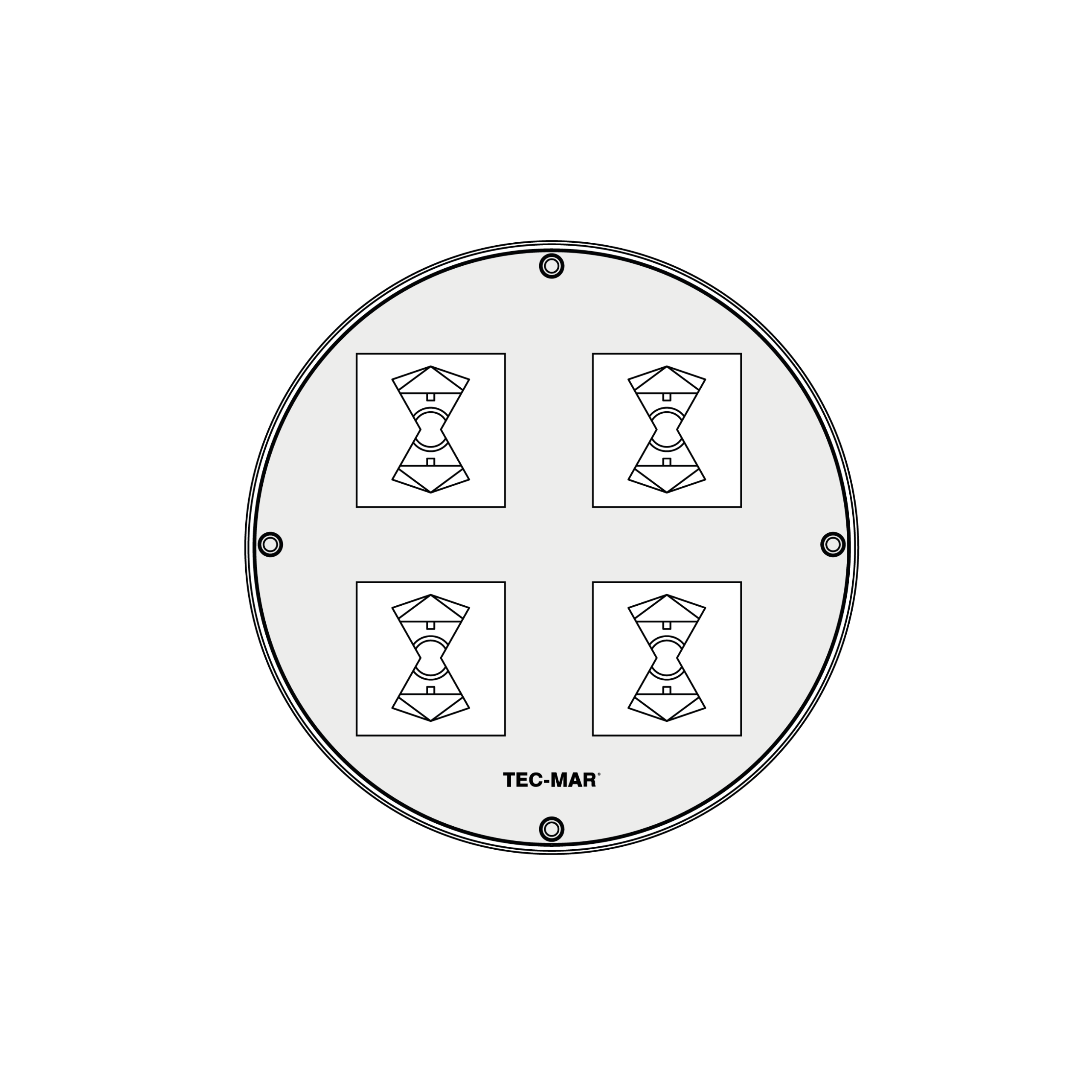

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8402EL4200GL200-4000°K - CRI>80on/off32767164365-150-5.8
8402EL4230GL230-4000°K - CRI>80on/off35819156365-150-5.8
8402EL4240GL240-4000°K - CRI>80on/off36590152365-150-5.8
8402EL4280GL280-4000°K - CRI>80on/off43019154365-150-6.8
8402EL4200GD200-4000°K - CRI>80dali 232767164365-150-5.8
8402EL4230GD230-4000°K - CRI>80dali 235819156365-150-5.8
8402EL4240GD240-4000°K - CRI>80dali 236590152365-150-5.8
8402EL4280GD280-4000°K - CRI>80dali 243019154365-150-6.8
8402EL4200D3200-4000°K - CRI>80dali 2 + em. 3h32767164365-150-5.8
8402EL4230D3230-4000°K - CRI>80dali 2 + em. 3h35819156365-150-5.8
8402EL4240D3240-4000°K - CRI>80dali 2 + em. 3h36590152365-150-5.8
8402EL4280D3280-4000°K - CRI>80dali 2 + em. 3h43019154365-150-6.8
8402EL4200G3200-4000°K - CRI>80em. 3h32767164365-150-5.8
8402EL4230G3230-4000°K - CRI>80em. 3h35819156365-150-5.8
8402EL4240G3240-4000°K - CRI>80em. 3h36590152365-150-5.8
8402EL4280G3280-4000°K - CRI>80em. 3h43019154365-150-6.8
8402EL5200GL200-5000°K - CRI>80on/off33062165365-150-5.8
8402EL5230GL230-5000°K - CRI>80on/off36141157365-150-5.8
8402EL5240GL240-5000°K - CRI>80on/off36919154365-150-5.8
8402EL5280GL280-5000°K - CRI>80on/off43406155365-150-6.8

Accessories
