PIER HP2 – Mod. S2

(80° rotosymmetric diffusing optics - UGR<22)

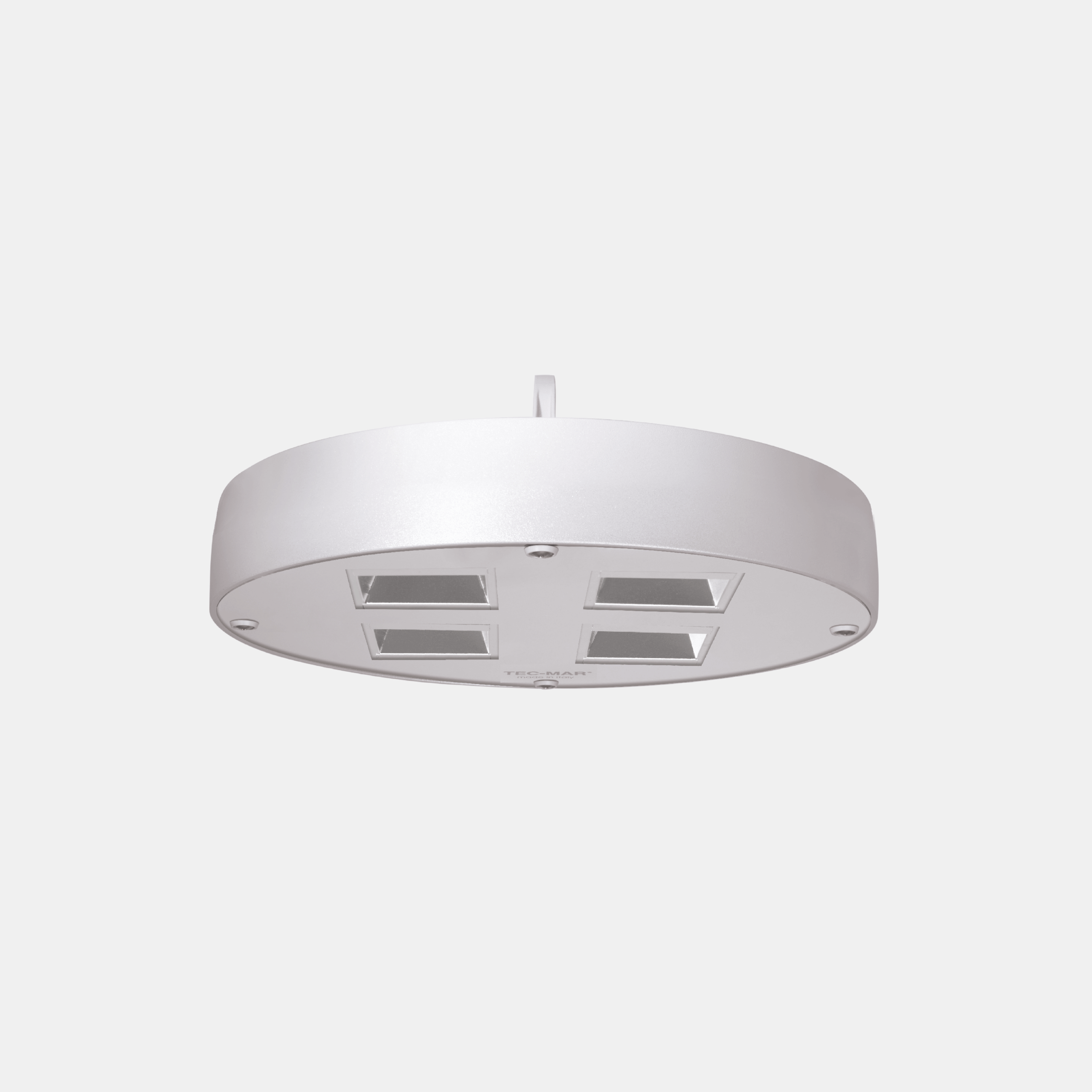

Industrial and commercial led reflector, suitable for pendant, ceiling and on-bar installations. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder silver color, diffuser made of 4 mm thick extra-clear tempered glass, silicone gasket. Diffusing optics 80° (UGR<22).
Categories: Led, PIER HP2 - 8402, Industrial, PIER HP2
Models: 32
Color: Silver
Catalogue abstract
Installation instructions

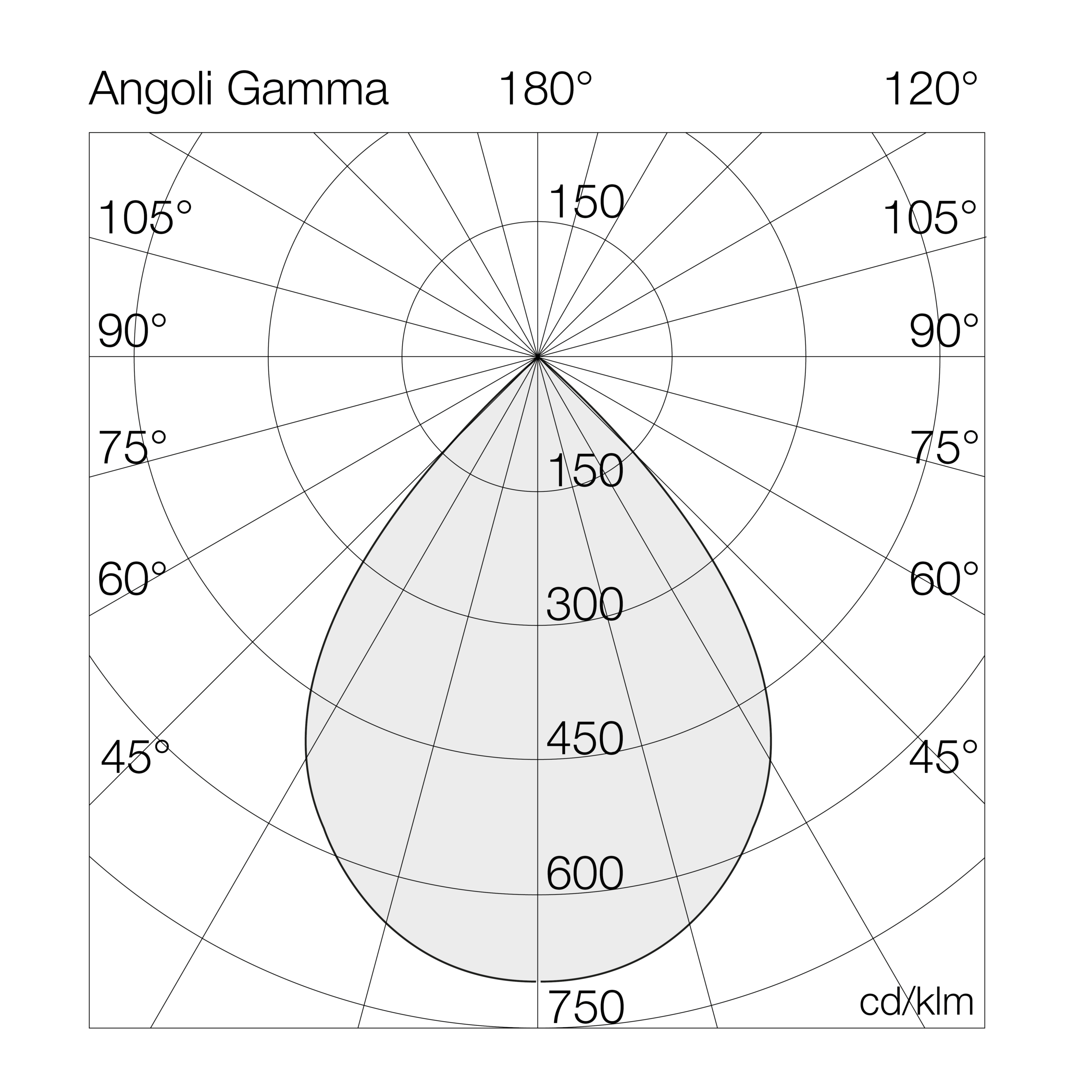

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8402S24= 4000°K (CRI >80)200GL= on/off
5= 5000°K (CRI >80)230GD= dali 2
240G3= em. 3h
280D3= dali 2 + em. 3h

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8402S24200GL200-4000°K - CRI>80on/off32673163365-150-5.8
8402S24230GL230-4000°K - CRI>80on/off35717155365-150-5.8
8402S24240GL240-4000°K - CRI>80on/off36486152365-150-5.8
8402S24280GL280-4000°K - CRI>80on/off42896153365-150-6.8
8402S24200GD200-4000°K - CRI>80dali 232673163365-150-5.8
8402S24230GD230-4000°K - CRI>80dali 235717155365-150-5.8
8402S24240GD240-4000°K - CRI>80dali 236486152365-150-5.8
8402S24280GD280-4000°K - CRI>80dali 242896153365-150-6.8
8402S24200D3200-4000°K - CRI>80dali 2 + em. 3h32673163365-150-5.8
8402S24230D3230-4000°K - CRI>80dali 2 + em. 3h35717155365-150-5.8
8402S24240D3240-4000°K - CRI>80dali 2 + em. 3h36486152365-150-5.8
8402S24280D3280-4000°K - CRI>80dali 2 + em. 3h42896153365-150-6.8
8402S24200G3200-4000°K - CRI>80em. 3h32673163365-150-5.8
8402S24230G3230-4000°K - CRI>80em. 3h35717155365-150-5.8
8402S24240G3240-4000°K - CRI>80em. 3h36486152365-150-5.8
8402S24280G3280-4000°K - CRI>80em. 3h42896153365-150-6.8
8402S25200GL200-5000°K - CRI>80on/off32967165365-150-5.8
8402S25230GL230-5000°K - CRI>80on/off36038157365-150-5.8
8402S25240GL240-5000°K - CRI>80on/off36814153365-150-5.8
8402S25280GL280-5000°K - CRI>80on/off43282155365-150-6.8

Accessories
