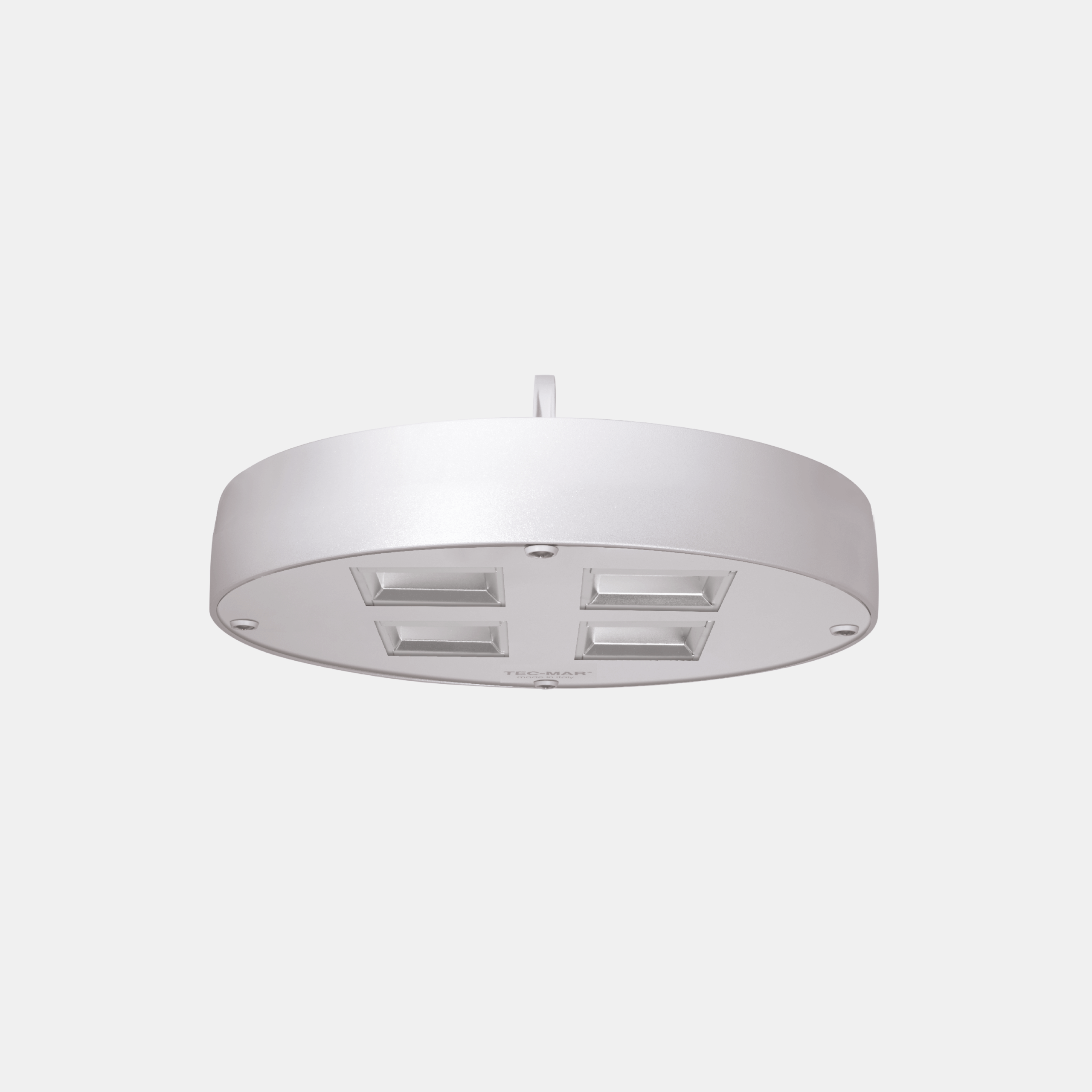

PIER HP2 – Mod. S5

(90° rotosymmetric diffusing optics - UGR<25)

Industrial and commercial led reflector, suitable for pendant, ceiling and on-bar installations. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder silver color, diffuser made of 4 mm thick extra-clear tempered glass, silicone gasket. Diffusing optics 90° (UGR<25).
Categories: Led, PIER HP2 - 8402, Industrial, PIER HP2
Models: 32
Color: Silver
Catalogue abstract
Installation instructions

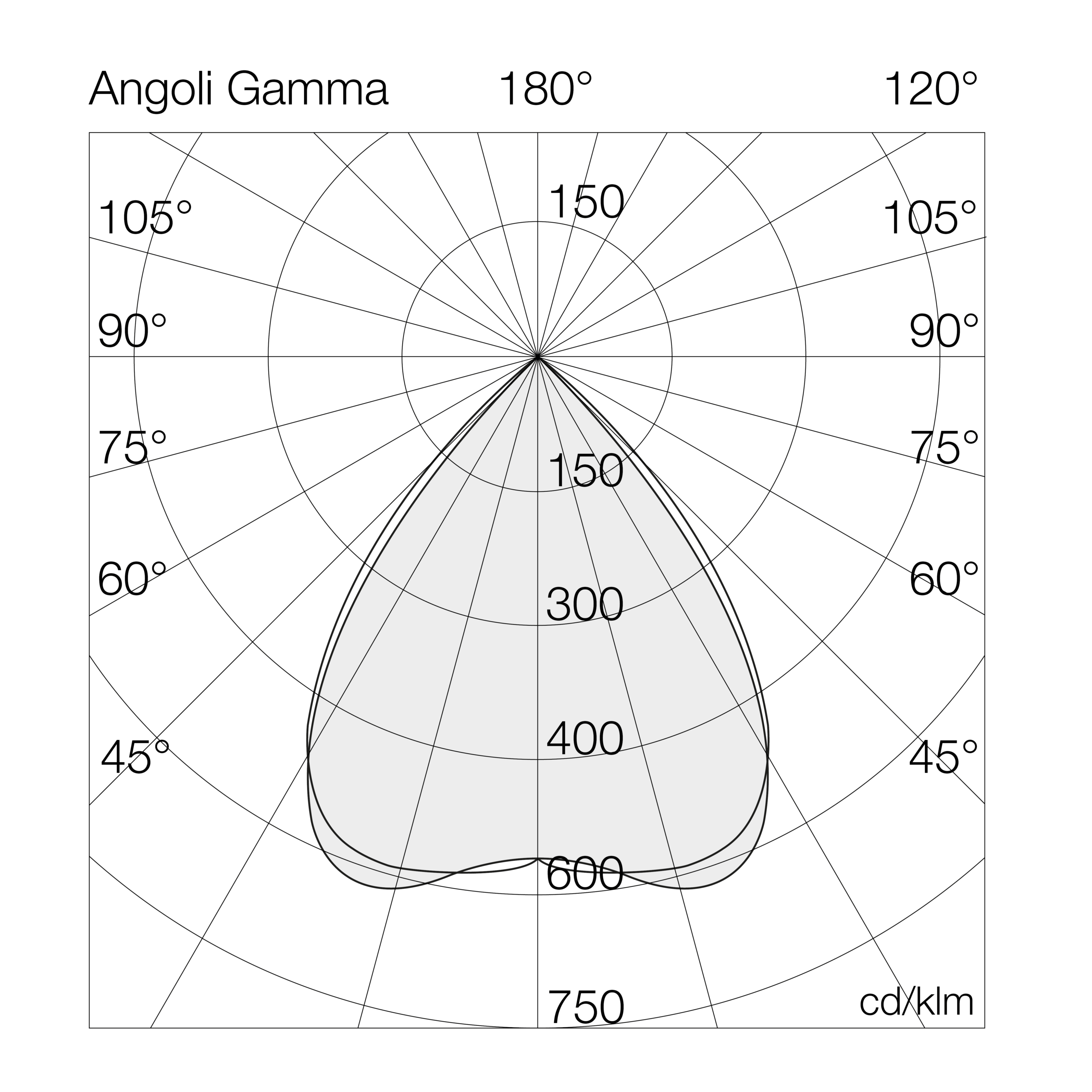

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8402S54= 4000°K (CRI >80)200GL= on/off
5= 5000°K (CRI >80)230GD= dali 2
240G3= em. 3h
280D3= dali 2 + em. 3h

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8402S54200GL200-4000°K - CRI>80on/off33980170365-150-5.8
8402S54230GL230-4000°K - CRI>80on/off37145162365-150-5.8
8402S54240GL240-4000°K - CRI>80on/off37945158365-150-5.8
8402S54280GL280-4000°K - CRI>80on/off44612159365-150-6.8
8402S54200GD200-4000°K - CRI>80dali 233980170365-150-5.8
8402S54230GD230-4000°K - CRI>80dali 237145162365-150-5.8
8402S54240GD240-4000°K - CRI>80dali 237945158365-150-5.8
8402S54280GD280-4000°K - CRI>80dali 244612159365-150-6.8
8402S54200D3200-4000°K - CRI>80dali 2 + em. 3h33980170365-150-5.8
8402S54230D3230-4000°K - CRI>80dali 2 + em. 3h37145162365-150-5.8
8402S54240D3240-4000°K - CRI>80dali 2 + em. 3h37945158365-150-5.8
8402S54280D3280-4000°K - CRI>80dali 2 + em. 3h44612159365-150-6.8
8402S54200G3200-4000°K - CRI>80em. 3h33980170365-150-5.8
8402S54230G3230-4000°K - CRI>80em. 3h37145162365-150-5.8
8402S54240G3240-4000°K - CRI>80em. 3h37945158365-150-5.8
8402S54280G3280-4000°K - CRI>80em. 3h44612159365-150-6.8
8402S55200GL200-5000°K - CRI>80on/off34286171365-150-5.8
8402S55230GL230-5000°K - CRI>80on/off37479163365-150-5.8
8402S55240GL240-5000°K - CRI>80on/off38287160365-150-5.8
8402S55280GL280-5000°K - CRI>80on/off45014161365-150-6.8

Accessories
