art.-8402-pier-hp2-su

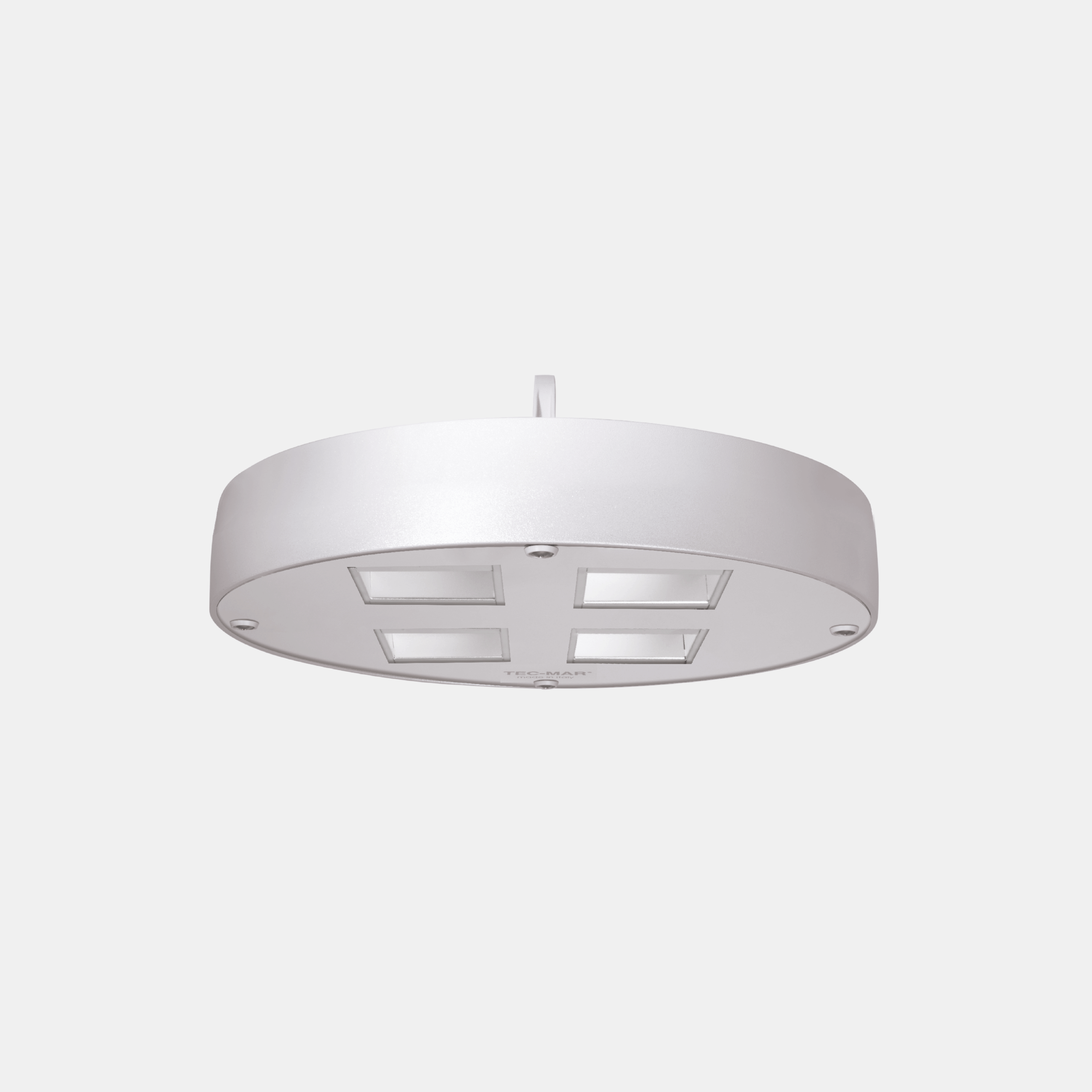

PIER HP2 – Mod. SU

(100° extra-diffusion rotosymmetric optics)

Industrial and commercial led reflector, suitable for pendant, ceiling and on-bar installations. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder silver color, diffuser made of 4 mm thick extra-clear tempered glass, silicone gasket. Extra-diffusing optics 100°.
Categories: Led, PIER HP2 - 8402, Industrial, PIER HP2
Models: 32
Color: Silver
Catalogue abstract
Installation instructions

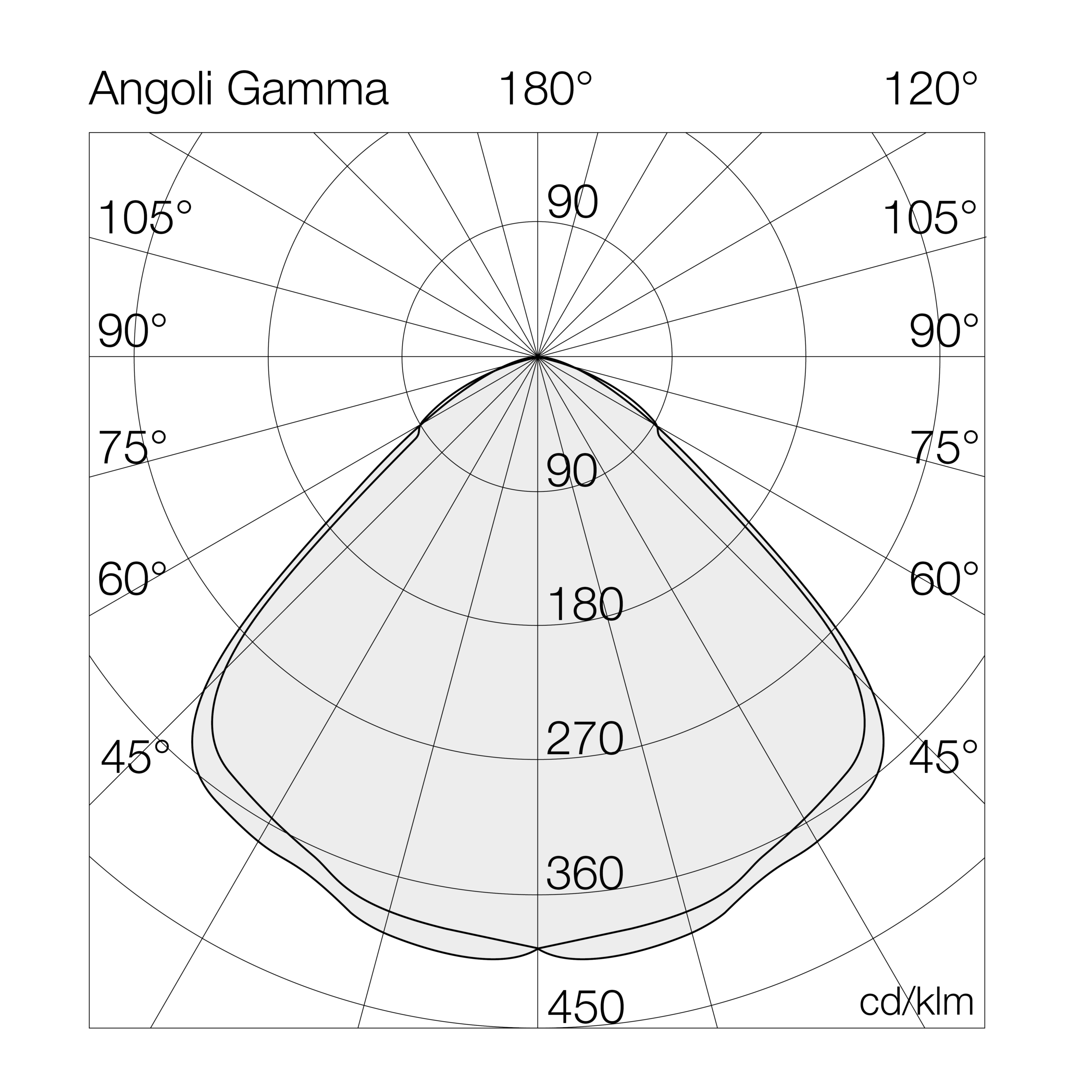

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8402SU4= 4000°K (CRI >80)200GL= on/off
5= 5000°K (CRI >80)230GD= dali 2
240G3= em. 3h
280D3= dali 2 + em. 3h

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
8402SU4200GL200-4000°K - CRI>80on/off34167171365-150-5.8
8402SU4230GL230-4000°K - CRI>80on/off37349162365-150-5.8
8402SU4240GL240-4000°K - CRI>80on/off38154159365-150-5.8
8402SU4280GL280-4000°K - CRI>80on/off44857160365-150-6.8
8402SU4200GD200-4000°K - CRI>80dali 234167171365-150-5.8
8402SU4230GD230-4000°K - CRI>80dali 237349162365-150-5.8
8402SU4240GD240-4000°K - CRI>80dali 238154159365-150-5.8
8402SU4280GD280-4000°K - CRI>80dali 244857160365-150-6.8
8402SU4200D3200-4000°K - CRI>80dali 2 + em. 3h34167171365-150-5.8
8402SU4230D3230-4000°K - CRI>80dali 2 + em. 3h37349162365-150-5.8
8402SU4240D3240-4000°K - CRI>80dali 2 + em. 3h38154159365-150-5.8
8402SU4280D3280-4000°K - CRI>80dali 2 + em. 3h44857160365-150-6.8
8402SU4200G3200-4000°K - CRI>80em. 3h34167171365-150-5.8
8402SU4230G3230-4000°K - CRI>80em. 3h37349162365-150-5.8
8402SU4240G3240-4000°K - CRI>80em. 3h38154159365-150-5.8
8402SU4280G3280-4000°K - CRI>80em. 3h44857160365-150-6.8
8402SU5200GL200-5000°K - CRI>80on/off34475172365-150-5.8
8402SU5230GL230-5000°K - CRI>80on/off37685164365-150-5.8
8402SU5240GL240-5000°K - CRI>80on/off38497160365-150-5.8
8402SU5280GL280-5000°K - CRI>80on/off45261162365-150-6.8

Accessories
