art.-8407-pier-hp3-su-s2-s5

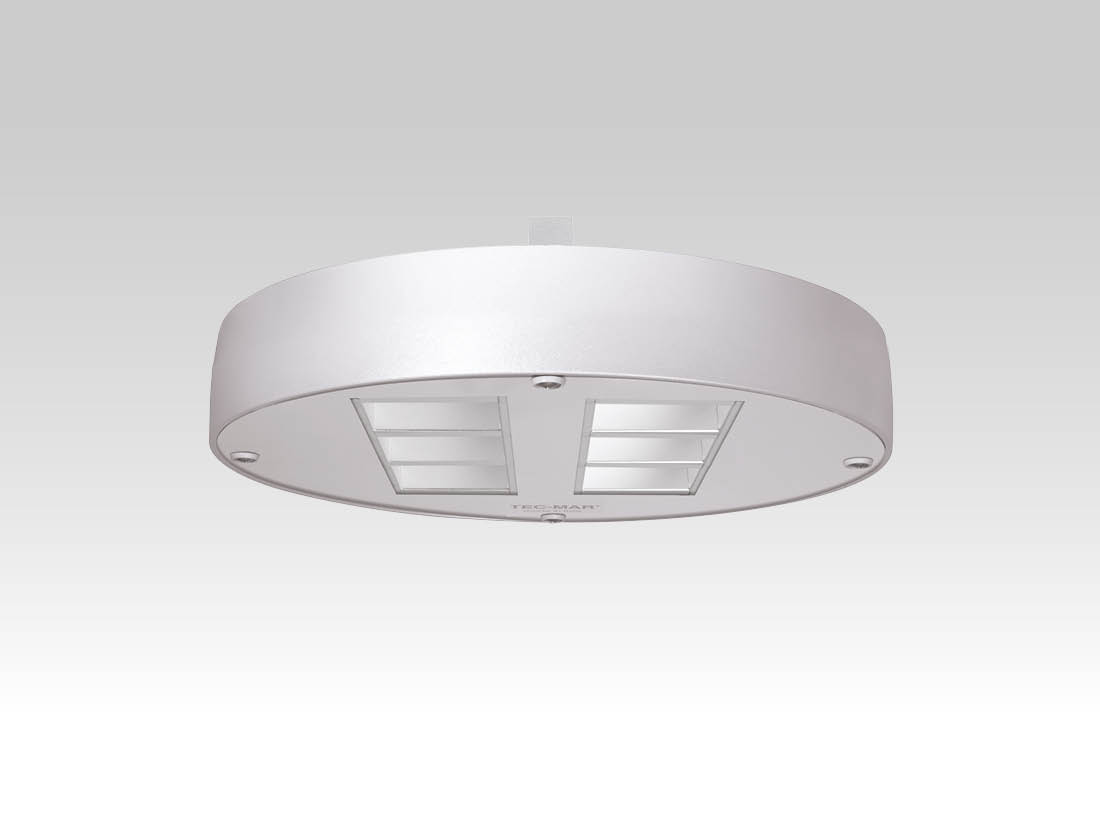

PIER HP3/S2

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER HP3 - 8407, Industrial, art. 8407 Pier HP3
Models: 216
Color: Silver
Catalogue abstract
Installation instructions

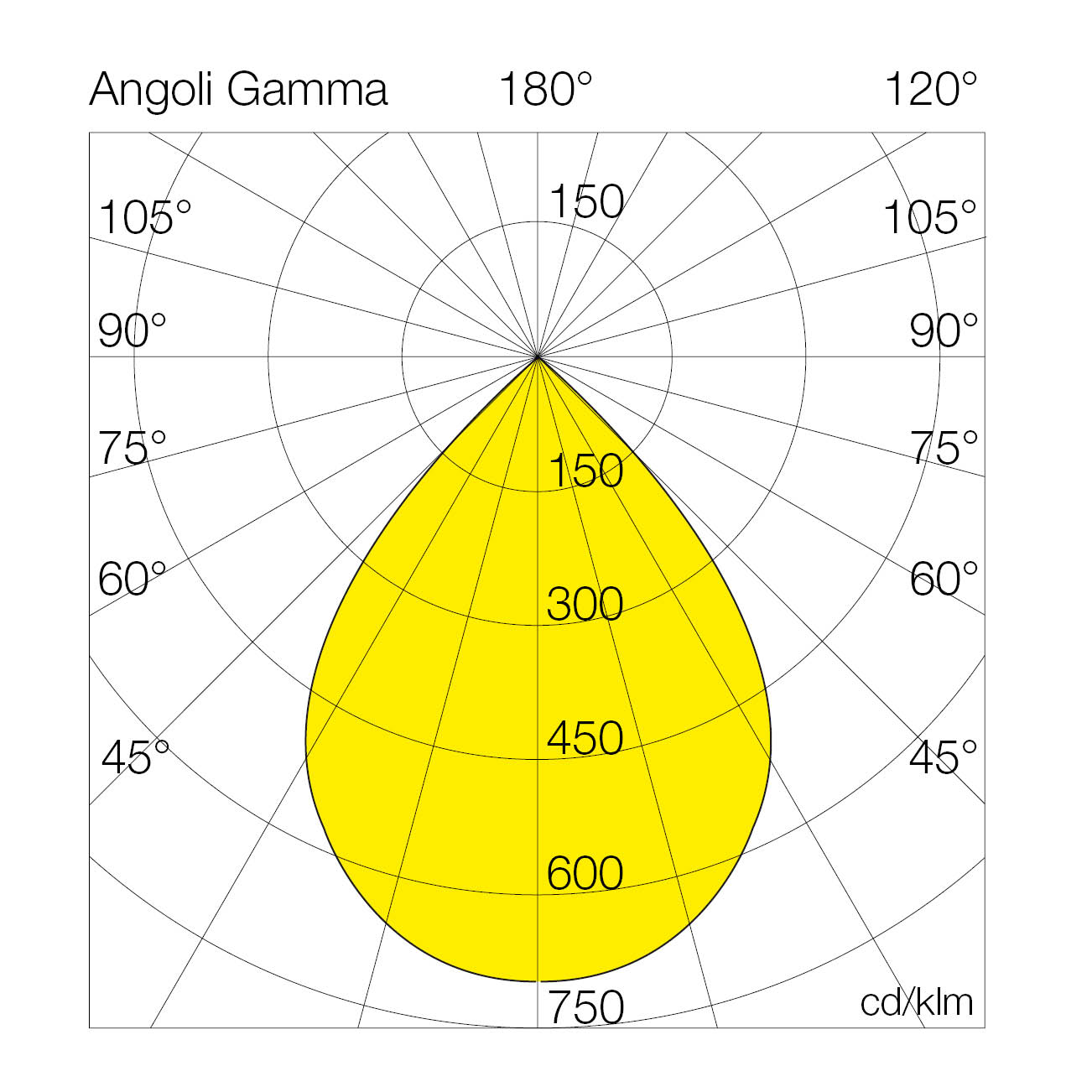

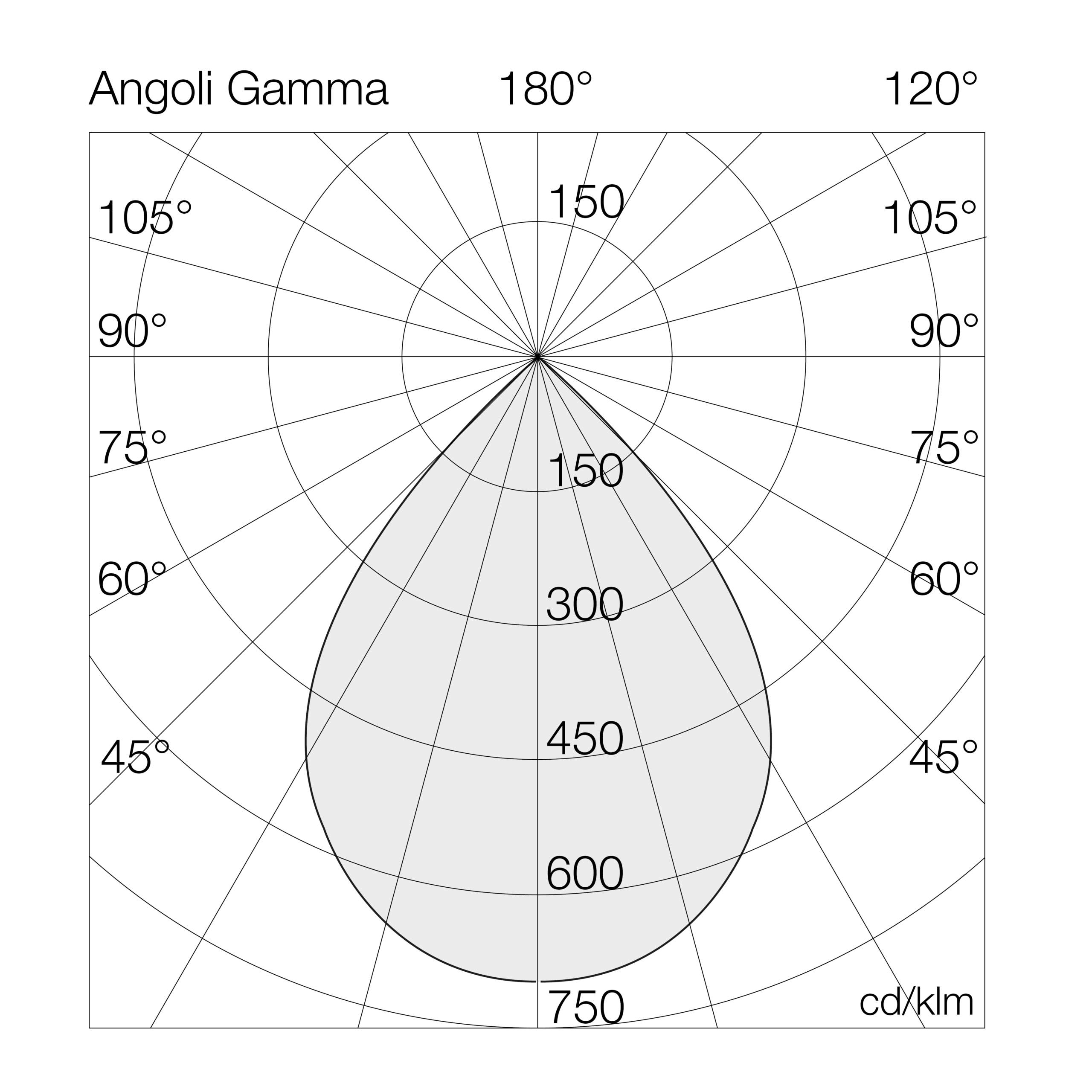

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8407S23= 3000°K (CRI >80)056GL= on/off
4= 4000°K (CRI >80)080GD= dali
5= 5000°K (CRI >80)090D1= dali + em. 1h
9= 4000°K (CRI >90)130G1= em. 1h
140G3= em. 3h
190VA= acid-etched glass
220
230
280

Models

W tot.
°K - CRI
Options

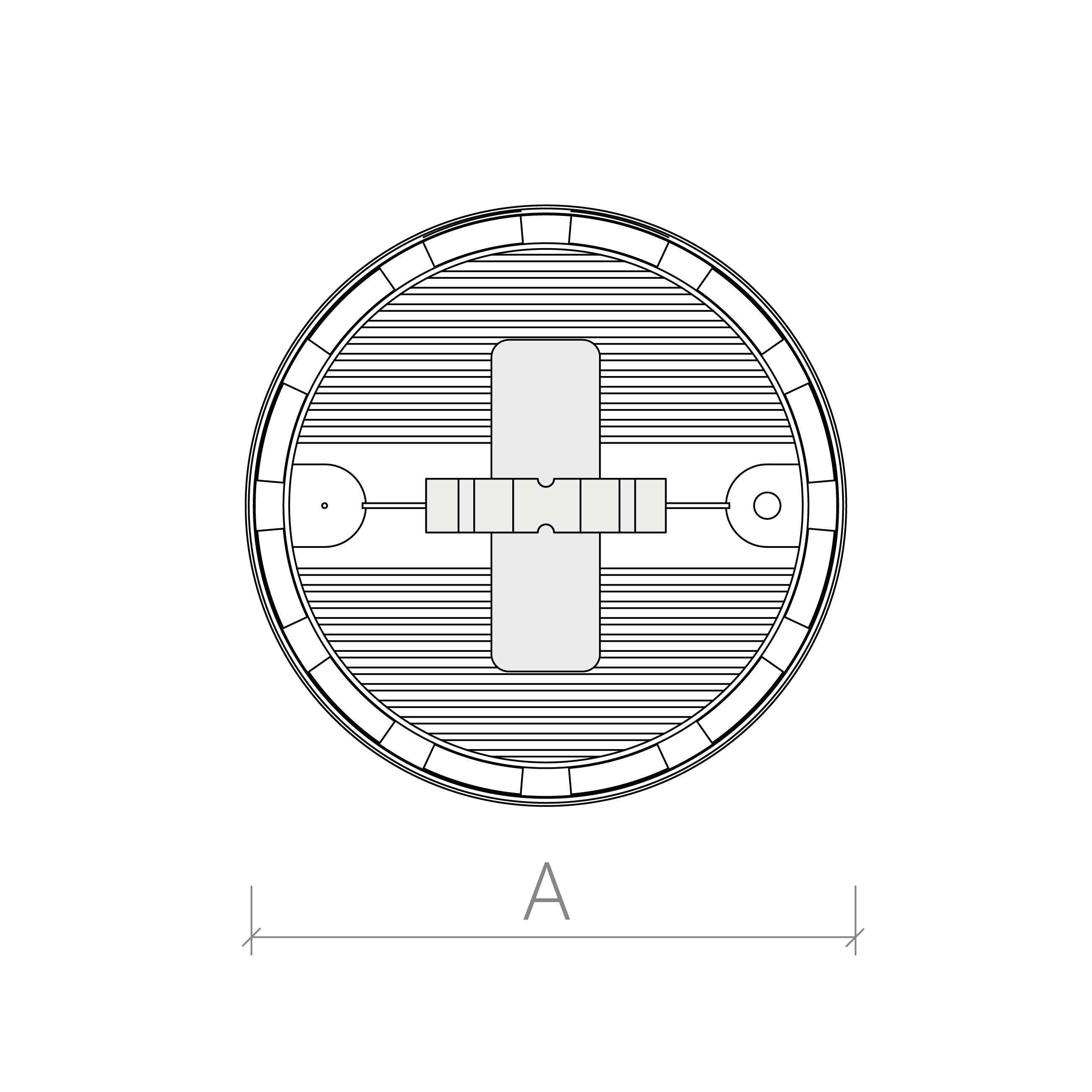

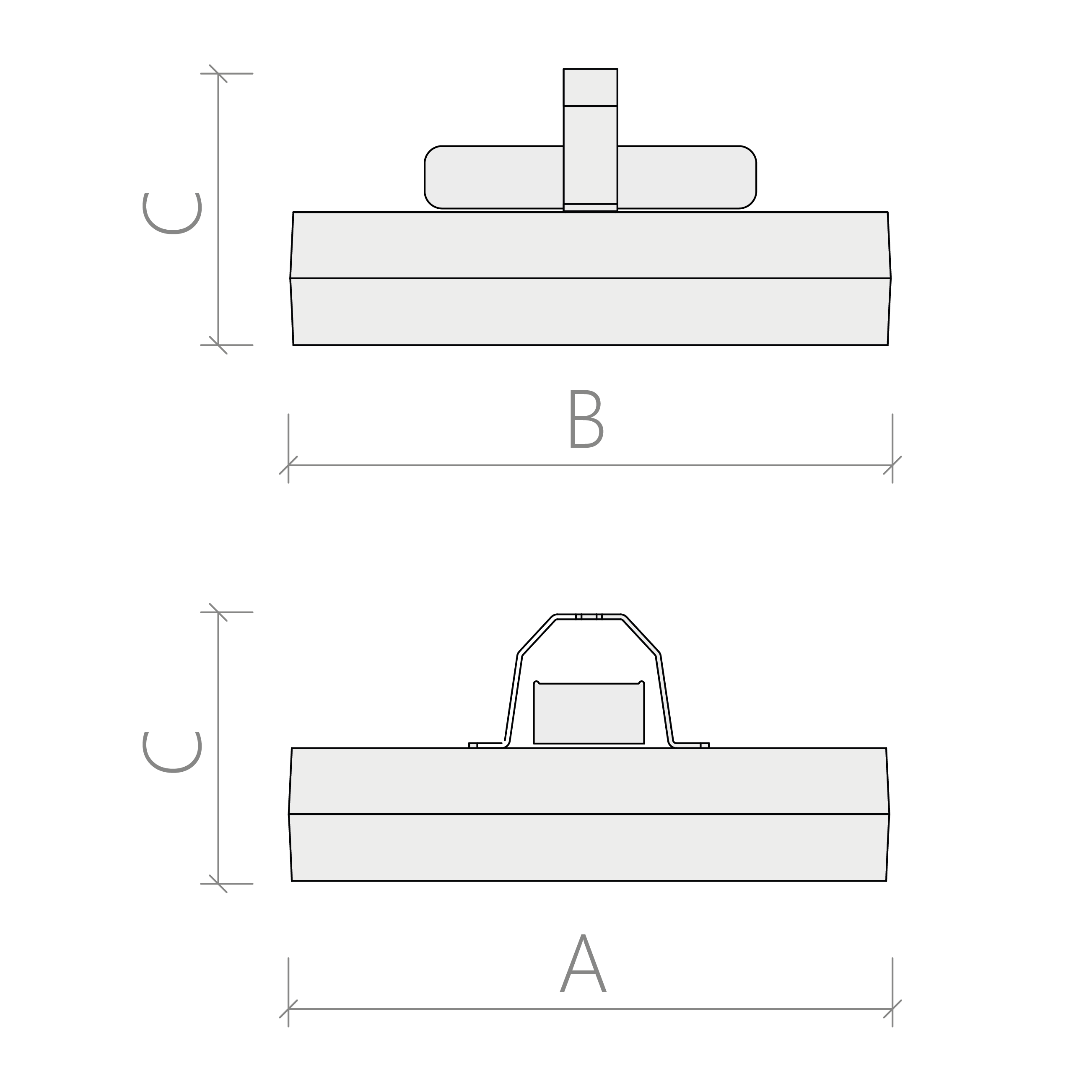

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8407S24056GL56-4000°K - CRI>80on/off9886177365-150-5.8
8407S24080GL80-4000°K - CRI>80on/off14155177365-150-5.8
8407S24090GL90-4000°K - CRI>80on/off16132179365-150-5.8
8407S24130GL130-4000°K - CRI>80on/off21879168365-150-5.8
8407S24140GL140-4000°K - CRI>80on/off24422174365-150-5.8
8407S24190GL190-4000°K - CRI>80on/off31341165365-150-5.8
8407S24220GL220-4000°K - CRI>80on/off35687162365-150-5.8
8407S24230GL230-4000°K - CRI>80on/off36864160365-150-5.8
8407S24280GL280-4000°K - CRI>80on/off44331158365-150-6.8
8407S24056GD56-4000°K - CRI>80dali9886177365-150-5.8
8407S24080GD80-4000°K - CRI>80dali14155177365-150-5.8
8407S24090GD90-4000°K - CRI>80dali16132179365-150-5.8
8407S24130GD130-4000°K - CRI>80dali21879168365-150-5.8
8407S24140GD140-4000°K - CRI>80dali24422174365-150-5.8
8407S24190GD190-4000°K - CRI>80dali31341165365-150-5.8
8407S24220GD220-4000°K - CRI>80dali35687162365-150-5.8
8407S24230GD230-4000°K - CRI>80dali36864160365-150-5.8
8407S24280GD280-4000°K - CRI>80dali44331158365-150-6.8
8407S24056D156-4000°K - CRI>80dali + em. 1h9886177365-150-5.8
8407S24080D180-4000°K - CRI>80dali + em. 1h14155177365-150-5.8

Accessories
