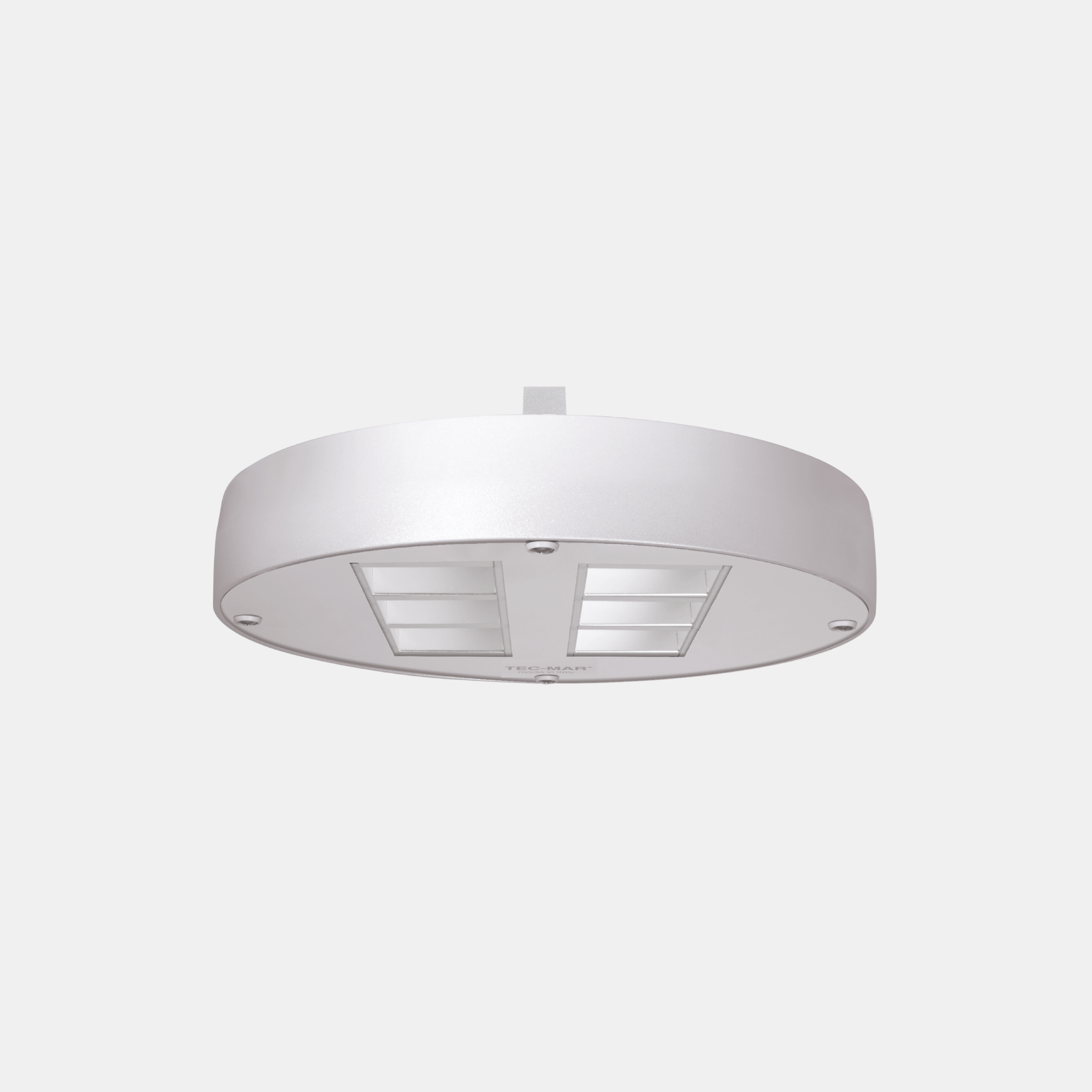

PIER HP3/SU

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER HP3 - 8407, Industrial, art. 8407 Pier HP3
Models: 216
Color: Silver
Catalogue abstract
Installation instructions

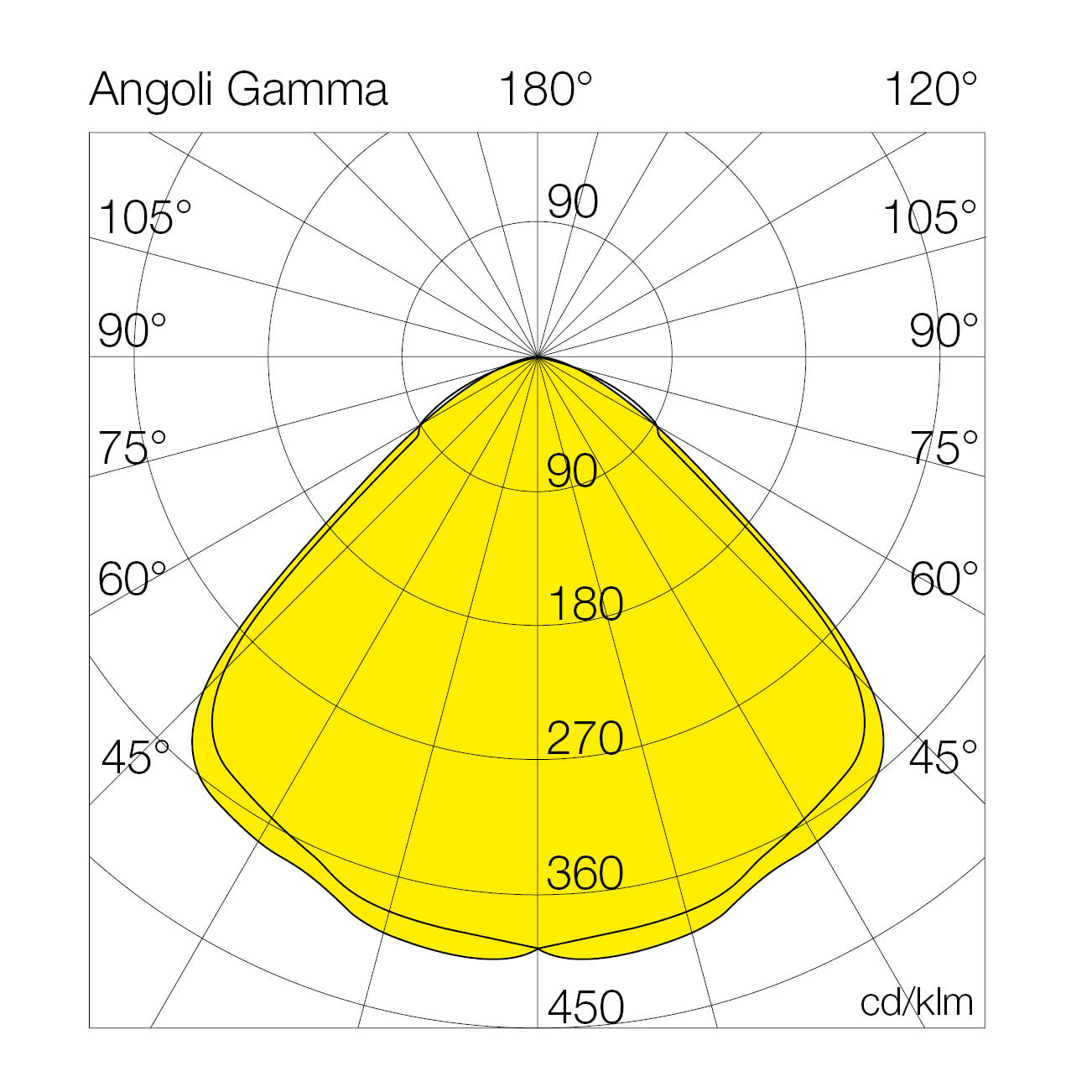

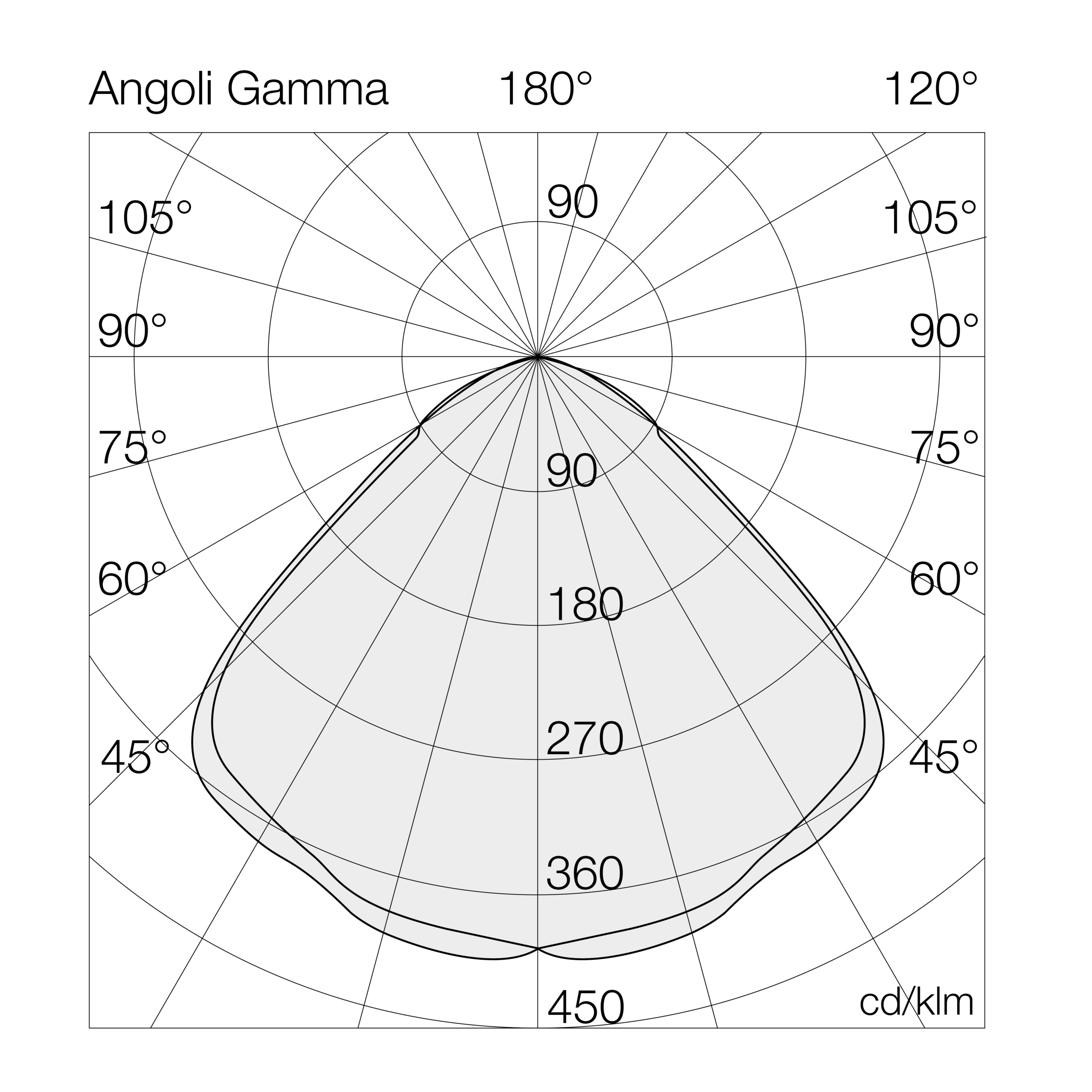

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8407SU3= 3000°K (CRI >80)056GL= on/off
4= 4000°K (CRI >80)080GD= dali
5= 5000°K (CRI >80)090D1= dali + em. 1h
9= 4000°K (CRI >90)130G1= em. 1h
140G3= em. 3h
190VA= acid-etched glass
220
230
280

Models

W tot.
°K - CRI
Options

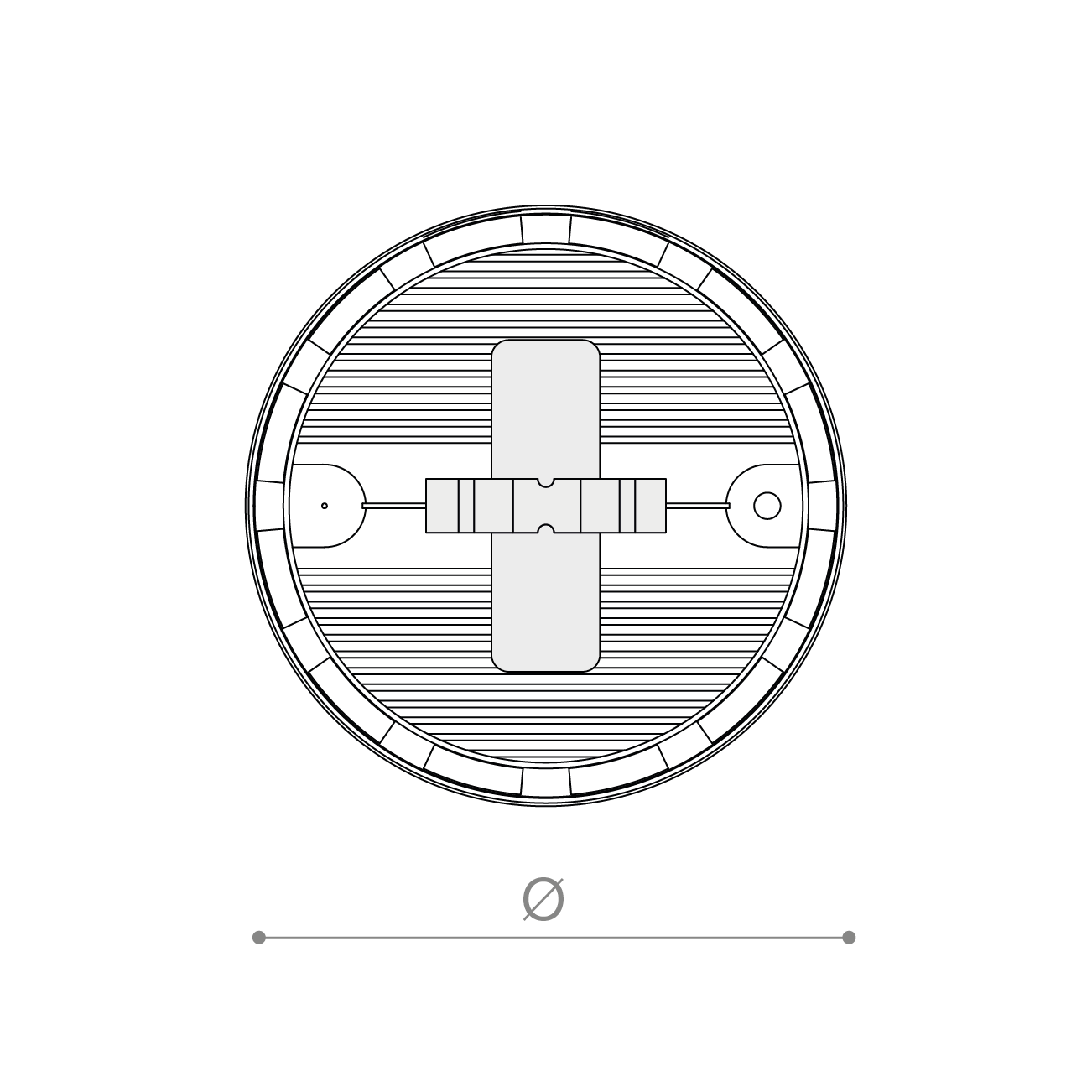

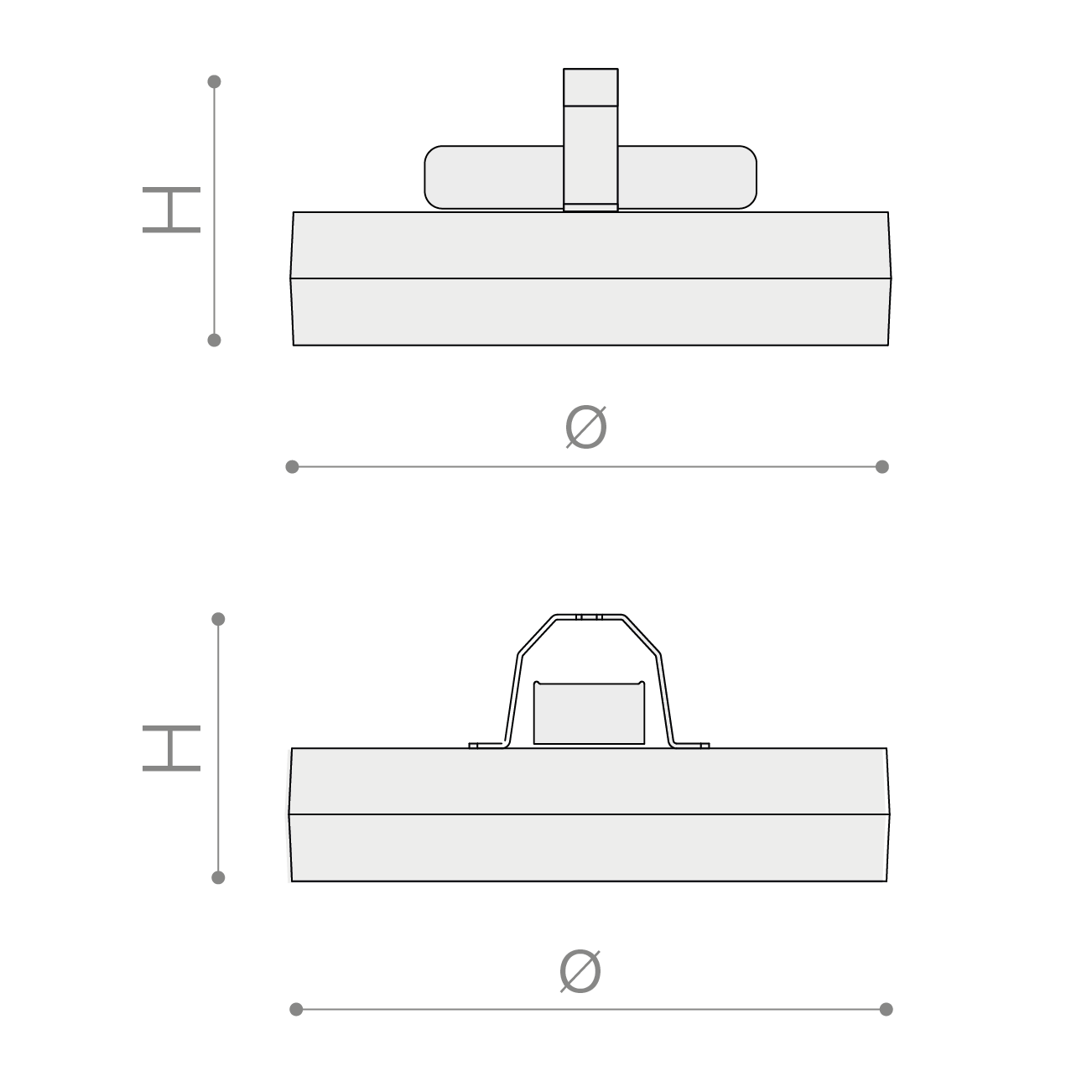

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8407SU4056GL56-4000°K - CRI>80on/off10350185365-150-5.8
8407SU4080GL80-4000°K - CRI>80on/off14818185365-150-5.8
8407SU4090GL90-4000°K - CRI>80on/off16888188365-150-5.8
8407SU4130GL130-4000°K - CRI>80on/off22905176365-150-5.8
8407SU4140GL140-4000°K - CRI>80on/off25567183365-150-5.8
8407SU4190GL190-4000°K - CRI>80on/off32811173365-150-5.8
8407SU4220GL220-4000°K - CRI>80on/off37360170365-150-5.8
8407SU4230GL230-4000°K - CRI>80on/off38593168365-150-5.8
8407SU4280GL280-4000°K - CRI>80on/off46410166365-150-6.8
8407SU4056GD56-4000°K - CRI>80dali10350185365-150-5.8
8407SU4080GD80-4000°K - CRI>80dali14818185365-150-5.8
8407SU4090GD90-4000°K - CRI>80dali16888188365-150-5.8
8407SU4130GD130-4000°K - CRI>80dali22905176365-150-5.8
8407SU4140GD140-4000°K - CRI>80dali25567183365-150-5.8
8407SU4190GD190-4000°K - CRI>80dali32811173365-150-5.8
8407SU4220GD220-4000°K - CRI>80dali37360170365-150-5.8
8407SU4230GD230-4000°K - CRI>80dali38593168365-150-5.8
8407SU4280GD280-4000°K - CRI>80dali46410166365-150-6.8
8407SU4056D156-4000°K - CRI>80dali + em. 1h10350185365-150-5.8
8407SU4080D180-4000°K - CRI>80dali + em. 1h14818185365-150-5.8
