PIER HT/EL

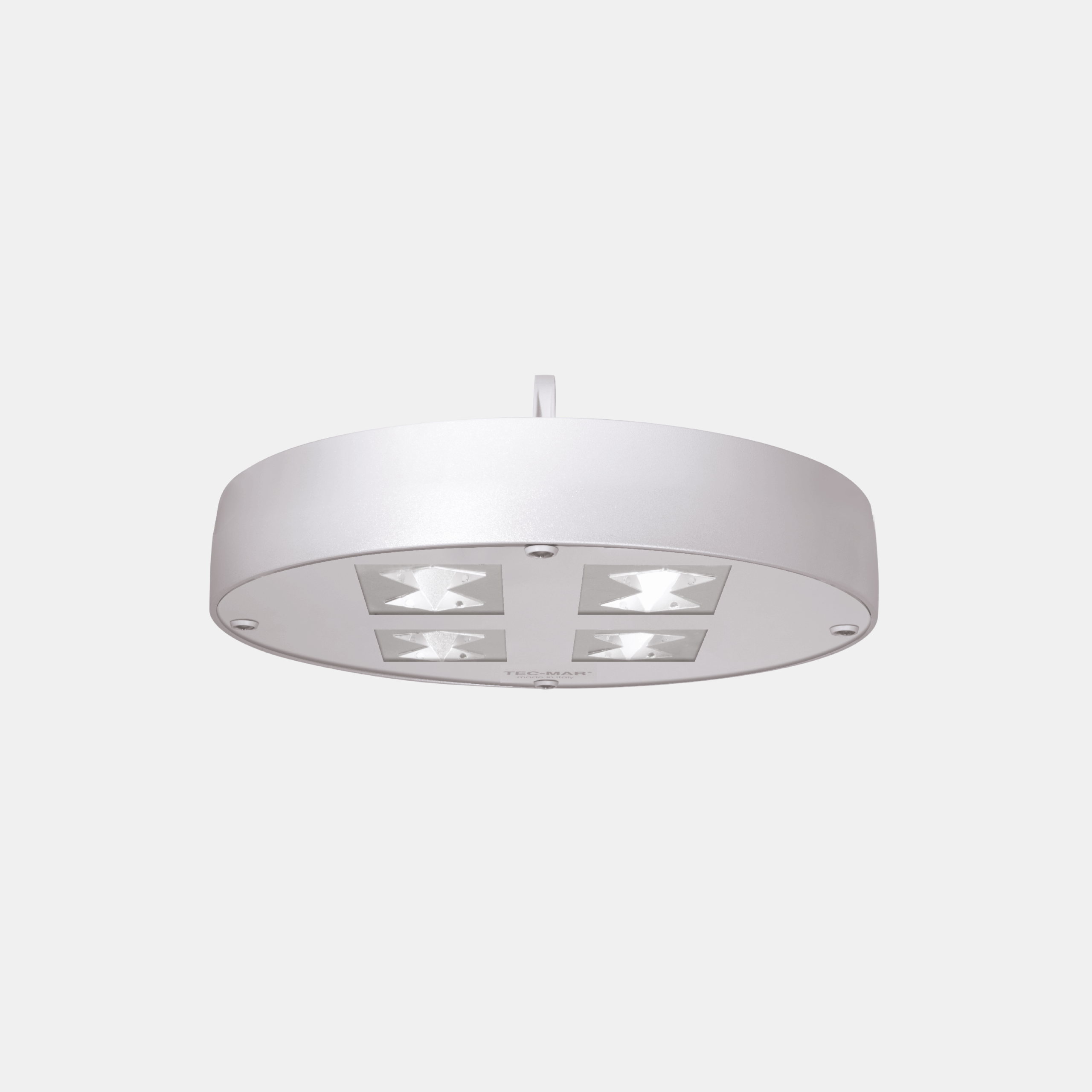

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER HT - 8408, Industrial, art. 8408 Pier HT
Models: 120
Color: Silver
Catalogue abstract
Installation instructions

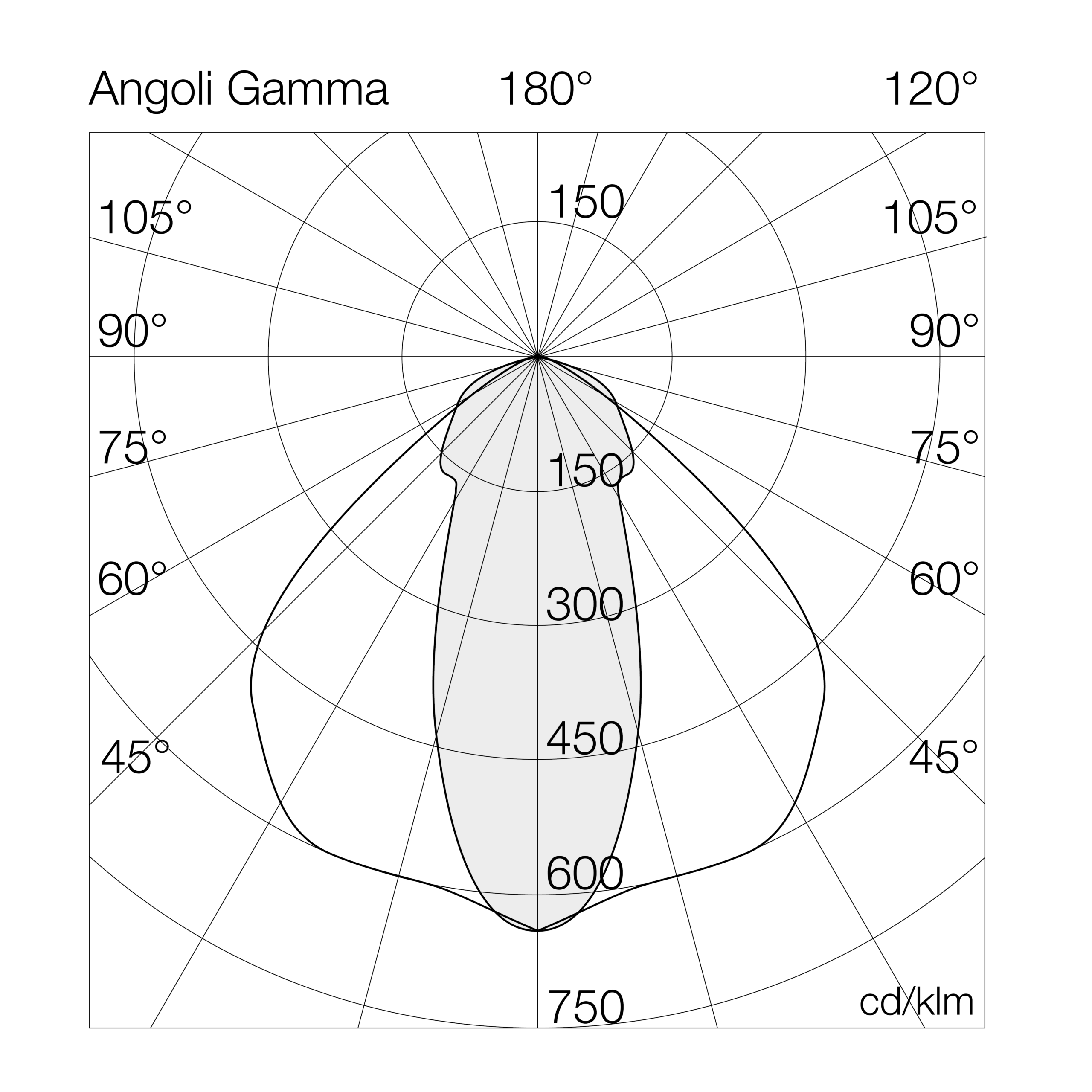

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8408EL3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)090GD= dali
5= 5000°K (CRI >80)100VA= acid-etched glass
9= 4000°K (CRI >90)120
130
140
150
170
190
230

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8408EL4080GL80-4000°K - CRI>80on/off13868173365-150-5.8
8408EL4090GL90-4000°K - CRI>80on/off15466172365-150-5.8
8408EL4100GL100-4000°K - CRI>80on/off17013170365-150-5.8
8408EL4120GL120-4000°K - CRI>80on/off19860166365-150-5.8
8408EL4130GL130-4000°K - CRI>80on/off21440165365-150-5.8
8408EL4140GL140-4000°K - CRI>80on/off22829163365-150-5.8
8408EL4150GL150-4000°K - CRI>80on/off24049160365-150-5.8
8408EL4170GL170-4000°K - CRI>80on/off27061159365-150-5.8
8408EL4190GL190-4000°K - CRI>80on/off31189164365-150-5.8
8408EL4230GL230-4000°K - CRI>80on/off35819156365-150-5.8
8408EL4080GD80-4000°K - CRI>80dali13868173365-150-5.8
8408EL4090GD90-4000°K - CRI>80dali15466172365-150-5.8
8408EL4100GD100-4000°K - CRI>80dali17013170365-150-5.8
8408EL4120GD120-4000°K - CRI>80dali19860166365-150-5.8
8408EL4130GD130-4000°K - CRI>80dali21440165365-150-5.8
8408EL4140GD140-4000°K - CRI>80dali22829163365-150-5.8
8408EL4150GD150-4000°K - CRI>80dali24049160365-150-5.8
8408EL4170GD170-4000°K - CRI>80dali27061159365-150-5.8
8408EL4190GD190-4000°K - CRI>80dali31189164365-150-5.8
8408EL4230GD230-4000°K - CRI>80dali35819156365-150-5.8

Accessories
