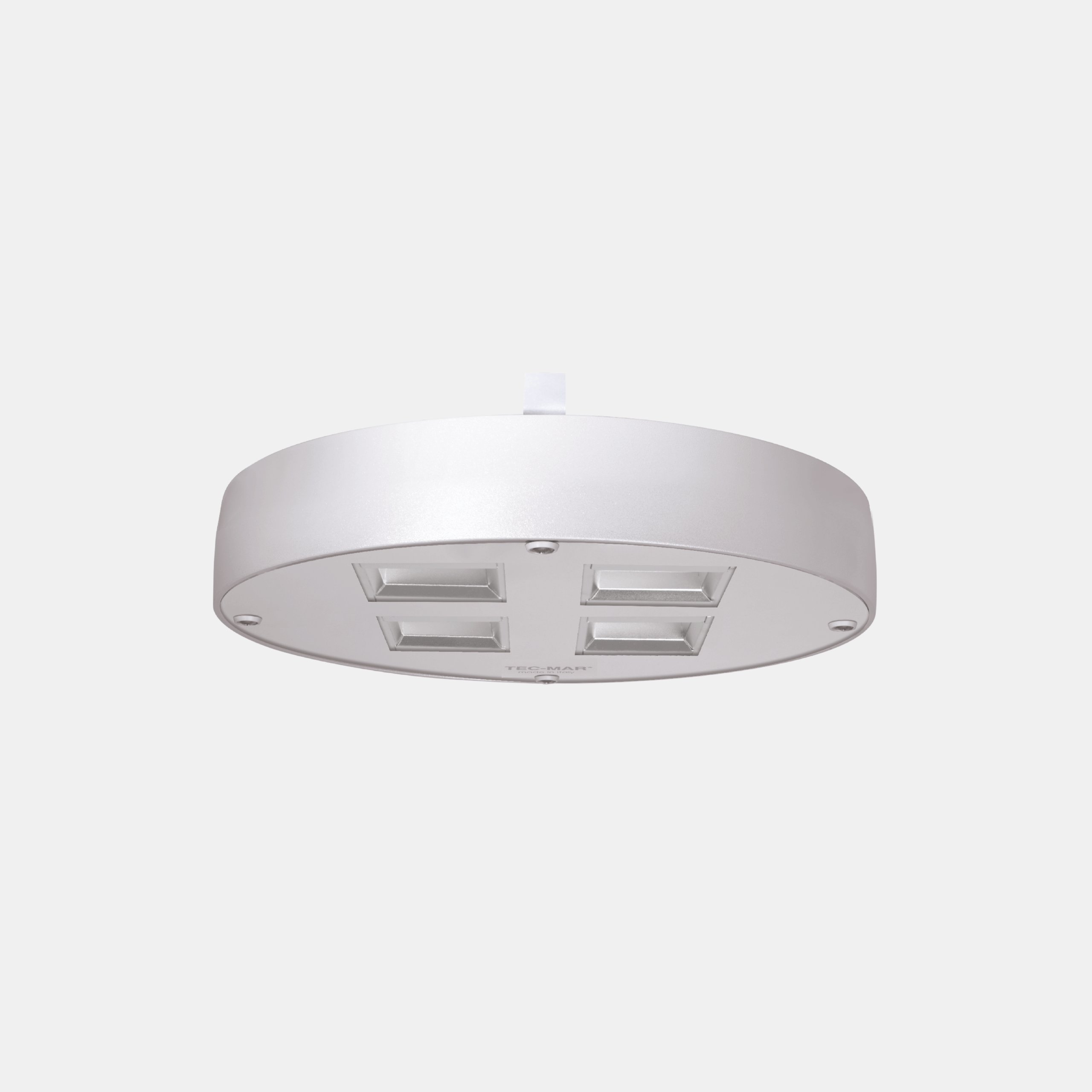

PIER HT/S5

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER HT - 8408, Industrial, art. 8408 Pier HT
Models: 120
Color: Silver
Catalogue abstract
Installation instructions

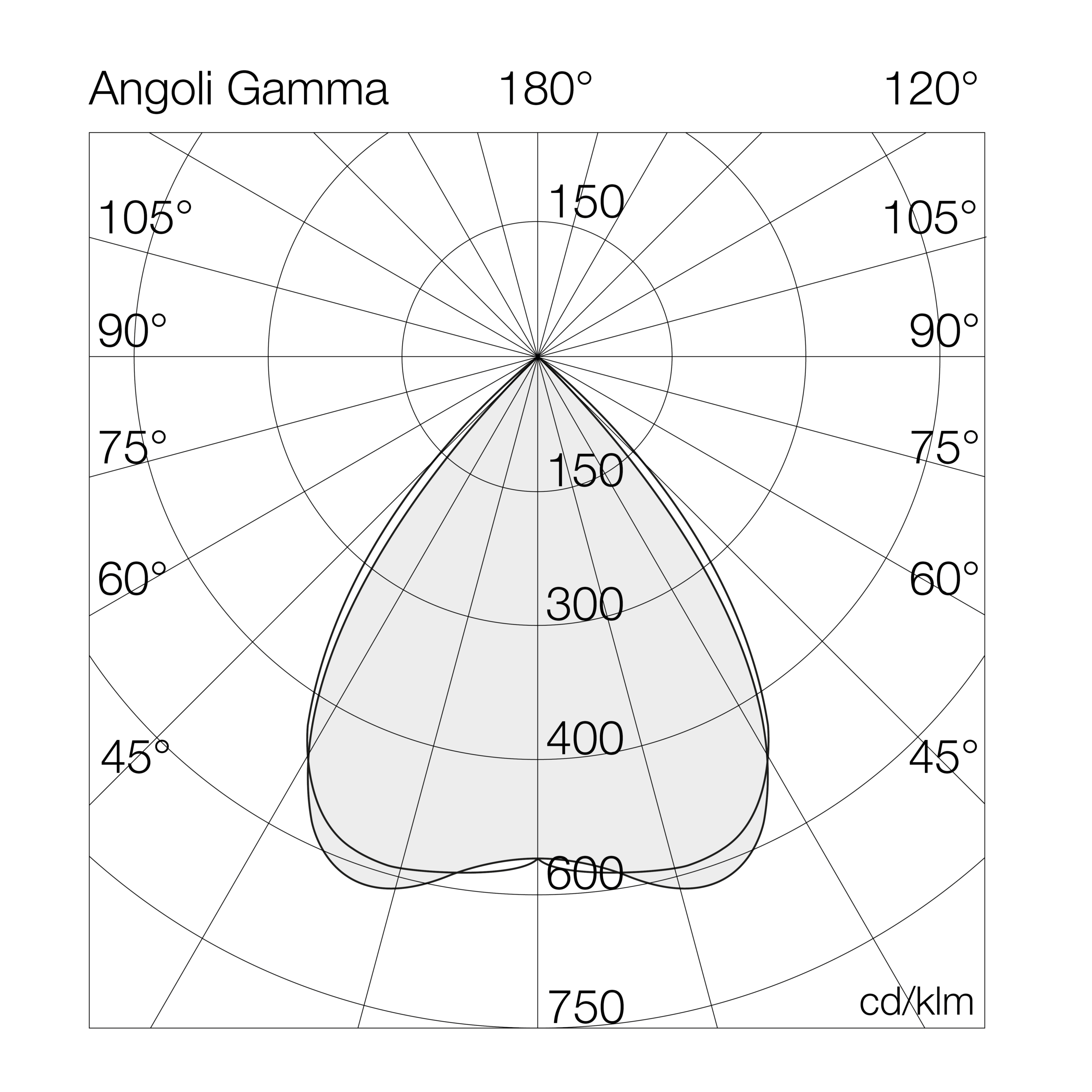

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8408S53= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)090GD= dali
5= 5000°K (CRI >80)100VA= acid-etched glass
9= 4000°K (CRI >90)120
130
140
150
170
190
230

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8408S54080GL80-4000°K - CRI>80on/off14382180365-150-5.8
8408S54090GL90-4000°K - CRI>80on/off16039178365-150-5.8
8408S54100GL100-4000°K - CRI>80on/off17643176365-150-5.8
8408S54120GL120-4000°K - CRI>80on/off20596172365-150-5.8
8408S54130GL130-4000°K - CRI>80on/off22234171365-150-5.8
8408S54140GL140-4000°K - CRI>80on/off23675169365-150-5.8
8408S54150GL150-4000°K - CRI>80on/off24939166365-150-5.8
8408S54170GL170-4000°K - CRI>80on/off28063165365-150-5.8
8408S54190GL190-4000°K - CRI>80on/off32344170365-150-5.8
8408S54230GL230-4000°K - CRI>80on/off37145162365-150-5.8
8408S54080GD80-4000°K - CRI>80dali14382180365-150-5.8
8408S54090GD90-4000°K - CRI>80dali16039178365-150-5.8
8408S54100GD100-4000°K - CRI>80dali17643176365-150-5.8
8408S54120GD120-4000°K - CRI>80dali20596172365-150-5.8
8408S54130GD130-4000°K - CRI>80dali22234171365-150-5.8
8408S54140GD140-4000°K - CRI>80dali23675169365-150-5.8
8408S54150GD150-4000°K - CRI>80dali24939166365-150-5.8
8408S54170GD170-4000°K - CRI>80dali28063165365-150-5.8
8408S54190GD190-4000°K - CRI>80dali32344170365-150-5.8
8408S54230GD230-4000°K - CRI>80dali37145162365-150-5.8
