art.-8408-pier-ht-su

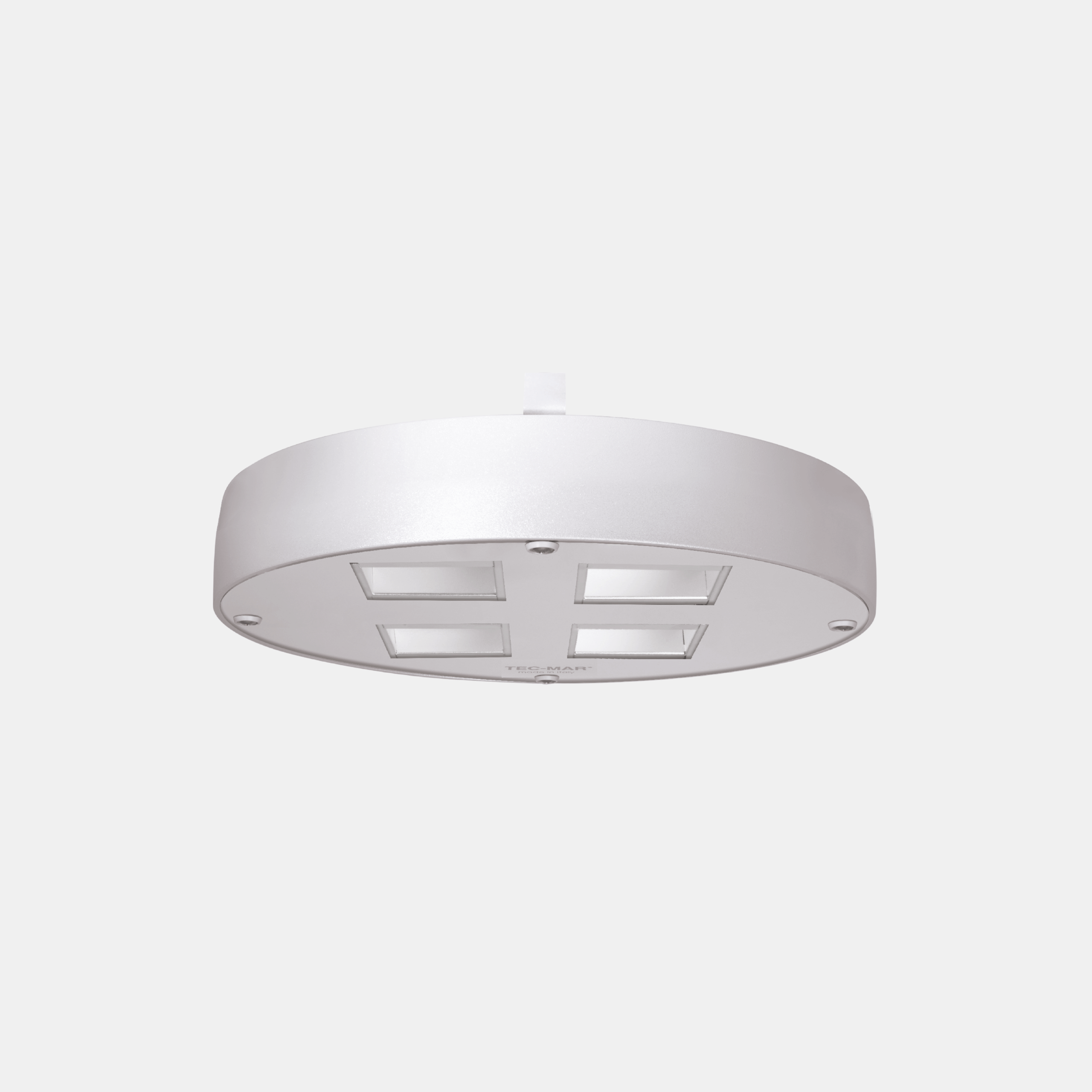

PIER HT/SU

Led industrial and retail high-bay. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, PIER HT - 8408, Industrial, art. 8408 Pier HT
Models: 120
Color: Silver
Catalogue abstract
Installation instructions

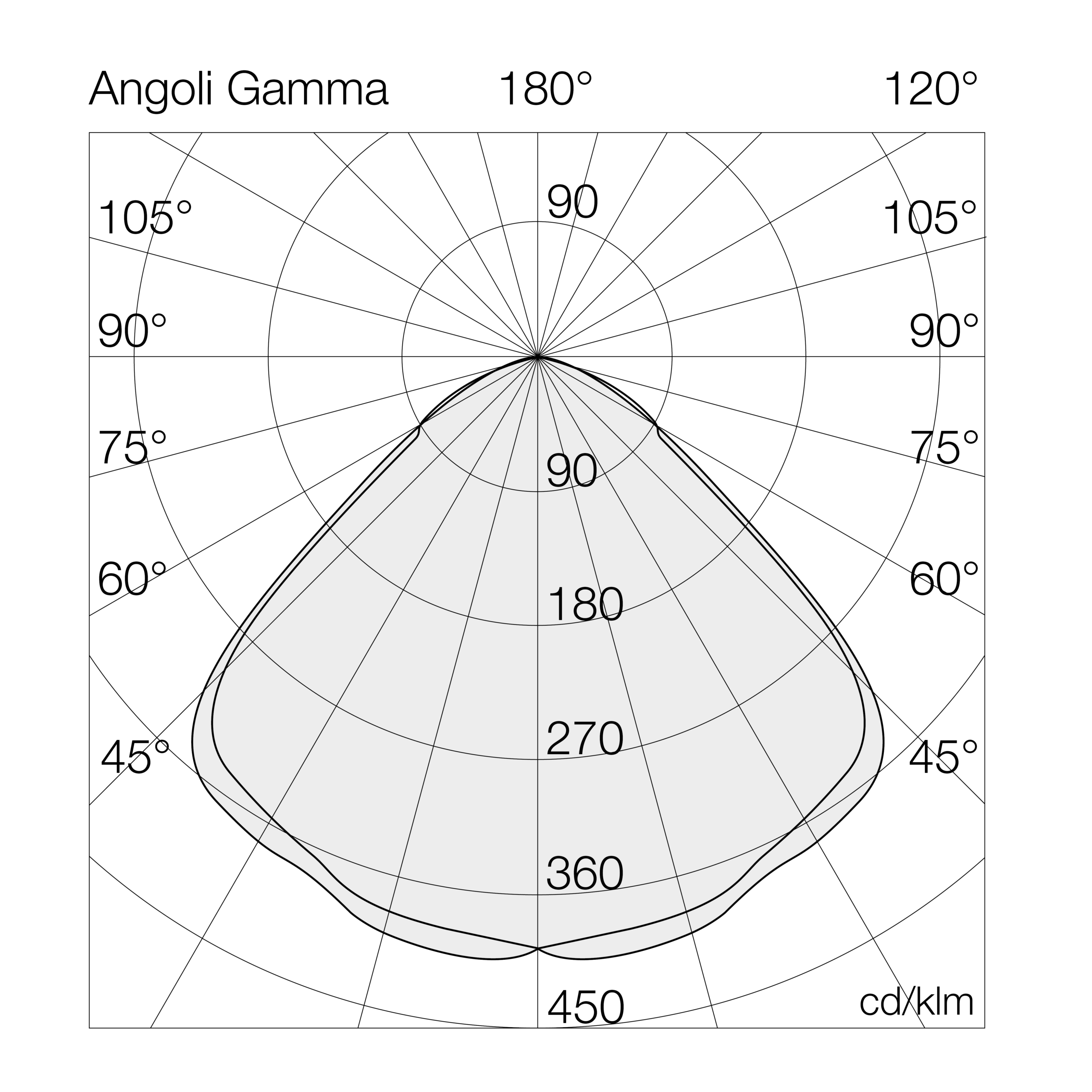

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8408SU3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)090GD= dali
5= 5000°K (CRI >80)100VA= acid-etched glass
9= 4000°K (CRI >90)120
130
140
150
170
190
230

Models

W tot.
°K - CRI
Options

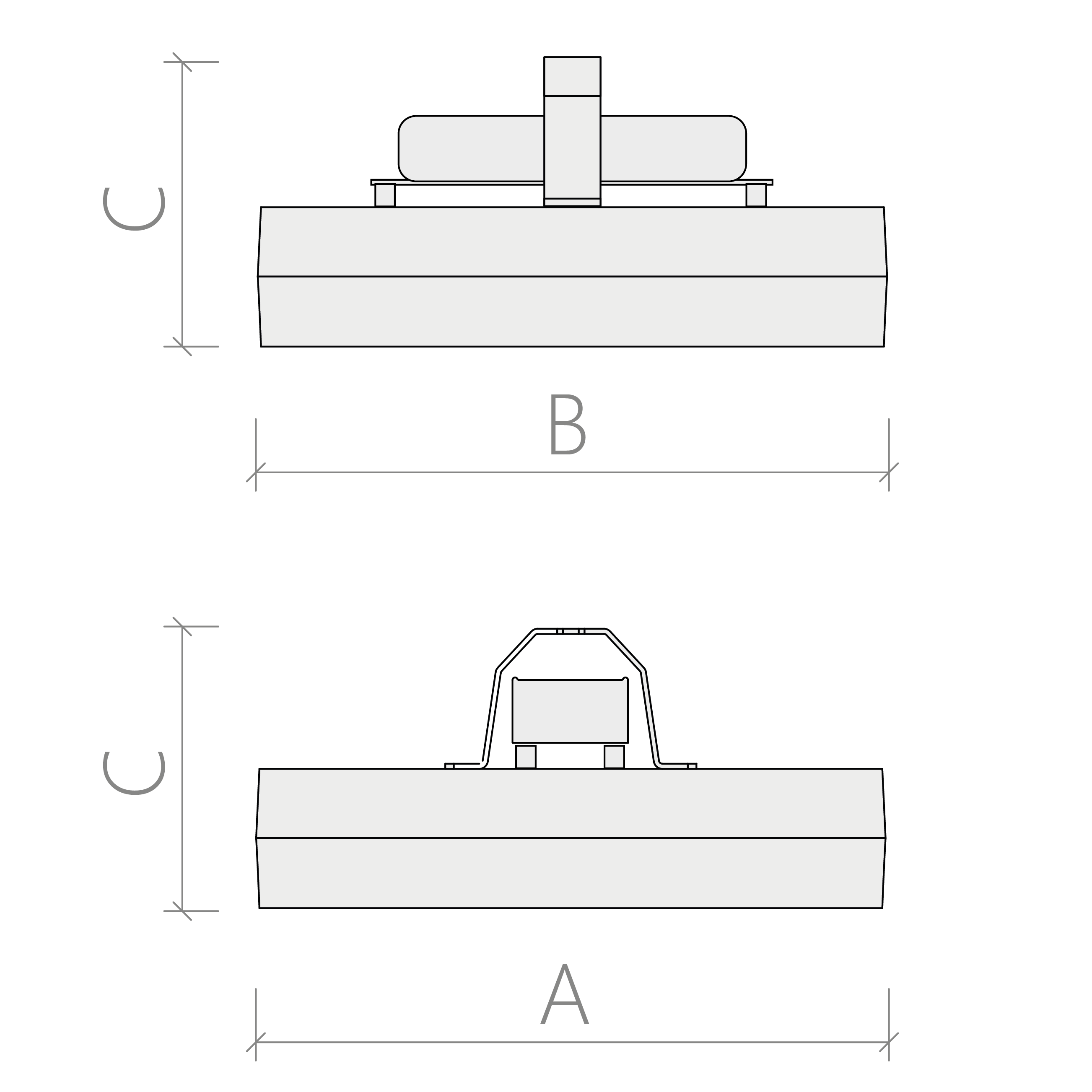

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8408SU4080GL80-4000°K - CRI>80on/off13829173365-150-5.8
8408SU4090GL90-4000°K - CRI>80on/off15422171365-150-5.8
8408SU4100GL100-4000°K - CRI>80on/off16965170365-150-5.8
8408SU4120GL120-4000°K - CRI>80on/off19804165365-150-5.8
8408SU4130GL130-4000°K - CRI>80on/off21379164365-150-5.8
8408SU4140GL140-4000°K - CRI>80on/off22764163365-150-5.8
8408SU4150GL150-4000°K - CRI>80on/off23980160365-150-5.8
8408SU4170GL170-4000°K - CRI>80on/off26984159365-150-5.8
8408SU4190GL190-4000°K - CRI>80on/off31100164365-150-5.8
8408SU4230GL230-4000°K - CRI>80on/off37349162365-150-5.8
8408SU4080GD80-4000°K - CRI>80dali13829173365-150-5.8
8408SU4090GD90-4000°K - CRI>80dali15422171365-150-5.8
8408SU4100GD100-4000°K - CRI>80dali16965170365-150-5.8
8408SU4120GD120-4000°K - CRI>80dali19804165365-150-5.8
8408SU4130GD130-4000°K - CRI>80dali21379164365-150-5.8
8408SU4140GD140-4000°K - CRI>80dali22764163365-150-5.8
8408SU4150GD150-4000°K - CRI>80dali23980160365-150-5.8
8408SU4170GD170-4000°K - CRI>80dali26984159365-150-5.8
8408SU4190GD190-4000°K - CRI>80dali31100164365-150-5.8
8408SU4230GD230-4000°K - CRI>80dali37349162365-150-5.8

Accessories
