BABILA/S3

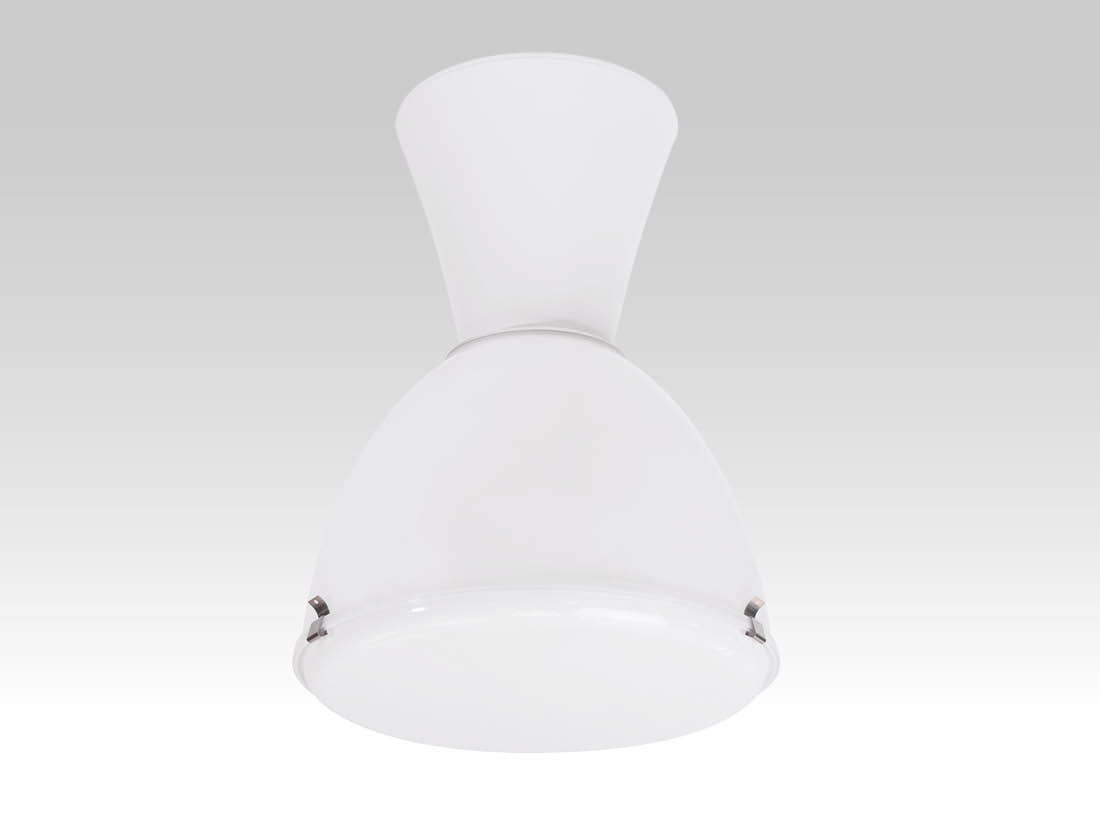

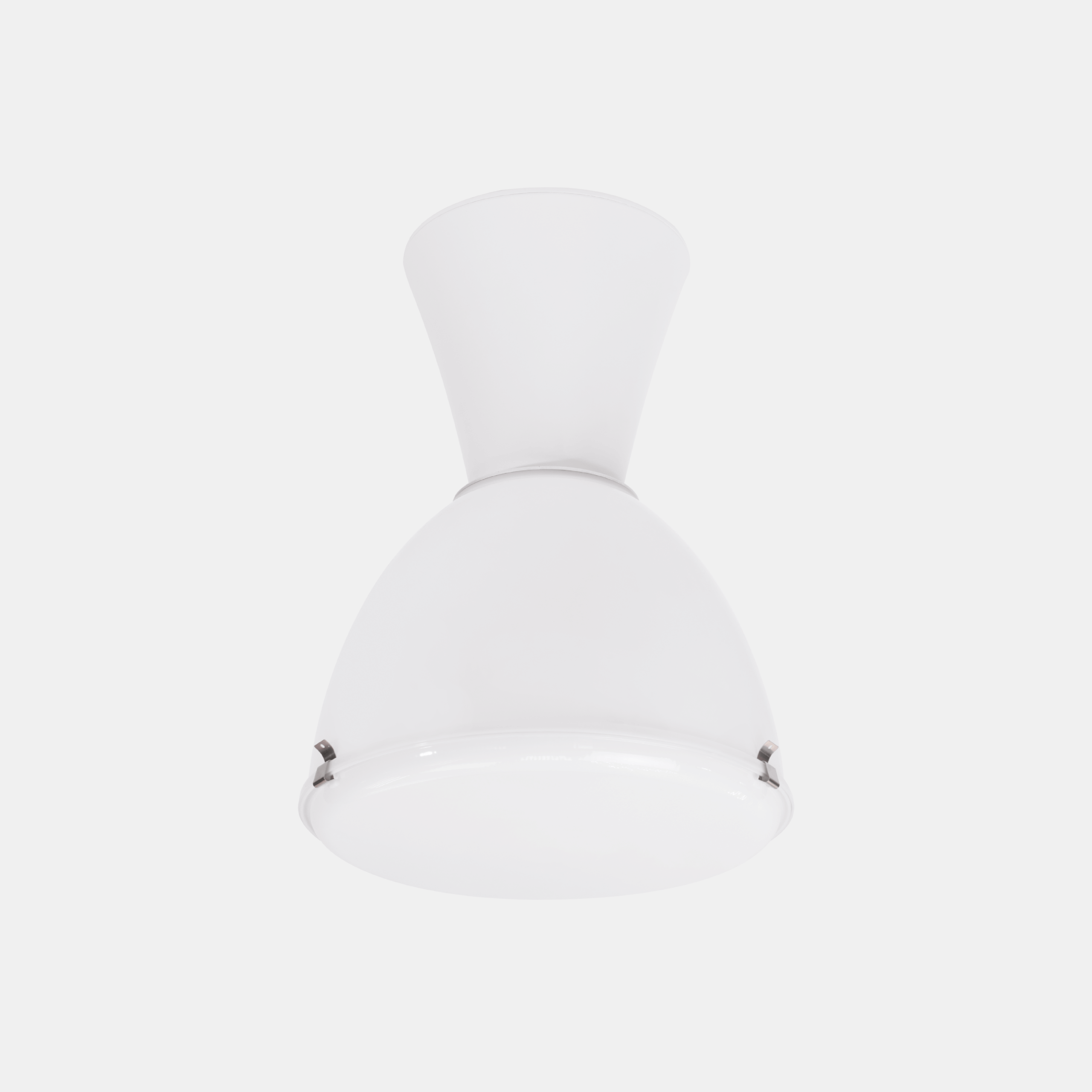

Ceiling mounted or suspended LED reflector. Die cast aluminium body, coated with polyester anticorrosion powder white color, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, BABILA - 8500, Retail, art. 8500 Babila
Models: 60
Color: Matt white
Catalogue abstract
Installation instructions

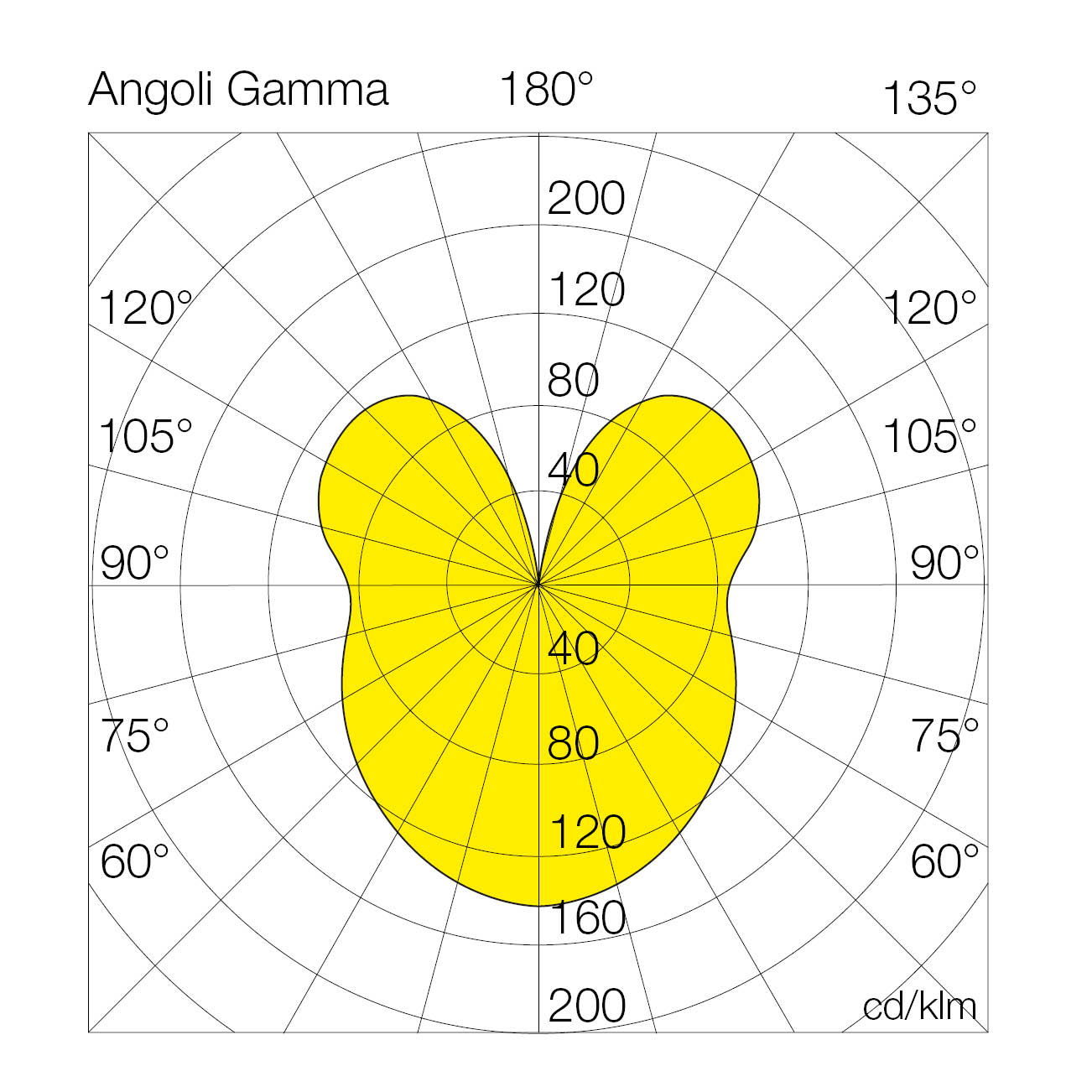

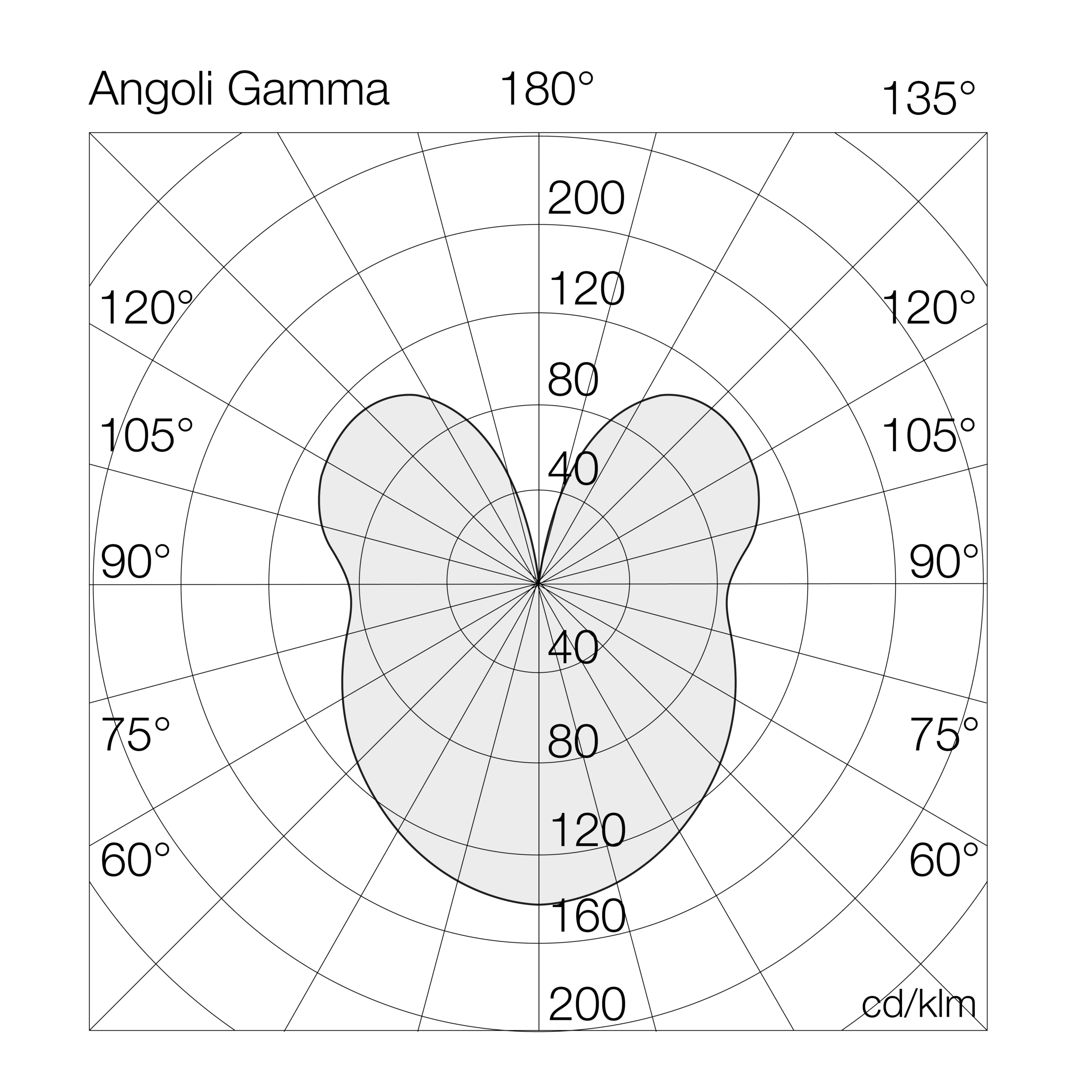

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8500S327= 2700°K (CRI >80)25BL= on/off
30= 3000°K (CRI >80)30BD= dali
40= 4000°K (CRI >80)35
50= 5000°K (CRI >80)40
94= 4000°K (CRI >90)55
68

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8500S34025BL25-4000°K - CRI>80on/off3162126416416575-4.8
8500S34030BL30-4000°K - CRI>80on/off3851128416416575-4.8
8500S34035BL35-4000°K - CRI>80on/off4514129416416575-4.8
8500S34040BL40-4000°K - CRI>80on/off4944124416416575-4.8
8500S34055BL55-4000°K - CRI>80on/off6975127416416575-4.8
8500S34068BL68-4000°K - CRI>80on/off8398124416416575-4.8
8500S34025BD25-4000°K - CRI>80dali3162126416416575-4.8
8500S34030BD30-4000°K - CRI>80dali3851128416416575-4.8
8500S34035BD35-4000°K - CRI>80dali4514129416416575-4.8
8500S34040BD40-4000°K - CRI>80dali4944124416416575-4.8
8500S34055BD55-4000°K - CRI>80dali6975127416416575-4.8
8500S34068BD68-4000°K - CRI>80dali8398124416416575-4.8
8500S33025BL25-3000°K - CRI>80on/off2995120416416575-4.8
8500S33030BL30-3000°K - CRI>80on/off3648122416416575-4.8
8500S33035BL35-3000°K - CRI>80on/off4276122416416575-4.8
8500S33040BL40-3000°K - CRI>80on/off4683117416416575-4.8
8500S33055BL55-3000°K - CRI>80on/off6607120416416575-4.8
8500S33068BL68-3000°K - CRI>80on/off7955117416416575-4.8
8500S33025BD25-3000°K - CRI>80dali2995120416416575-4.8
8500S33030BD30-3000°K - CRI>80dali3648122416416575-4.8

Accessories
