art.-9200-mig-1-t2-me-cp-ad-as-antracite

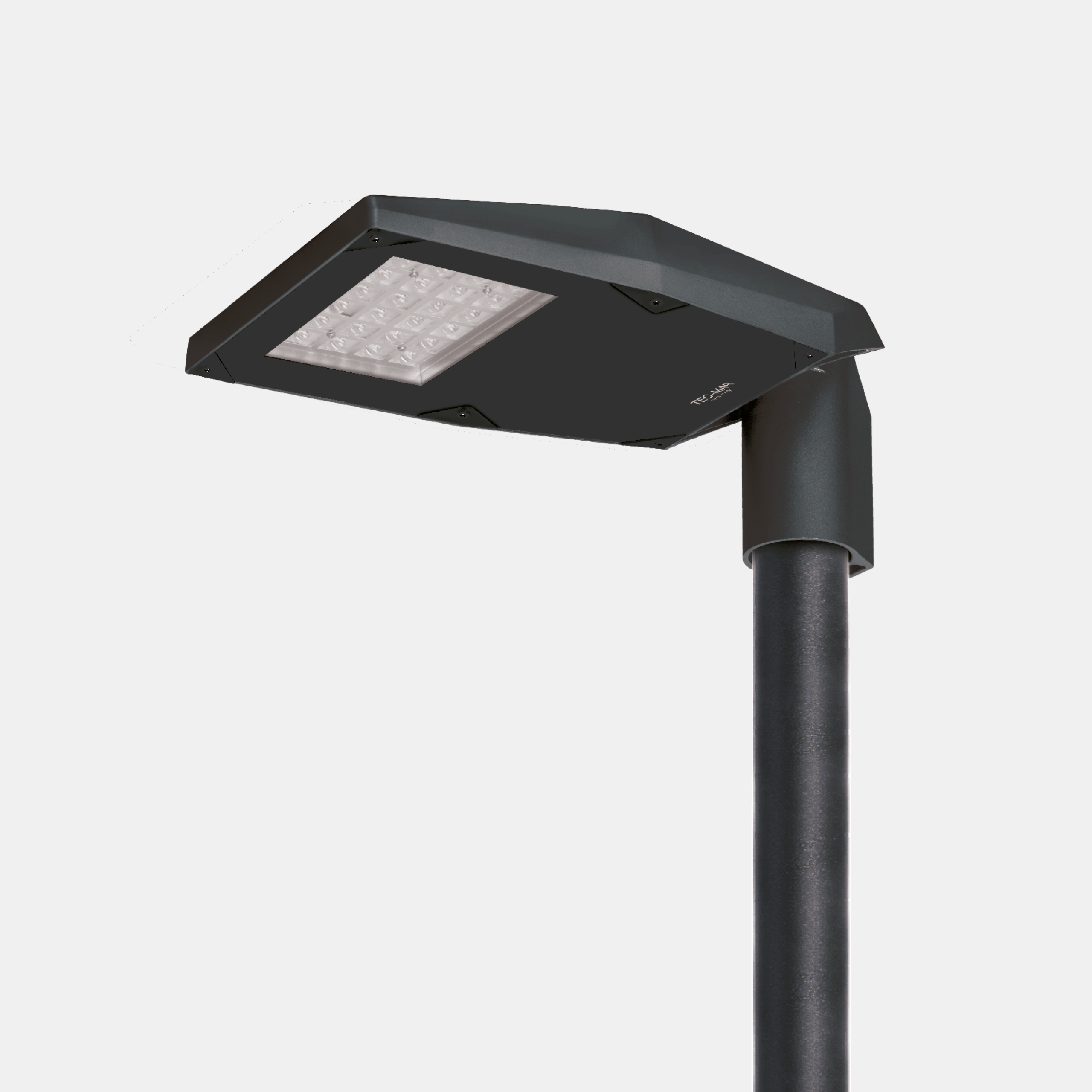

MIG 1 – Mod. CP

(Asymmetrical pedestrian and cycle street lighting, Class P (type II/III))

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating anthracite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Cyclopedestrian optic EN13201 Class P (Type II/III).
Categories: Led, MIG, MIG 1 - 9200, Street lighting, MIG 1
Models: 480
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9200CP22= ambra (CRI >70)0834EL= on/off
30= 3000°K (CRI >70)1236LM= 1-10v
40= 4000°K (CRI >70)1340LD= dali 2
50= 5000°K (CRI >70)1645MD= virtual midnight
1752DZ= zhaga socket dali D4i
1854SZ= zhaga socket dali D4i up&down
2455
2560
2667
2780

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9200CP4008EL8-4000°K - CRI>70on/off147918524541560-4.5
9200CP4012EL12-4000°K - CRI>70on/off221718524541560-4.5
9200CP4016EL16-4000°K - CRI>70on/off295818524541560-4.5
9200CP4025EL25-4000°K - CRI>70on/off443717724541560-4.5
9200CP4013EL13-4000°K - CRI>70on/off226717424541560-4.5
9200CP4018EL18-4000°K - CRI>70on/off311117324541560-4.5
9200CP4024EL24-4000°K - CRI>70on/off414817324541560-4.5
9200CP4036EL36-4000°K - CRI>70on/off622217324541560-4.5
9200CP4045EL45-4000°K - CRI>70on/off765417024541560-4.5
9200CP4017EL17-4000°K - CRI>70on/off283016624541560-4.5
9200CP4026EL26-4000°K - CRI>70on/off424516324541560-4.5
9200CP4034EL34-4000°K - CRI>70on/off565916624541560-4.5
9200CP4052EL52-4000°K - CRI>70on/off848916324541560-4.5
9200CP4055EL55-4000°K - CRI>70on/off903616424541560-4.5
9200CP4060EL60-4000°K - CRI>70on/off957416024541560-4.5
9200CP4067EL67-4000°K - CRI>70on/off1062415924541560-4.5
9200CP4027EL27-4000°K - CRI>70on/off404415024541560-4.5
9200CP4040EL40-4000°K - CRI>70on/off606715224541560-4.5
9200CP4054EL54-4000°K - CRI>70on/off808915024541560-4.5
9200CP4080EL80-4000°K - CRI>70on/off1213415224541560-4.5

Accessories
