MIG 1 – Mod. CP

(Asymmetrical pedestrian and cycle street lighting, Class P (type II/III))

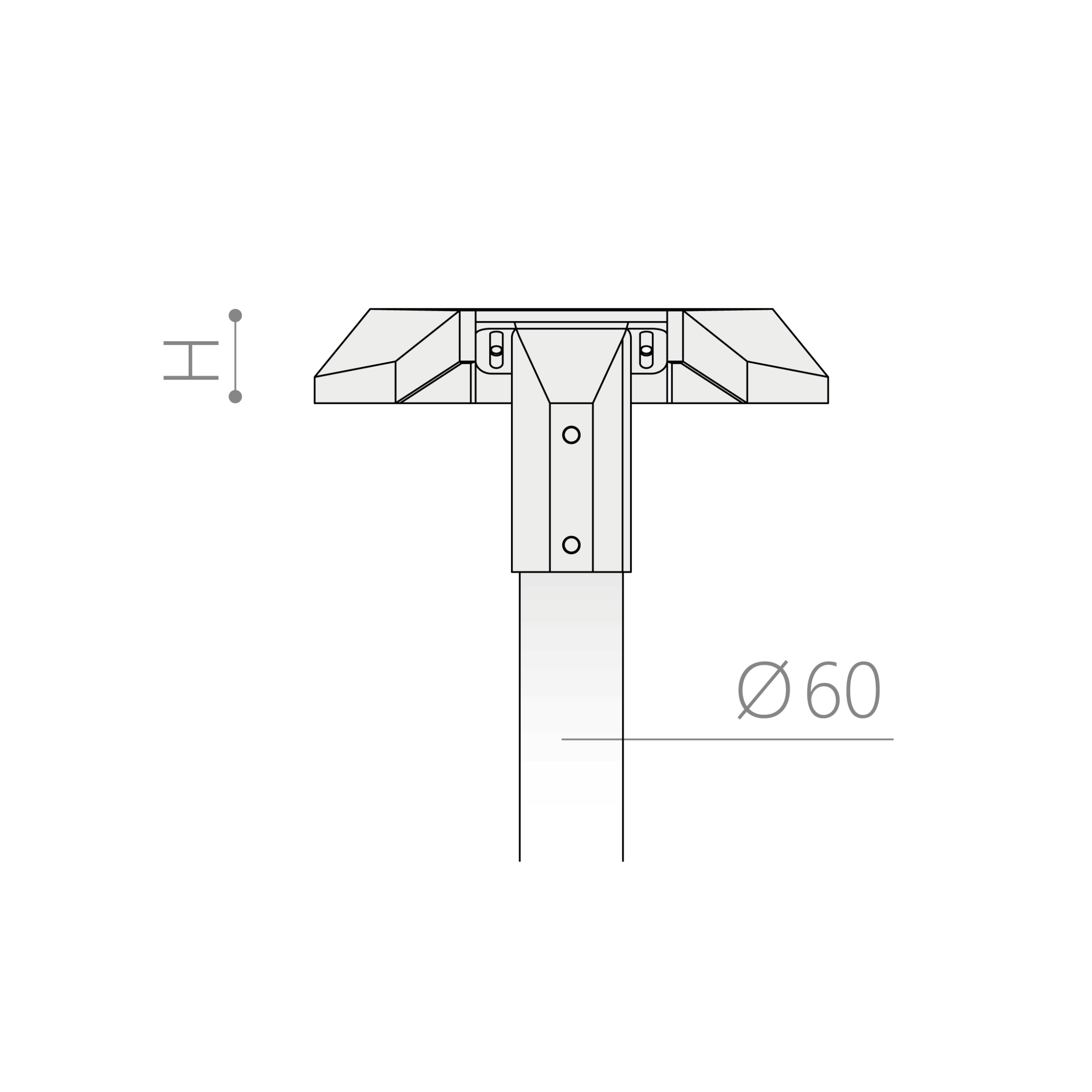

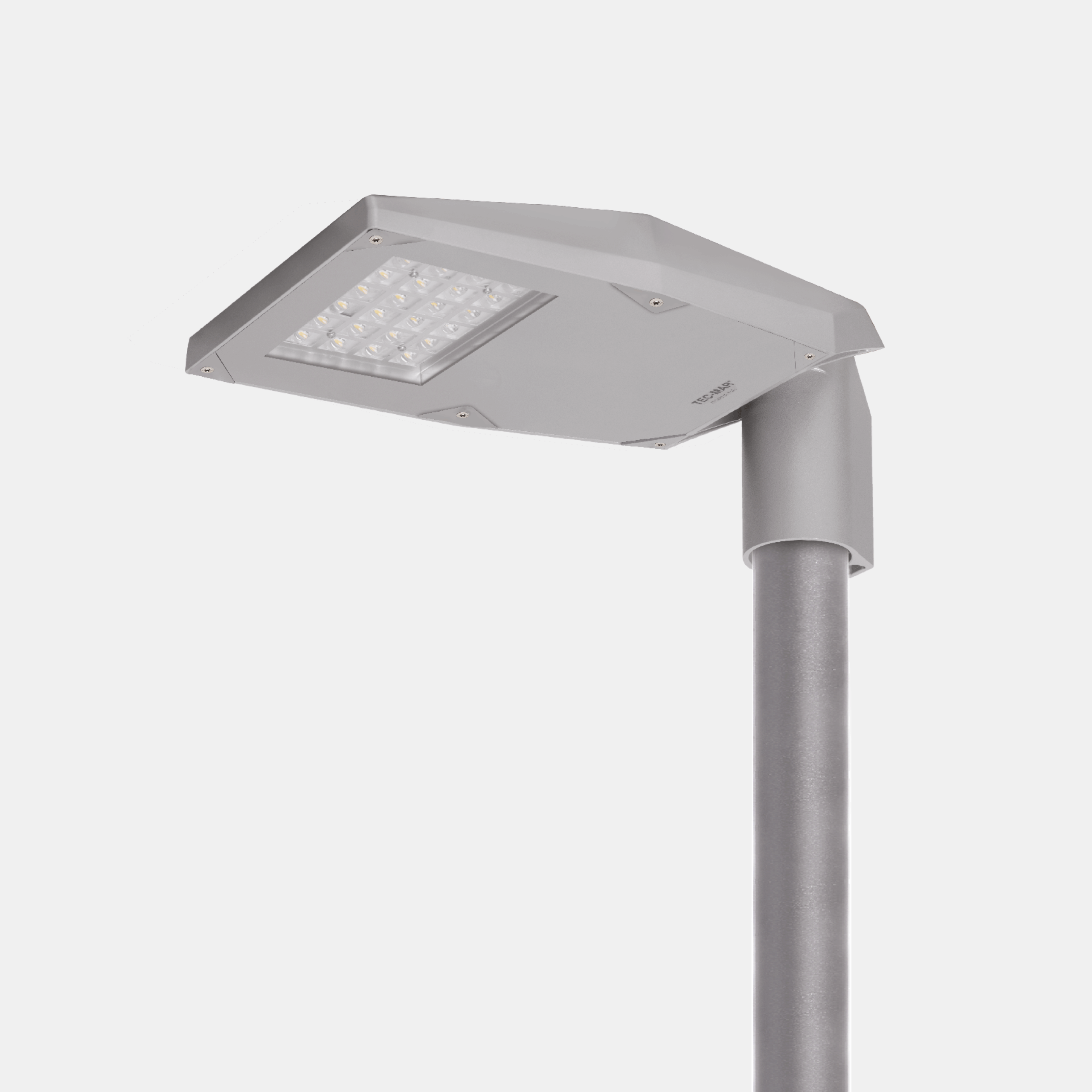

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Cyclopedestrian optic EN13201 Class P (Type II/III).
Categories: Led, MIG, MIG 1 - 9200, Street lighting, MIG 1
Models: 480
Color: Silver
Catalogue abstract
Installation instructions

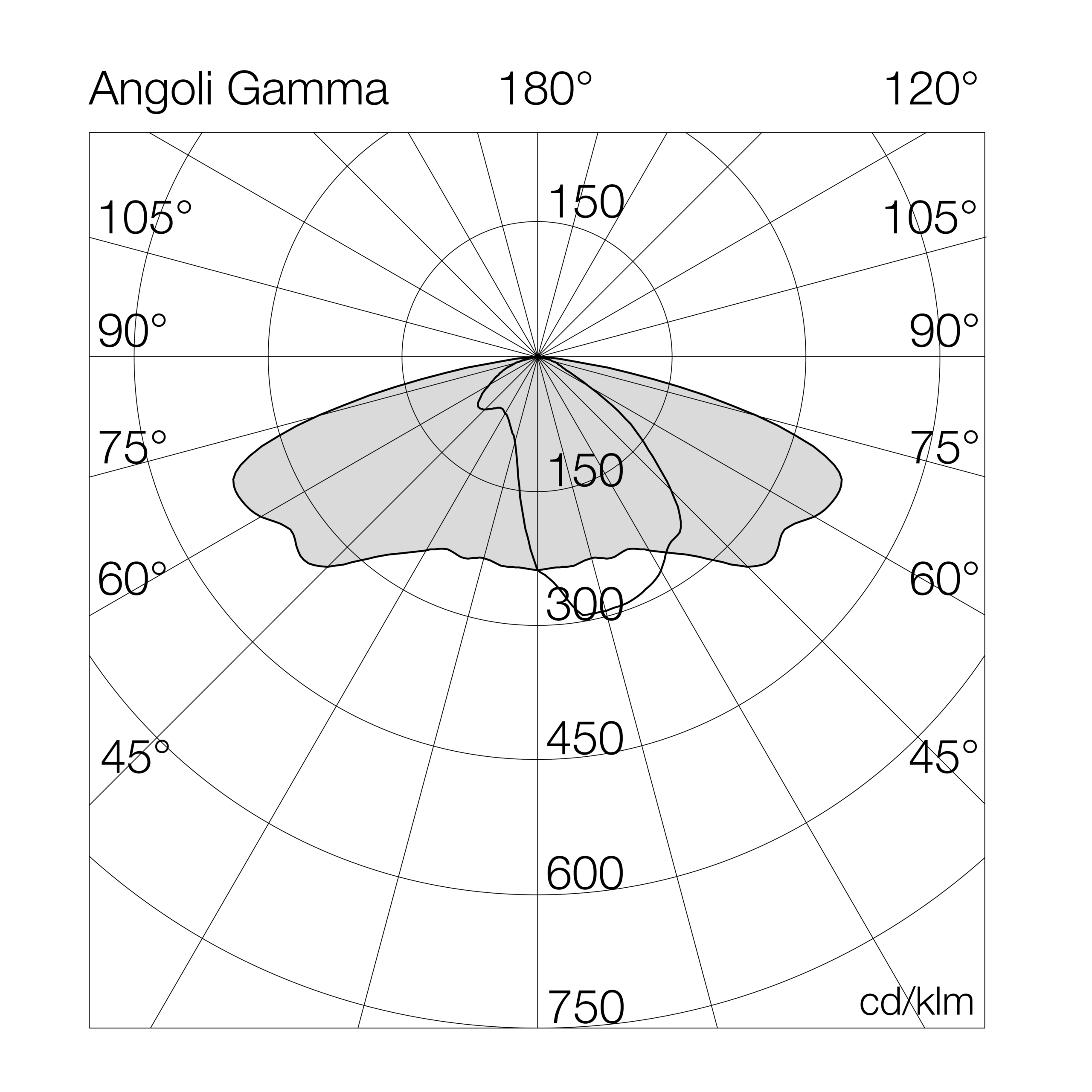

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9200CP22= ambra (CRI >70)0834GL= on/off
30= 3000°K (CRI >70)1236GM= 1-10v
40= 4000°K (CRI >70)1340GD= dali 2
50= 5000°K (CRI >70)1645MG= virtual midnight
1752ZD= zhaga socket dali D4i
1854ZS= zhaga socket dali D4i up&down
2455
2560
2667
2780

Models

W tot.
°K - CRI
Options

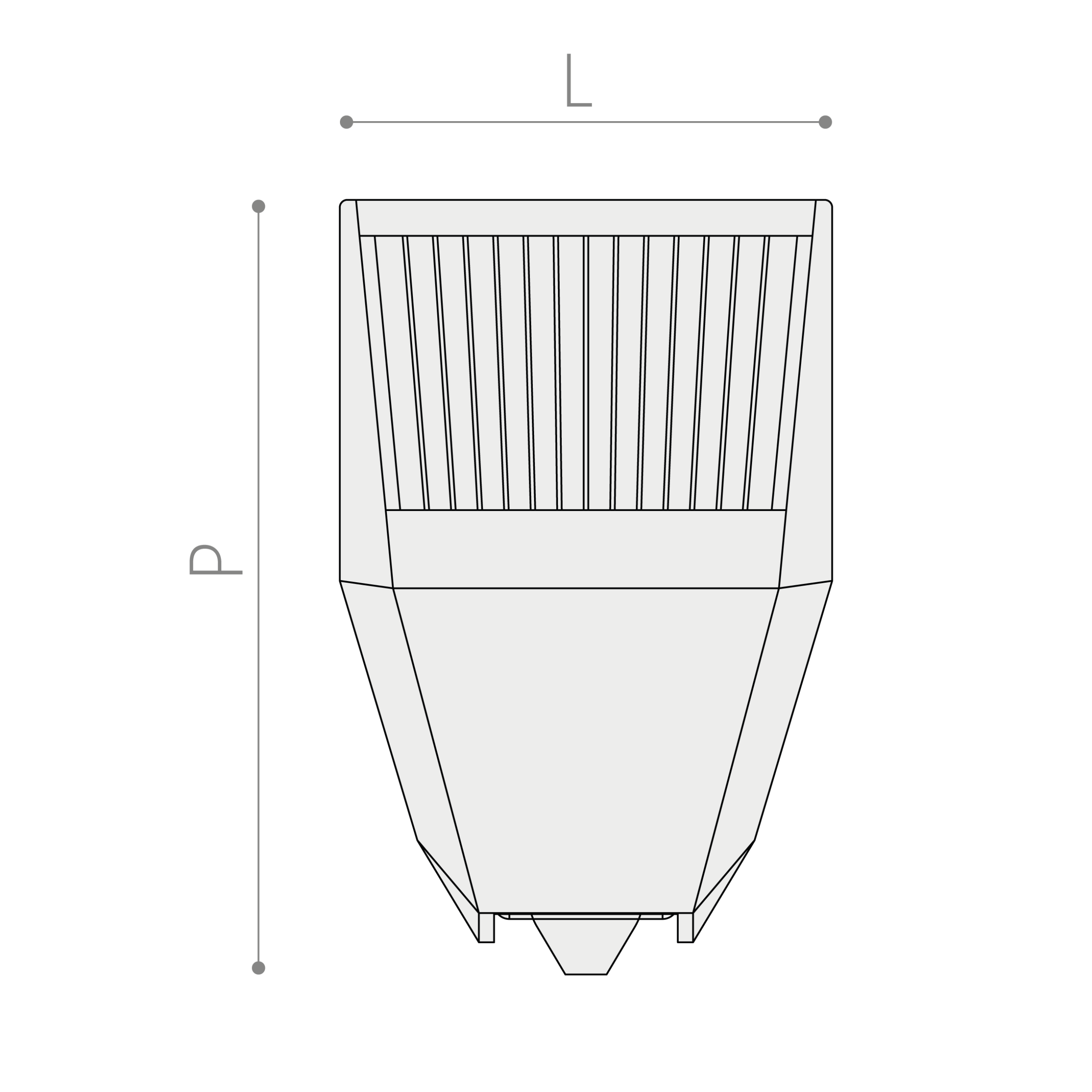

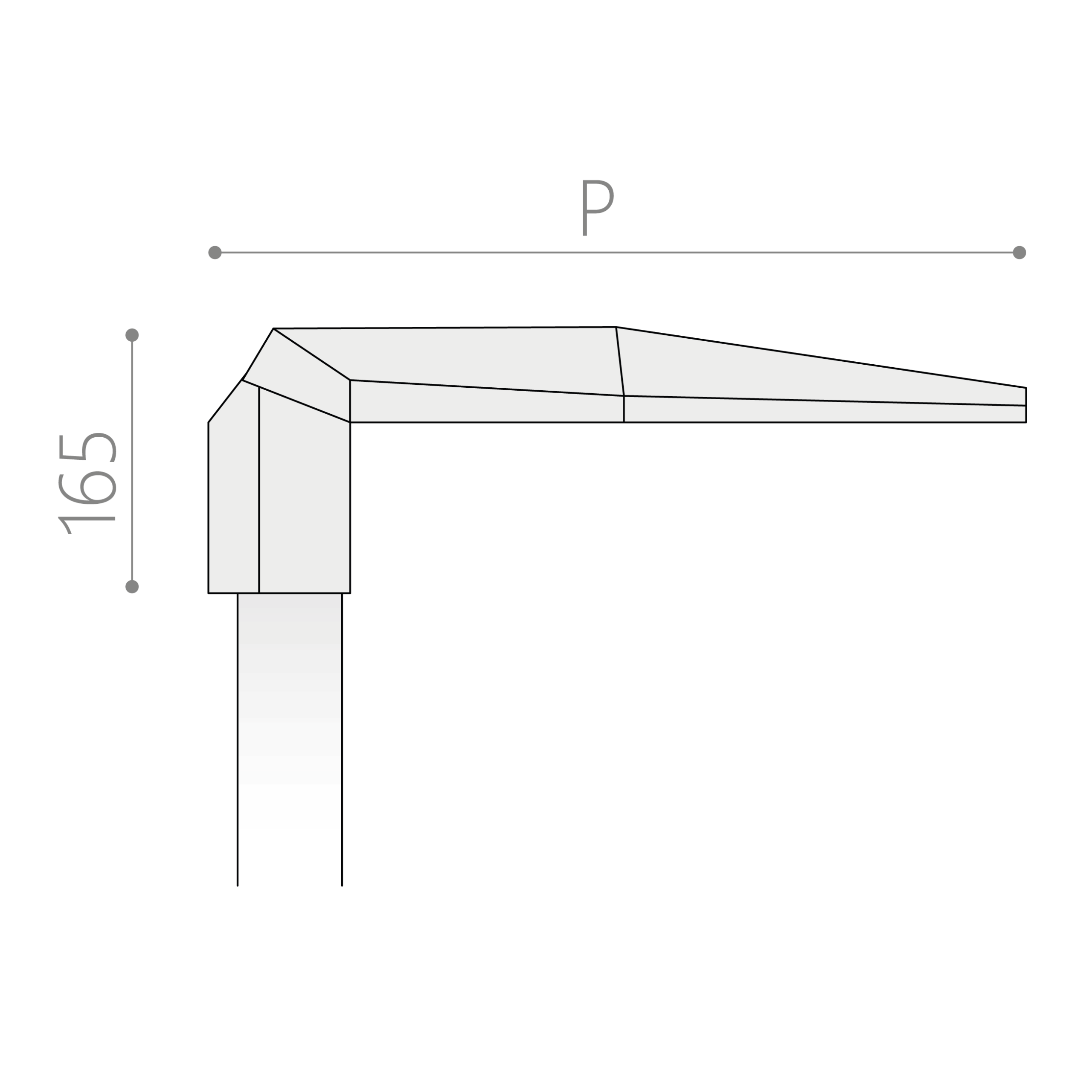

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9200CP4008GL8-4000°K - CRI>70on/off147918524541560-4.5
9200CP4012GL12-4000°K - CRI>70on/off221718524541560-4.5
9200CP4016GL16-4000°K - CRI>70on/off295818524541560-4.5
9200CP4025GL25-4000°K - CRI>70on/off443717724541560-4.5
9200CP4013GL13-4000°K - CRI>70on/off226717424541560-4.5
9200CP4018GL18-4000°K - CRI>70on/off311117324541560-4.5
9200CP4024GL24-4000°K - CRI>70on/off414817324541560-4.5
9200CP4036GL36-4000°K - CRI>70on/off622217324541560-4.5
9200CP4045GL45-4000°K - CRI>70on/off765417024541560-4.5
9200CP4017GL17-4000°K - CRI>70on/off283016624541560-4.5
9200CP4026GL26-4000°K - CRI>70on/off424516324541560-4.5
9200CP4034GL34-4000°K - CRI>70on/off565916624541560-4.5
9200CP4052GL52-4000°K - CRI>70on/off848916324541560-4.5
9200CP4055GL55-4000°K - CRI>70on/off903616424541560-4.5
9200CP4060GL60-4000°K - CRI>70on/off957416024541560-4.5
9200CP4067GL67-4000°K - CRI>70on/off1062415924541560-4.5
9200CP4027GL27-4000°K - CRI>70on/off404415024541560-4.5
9200CP4040GL40-4000°K - CRI>70on/off606715224541560-4.5
9200CP4054GL54-4000°K - CRI>70on/off808915024541560-4.5
9200CP4080GL80-4000°K - CRI>70on/off1213415224541560-4.5
