MIG 1 – Mod. T2

(IESNA Type II 45° Medium Asymmetric Street Light)

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical medium 45° street optic IESNA Type II.
Categories: Led, MIG, MIG 1 - 9200, Street lighting, MIG 1
Models: 480
Color: Silver
Catalogue abstract
Installation instructions

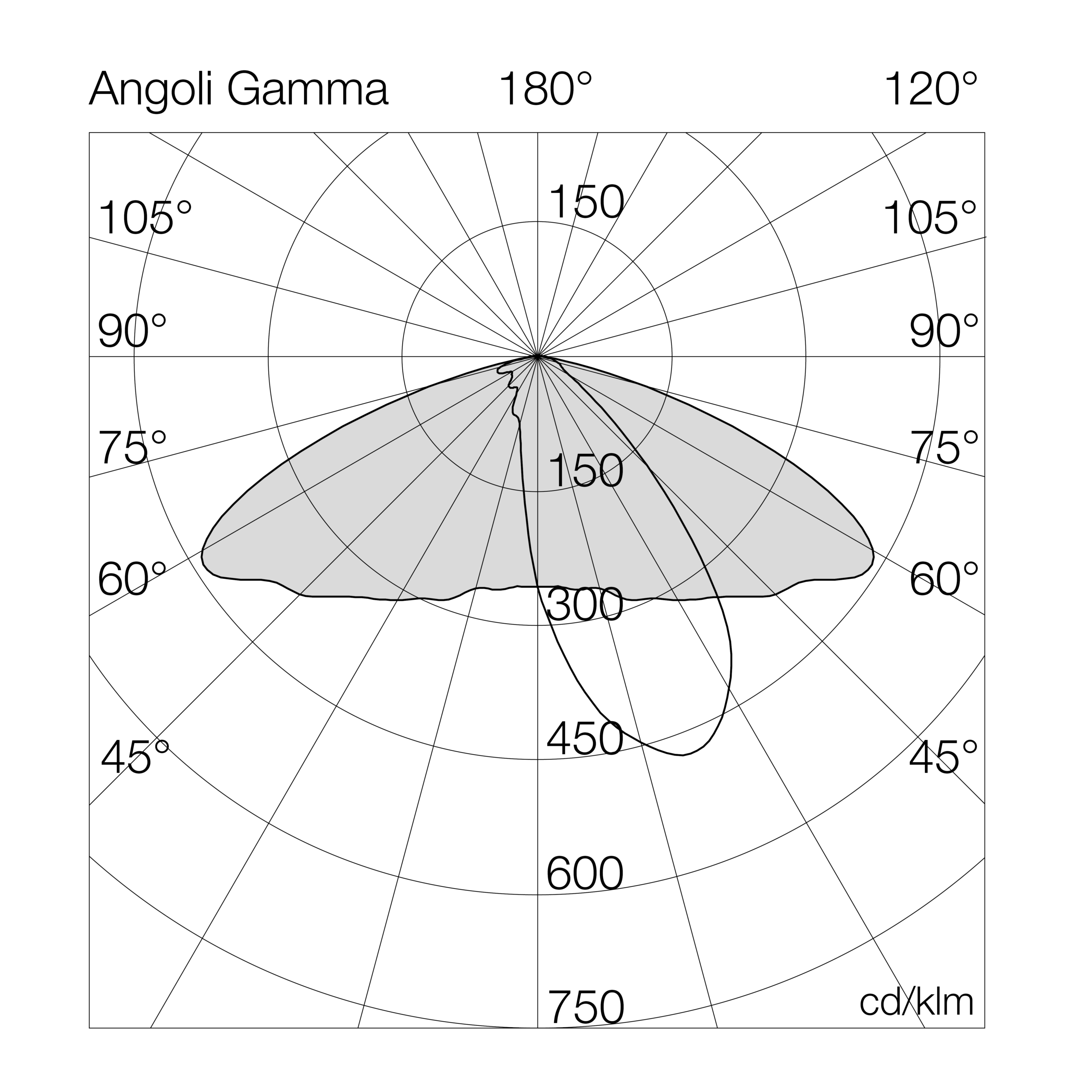

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9200T222= ambra (CRI >70)0834GL= on/off
30= 3000°K (CRI >70)1236GM= 1-10v
40= 4000°K (CRI >70)1340GD= dali 2
50= 5000°K (CRI >70)1645MG= virtual midnight
1752ZD= zhaga socket dali D4i
1854ZS= zhaga socket dali D4i up&down
2455
2560
2667
2780

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9200T24008GL8-4000°K - CRI>70on/off148918624541560-4.5
9200T24012GL12-4000°K - CRI>70on/off223218624541560-4.5
9200T24016GL16-4000°K - CRI>70on/off297718624541560-4.5
9200T24025GL25-4000°K - CRI>70on/off446617924541560-4.5
9200T24013GL13-4000°K - CRI>70on/off228217624541560-4.5
9200T24018GL18-4000°K - CRI>70on/off313217424541560-4.5
9200T24024GL24-4000°K - CRI>70on/off417517424541560-4.5
9200T24036GL36-4000°K - CRI>70on/off626217424541560-4.5
9200T24045GL45-4000°K - CRI>70on/off770417124541560-4.5
9200T24017GL17-4000°K - CRI>70on/off284816824541560-4.5
9200T24026GL26-4000°K - CRI>70on/off427216424541560-4.5
9200T24034GL34-4000°K - CRI>70on/off569716824541560-4.5
9200T24052GL52-4000°K - CRI>70on/off854516424541560-4.5
9200T24055GL55-4000°K - CRI>70on/off909516524541560-4.5
9200T24060GL60-4000°K - CRI>70on/off963716124541560-4.5
9200T24067GL67-4000°K - CRI>70on/off1069416024541560-4.5
9200T24027GL27-4000°K - CRI>70on/off407115124541560-4.5
9200T24040GL40-4000°K - CRI>70on/off610715324541560-4.5
9200T24054GL54-4000°K - CRI>70on/off814215124541560-4.5
9200T24080GL80-4000°K - CRI>70on/off1221415324541560-4.5
