MIG 2 – Mod. AD

(Road view for pedestrian crossings from the right)

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating anthracite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Road view for pedestrian crossings from the right.
Categories: Led, MIG, MIG 2 - 9201, Street lighting, MIG 2
Models: 384
Color: Anthracite
Catalogue abstract
Installation instructions

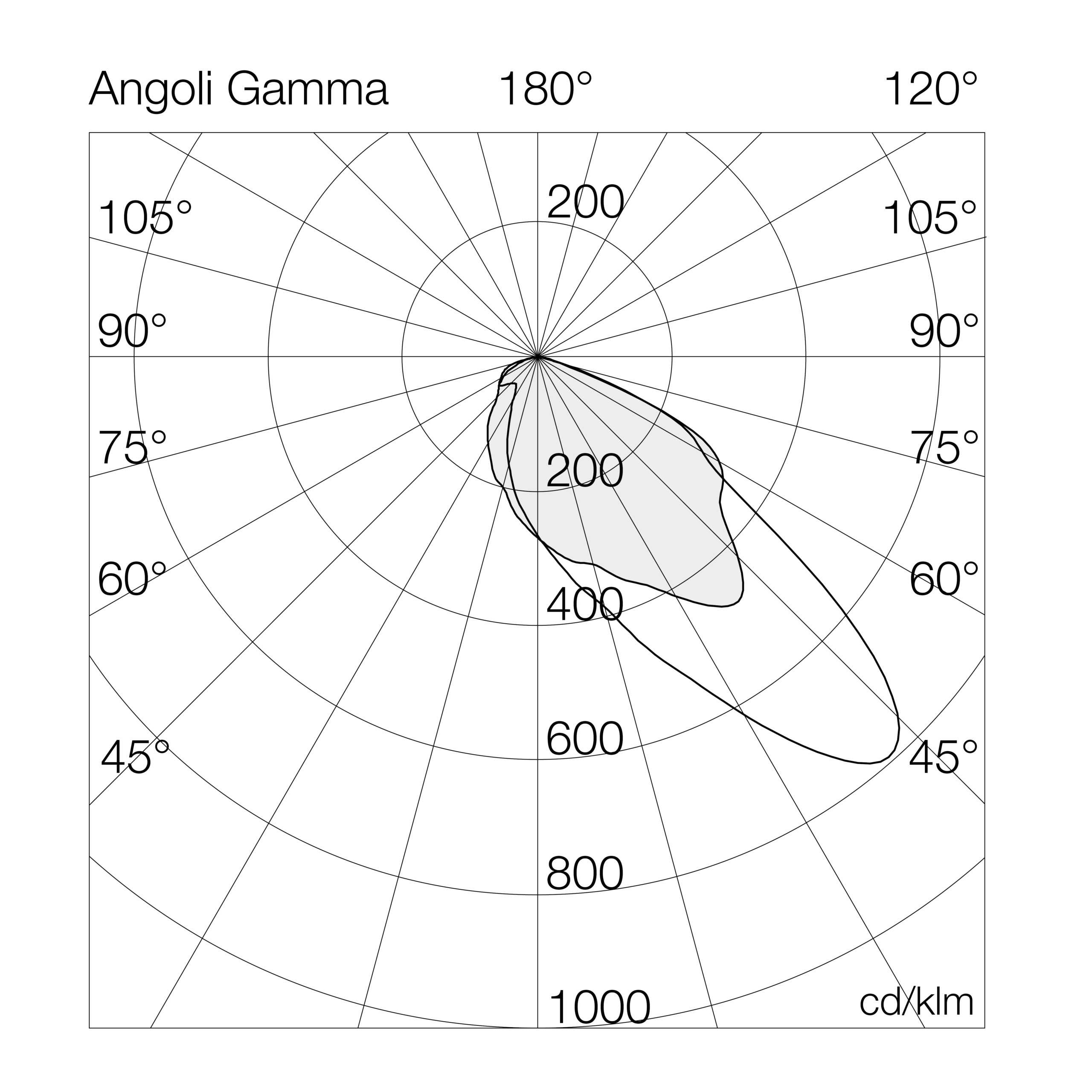

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9201AD2= ambra (CRI >70)037110EL= on/off
3= 3000°K (CRI >70)050120LM= 1-10v
4= 4000°K (CRI >70)054123LD= dali 2
5= 5000°K (CRI >70)062130MD= virtual midnight
073150DZ= zhaga socket dali D4i
078160SZ= zhaga socket dali D4i up&down
091170
104200

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9201AD4037EL37-4000°K - CRI>70on/off667718032549065-6.7
9201AD4050EL50-4000°K - CRI>70on/off890217832549065-6.7
9201AD4062EL62-4000°K - CRI>70on/off1112817932549065-6.7
9201AD4054EL54-4000°K - CRI>70on/off936317332549065-6.7
9201AD4073EL73-4000°K - CRI>70on/off1248517132549065-6.7
9201AD4091EL91-4000°K - CRI>70on/off1560617132549065-6.7
9201AD4078EL78-4000°K - CRI>70on/off1277716432549065-6.7
9201AD4104EL104-4000°K - CRI>70on/off1703616432549065-6.7
9201AD4130EL130-4000°K - CRI>70on/off2129516432549065-6.7
9201AD4110EL110-4000°K - CRI>70on/off1813216532549065-6.7
9201AD4123EL123-4000°K - CRI>70on/off1974516132549065-6.7
9201AD4120EL120-4000°K - CRI>70on/off1826215232549065-6.7
9201AD4150EL150-4000°K - CRI>70on/off2315615432549065-6.7
9201AD4160EL160-4000°K - CRI>70on/off2434915232549065-6.7
9201AD4170EL170-4000°K - CRI>70on/off2664815732549065-6.7
9201AD4200EL200-4000°K - CRI>70on/off3043615232549065-6.7
9201AD4037LM37-4000°K - CRI>701-10v667718032549065-6.7
9201AD4050LM50-4000°K - CRI>701-10v890217832549065-6.7
9201AD4062LM62-4000°K - CRI>701-10v1112817932549065-6.7
9201AD4054LM54-4000°K - CRI>701-10v936317332549065-6.7

Accessories
