art.-9201-mig-2-t2-me-cp-ad-as-antracite

MIG 2 – Mod. CP

(Asymmetrical pedestrian and cycle street lighting, Class P (type II/III)

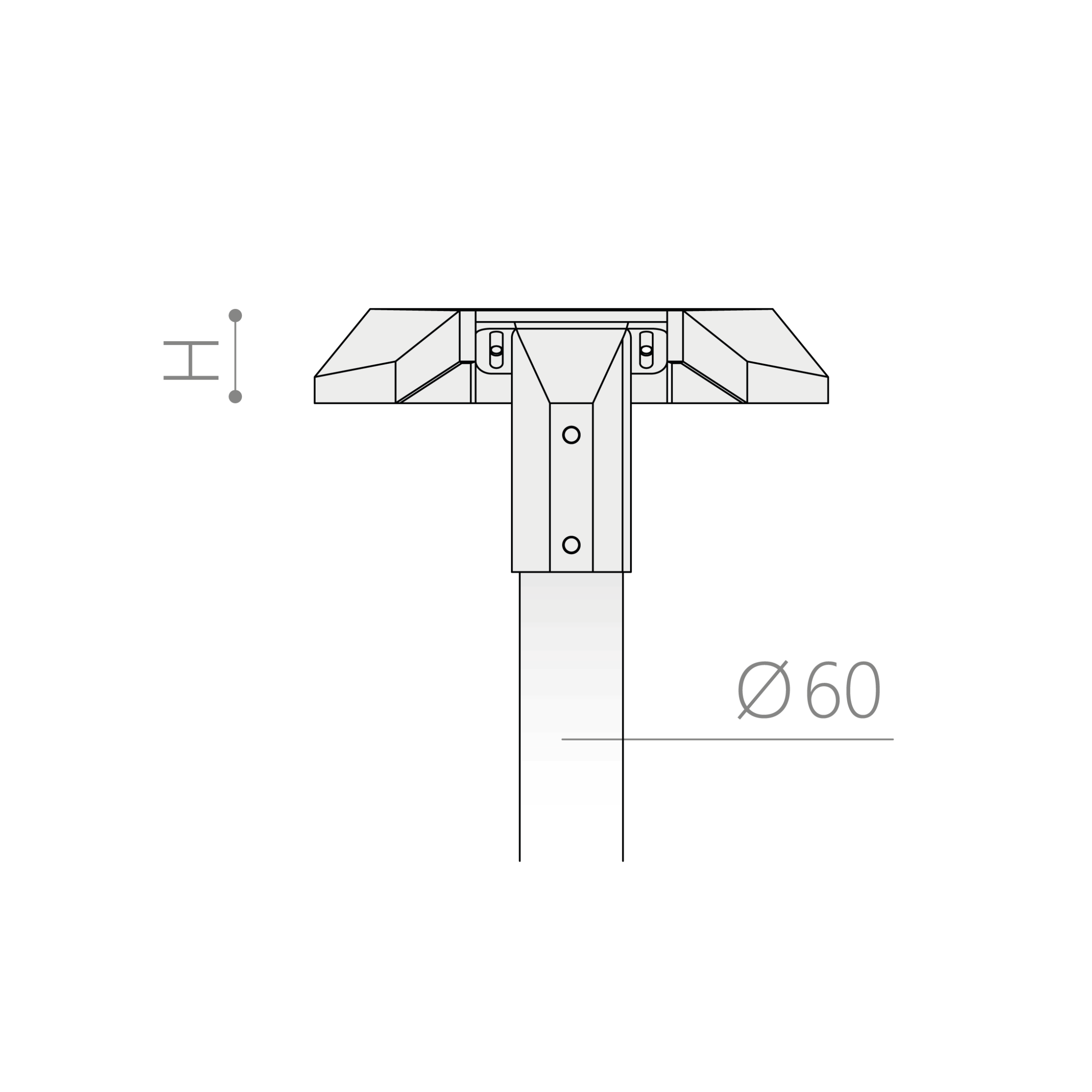

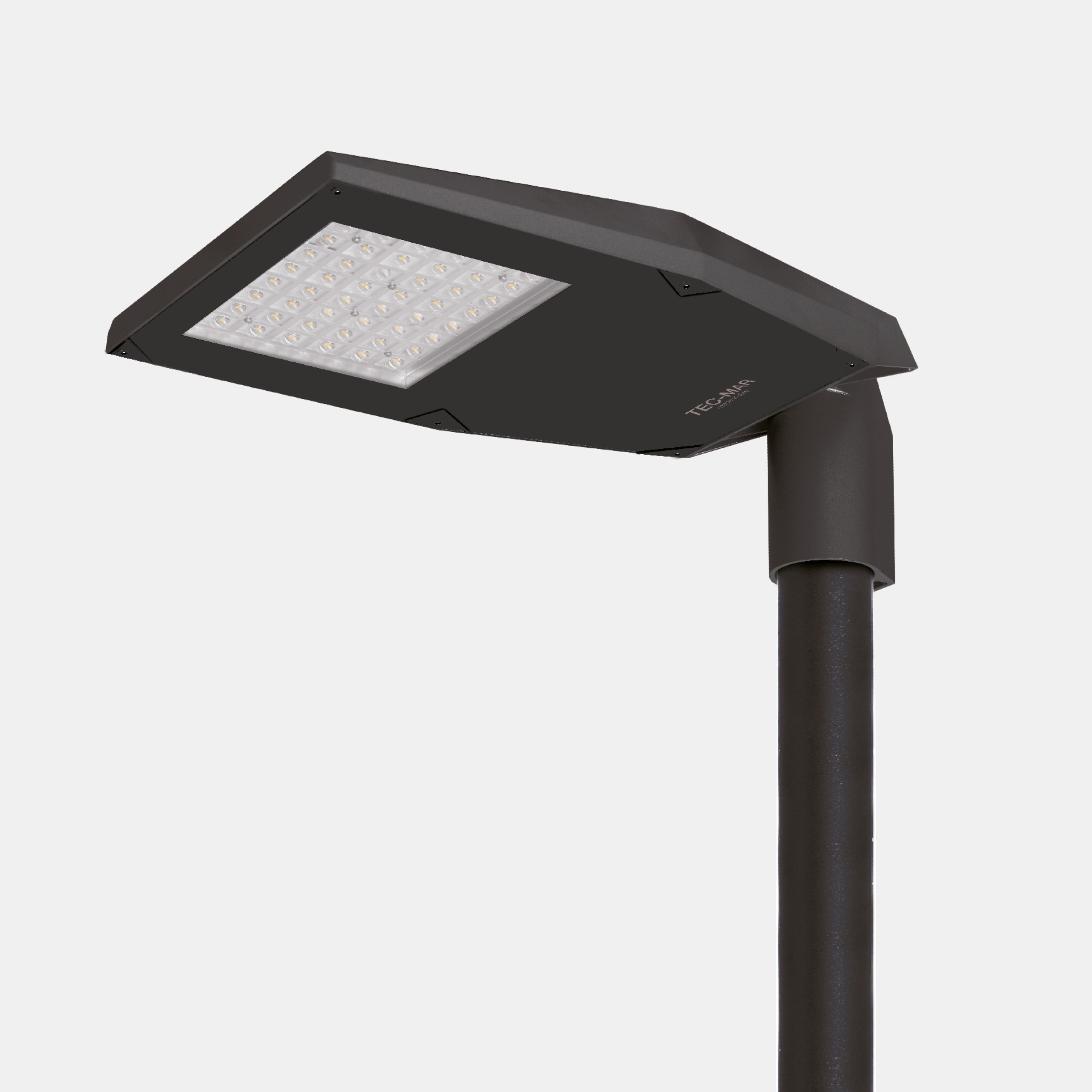

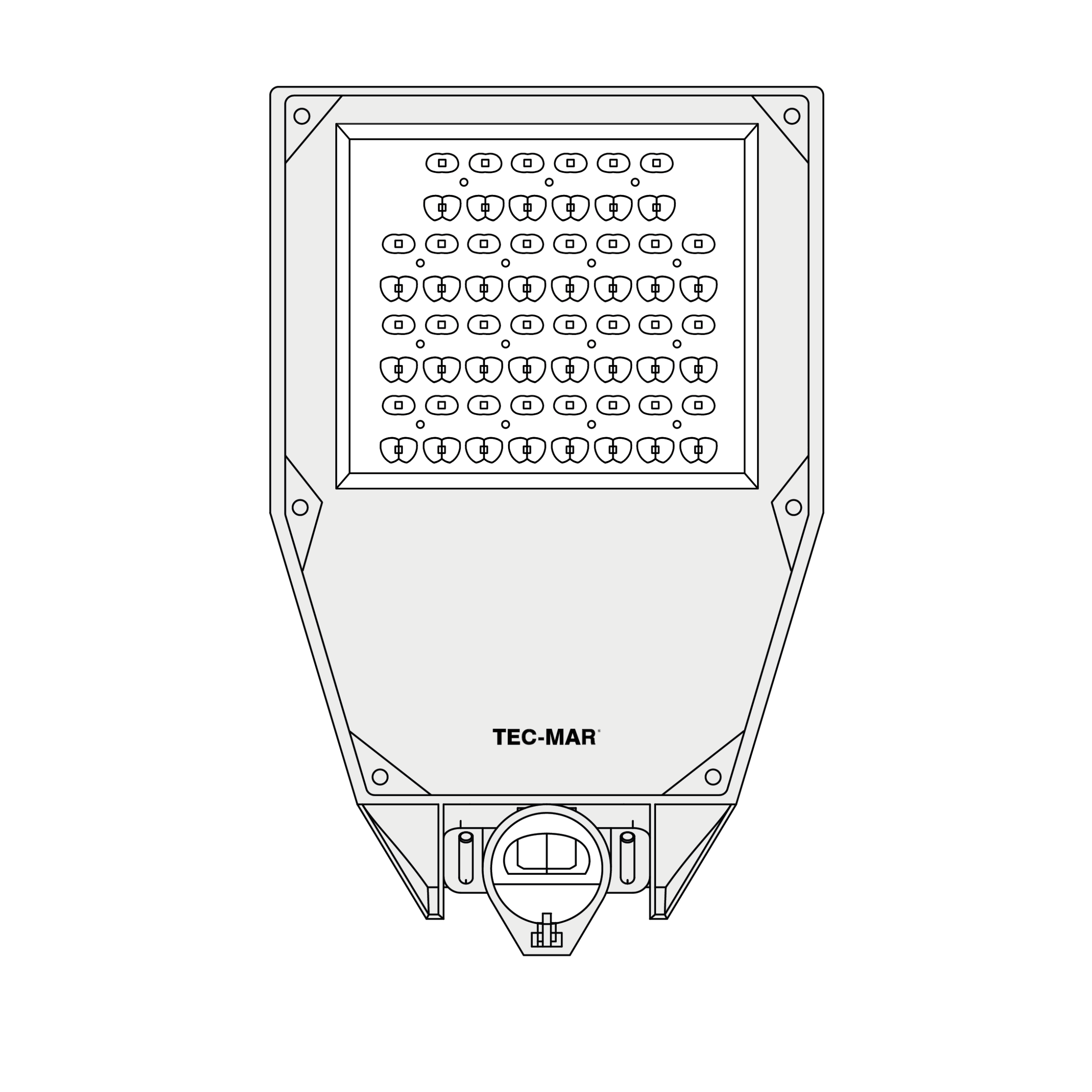

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating anthracite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Cyclopedestrian optic EN13201 Class P (Type II/III).
Categories: Led, MIG, MIG 2 - 9201, Street lighting, MIG 2
Models: 384
Color: Anthracite
Catalogue abstract
Installation instructions

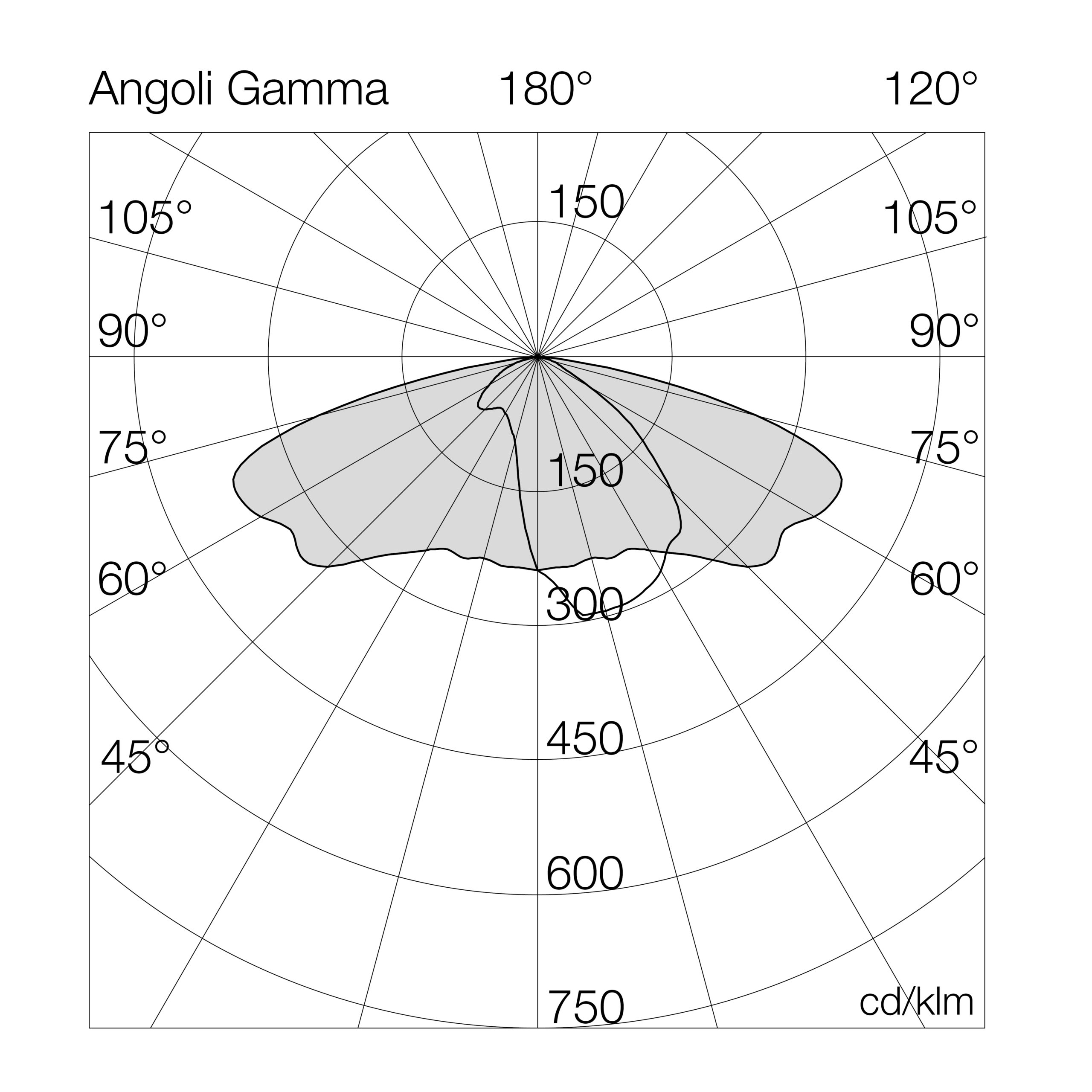

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9201CP2= ambra (CRI >70)037110EL= on/off
3= 3000°K (CRI >70)050120LM= 1-10v
4= 4000°K (CRI >70)054123LD= dali 2
5= 5000°K (CRI >70)062130MD= virtual midnight
073150DZ= zhaga socket dali D4i
078160SZ= zhaga socket dali D4i up&down
091170
104200

Models

W tot.
°K - CRI
Options

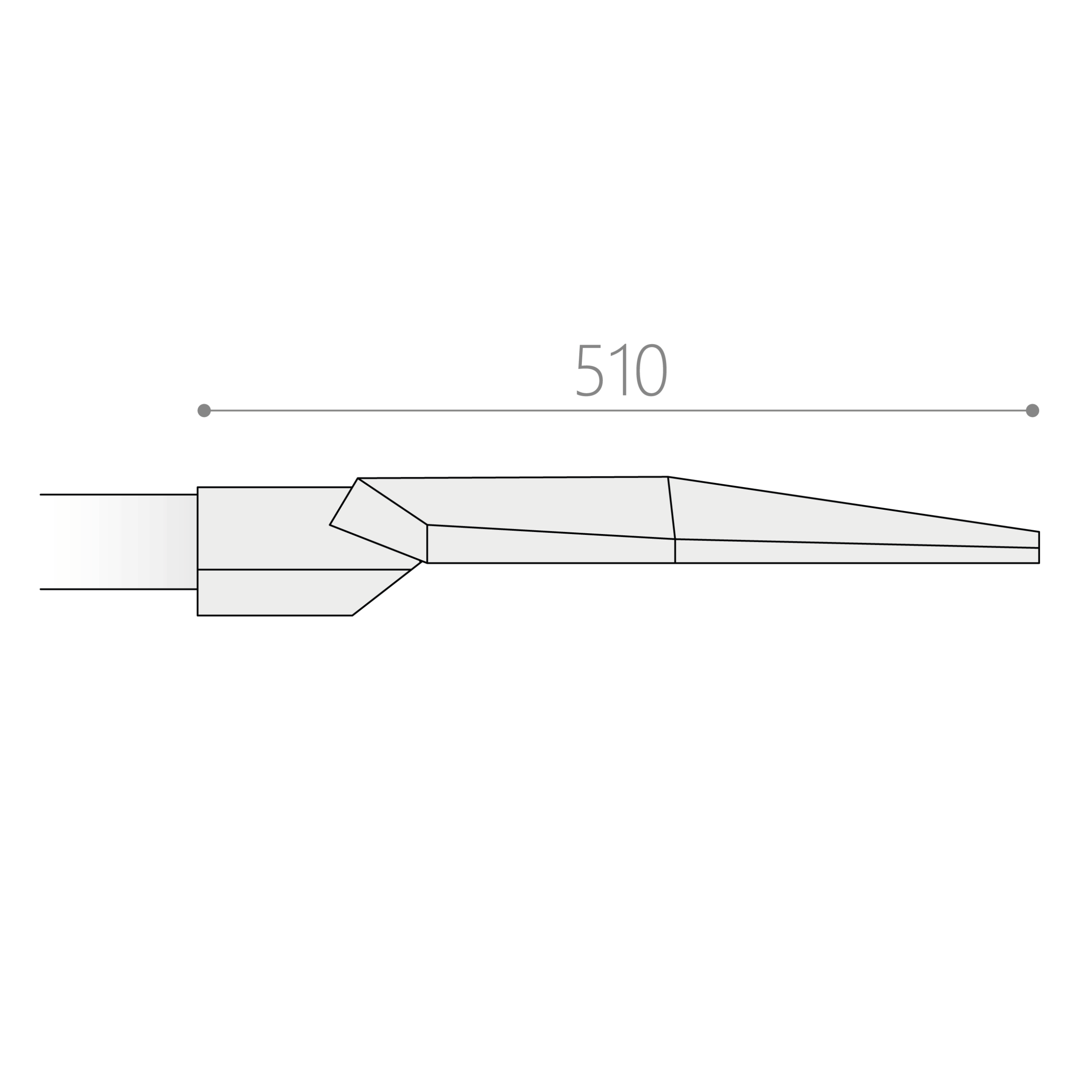

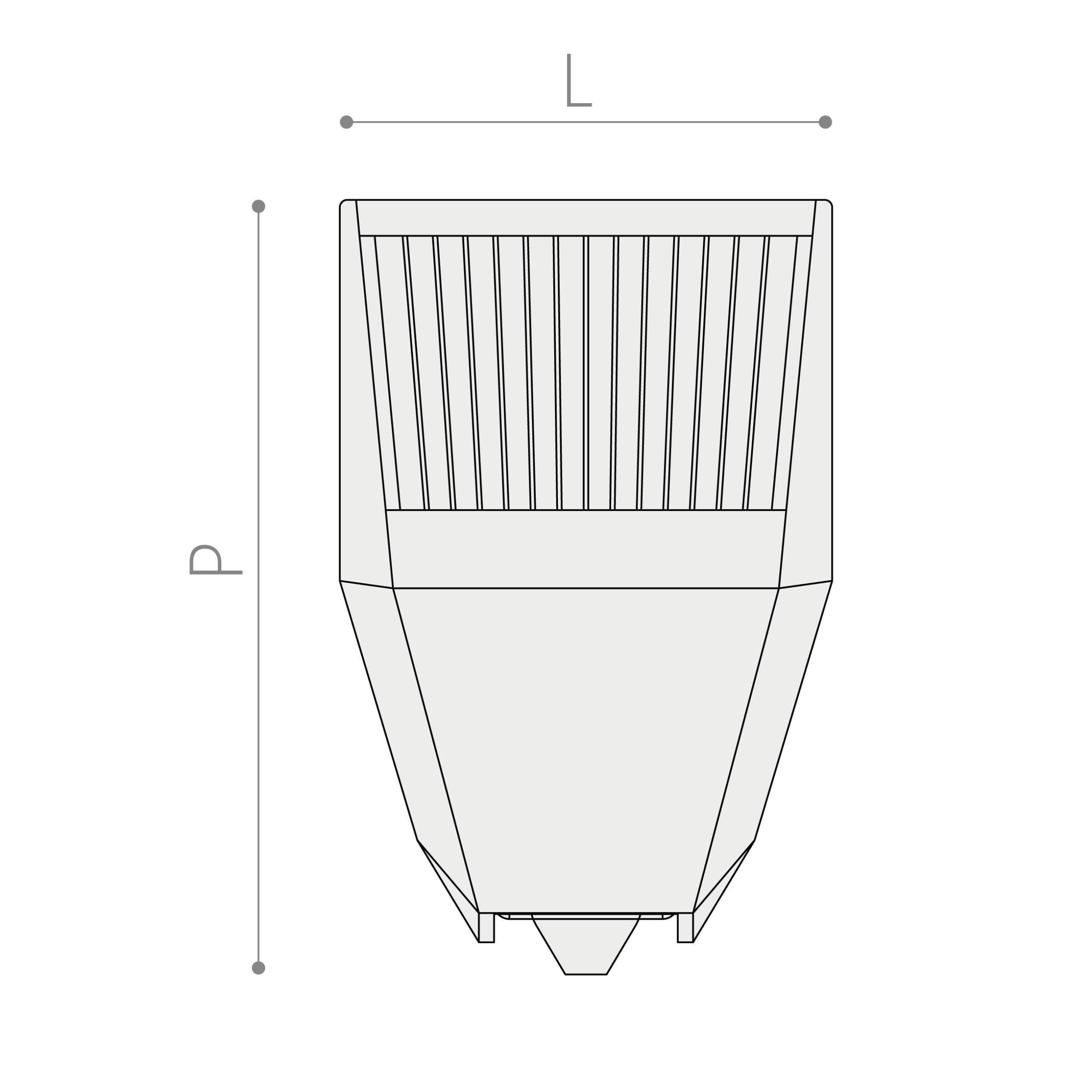

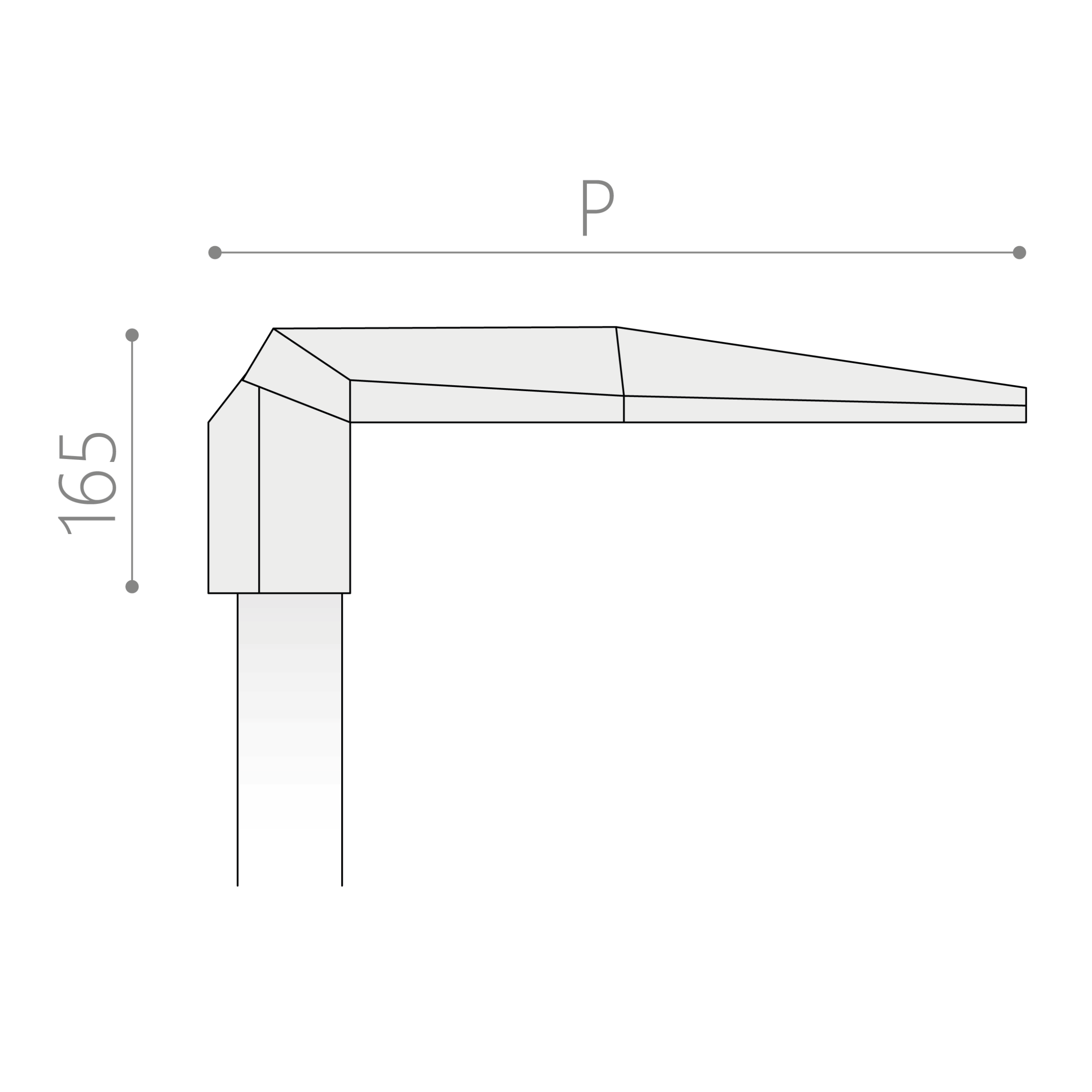

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9201CP4037EL37-4000°K - CRI>70on/off665518032549065-6.7
9201CP4050EL50-4000°K - CRI>70on/off887317732549065-6.7
9201CP4062EL62-4000°K - CRI>70on/off1109117932549065-6.7
9201CP4054EL54-4000°K - CRI>70on/off933317332549065-6.7
9201CP4073EL73-4000°K - CRI>70on/off1244417032549065-6.7
9201CP4091EL91-4000°K - CRI>70on/off1555417132549065-6.7
9201CP4078EL78-4000°K - CRI>70on/off1273516332549065-6.7
9201CP4104EL104-4000°K - CRI>70on/off1698016332549065-6.7
9201CP4130EL130-4000°K - CRI>70on/off2122516332549065-6.7
9201CP4110EL110-4000°K - CRI>70on/off1807316432549065-6.7
9201CP4123EL123-4000°K - CRI>70on/off1968016032549065-6.7
9201CP4120EL120-4000°K - CRI>70on/off1820215232549065-6.7
9201CP4150EL150-4000°K - CRI>70on/off2308015432549065-6.7
9201CP4160EL160-4000°K - CRI>70on/off2426915232549065-6.7
9201CP4170EL170-4000°K - CRI>70on/off2656115632549065-6.7
9201CP4200EL200-4000°K - CRI>70on/off3033715232549065-6.7
9201CP4037LM37-4000°K - CRI>701-10v665518032549065-6.7
9201CP4050LM50-4000°K - CRI>701-10v887317732549065-6.7
9201CP4062LM62-4000°K - CRI>701-10v1109117932549065-6.7
9201CP4054LM54-4000°K - CRI>701-10v933317332549065-6.7

Accessories
