MIG 2 – Mod. T2

(IESNA Type II 45° Medium Asymmetric Street Light)

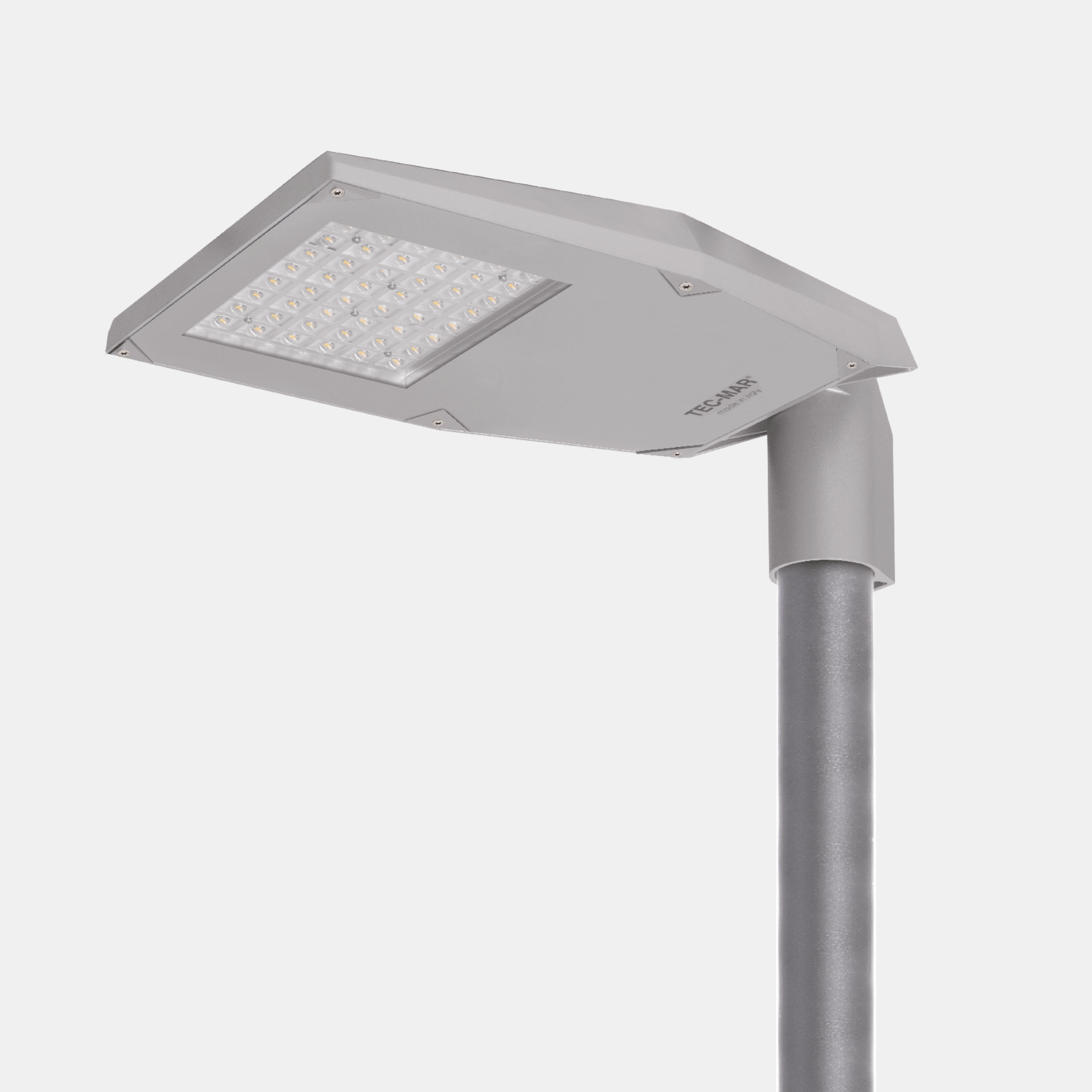

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical medium 45° street optic IESNA Type II.

Categories: Led, MIG, MIG 2 - 9201, Street lighting, MIG 2

Models: 384

Color: Silver

Catalogue abstract

Installation instructions

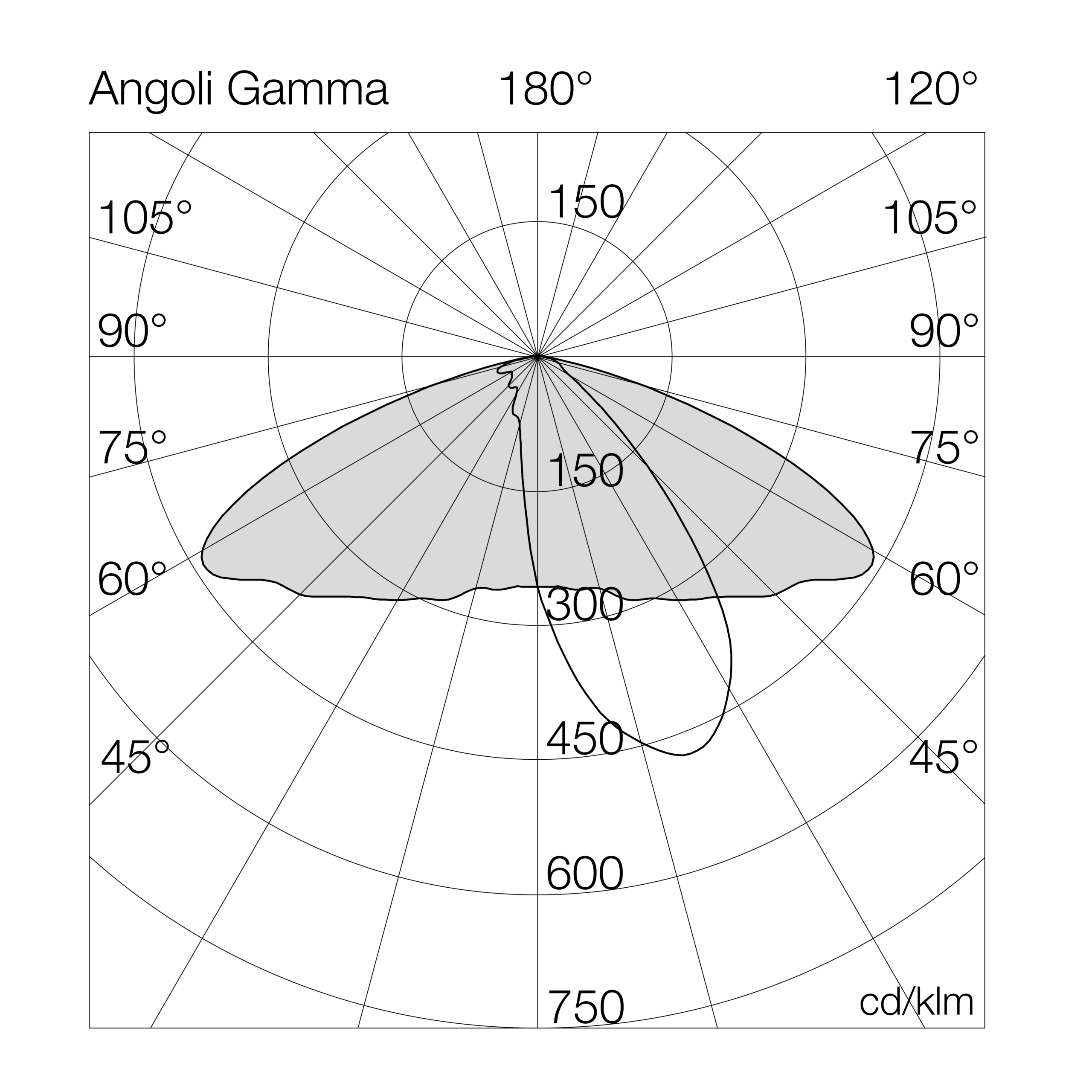

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
9201	T2	2	= ambra (CRI >70)	037	110	GL	= on/off
		3	= 3000°K (CRI >70)	050	120	GM	= 1-10v
		4	= 4000°K (CRI >70)	054	123	GD	= dali 2
		5	= 5000°K (CRI >70)	062	130	MG	= virtual midnight
				073	150	ZD	= zhaga socket dali D4i
				078	160	ZS	= zhaga socket dali D4i up&down
				091	170
				104	200

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
9201T24037GL	37	-	4000°K - CRI>70	on/off	6699	181	325	490	65	-	6.7
9201T24050GL	50	-	4000°K - CRI>70	on/off	8931	179	325	490	65	-	6.7
9201T24062GL	62	-	4000°K - CRI>70	on/off	11164	180	325	490	65	-	6.7
9201T24054GL	54	-	4000°K - CRI>70	on/off	9394	174	325	490	65	-	6.7
9201T24073GL	73	-	4000°K - CRI>70	on/off	12526	172	325	490	65	-	6.7
9201T24091GL	91	-	4000°K - CRI>70	on/off	15657	172	325	490	65	-	6.7
9201T24078GL	78	-	4000°K - CRI>70	on/off	12818	164	325	490	65	-	6.7
9201T24104GL	104	-	4000°K - CRI>70	on/off	17092	164	325	490	65	-	6.7
9201T24130GL	130	-	4000°K - CRI>70	on/off	21364	164	325	490	65	-	6.7
9201T24110GL	110	-	4000°K - CRI>70	on/off	18191	165	325	490	65	-	6.7
9201T24123GL	123	-	4000°K - CRI>70	on/off	19809	161	325	490	65	-	6.7
9201T24120GL	120	-	4000°K - CRI>70	on/off	18322	153	325	490	65	-	6.7
9201T24150GL	150	-	4000°K - CRI>70	on/off	23232	155	325	490	65	-	6.7
9201T24160GL	160	-	4000°K - CRI>70	on/off	24429	153	325	490	65	-	6.7
9201T24170GL	170	-	4000°K - CRI>70	on/off	26735	157	325	490	65	-	6.7
9201T24200GL	200	-	4000°K - CRI>70	on/off	30536	153	325	490	65	-	6.7
9201T24037GM	37	-	4000°K - CRI>70	1-10v	6699	181	325	490	65	-	6.7
9201T24050GM	50	-	4000°K - CRI>70	1-10v	8931	179	325	490	65	-	6.7
9201T24062GM	62	-	4000°K - CRI>70	1-10v	11164	180	325	490	65	-	6.7
9201T24054GM	54	-	4000°K - CRI>70	1-10v	9394	174	325	490	65	-	6.7
