MIG 1B – Mod. CP

(Asymmetrical cycle/pedestrian street lighting, class P (type II/III))

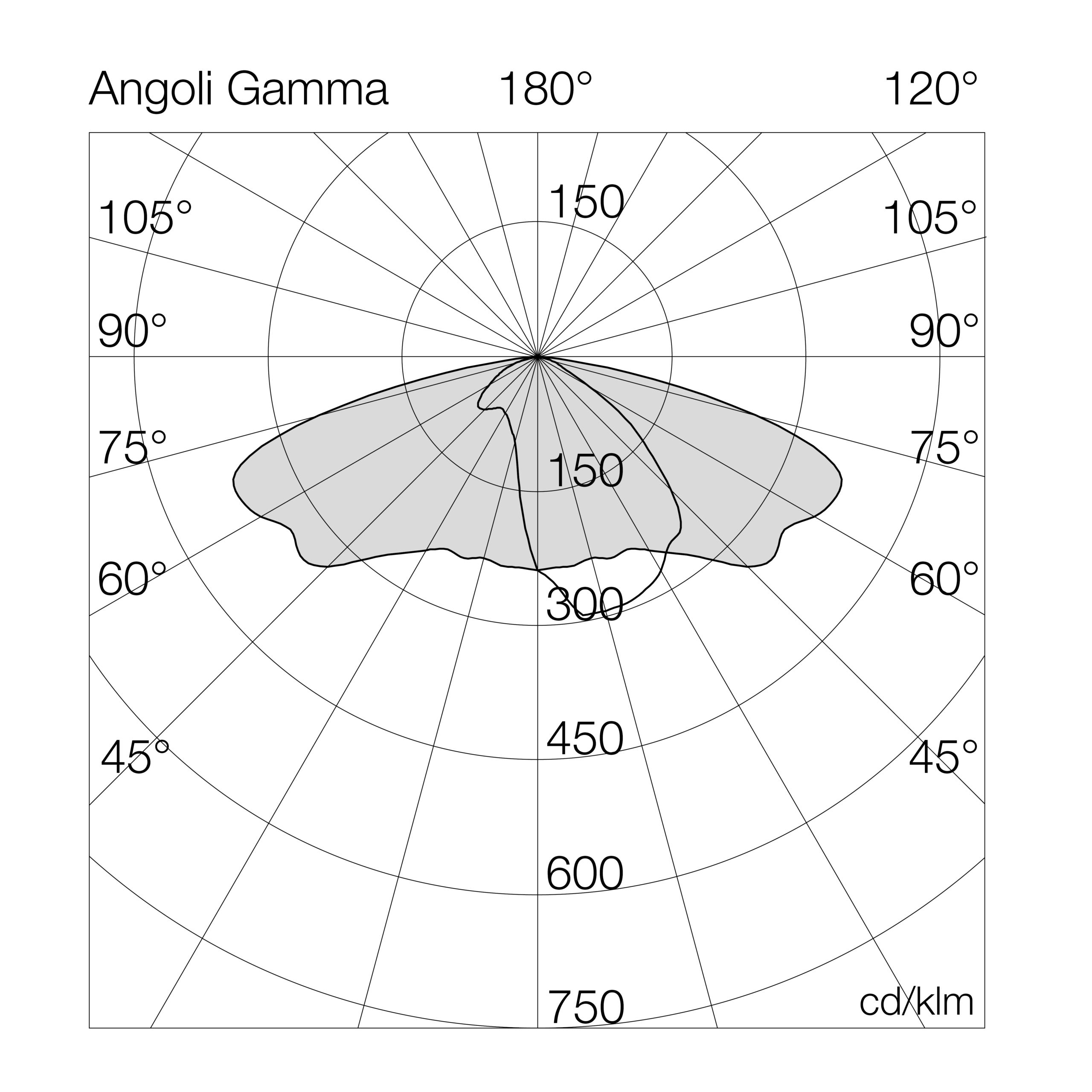

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating anthracite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Cyclopedestrian optic EN13201 Class P (Type II/III).
Categories: Led, MIG, MIG 1B - 9202, Street lighting, MIG 1B
Models: 132
Color: Anthracite
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9202CP3= 3000°K (CRI >70)025EL= on/off
4= 4000°K (CRI >70)030LD= dali 2
034MD= virtual midnight
040
050
056
062
075
092
105
120

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9202CP4025LD25-4000°K - CRI>70dali 2380515224541560-4.5
9202CP4030LD30-4000°K - CRI>70dali 2456715224541560-4.5
9202CP4034LD34-4000°K - CRI>70dali 2506814924541560-4.5
9202CP4040LD40-4000°K - CRI>70dali 2597314924541560-4.5
9202CP4050LD50-4000°K - CRI>70dali 2744614924541560-4.5
9202CP4056LD56-4000°K - CRI>70dali 2811414524541560-4.5
9202CP4062LD62-4000°K - CRI>70dali 2966615624541560-4.5
9202CP4075LD75-4000°K - CRI>70dali 21194715924541560-4.5
9202CP4092LD92-4000°K - CRI>70dali 21324914424541560-4.5
9202CP4105LD105-4000°K - CRI>70dali 21470114024541560-4.5
9202CP4120LD120-4000°K - CRI>70dali 21620513524541560-4.5
9202CP3025LD25-3000°K - CRI>70dali 2378615124541560-4.5
9202CP3030LD30-3000°K - CRI>70dali 2454415124541560-4.5
9202CP3034LD34-3000°K - CRI>70dali 2504314824541560-4.5
9202CP3040LD40-3000°K - CRI>70dali 2594314924541560-4.5
9202CP3050LD50-3000°K - CRI>70dali 2740914824541560-4.5
9202CP3056LD56-3000°K - CRI>70dali 2807314424541560-4.5
9202CP3062LD62-3000°K - CRI>70dali 2961815524541560-4.5
9202CP3075LD75-3000°K - CRI>70dali 21188715824541560-4.5
9202CP3092LD92-3000°K - CRI>70dali 21318314324541560-4.5
