art.-9202-mig-1b-t2-me-cp-antracite

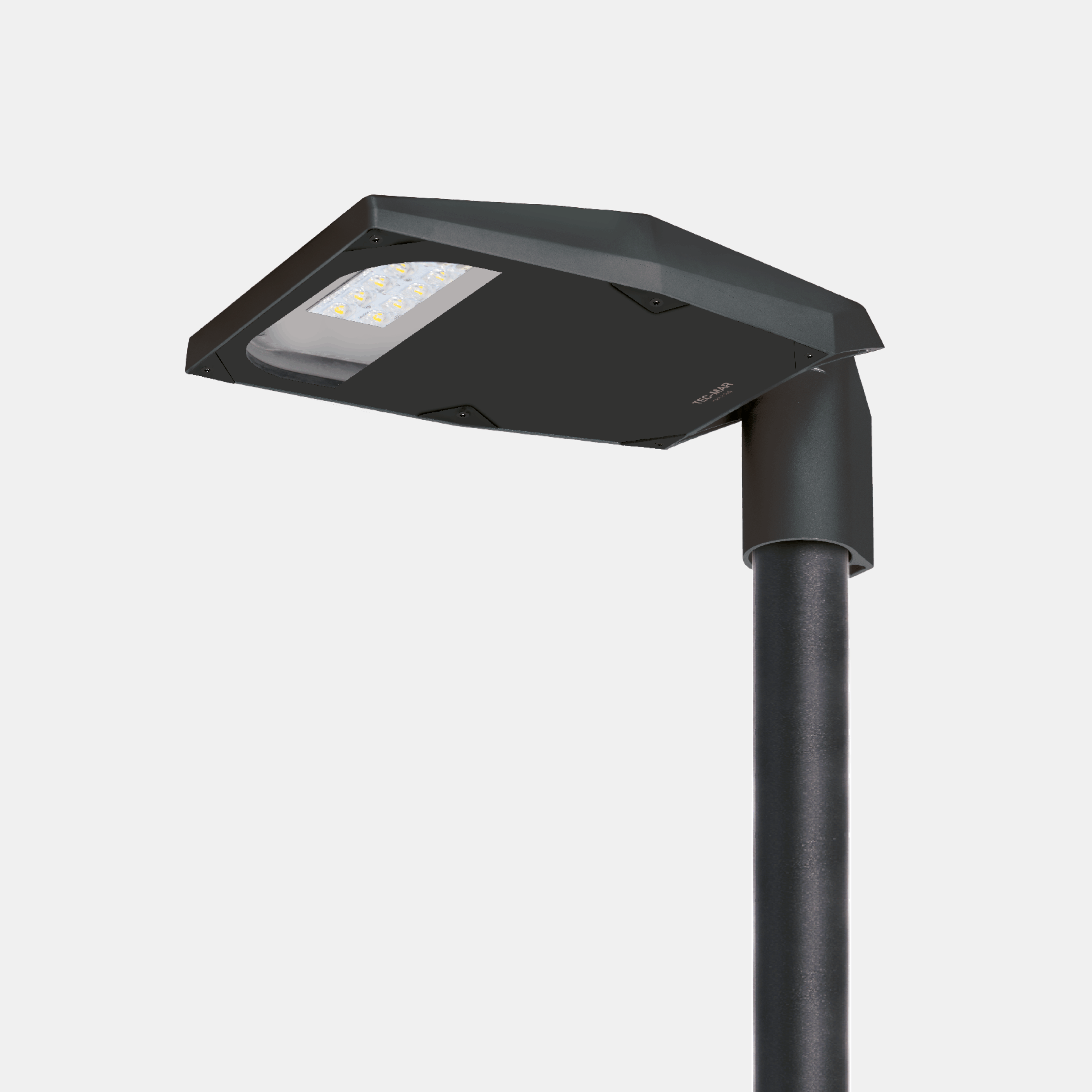

MIG 1B – Mod. ME

(Wide asymmetric street optics Class ME)

LED fixture for lighting of urban, suburban roads, pedestrian paths, suitable for installation on pole head, horizontal arm, half pole (single or double) or wall. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating anthracite color, die-cast aluminum heat sink with fin structure and extra-clear tempered flat glass diffuser 4 mm thick. Die-cast aluminum pole attachment, compatible with poles of ø 60-75 mm, with 0°/+90° adjustment on pole head and -20°/+ 20° on horizontal reach. Asymmetrical wide street optic EN13201 Class ME.
Categories: Led, MIG, MIG 1B - 9202, Street lighting, MIG 1B
Models: 132
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9202ME3= 3000°K (CRI >70)025EL= on/off
4= 4000°K (CRI >70)030LD= dali 2
034MD= virtual midnight
040
050
056
062
075
092
105
120

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
9202ME4025EL25-4000°K - CRI>70on/off382615324541560-4.5
9202ME4030EL30-4000°K - CRI>70on/off459215324541560-4.5
9202ME4034EL34-4000°K - CRI>70on/off509615024541560-4.5
9202ME4040EL40-4000°K - CRI>70on/off600615024541560-4.5
9202ME4050EL50-4000°K - CRI>70on/off748715024541560-4.5
9202ME4056EL56-4000°K - CRI>70on/off815914624541560-4.5
9202ME4062EL62-4000°K - CRI>70on/off971915724541560-4.5
9202ME4075EL75-4000°K - CRI>70on/off1201316024541560-4.5
9202ME4092EL92-4000°K - CRI>70on/off1332214524541560-4.5
9202ME4105EL105-4000°K - CRI>70on/off1478314124541560-4.5
9202ME4120EL120-4000°K - CRI>70on/off1629413624541560-4.5
9202ME4025LD25-4000°K - CRI>70dali 2382615324541560-4.5
9202ME4030LD30-4000°K - CRI>70dali 2459215324541560-4.5
9202ME4034LD34-4000°K - CRI>70dali 2509615024541560-4.5
9202ME4040LD40-4000°K - CRI>70dali 2600615024541560-4.5
9202ME4050LD50-4000°K - CRI>70dali 2748715024541560-4.5
9202ME4056LD56-4000°K - CRI>70dali 2815914624541560-4.5
9202ME4062LD62-4000°K - CRI>70dali 2971915724541560-4.5
9202ME4075LD75-4000°K - CRI>70dali 21201316024541560-4.5
9202ME4092LD92-4000°K - CRI>70dali 21332214524541560-4.5

Accessories
